Position:Home>Product>Computer Case - M-ATX Motherboard Series

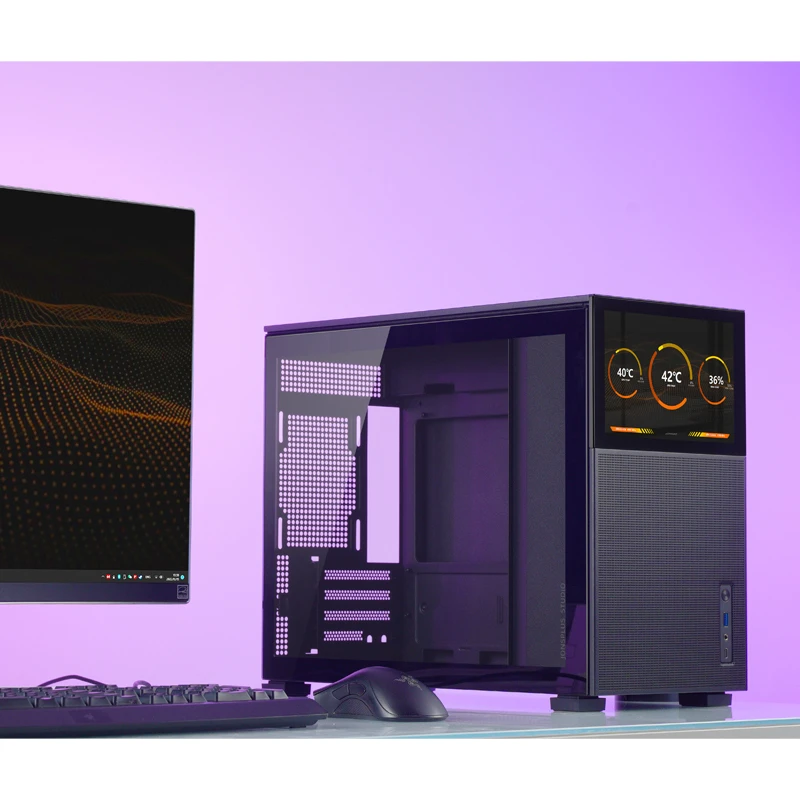

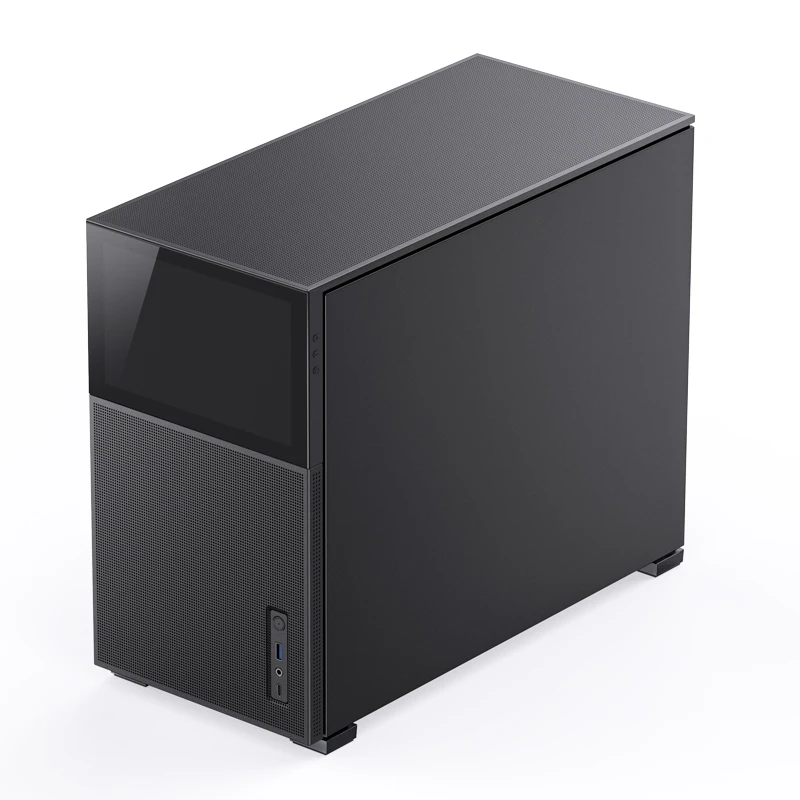

D31 MESH SCREEN Black


     Screen display spec:

Dimension:24.6mm(W) * 131.7mm(H) * 205.3mm(L)

Display size:8〞 Color TFT-LCD                               Colors:16.7M                                       Resolution:1280*800

Response Time:30ms(Typ.)                                    Brightness:300cd/m2(Typ.)                   Contrast Ratio:1000(Typ.)

I/O:MINI-HDMI*1(Video Signal)   TYPE-C*1             Refresh Rate(max.):60Hz                      Working Temperture:0-50


     Product Specification:

Model:D31 MESH SCREEN Black

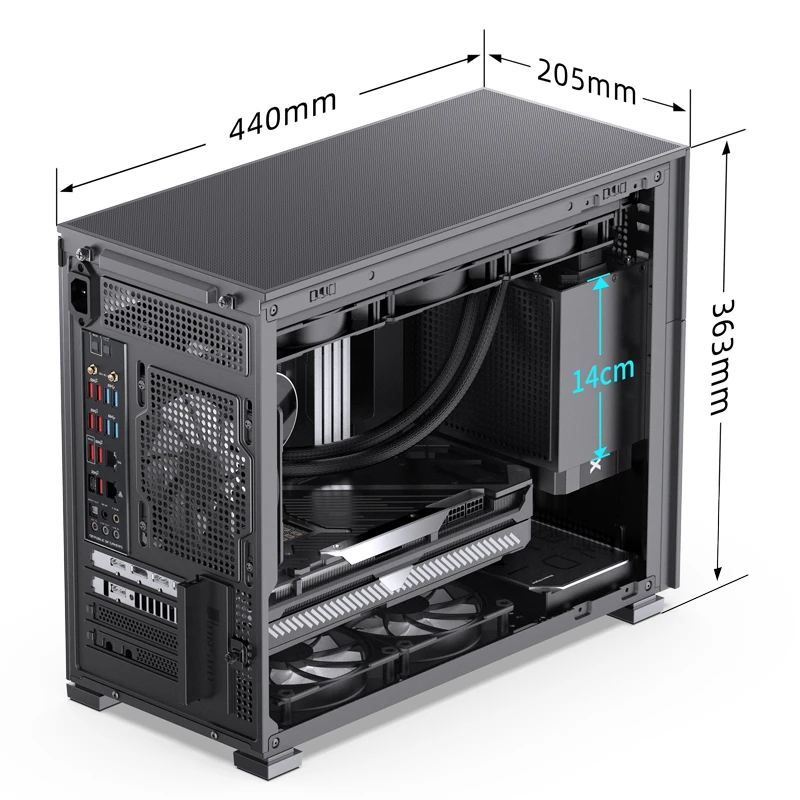

Dimension: 205mm (W) * 347.5mm(H) *440mm(D) (Vol: 31.3L)

                *Depth does not include the PCI brackets outside the chassis, height does not include case stand

                 205mm (W) * 363mm(H) * 452mm(D) (overall size)

Material:0.6mm+0.7mm steel panel

Drive Bay:2.5〞SSD*2+3.5〞HDD*1

Motherboard:ITX / DTX / M-ATX

PCI expansion slots:4

Front I/O:USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1

Power supply support:ATX

CPU cooler support:168mm

Graphics card support:330-400mm

Fan mounting position:Top 120mm*3 or 140mm*2          Rear 120*1mm           Bottom 120mm*3 or 140mm*2           Front 120mm*1

Radiator support: Top 240/280/360*1                            Rear 120*1                 Bottom 240/360*1

Weight: Net 6.4KG
