UMX4 Silver (RGB Version)

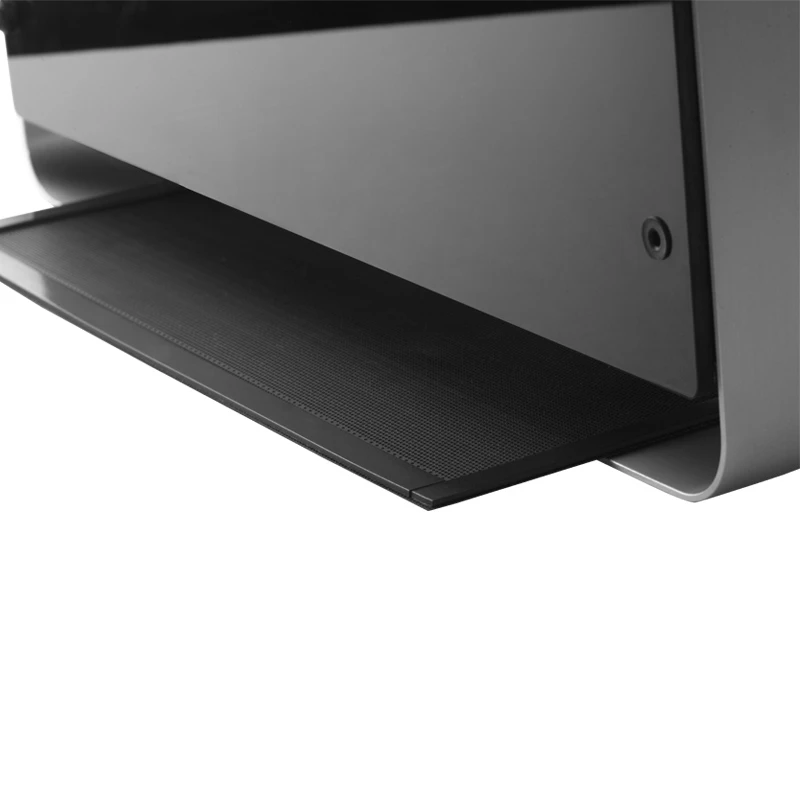

UMX4 series are fully made from aluminum magnesium Alloy, with Jonsbo team's accumulated experience of wiredrawing anode surface processing craft from many years, the design style goes on with the sense of simplicity, simple streamline and strong metallic.By using outer aluminum and inner steel with innovative structural joining technology, it perfectly fuse the strong structure and good appearance of the product. Hidden cooling channels on the bottom show you the charm of endlessly innovative industrial design.

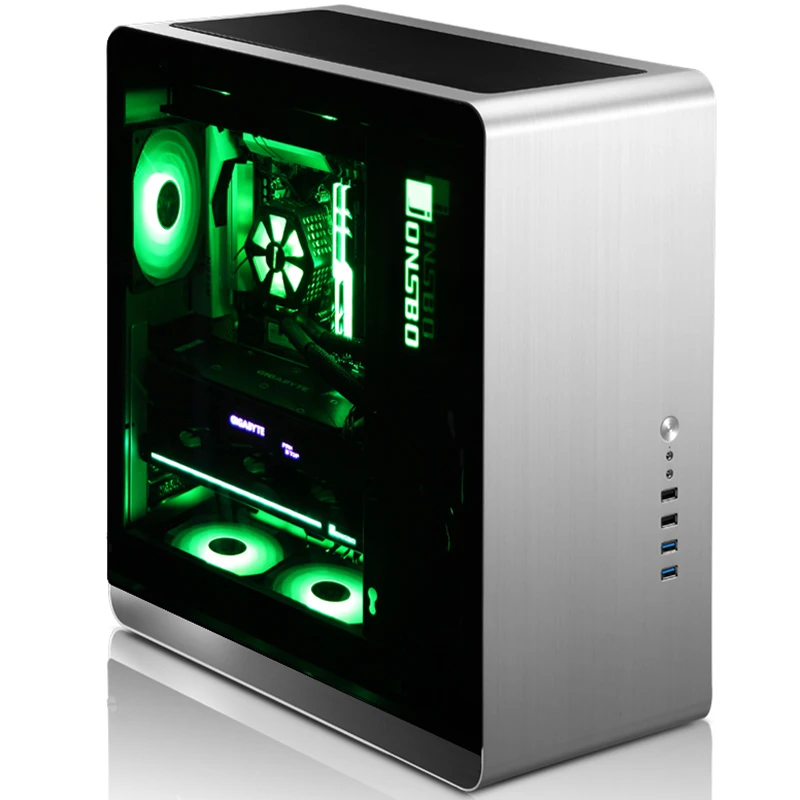

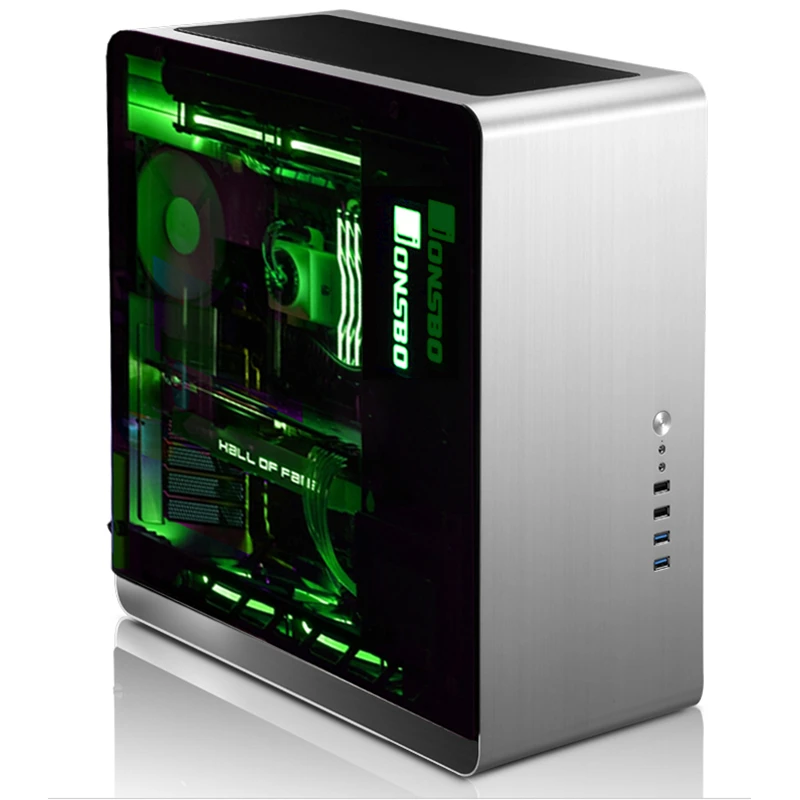

In the end of 2015, fully tempered glass used in automobile industry is used for making the transparent side panel of UMX series cases. In addition to provide wide-angle display for illuminated hardware, fully tempered glass brings an unexpected solution for isolating noise and resonance.

Model:UMX4 (RGB version)
Color:Silver

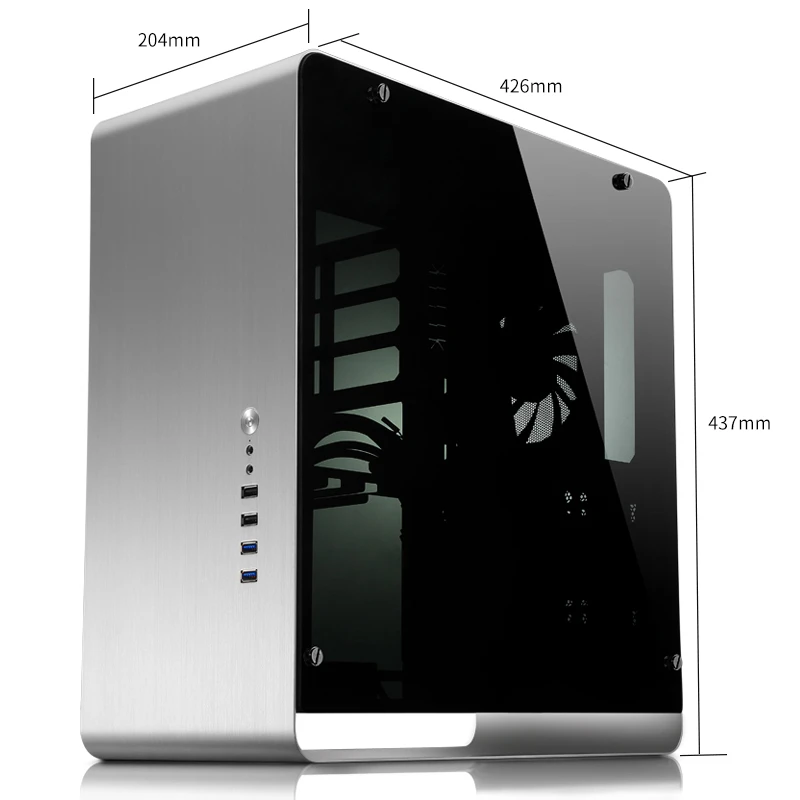

Dimension:204MM (W) * 426MM (D) * 437MM (H)
Material:Body: Built with 2.0mm Aluminium alloy;Internal Structure: 1.0 mm SGCC steel; The side panel:made from 5mm tempered glass or 2mm aluminum plate
Motherboard:ATX,M-ATX,ITX
Drive  Bay:2×3.5",4×2.5"

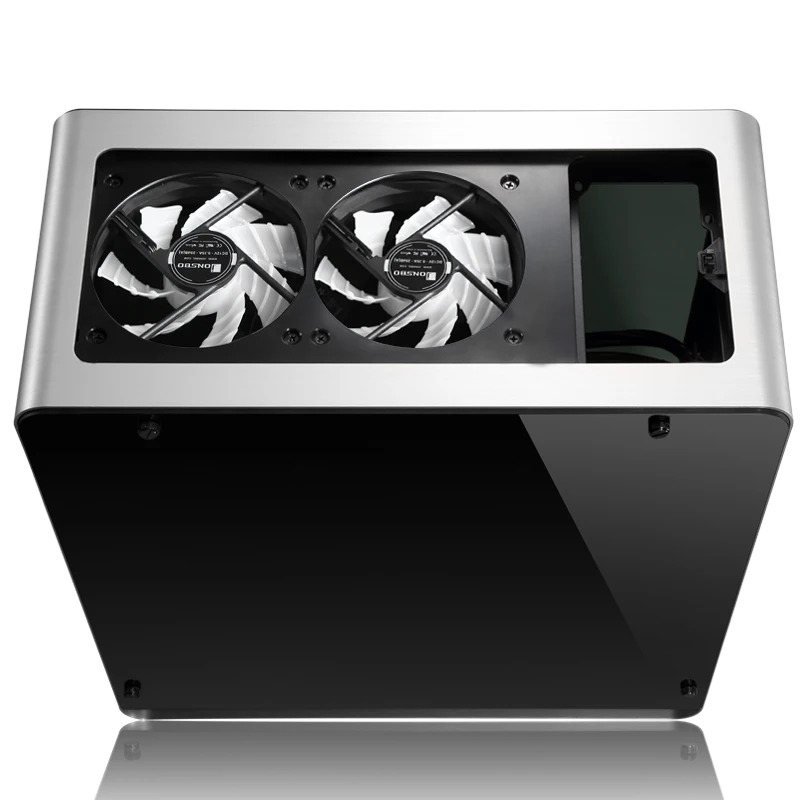

Cooling system:Top: 2×120 mm rgb fan (built-in); Back: 1×120 mm rgb fan(built-in);Bottom: 2×120mm(Optional)
Lighting Accessories:RGB LED strip (12V  4pin)
Radiator Support: 120 / 240 raditator
Power Supply:PSII (Modular or non-modular PSU which is shorter than 190mm)
CPU Cooler:Not higher than 162 mm
Display Card:Not longer than 310 mm

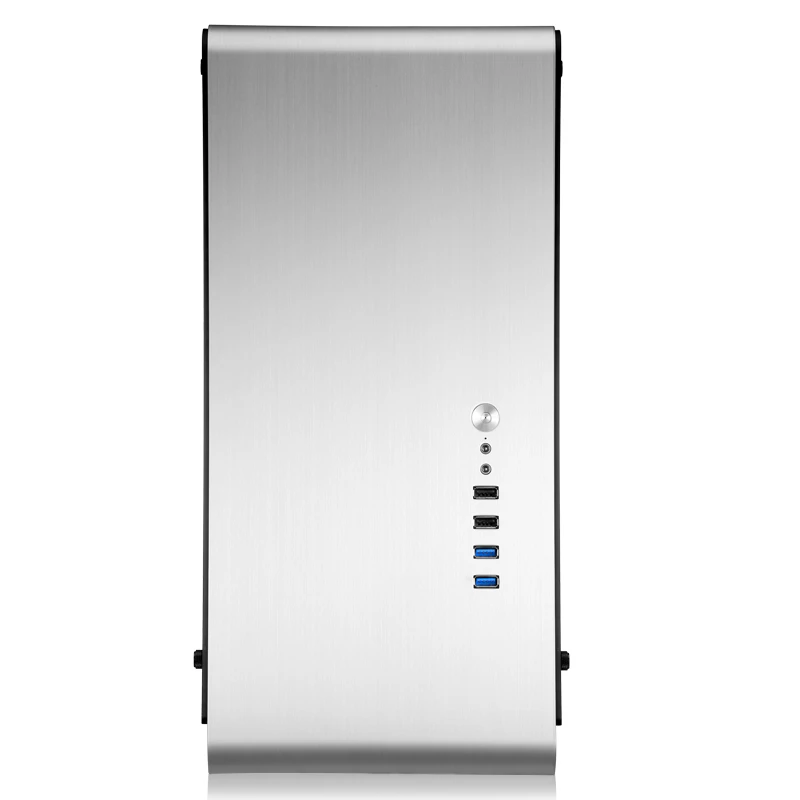

Front I/O Port:USB 3.0×2,USB 2.0×2,Audio×1,MIC ×1
Expansion Slot:7
Weight:Net 9.3kg/Gross 11.7kg
