TR03-G Black

Model:TR03-G
Dimension:

238MM(W)×673MM(D)×595MM(H)

Material:

structure 1.0+0.8mm steel plate;



4MM Aluminum 4MM Tempered Glass Plate

Drive Bay:

2.5SSD*3+3.5HDD*3 or 2.5SSD*5


Motherboard: ITX/M-ATX/ATX
PCI Expansion Slot:7

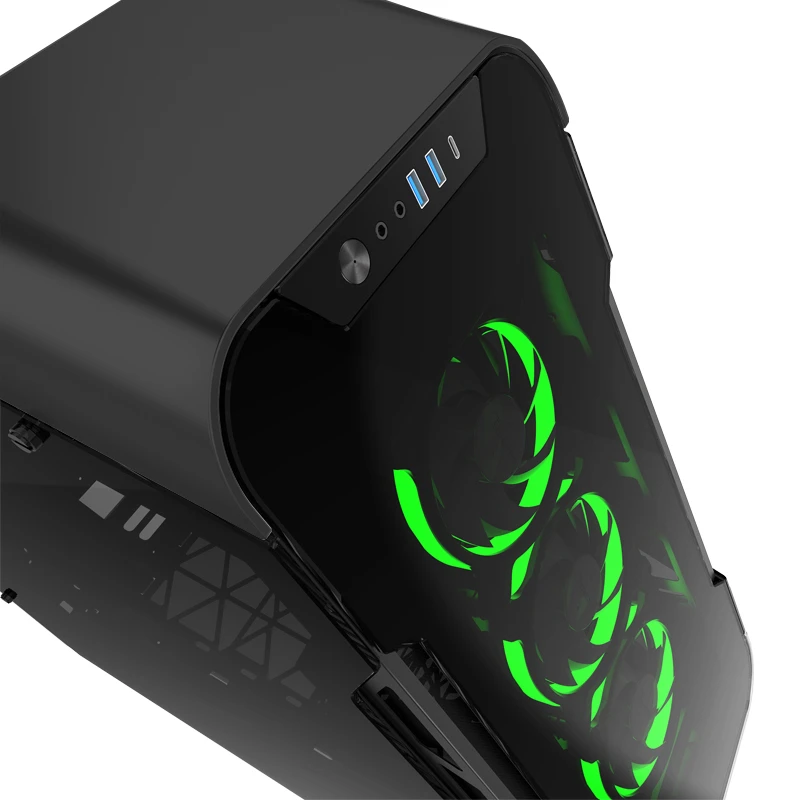

Front I/O Port:USB3.0 x 2 / Type C x 1 / Audio x 1/ Mic x 1
Power Supply: Standard ATX PS2(Not longer than 185MM)
CPU Cooler:Not higher than 175MM
Display Card:Not longer than 460MM

Cooling System: Front: 3 x 120mm (optional)    Bottom: 2 x 120mm (optional)     Rear: 1 x 120mm (optional)

                          Middle: 2 x 120mm (optional)    Top: 1 x 120 mm (non RGB fan included)     Front bottom: 1 x 120mm (non RGB fan included)

Liquid Cooler: 360/280/240/120

Weight:Net 15KG
