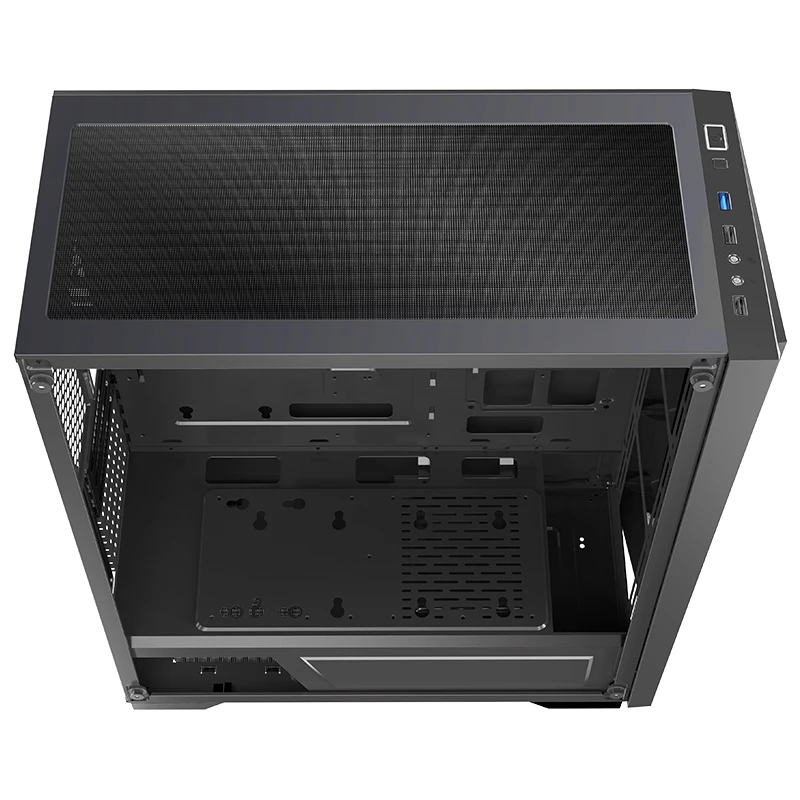

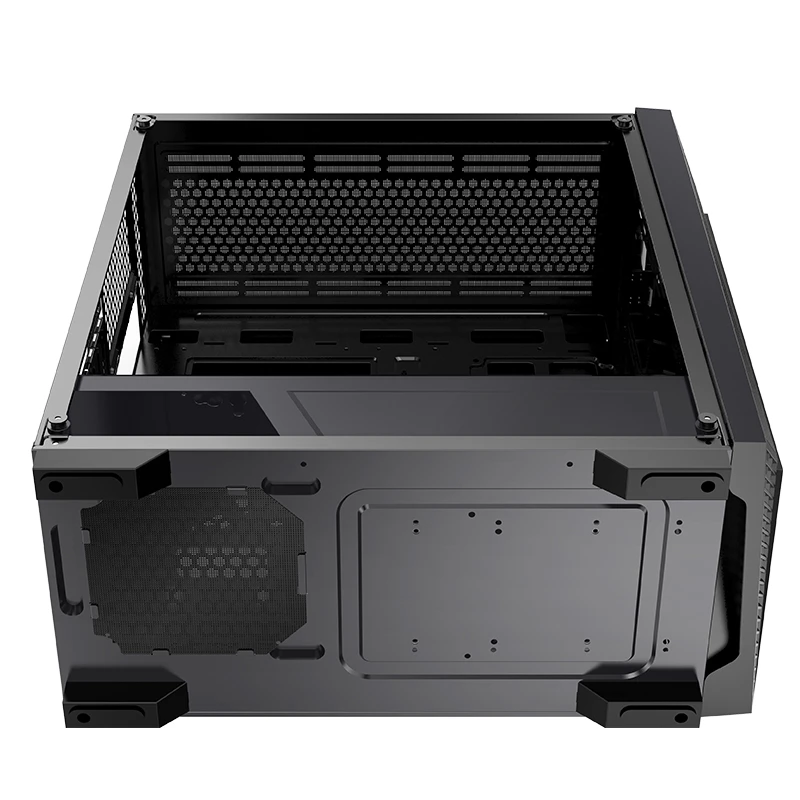

T03

Mode：T03
Color：Black
Dimension：466.5MM (W) *223.2MM (D)* 492MM (H)
Material：Top plate, Back plate, Right side plate,Base plate,Fan rack 0.60mm; Other parts 0.50mm
Motherboard： E-ATX / ATX / Micro-ATX / MINI-ITX
Drive Bays：3*2.5〞, 1*3.5〞, 2*2.5〞
Cooling System：Top：3*120/2*140MM（Optional）；Back：1*120MM（Optional）；Front：3*120/2*140MM（Optional）；Side panel：2*120MM（Optional)
CPU Cooler：Not higher than 160MM
Dispaly Card：Not higher than 396.4MM
I/O Ports：USB2.0*2 , USB3.0*2 , Audio*1 , MIC*1
Expansion Slot：7个
Power Supply：PSII （Within 225mm）
Weight：6.3KG
