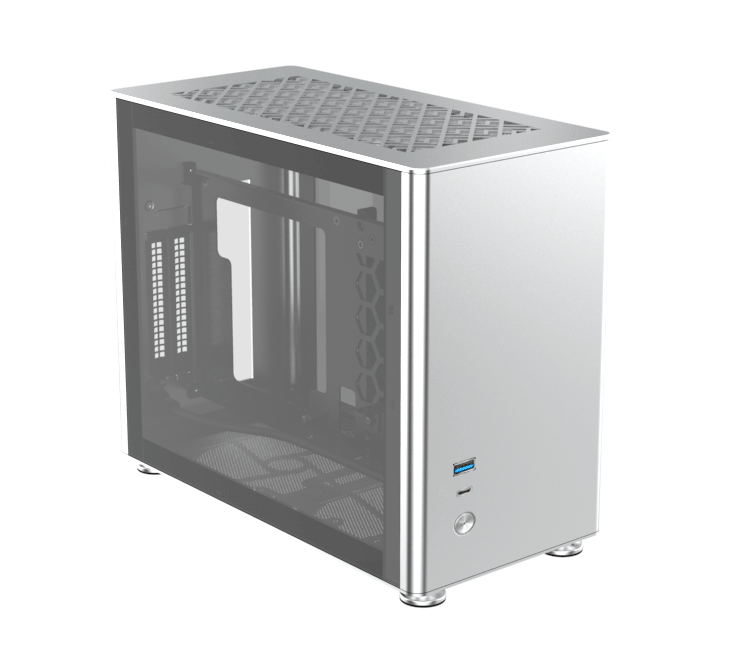

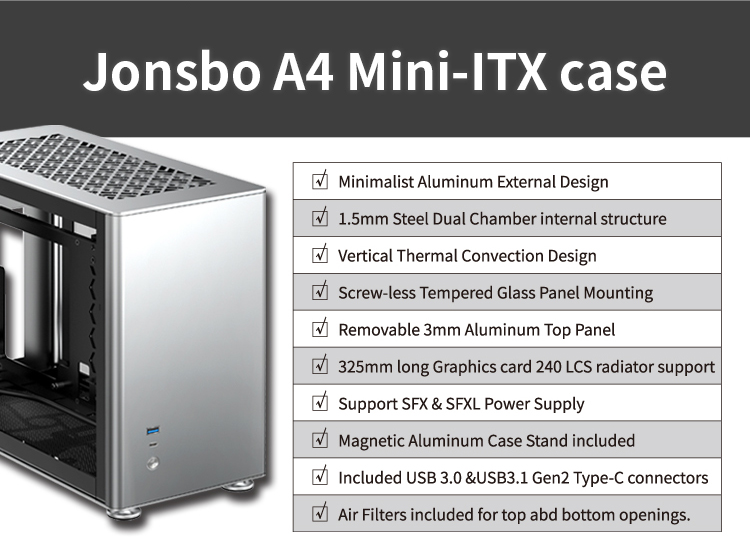

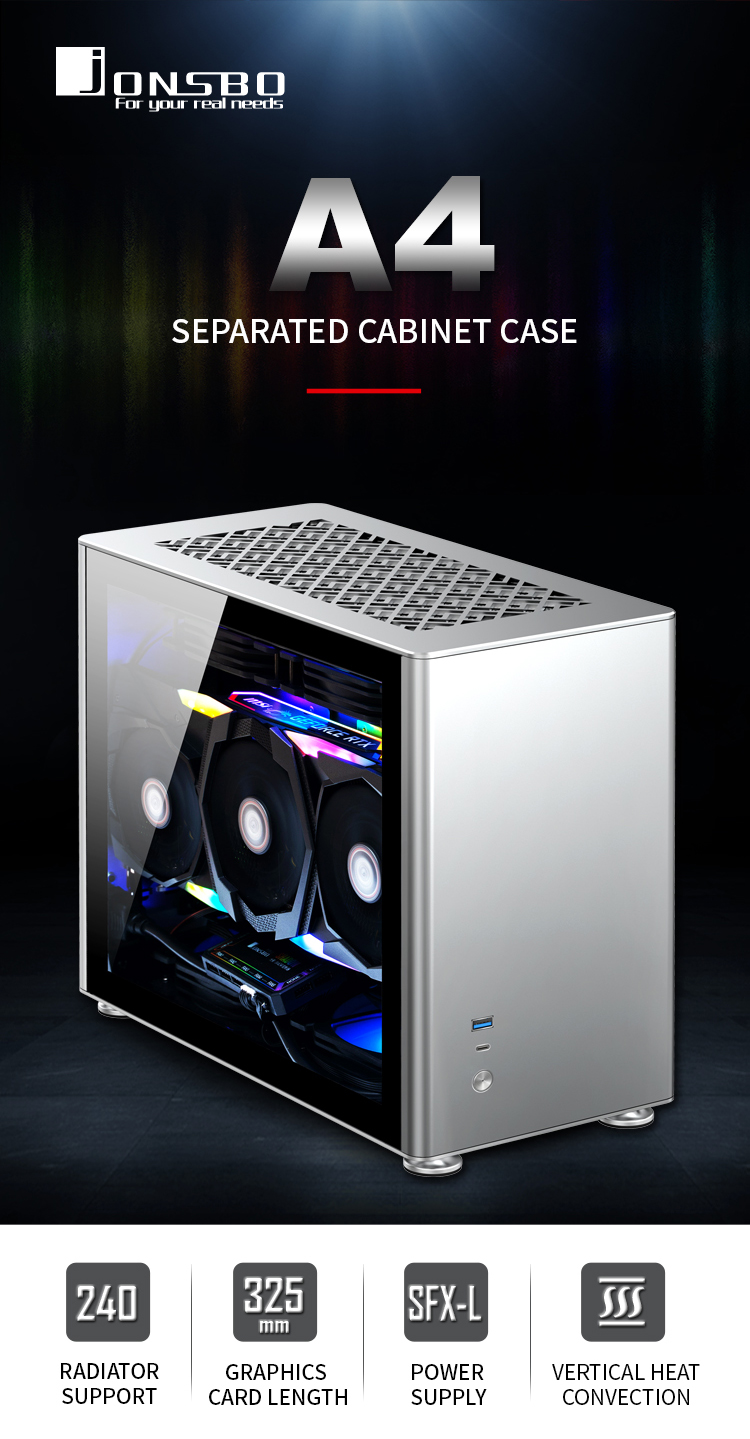

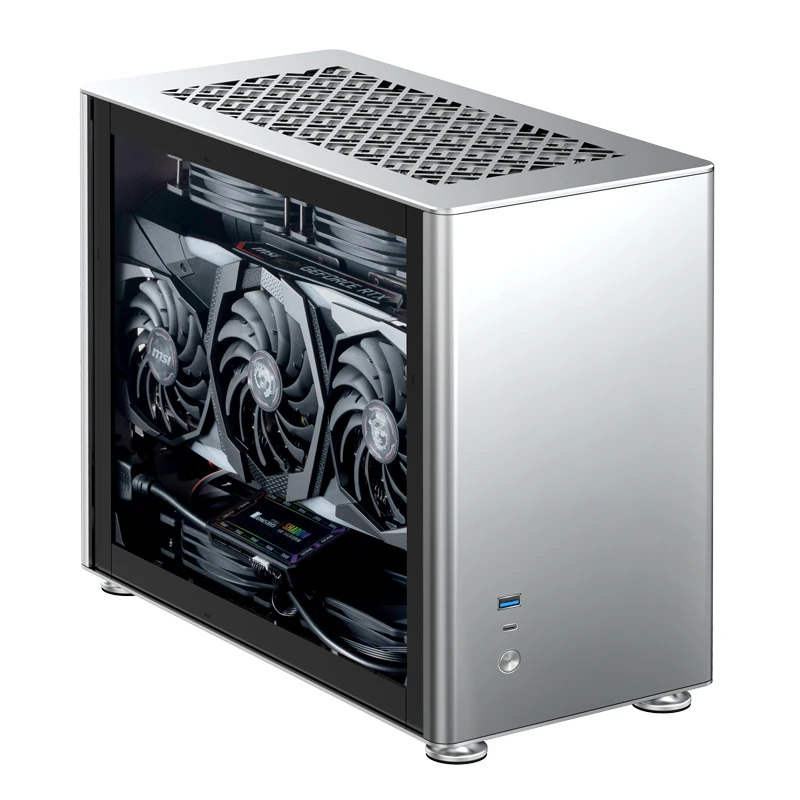

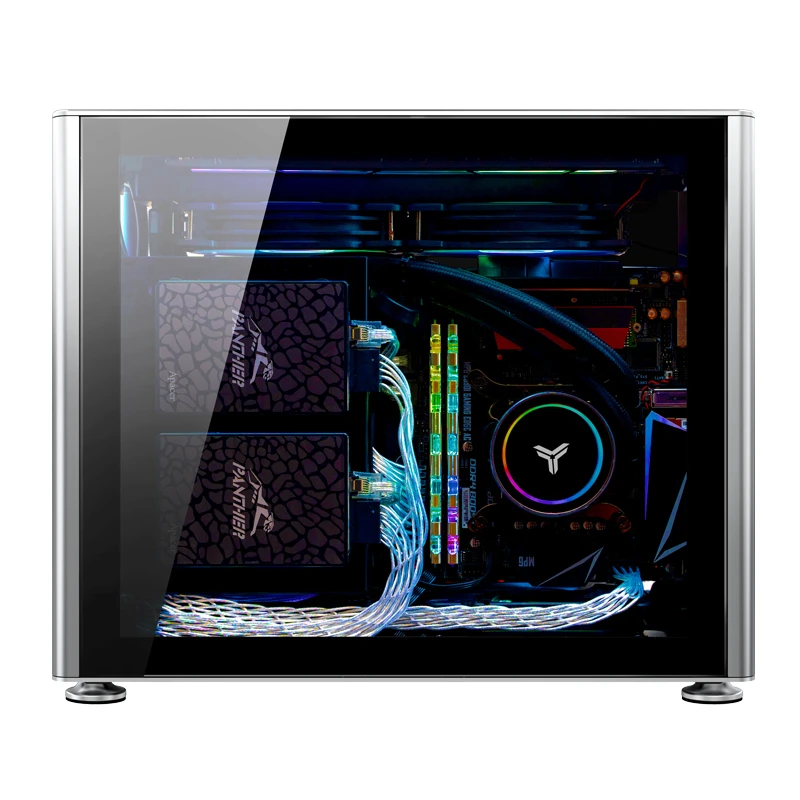

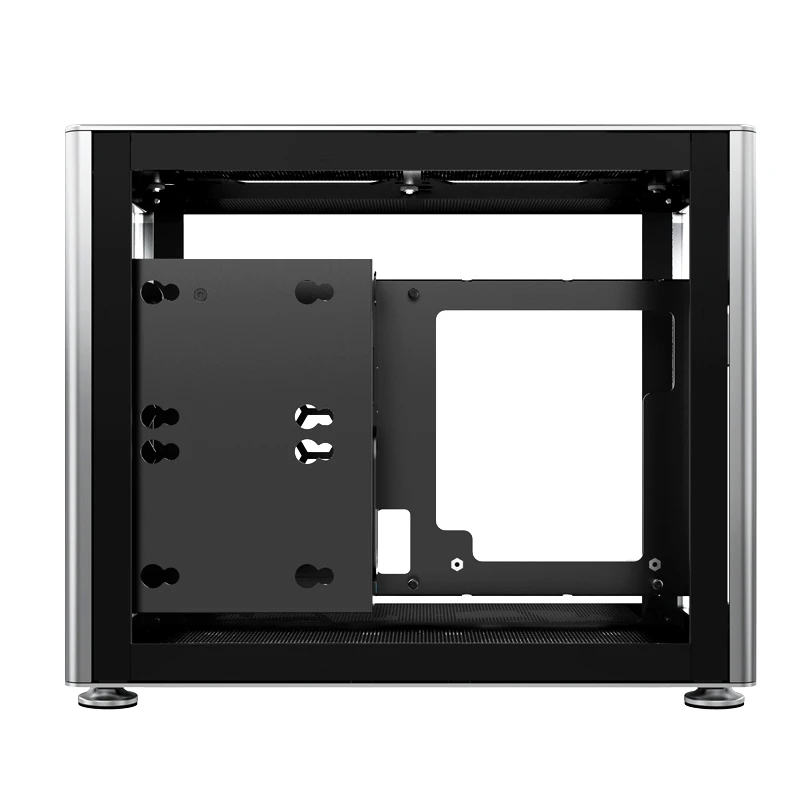

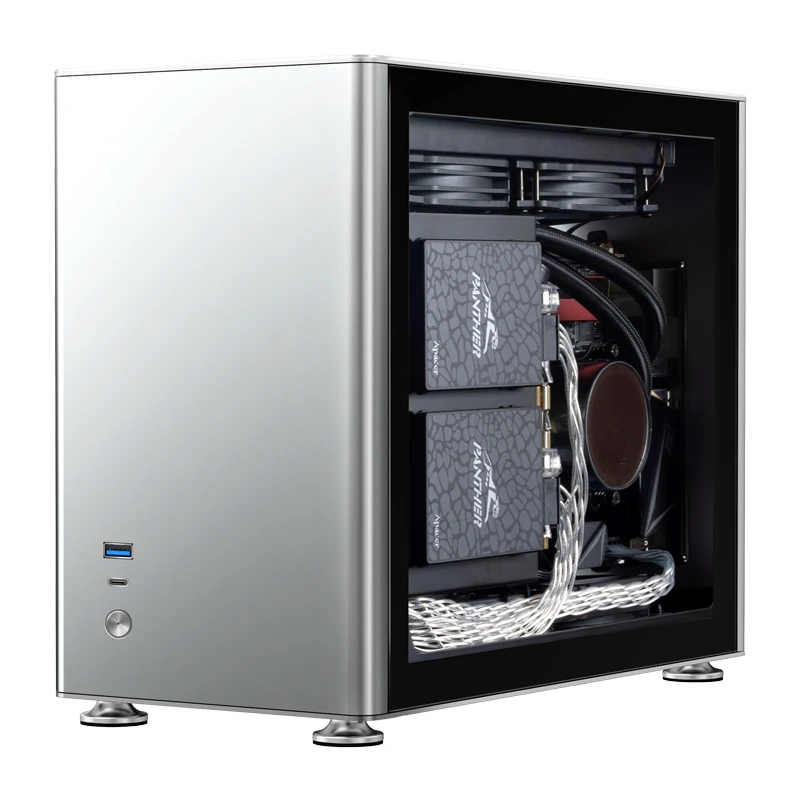

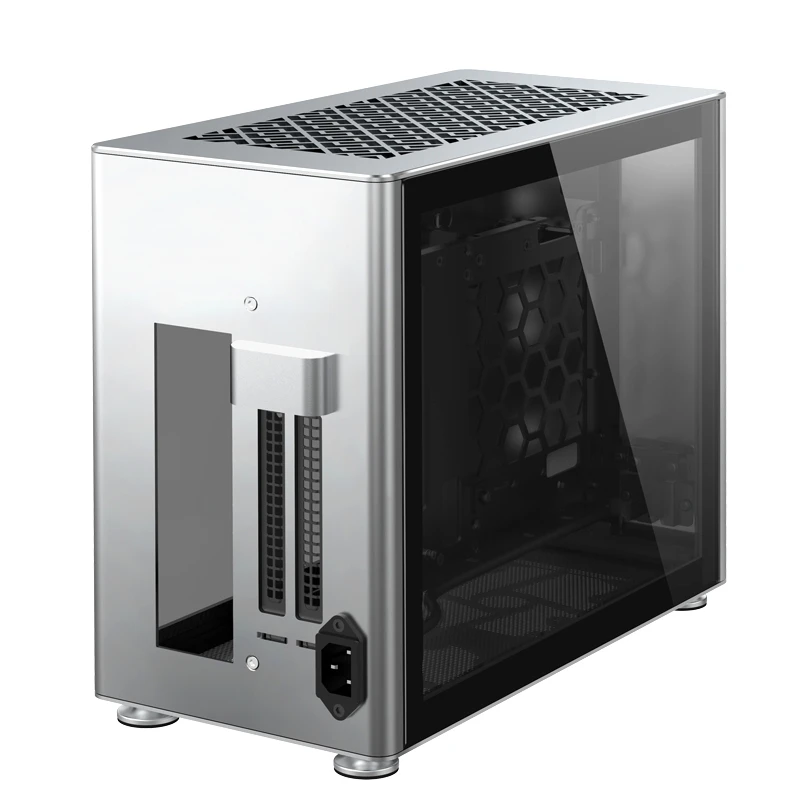

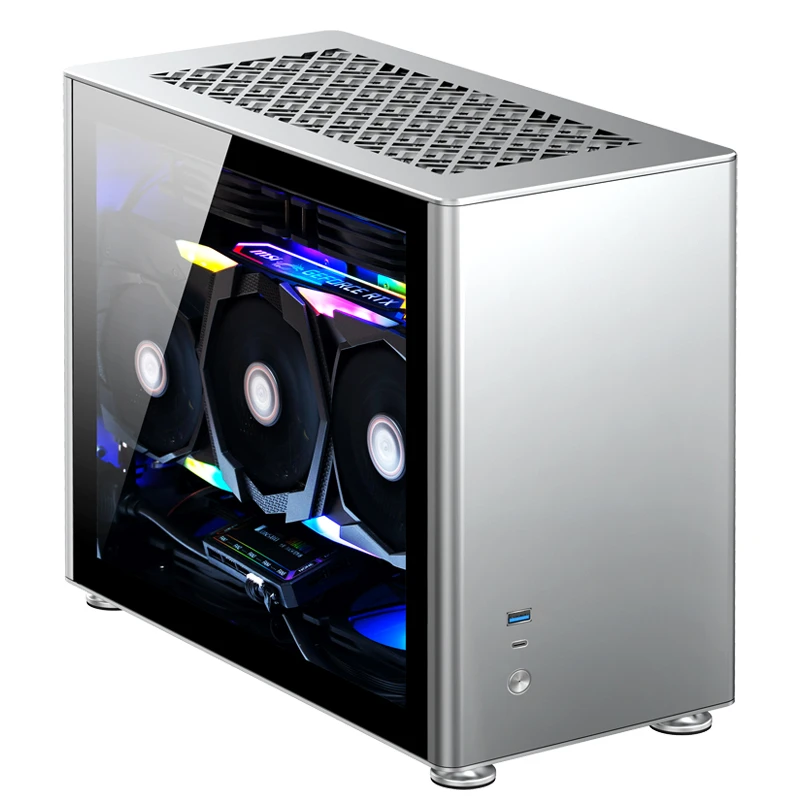

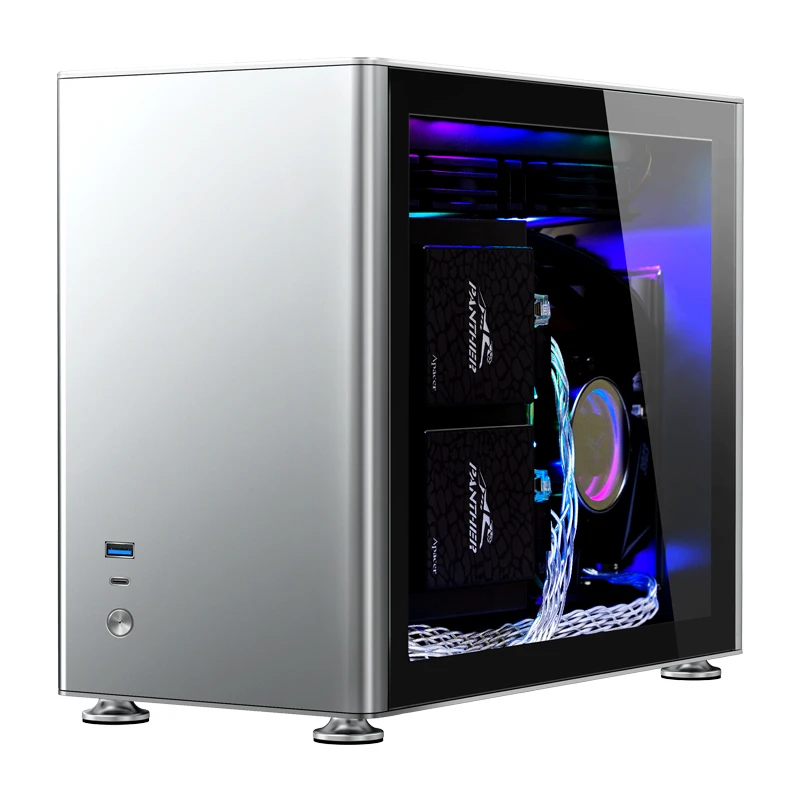

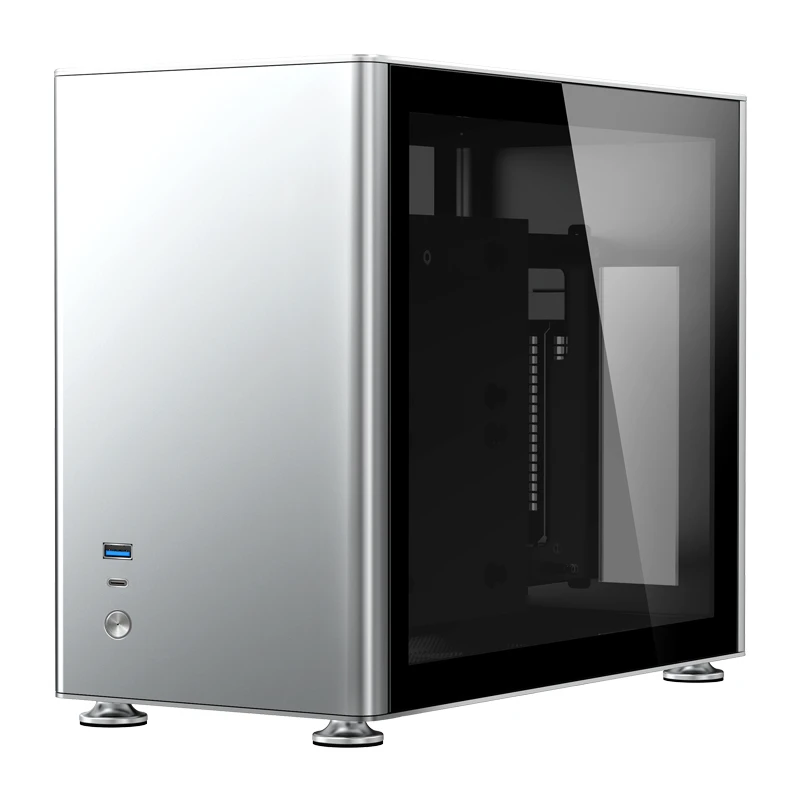

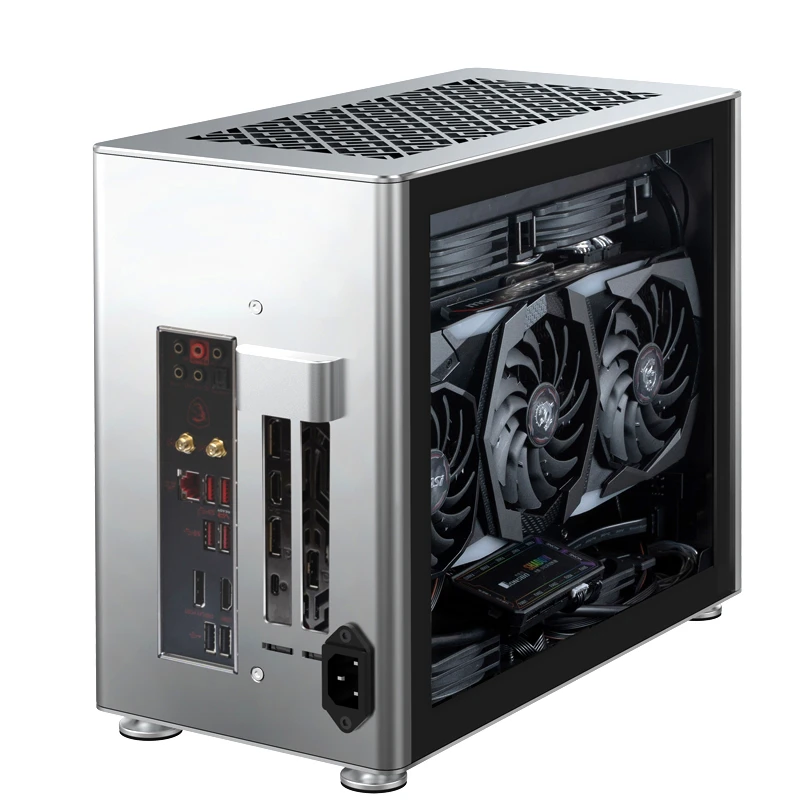

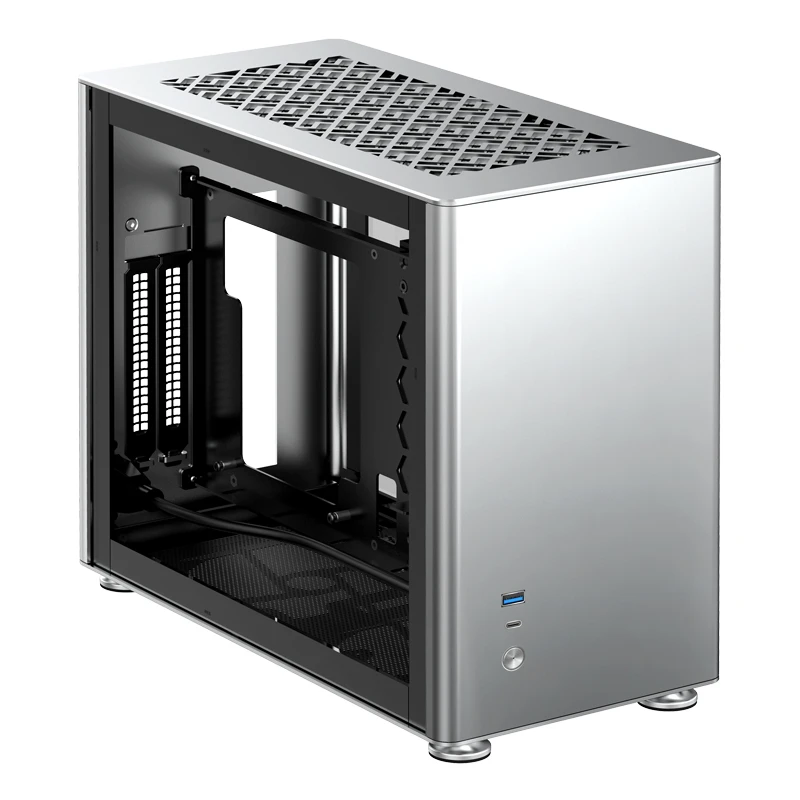

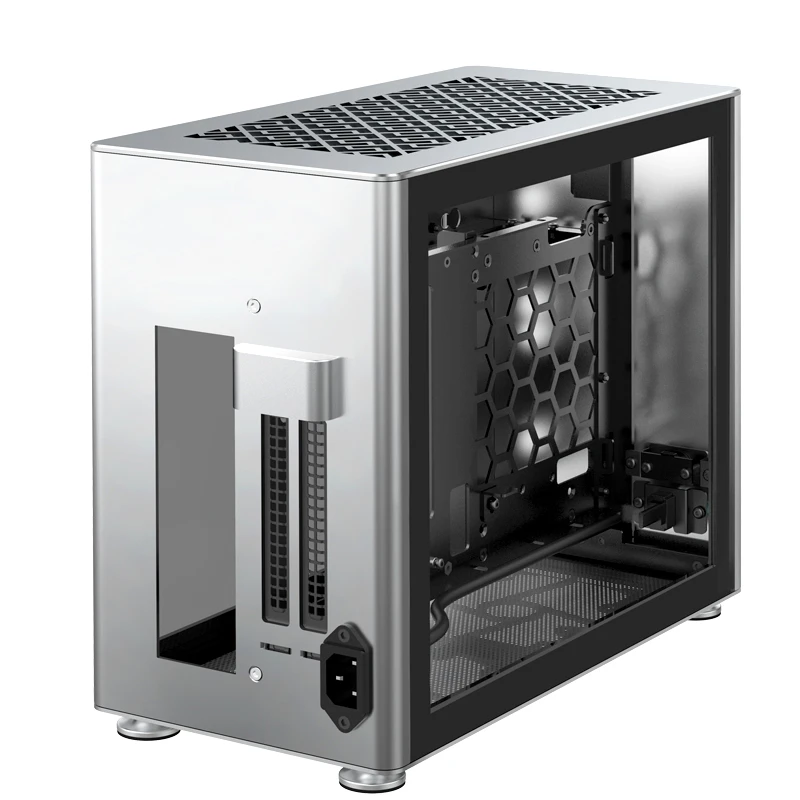

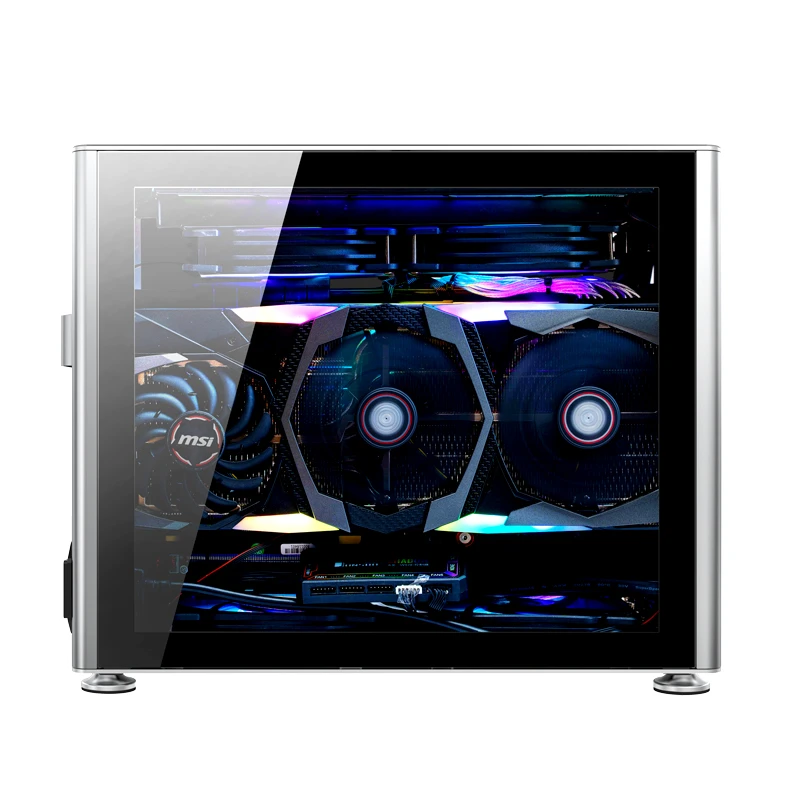

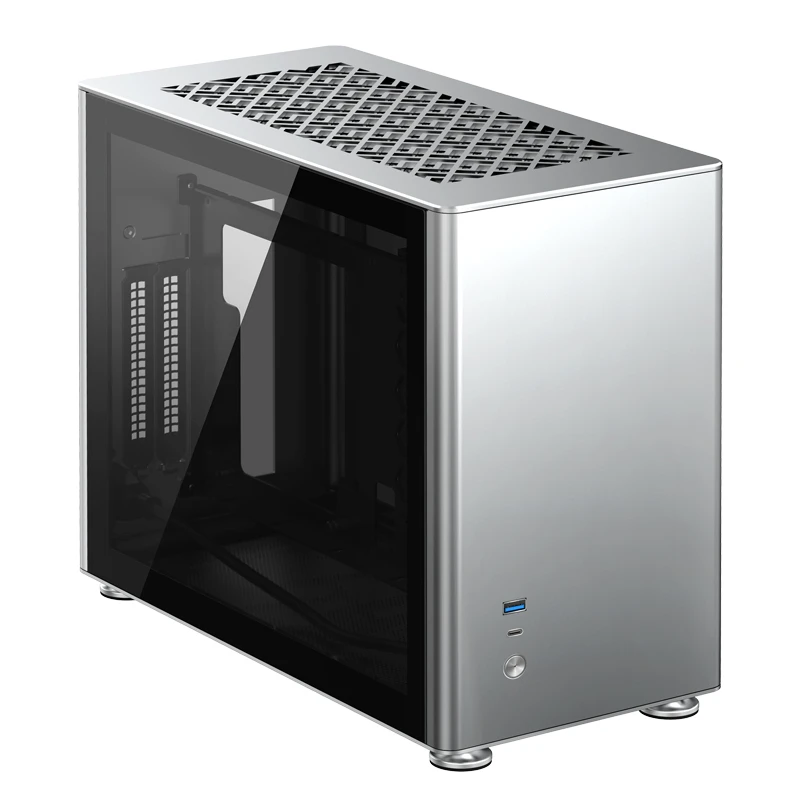

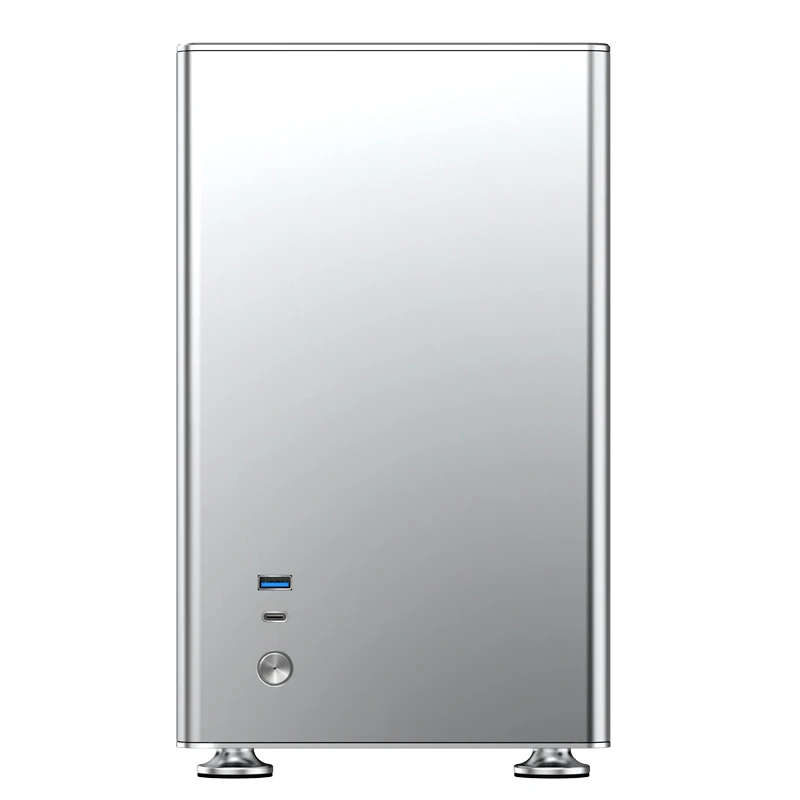

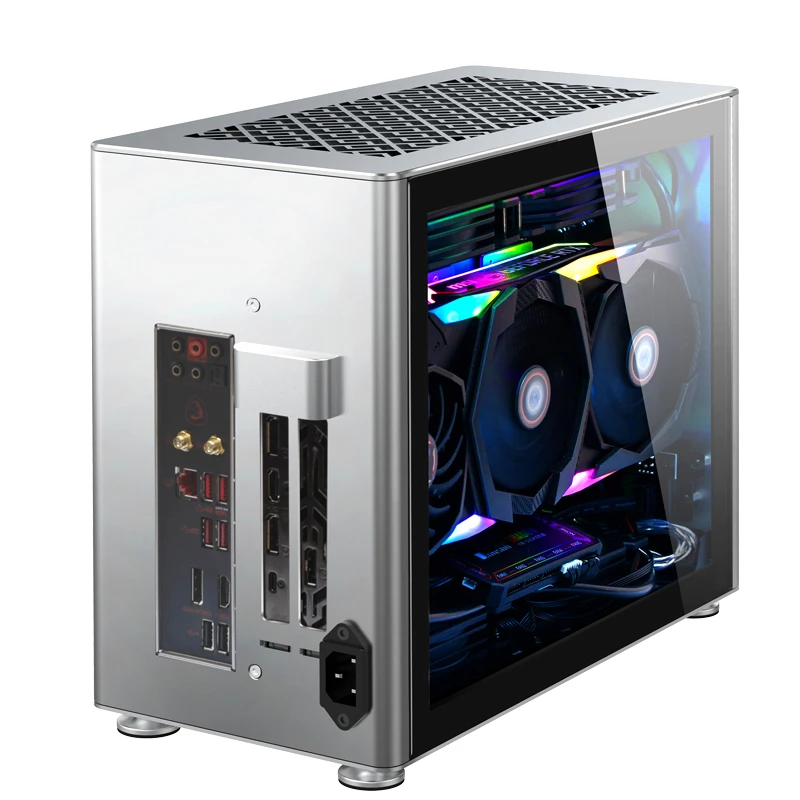

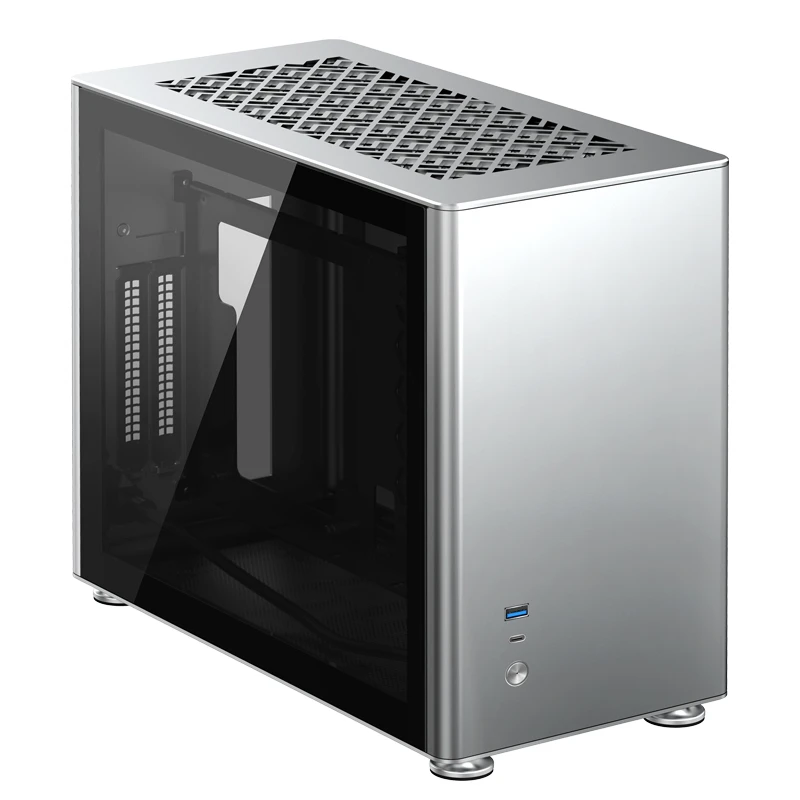

A4 Ver1.1 Silver
Specifications
Gallery
Features
Videos
Reviews
Downloads

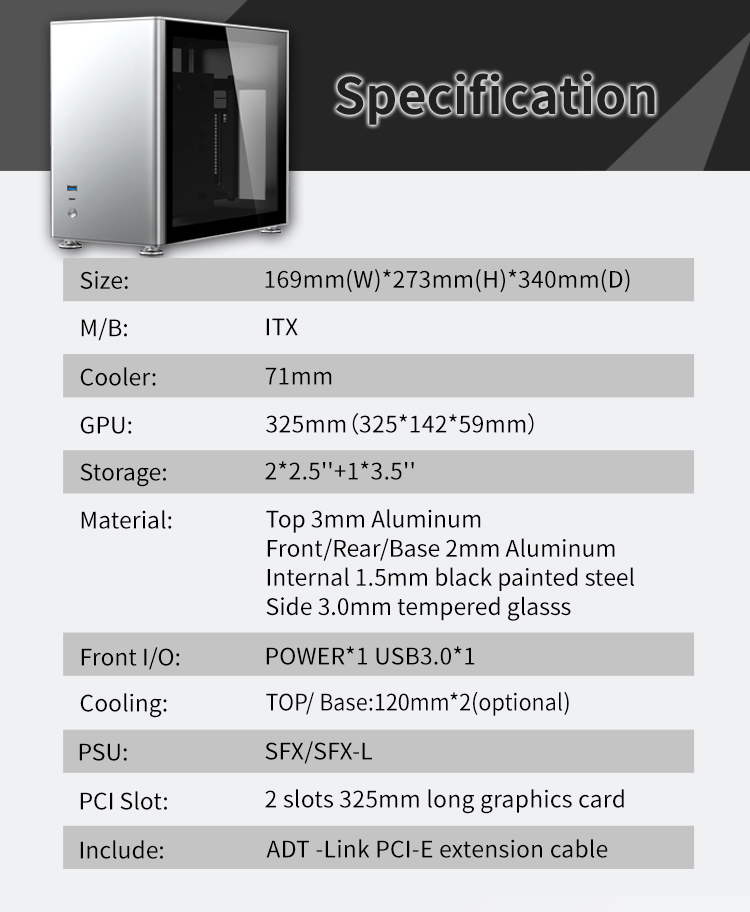

Model:A4 Silver
Color:Silver
Dimension::169mm(W)*273mm(H)*340mm(D)

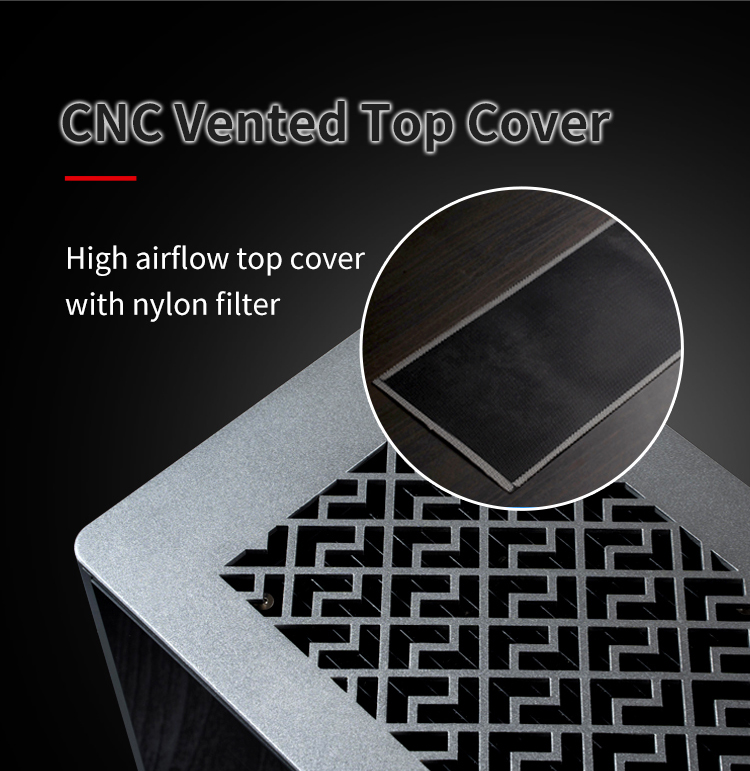

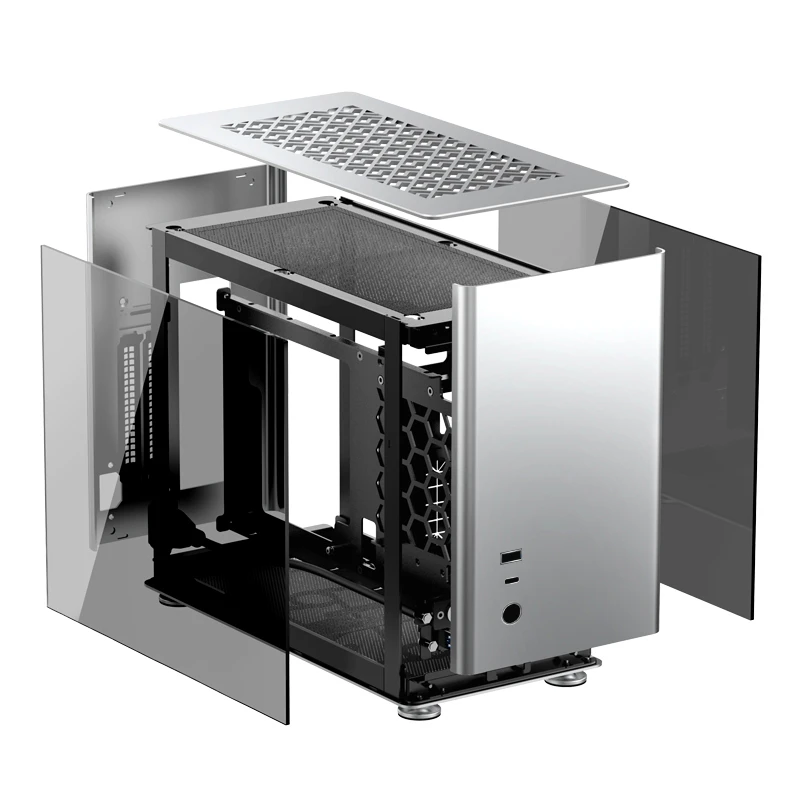

Material:Top plate 3mm aluminum magnesium alloy;
Front plate/back plate/bottom plate 2mm aluminum magnesium alloy;
Hardware 1.5mm all black steel plate;
Side plate 3.00mm all tempered glass;

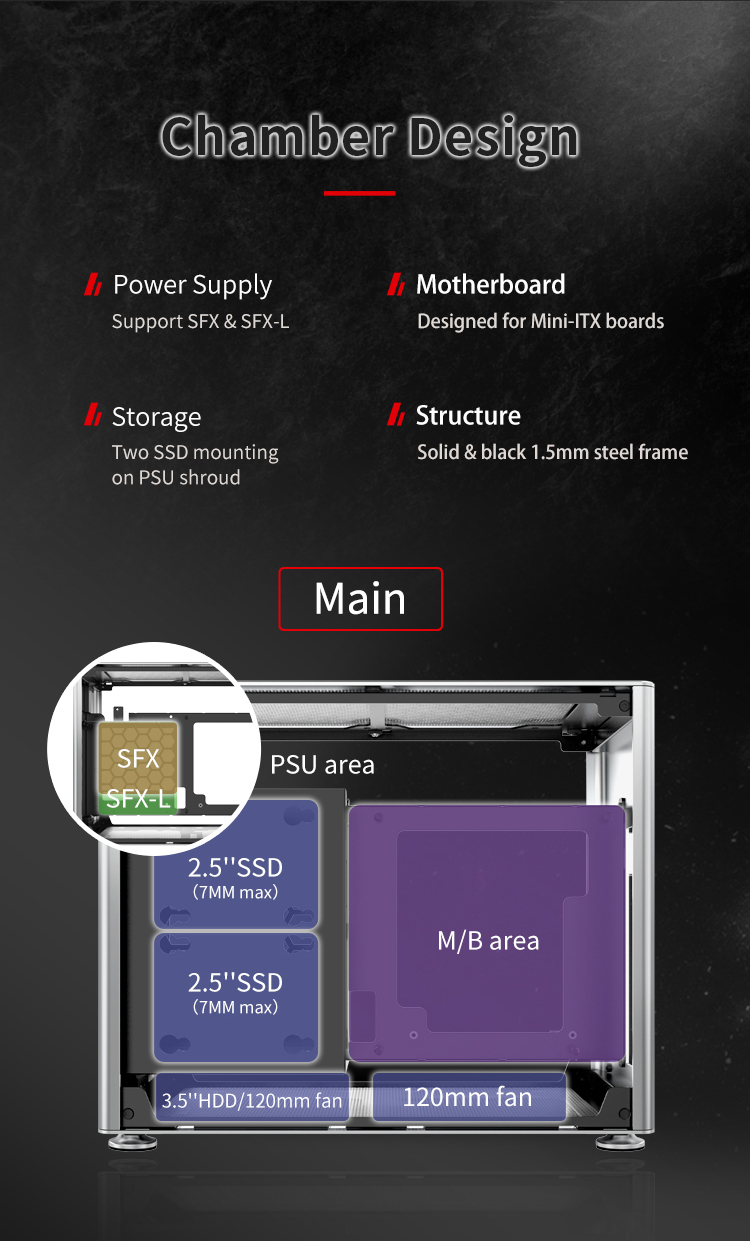

Motherboard: ITX
Drive Bay:2*2.5+1*3.5

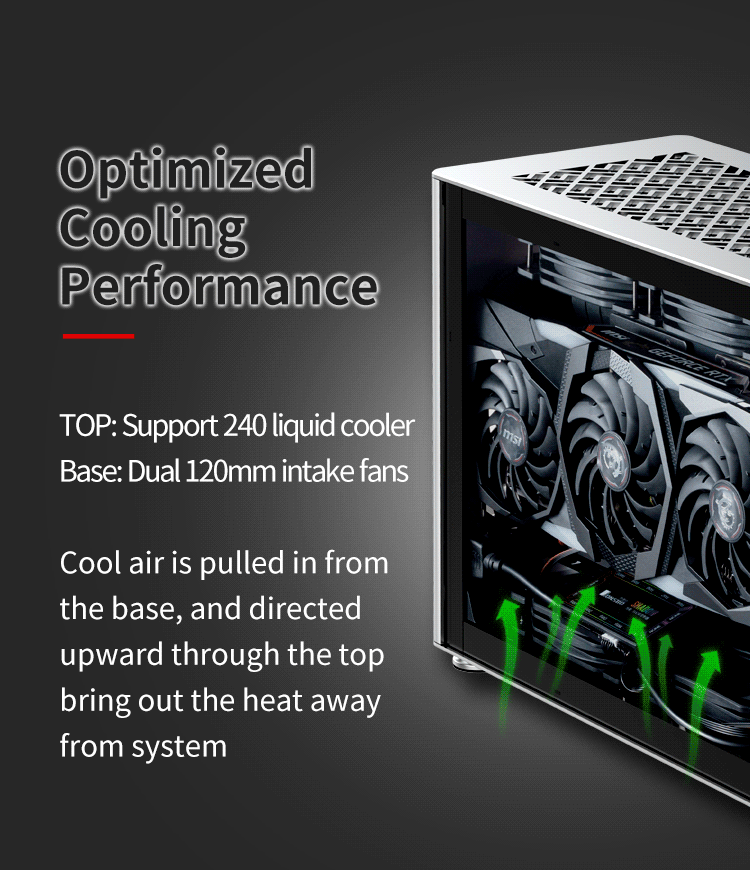

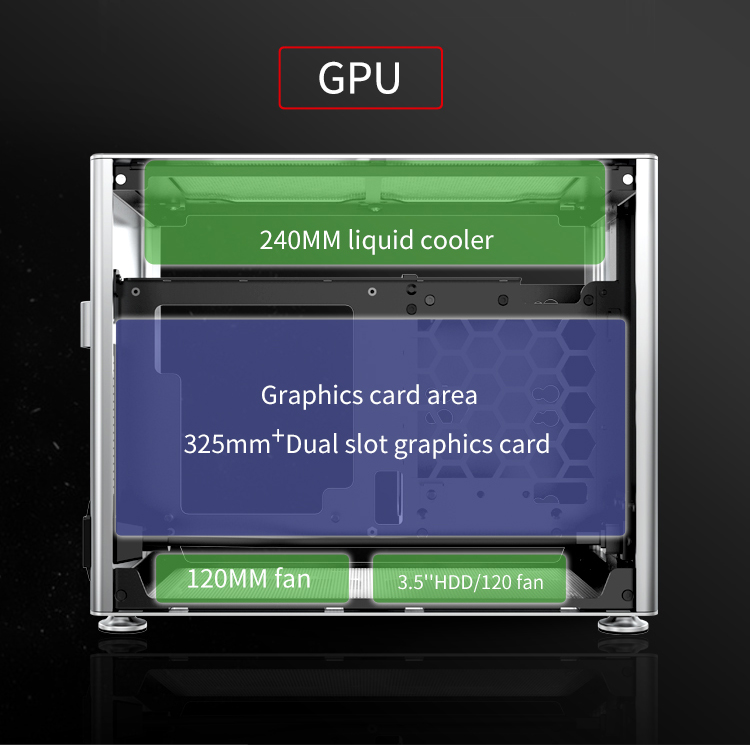

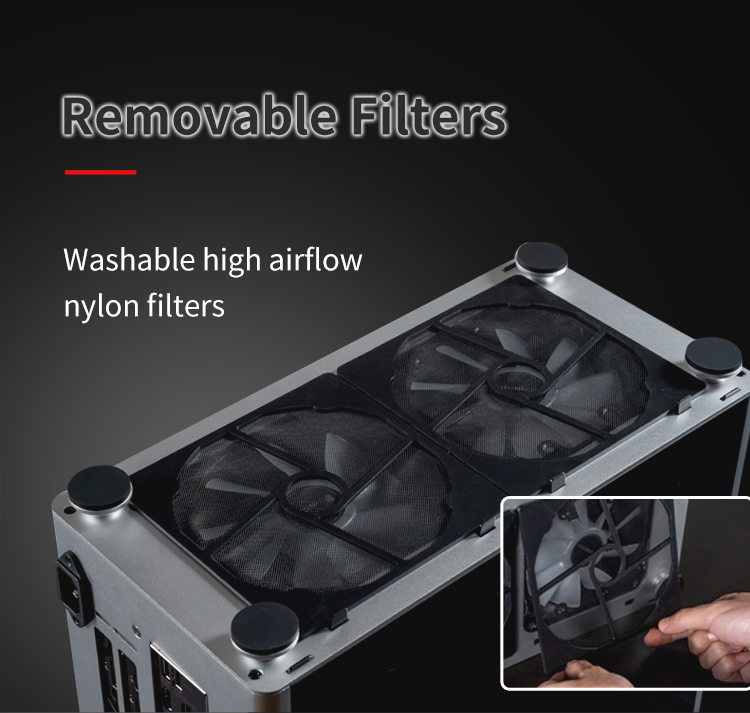

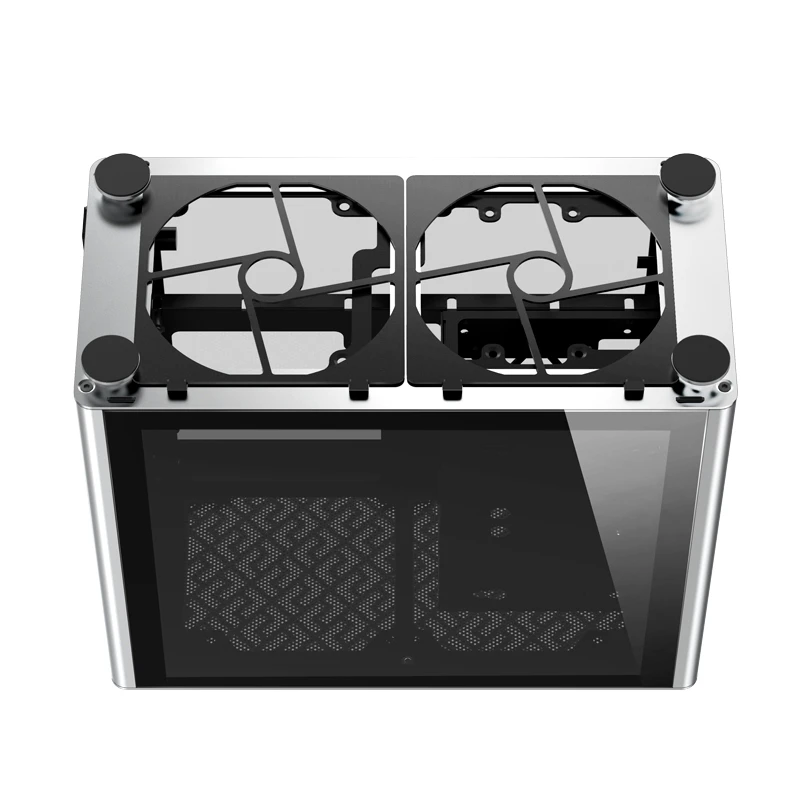

Cooling System:Top: 120mm*2 (optional); Bottom: 120mm*2 (optional)
Max. CPU Cooler Height:71mm
Max. Display Card Length:325mm
Front I/O Port:POWER*1 USB3.0*1
PCI Expansion Slot:2
PSU Support:
SFX/SFX-L
Weight:Net 5.6KG
2019-08-26
A4 Installation Manual
