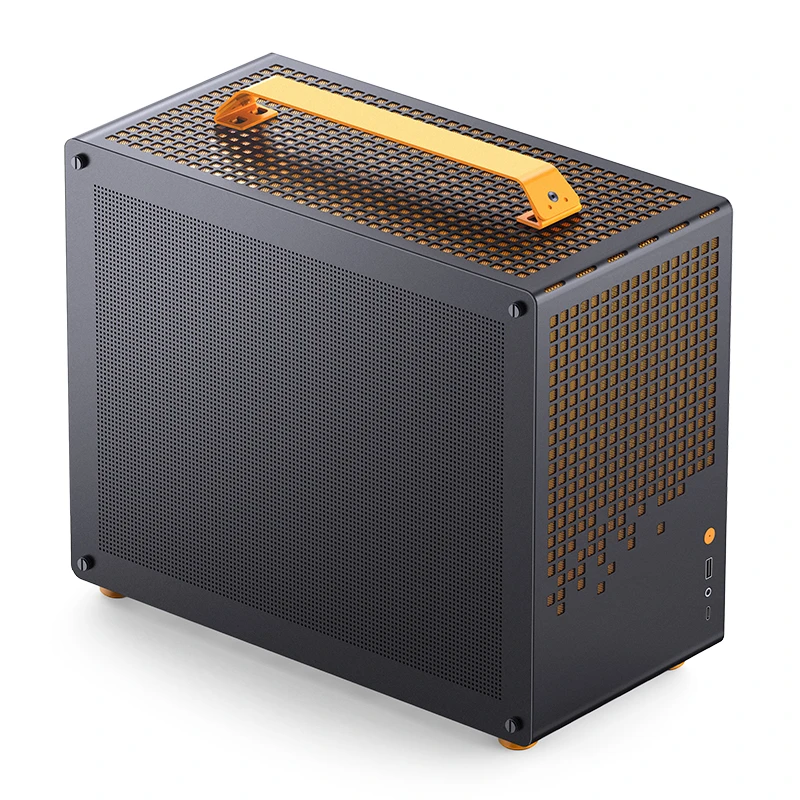

Model：Z20 |
| Color：MESH Orange/Black |
|
Dimension(w/o handle/feet and other protrusions)：370mm * 186mm* 295mm(depth/width/height) |
|
(with handle/feet and other protrusions)：382mm * 198mm* 335mm
(depth/width/height) |
|
Case Material：SPCC Steel，Tempered Glass |
|
Drive Bay： 2.5〞SSD：up to 3,depends on other hardware configurations 3.5〞HDD：up to 1,depends on other hardware configurations |
|
Front IO Port：USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1 |
|
FAN：Top：120mm*2/140mm*2；Rear：120mm*1/92mm*1; Bottom：120mm*2/140mm*2，depends on other hardware configurations |
|
Radiator support：Top，up to 240mm |
|
ATX PS2 PSU Clearance：Up to 180mm, recommended length ≤140mm,depends on other hardware configurations (Refer to page 11)
|
|
CPU Air Cooler Clearance：164mm MAX (Intel CPU) or 163mm MAX (AMD CPU) |
|
GPU Clearance：Up to 363mm，depends on other hardware configurations |
|
Weight：N.W. 5kg / G.W. 6.5kg |
