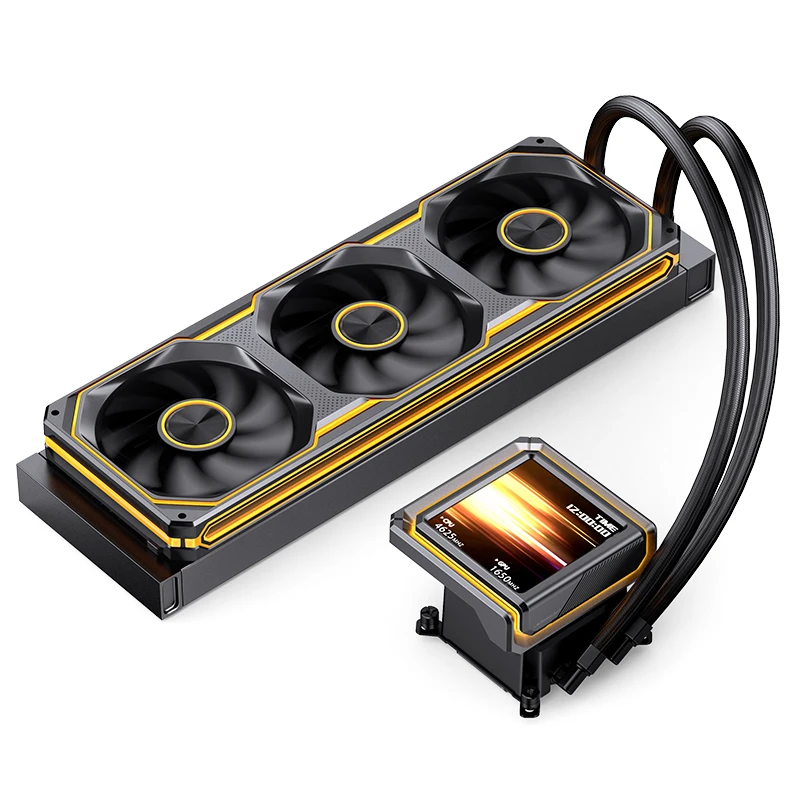

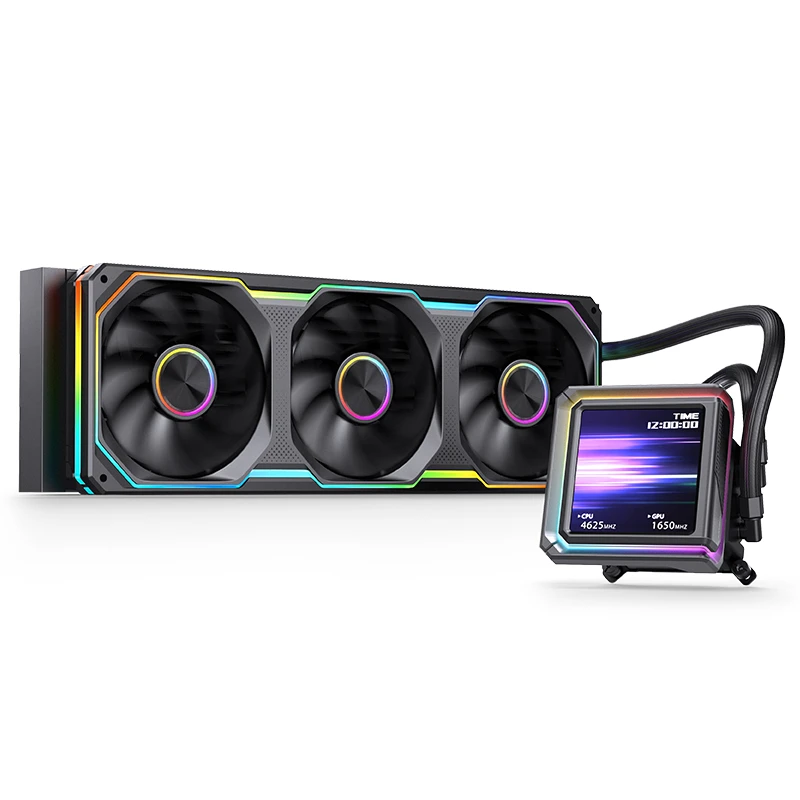

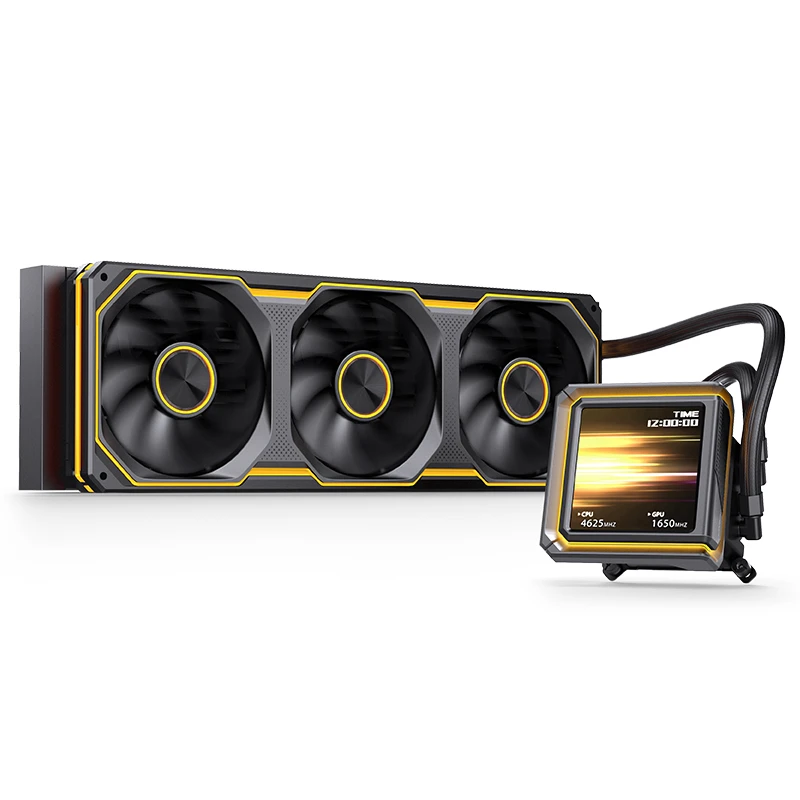

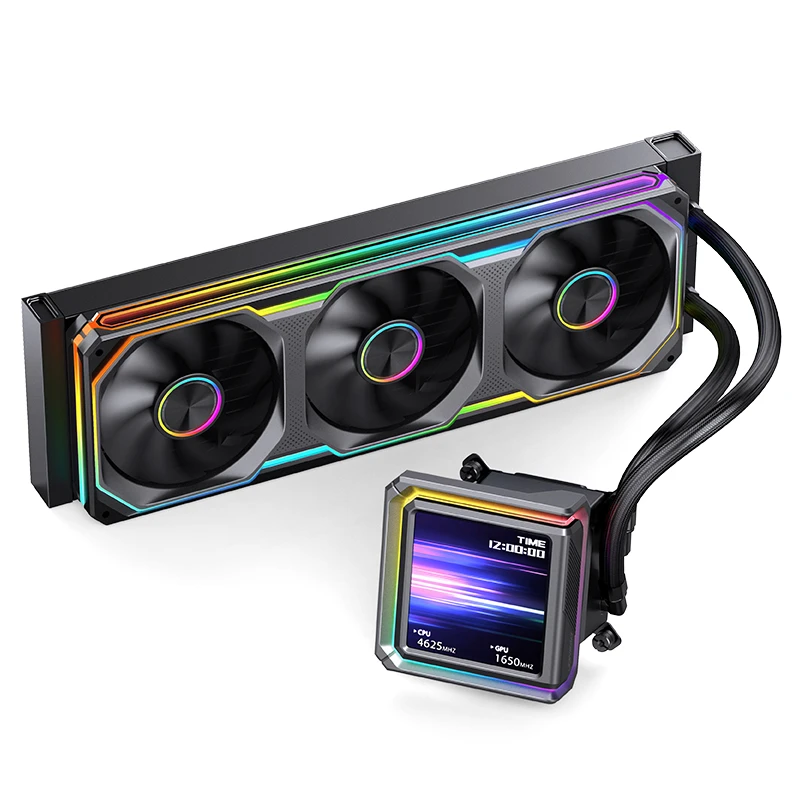

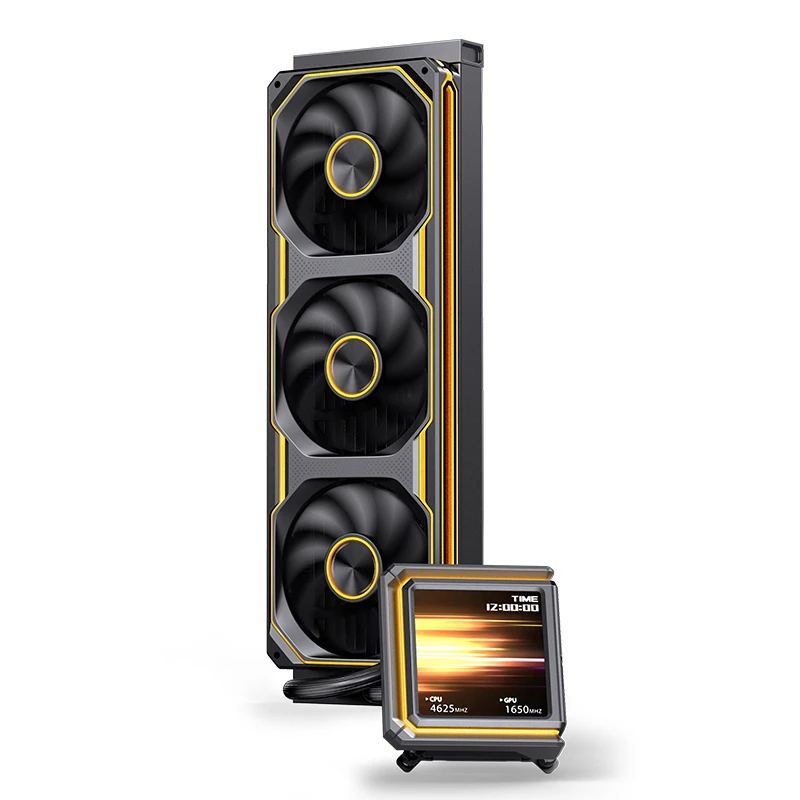

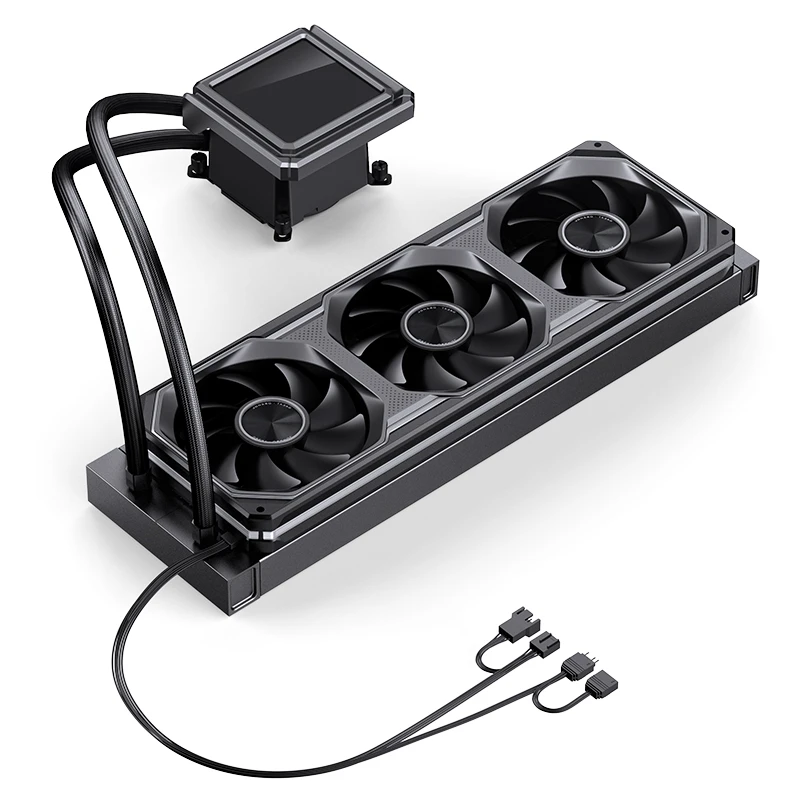

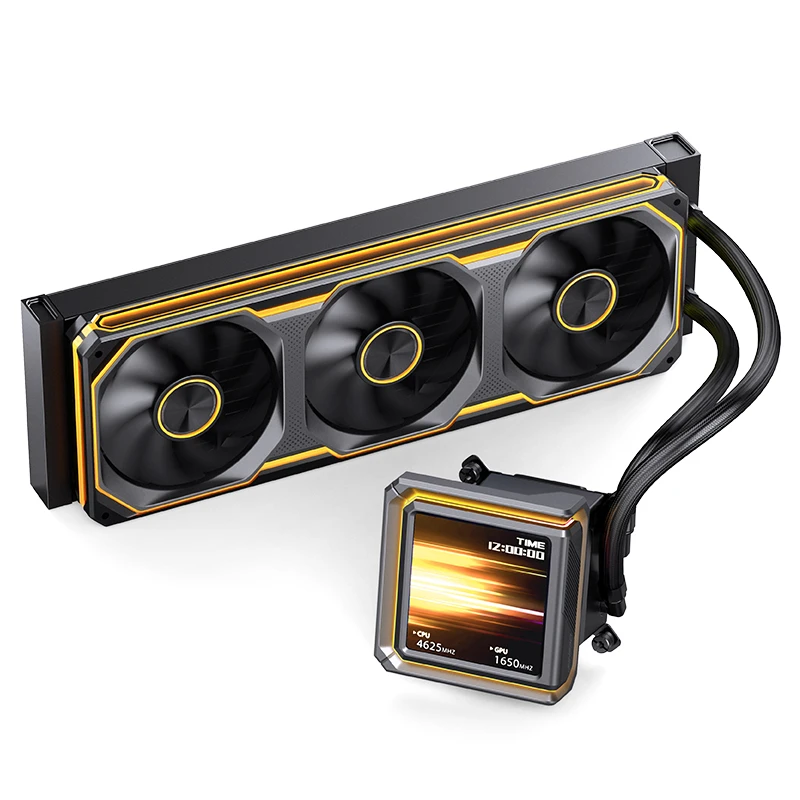

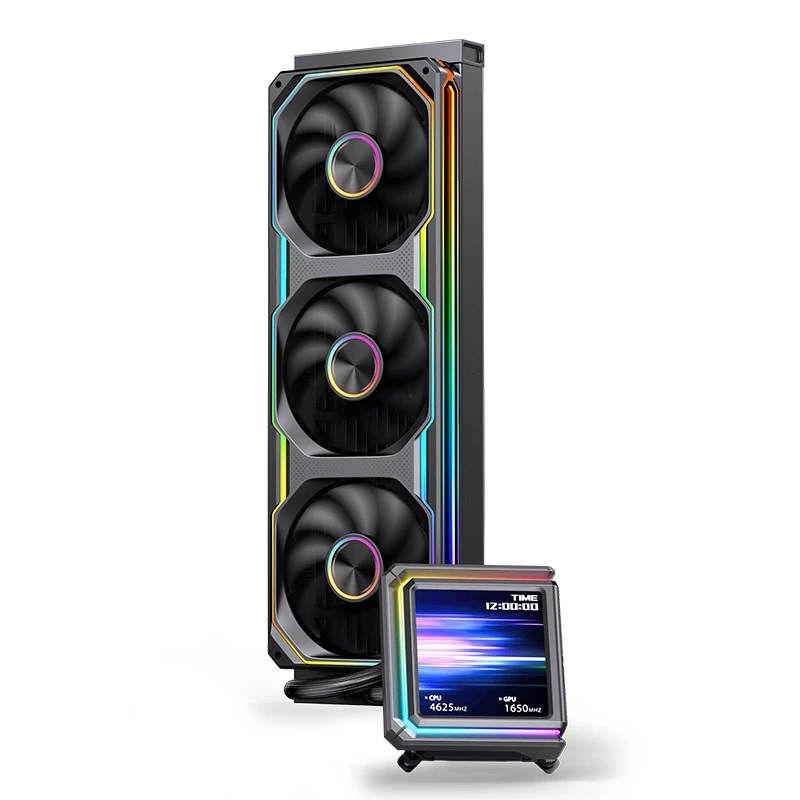

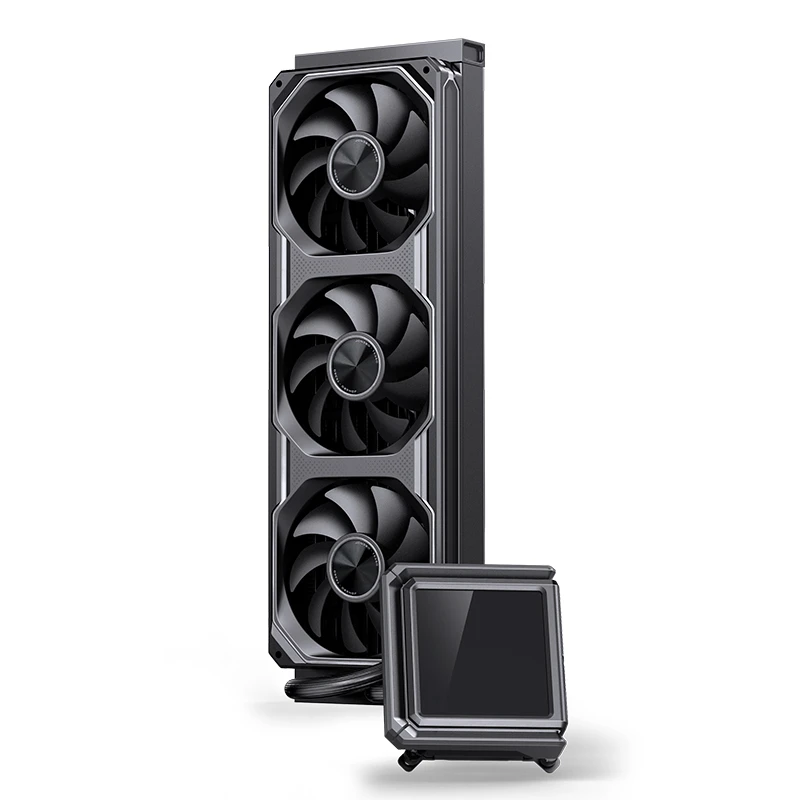

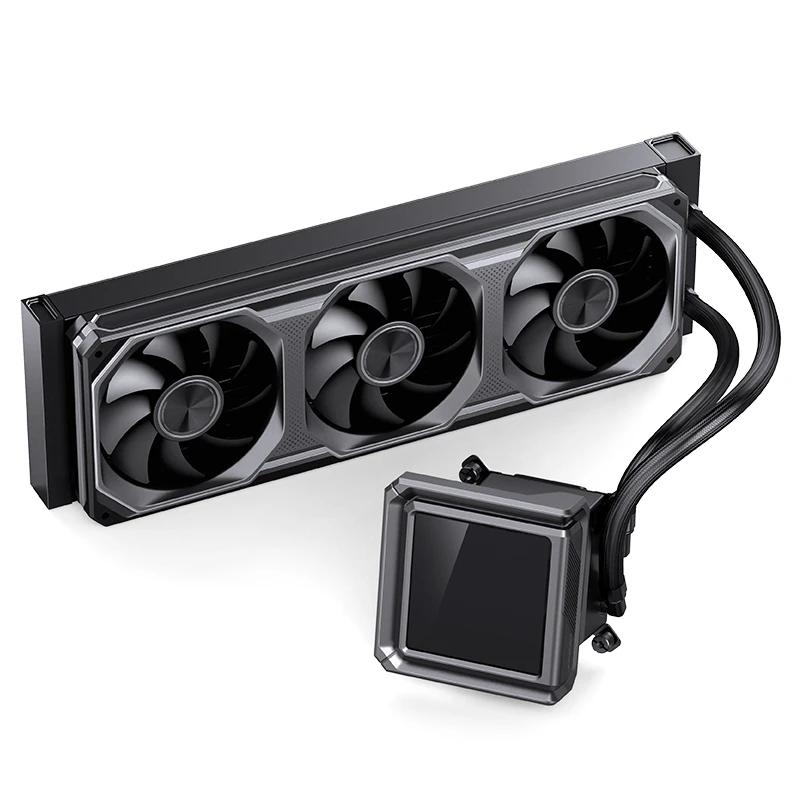

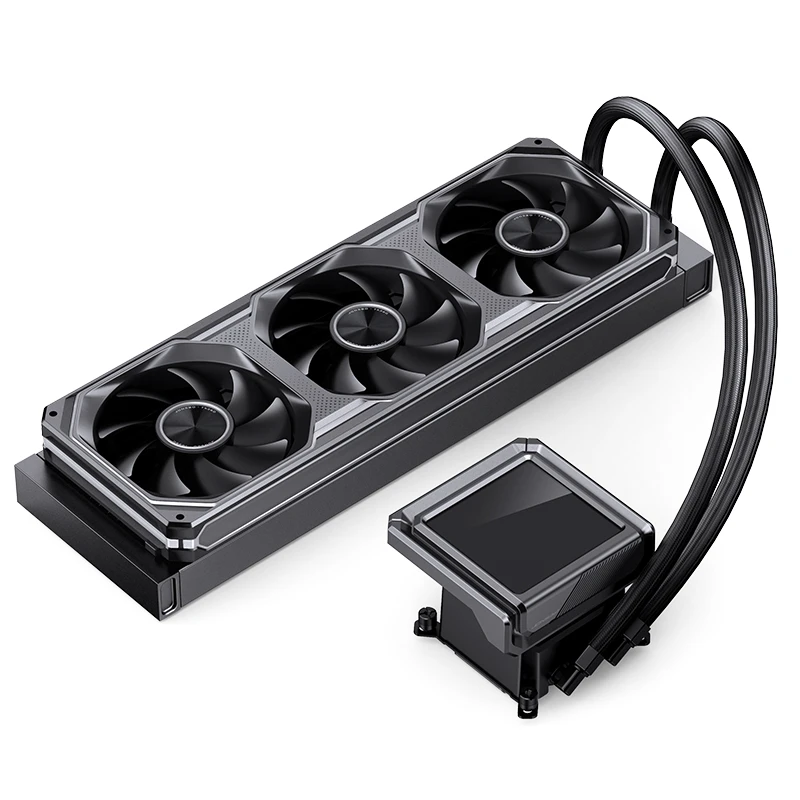

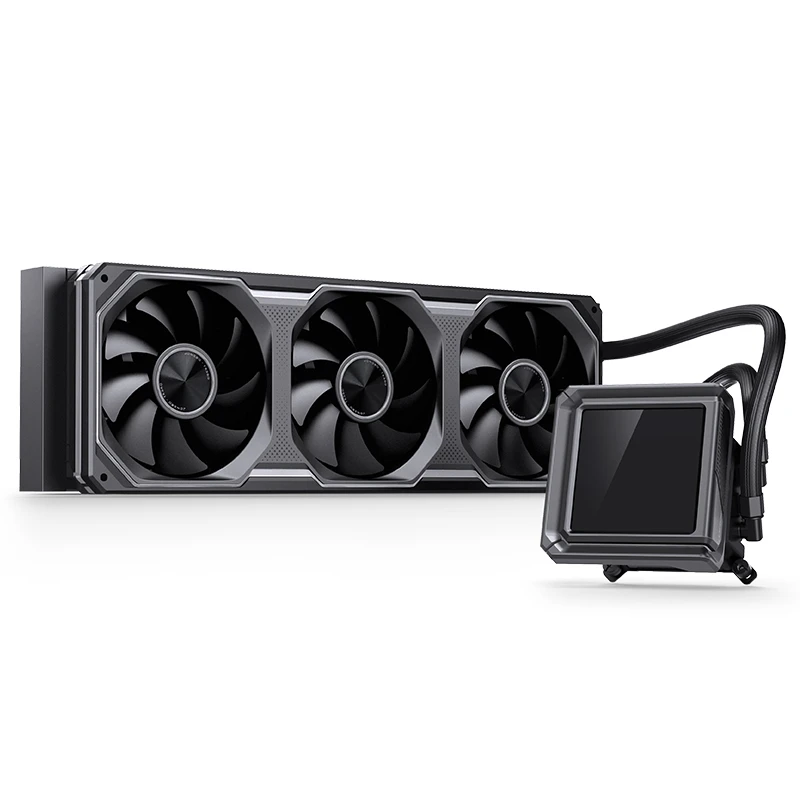

| Model：TX-360 Black |
| Product type：LCD Display Water Cooling Radiator |

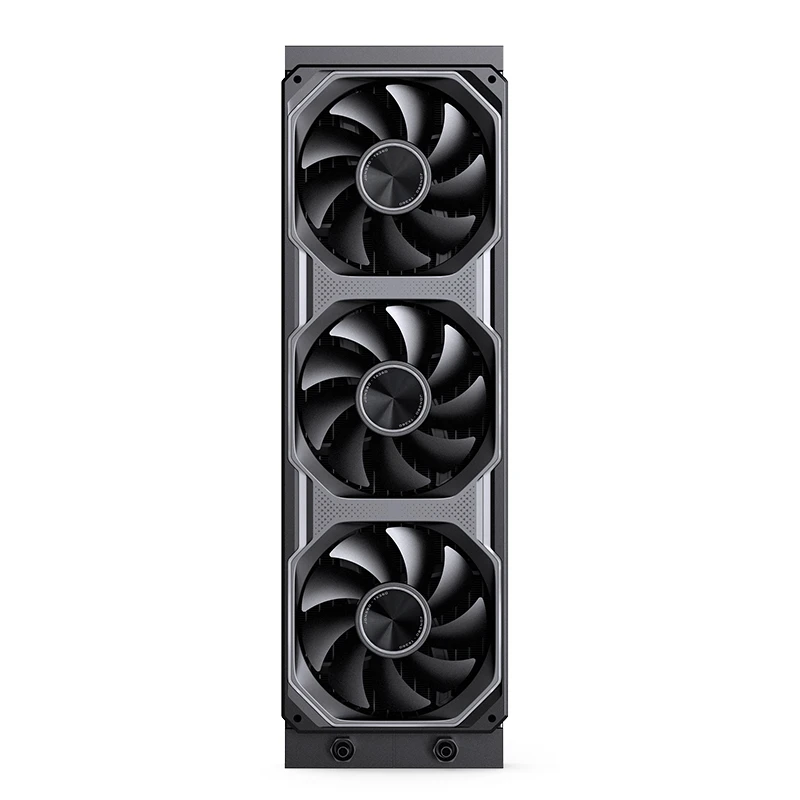

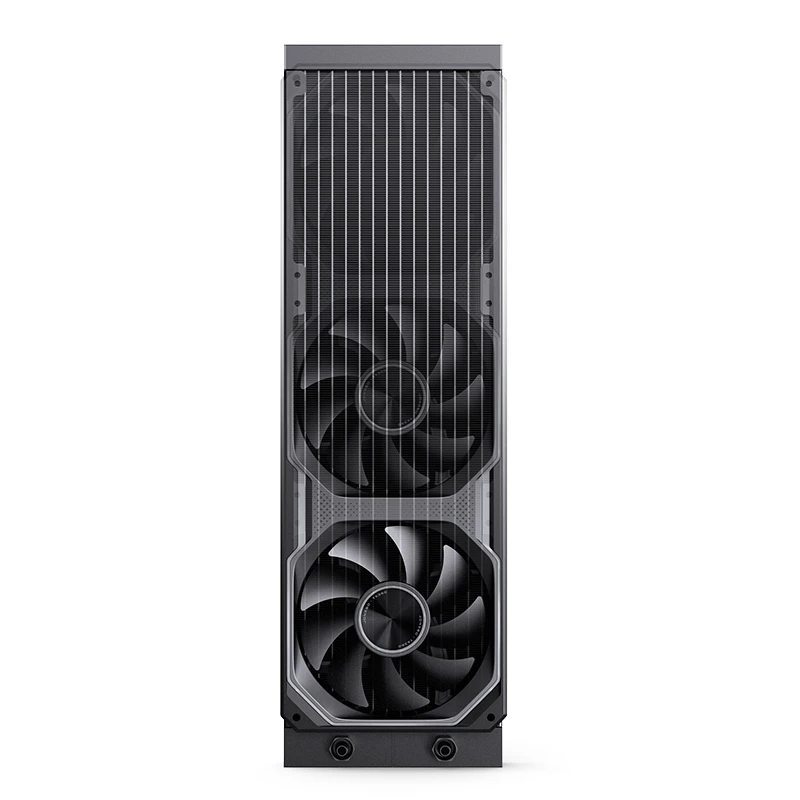

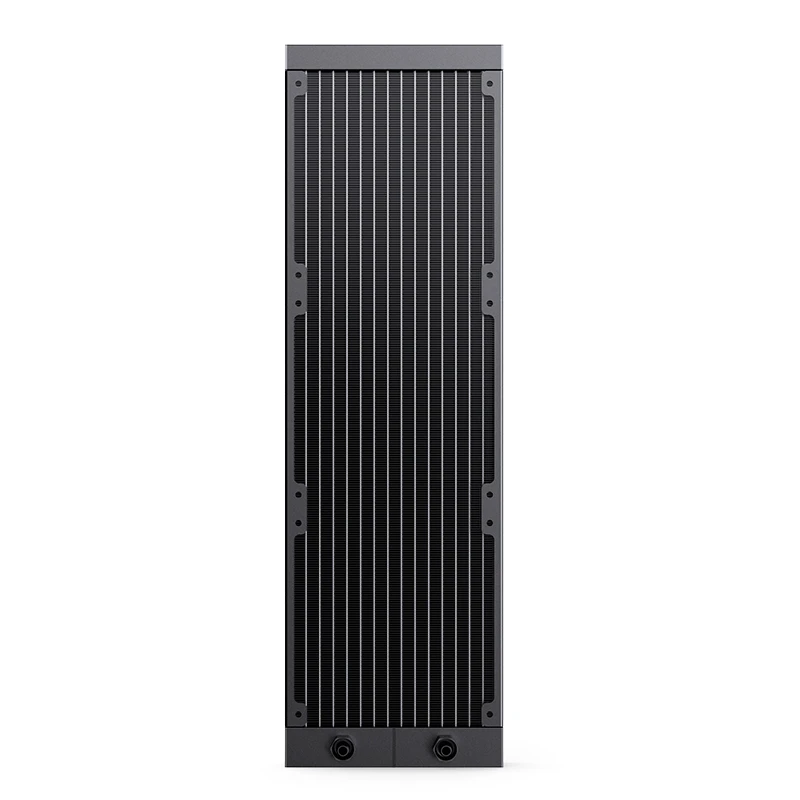

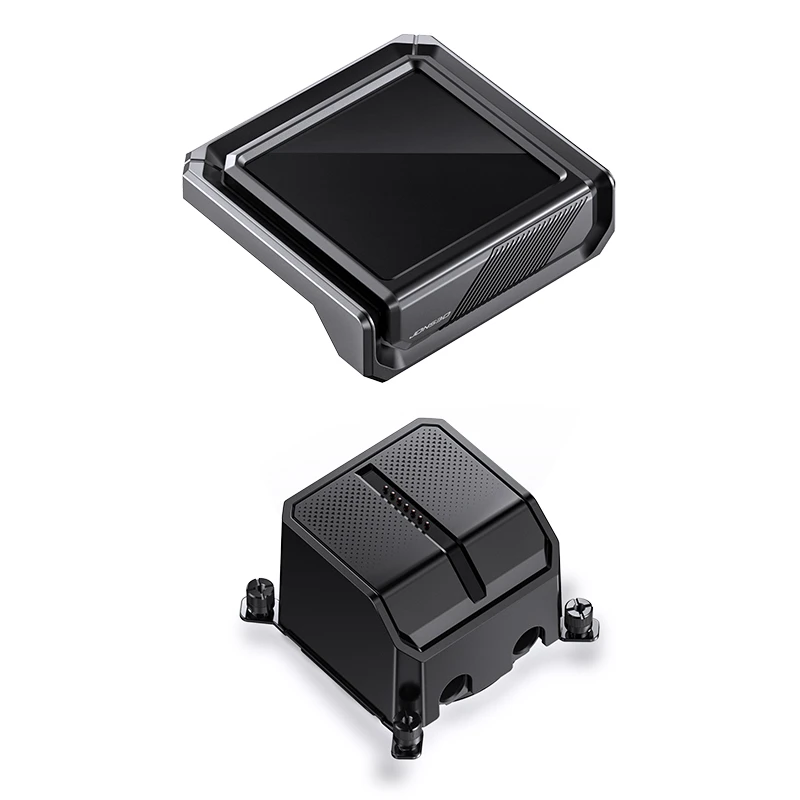

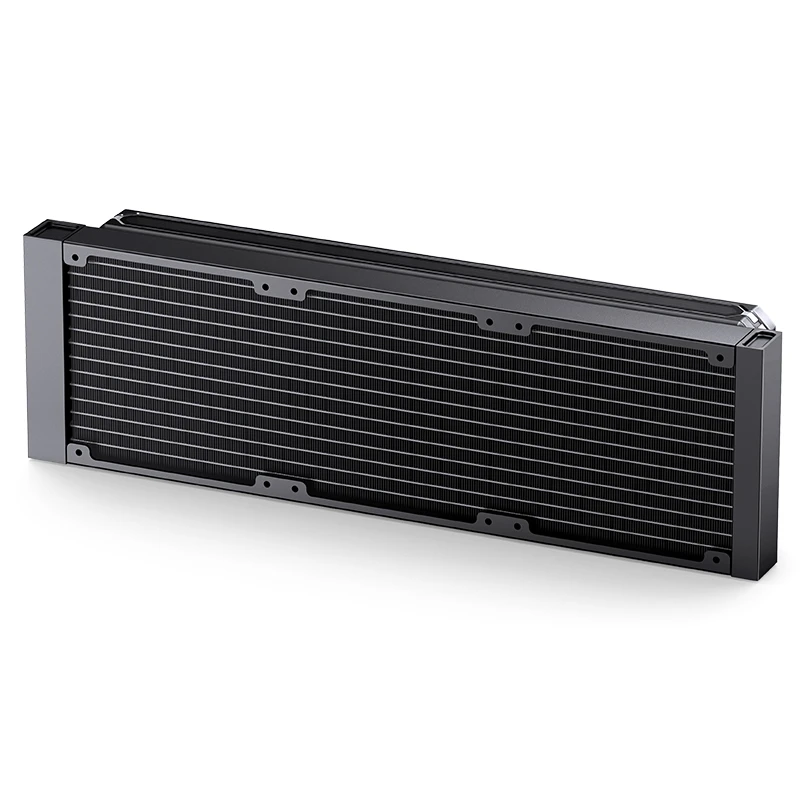

| Size：Pump：98.2mm*102.8mm*70.6mm；radiator：397mm*120mm*27mm；Fan：362mm*123mm*28mm |
| Fan Speed：700rpm~2400rpm(±10%) |
| Fan Air Flow：21.46-62.40CFM(each) |
| Fan Air Pressure：0.49-2.46 mmH2O |
|
Fan Noise Level： 21.3-37.3
dB(A)( max) |
| MTBF：≥40000h Room Temp:25℃ |
| Fan Connector：FAN 4PIN PWM / LED 3PIN ARGB |
|
Pump Speed：5000rpm(±10%) |
| Pump Working Voltage：12V DC |
| Pump Power Consumption：3.84W(±10%) |
| D-TDP：325W |

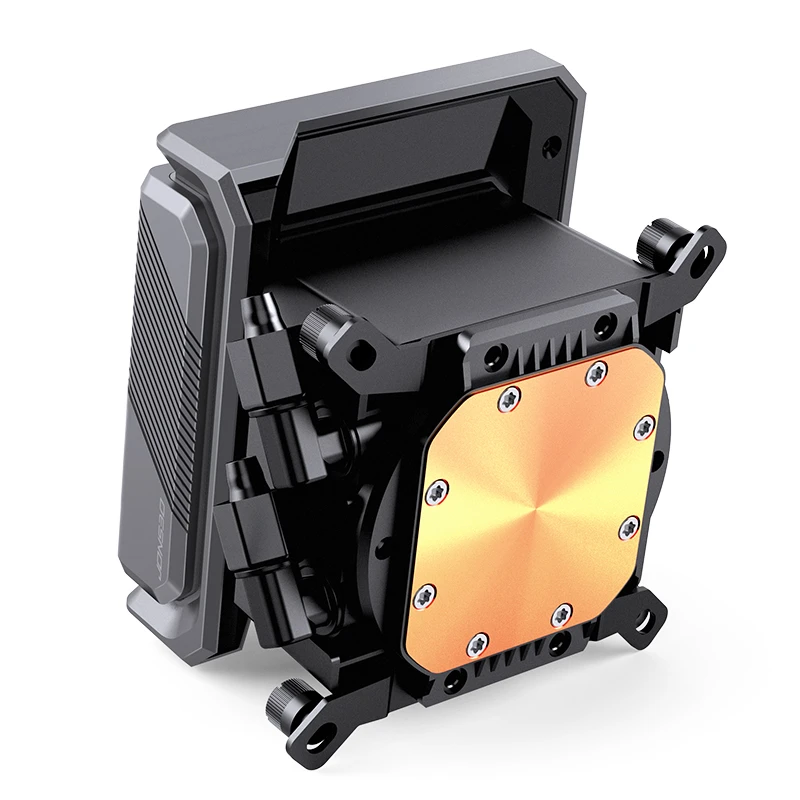

| Platform support：Intel LGA1200/115X/17XX/1851; AMD AM4/AM5 |

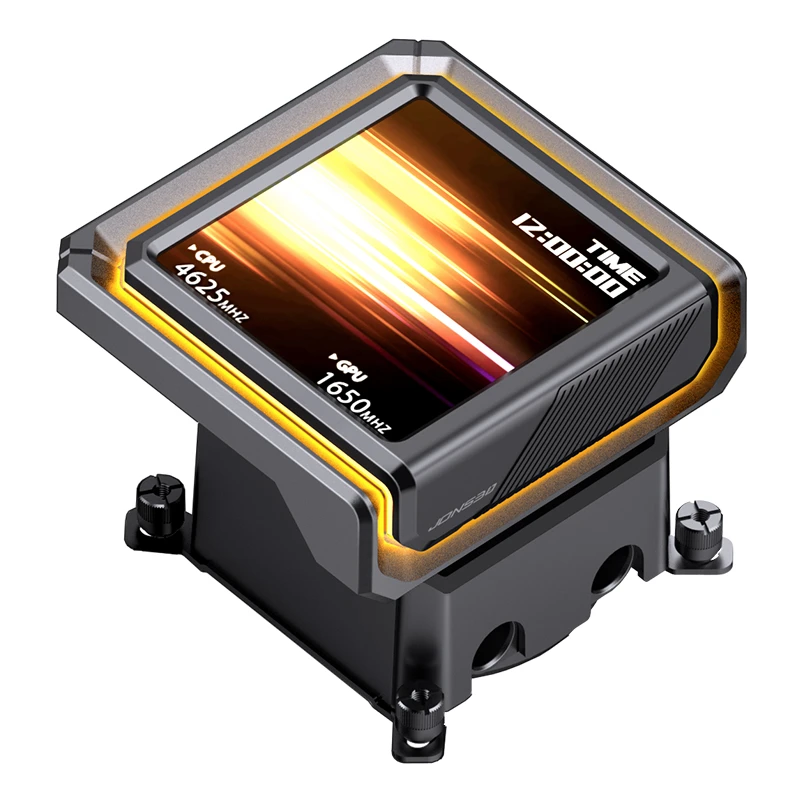

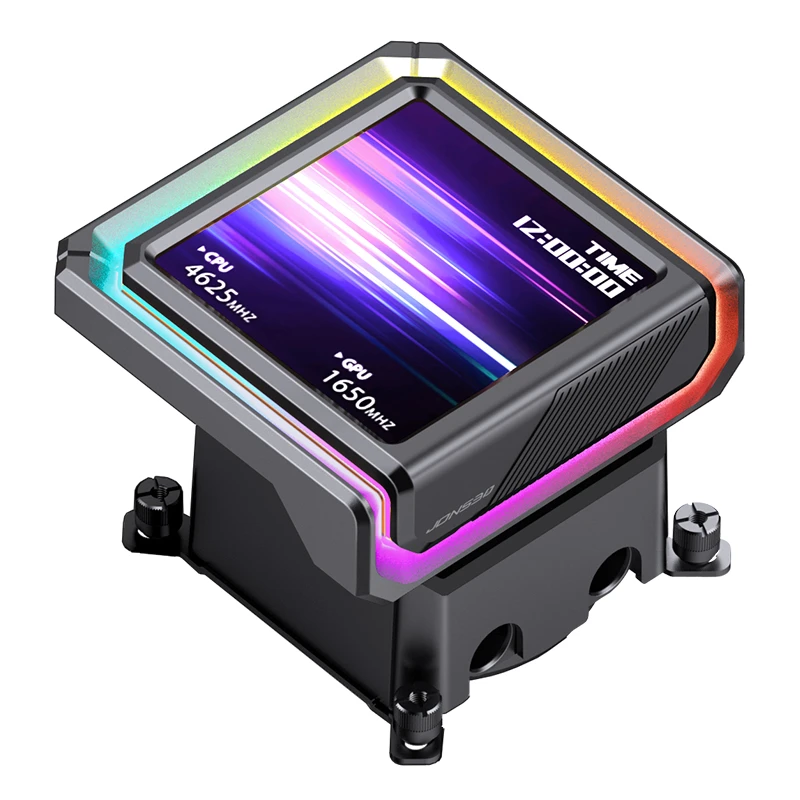

Screen
| Screen size：Pump：3.95″ |
| DPI：Pump：480*480DPI |
| Input Power：Pump：5V/260mA |
| Luminance：Pump：400cd/㎡ |
| Refresh rate：60Hz |
| System support：Windows10+ / JONSBO-AIO |
