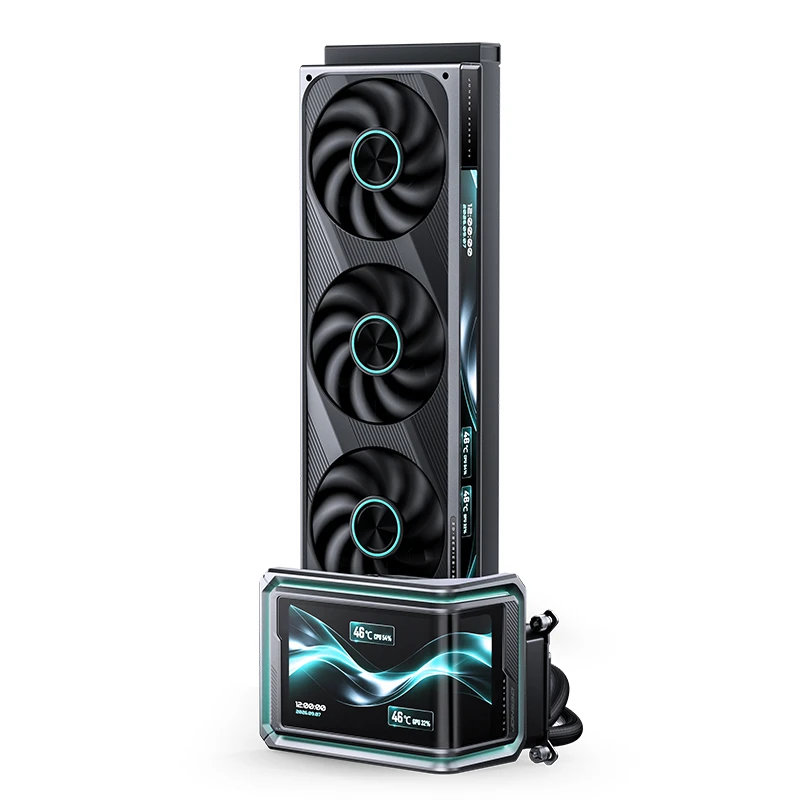

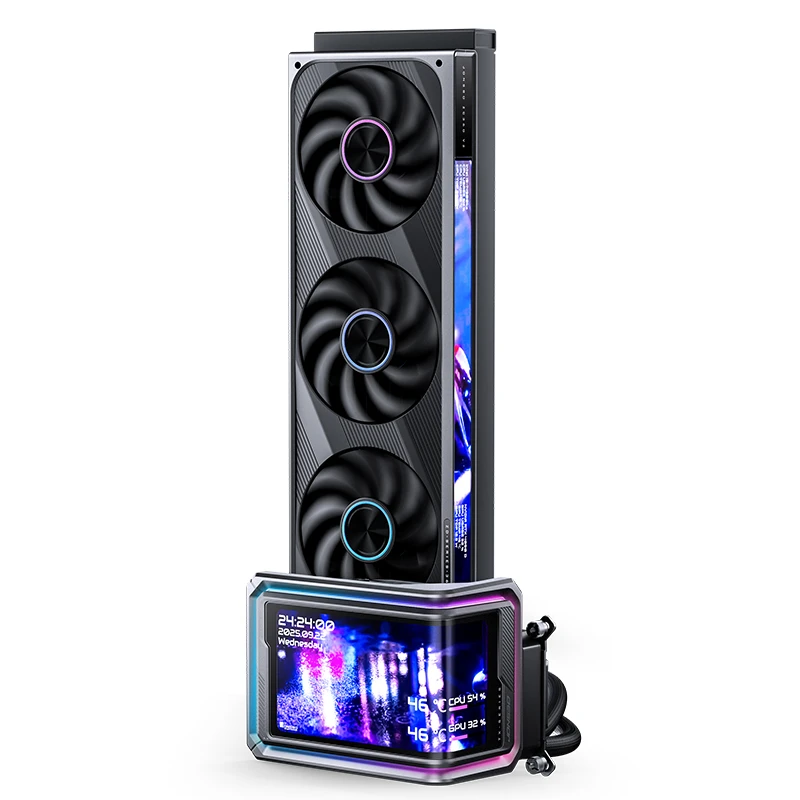

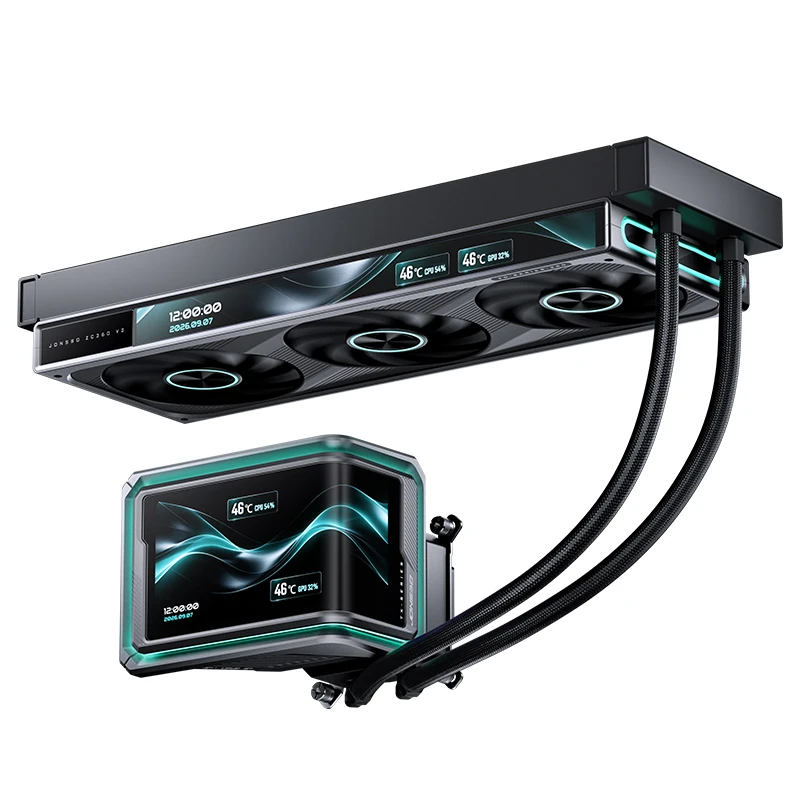

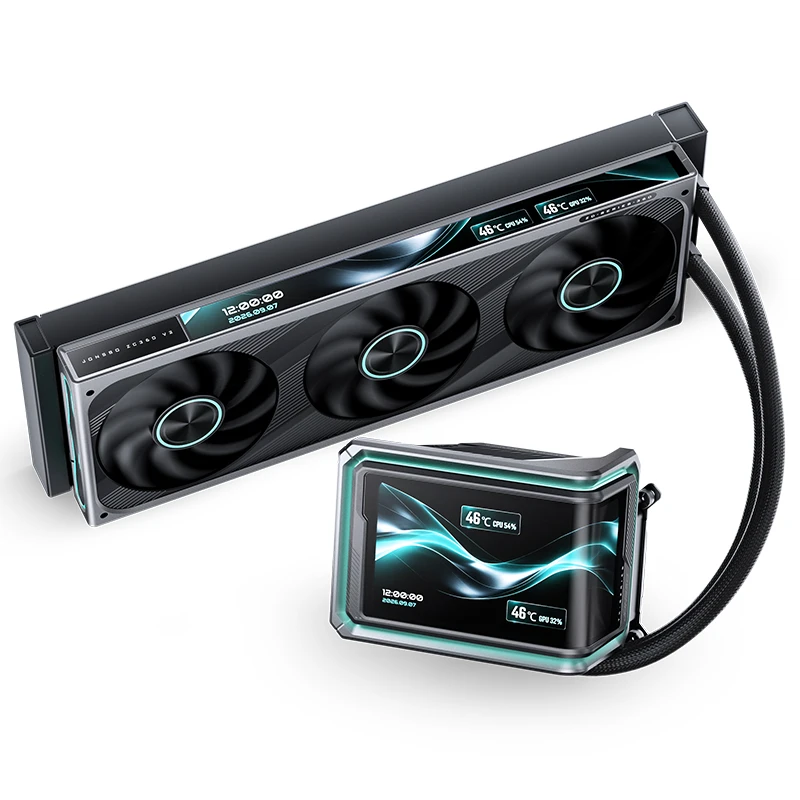

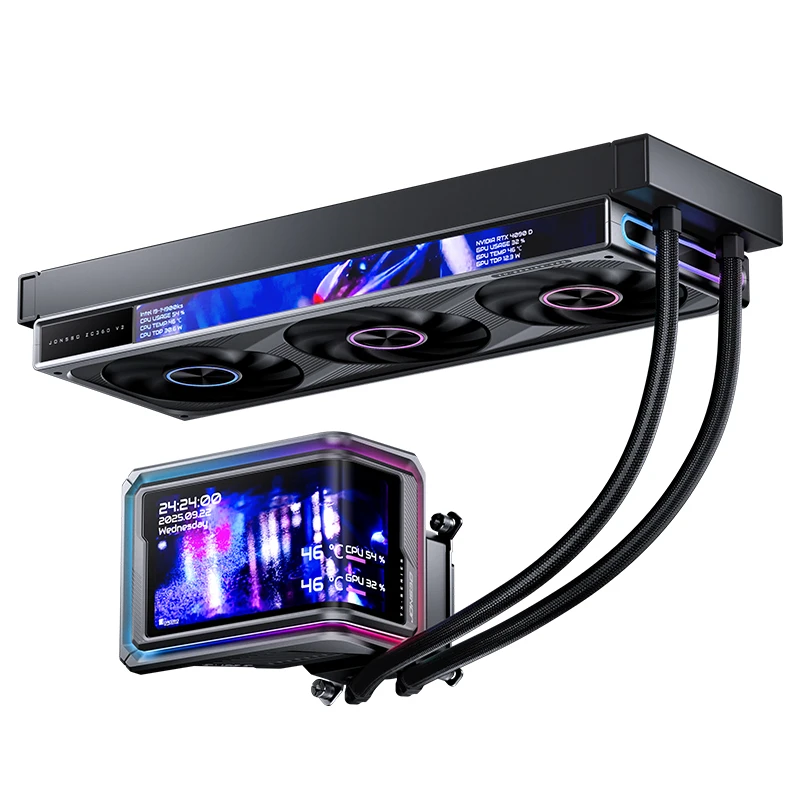

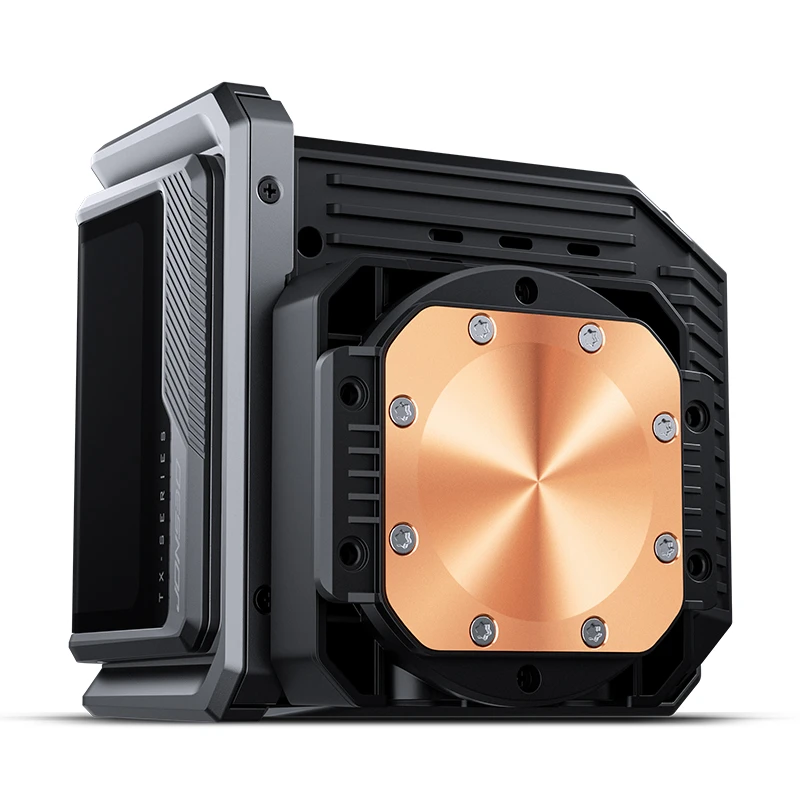

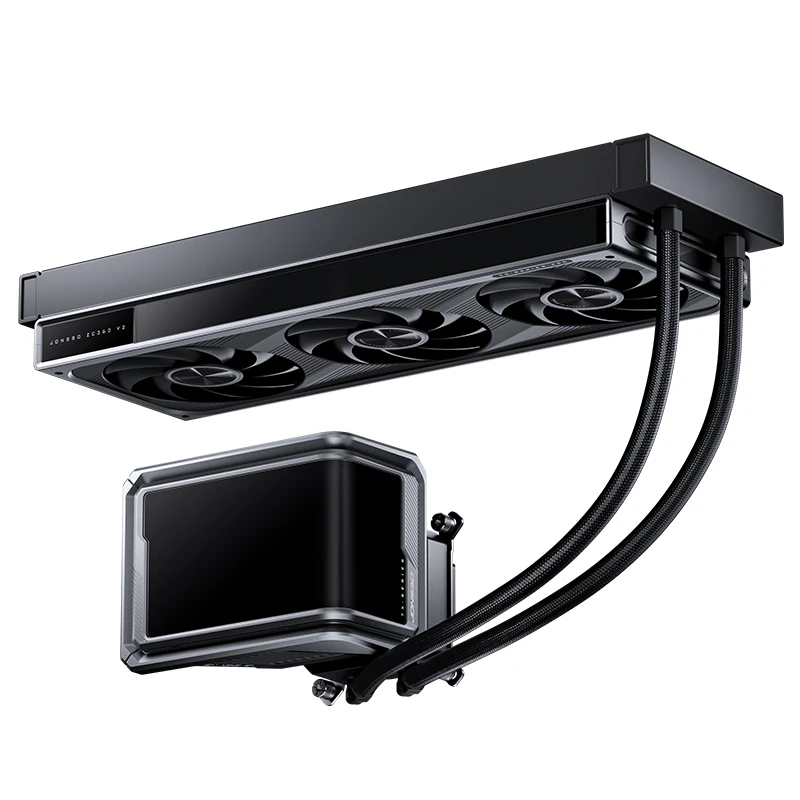

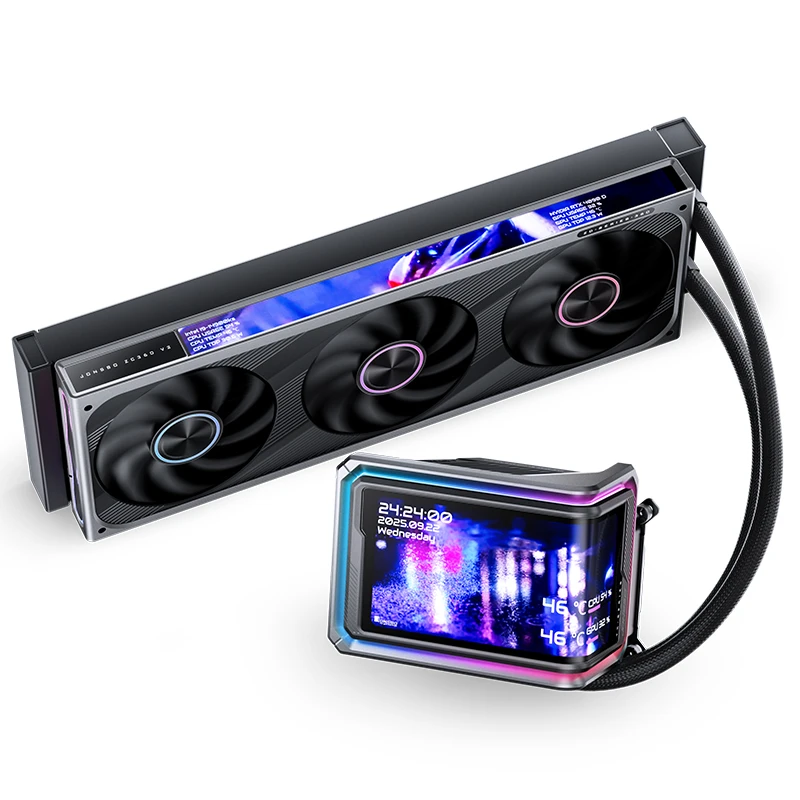

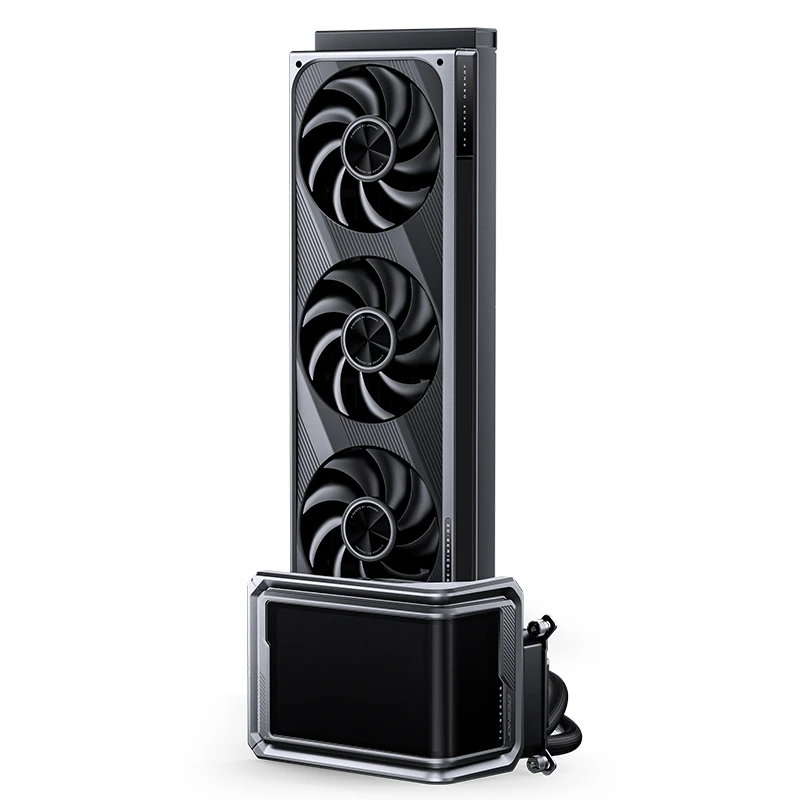

| Model：TX-360CG |

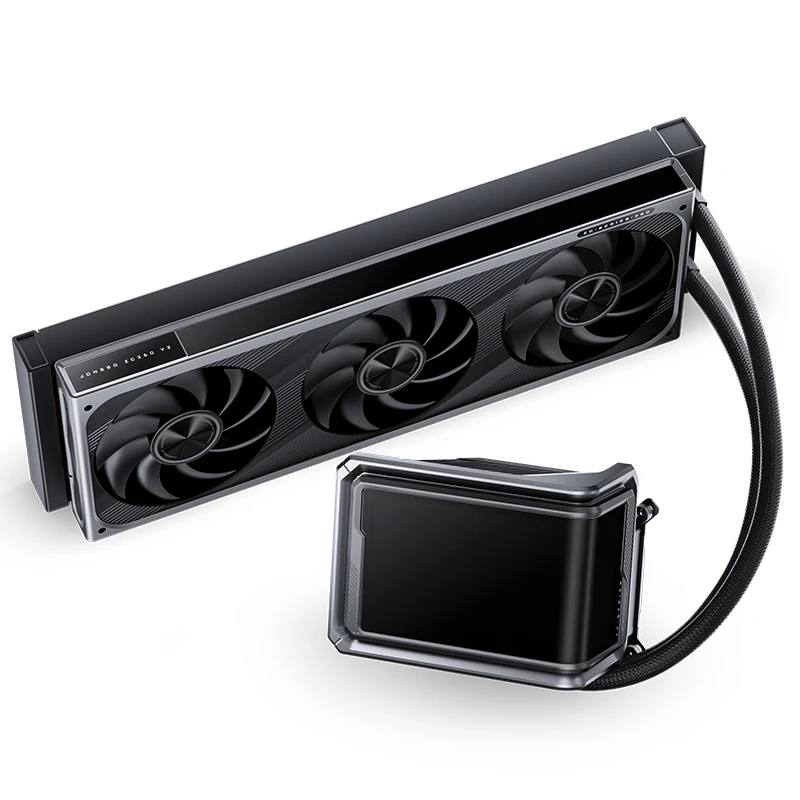

| Product type：LCD Display Water Cooling Radiator |

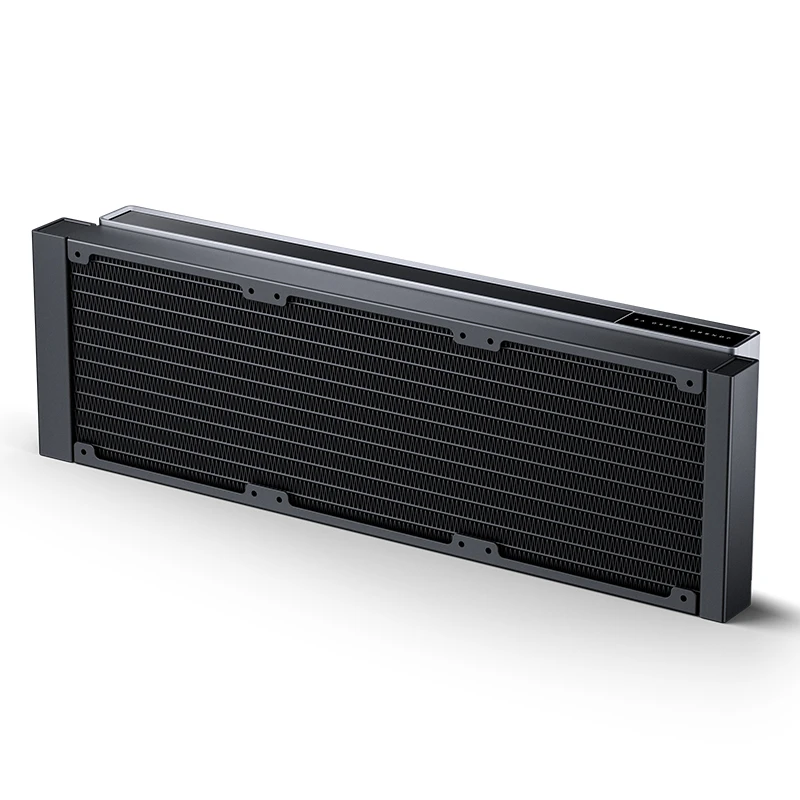

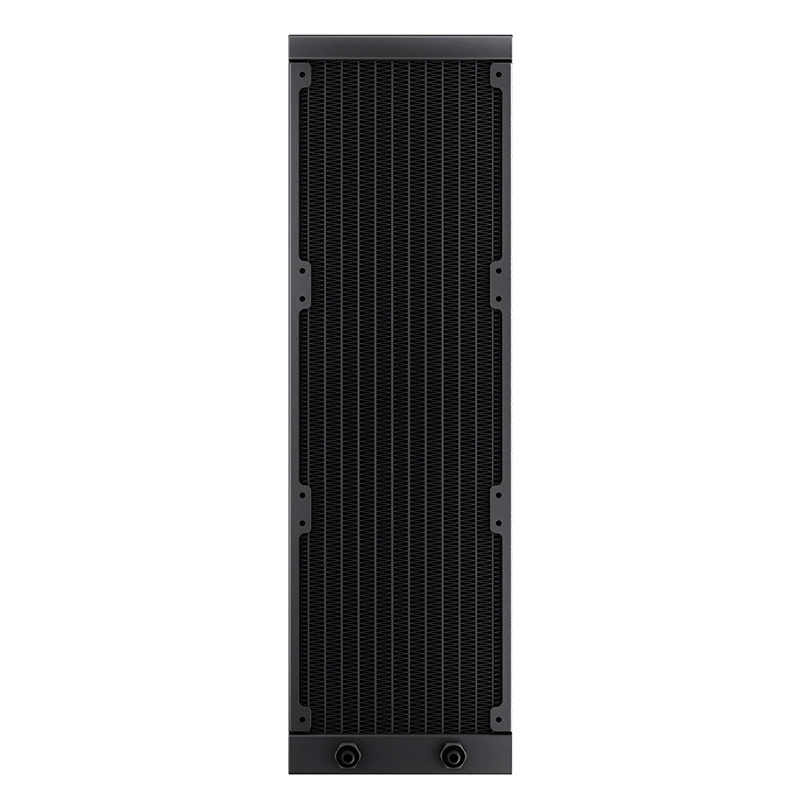

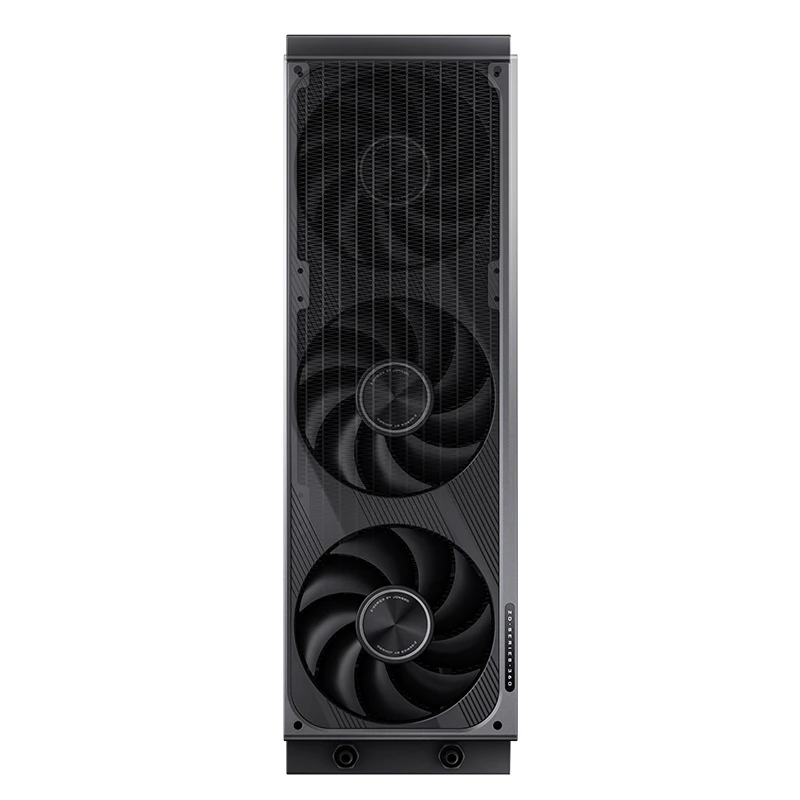

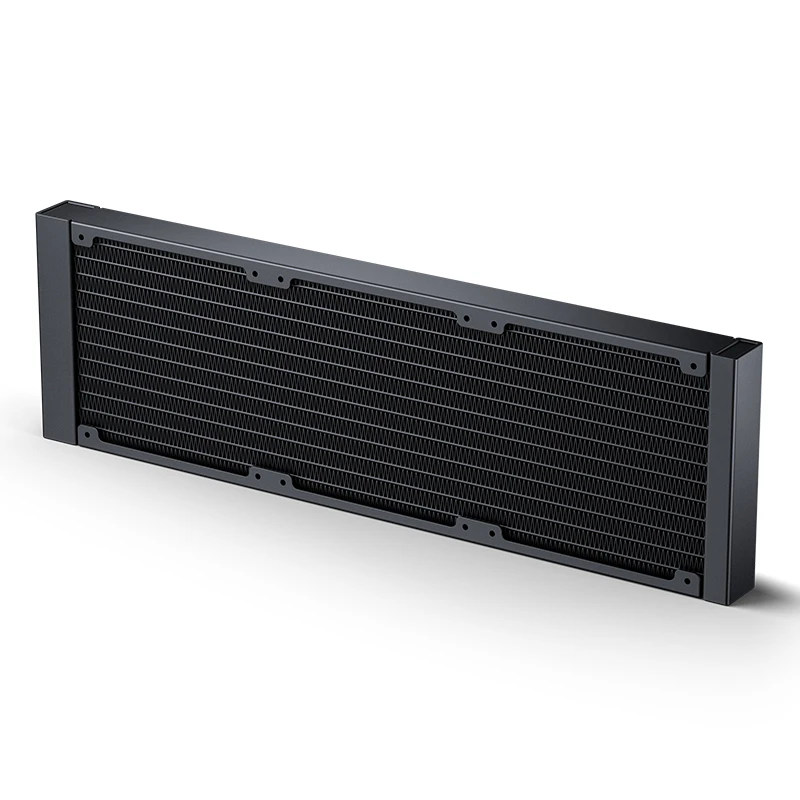

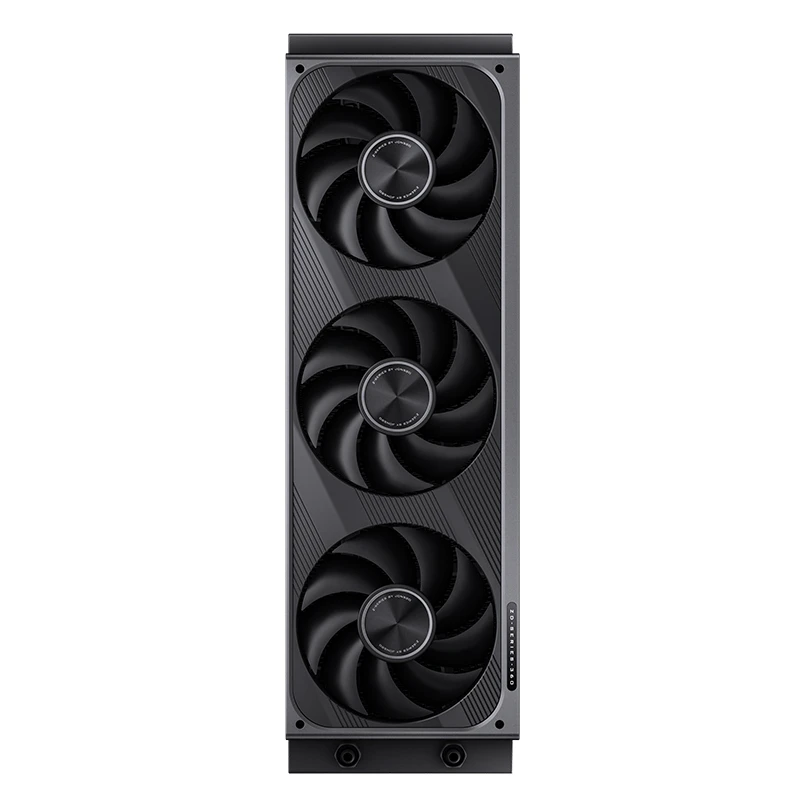

| Size：Pump：142.5mm*108mm*105.5mm；radiator：397mm*120mm*27mm；Fan：362mm*123mm*28mm |
| Fan Speed：700rpm~2400 rpm(±10%) |
| Fan Air Flow：21.46-62.40 CFM(each) |
| Fan Air Pressure：0.49-2.46 mmH2O |
|
Fan Noise Level： 21.3-37.3
dB(A)( max) |
| MTBF：≥40000h Room Temp:25℃ |
| Fan Connector：FAN 4PIN PWM / LED 3PIN ARGB / USB 9PIN |
|
Pump Speed：5000rpm(±10%) |
| Pump Working Voltage：12V DC |
| Pump Power Consumption：3.84W(±10%) |
| D-TDP：325W |
| Platform support：Intel LGA1200/115X/17XX/1851; AMD AM4/AM5 |
| Single box volume：454mm*275mm*140mm |
| Whole box volume：589mm*312mm*476mm |
| Master box：4 |
Screen

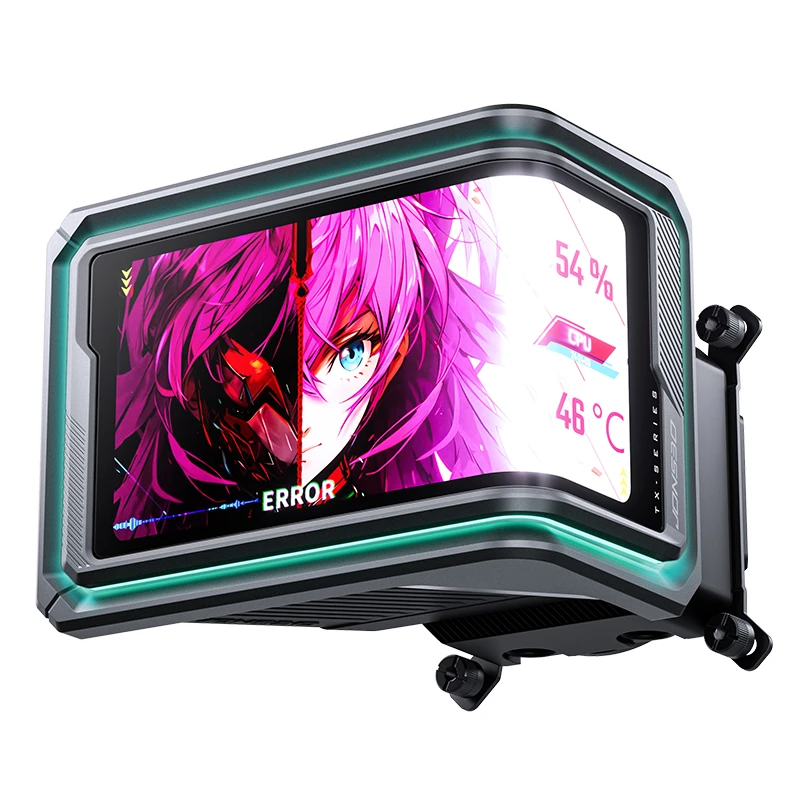

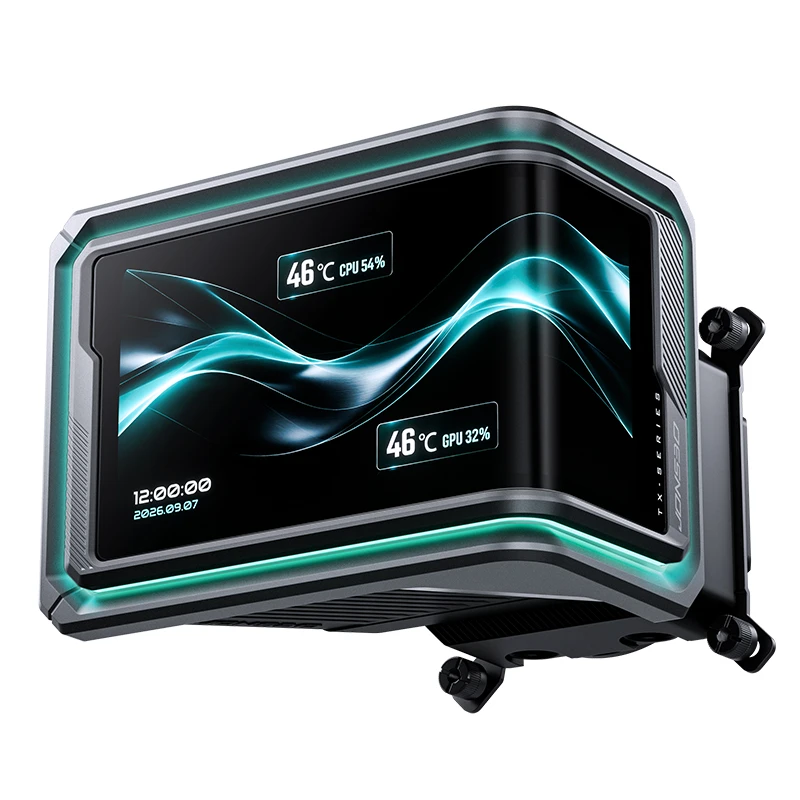

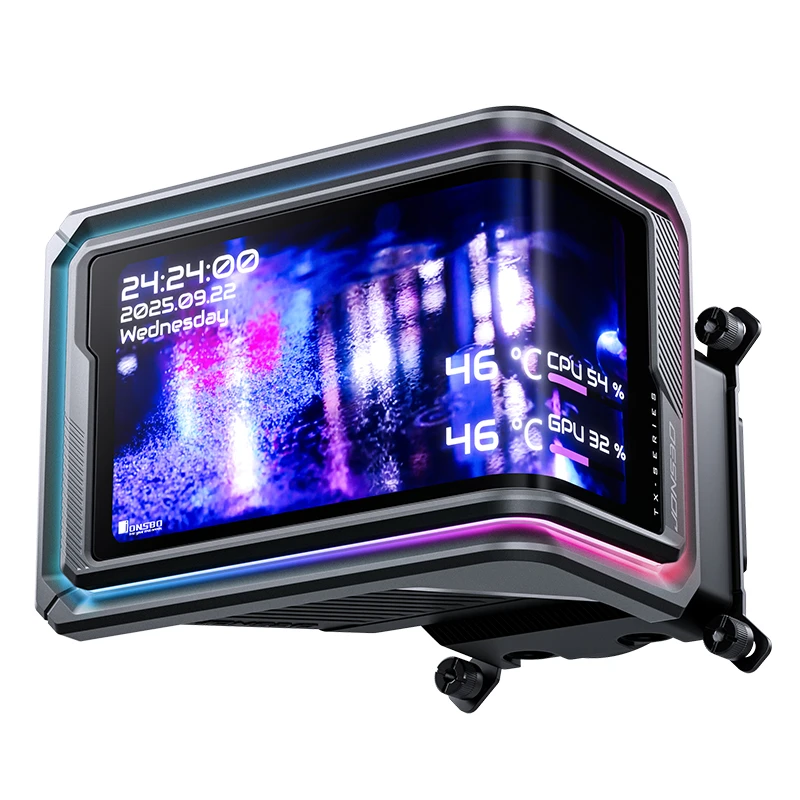

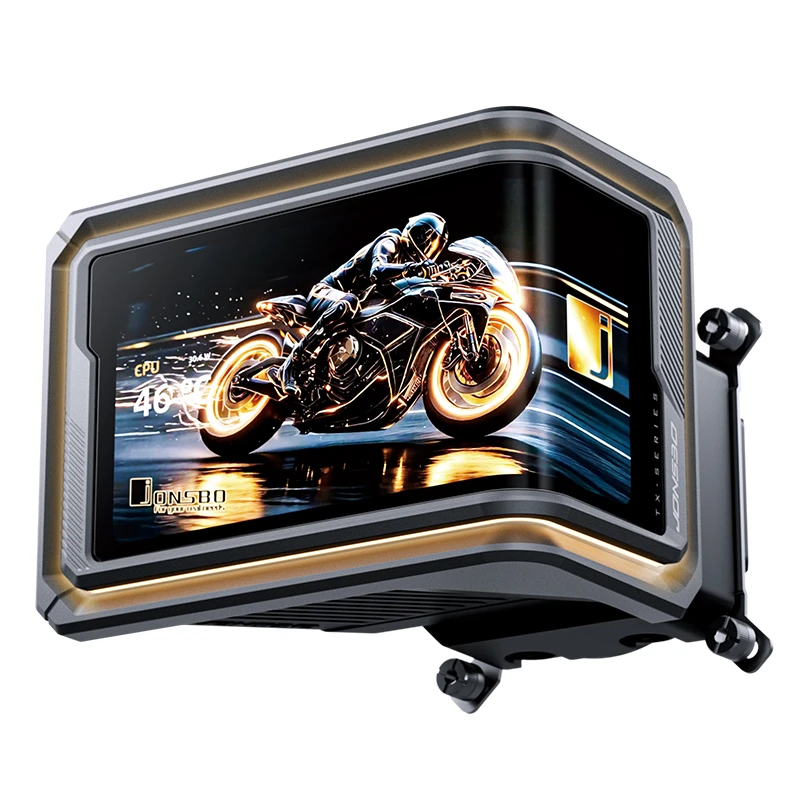

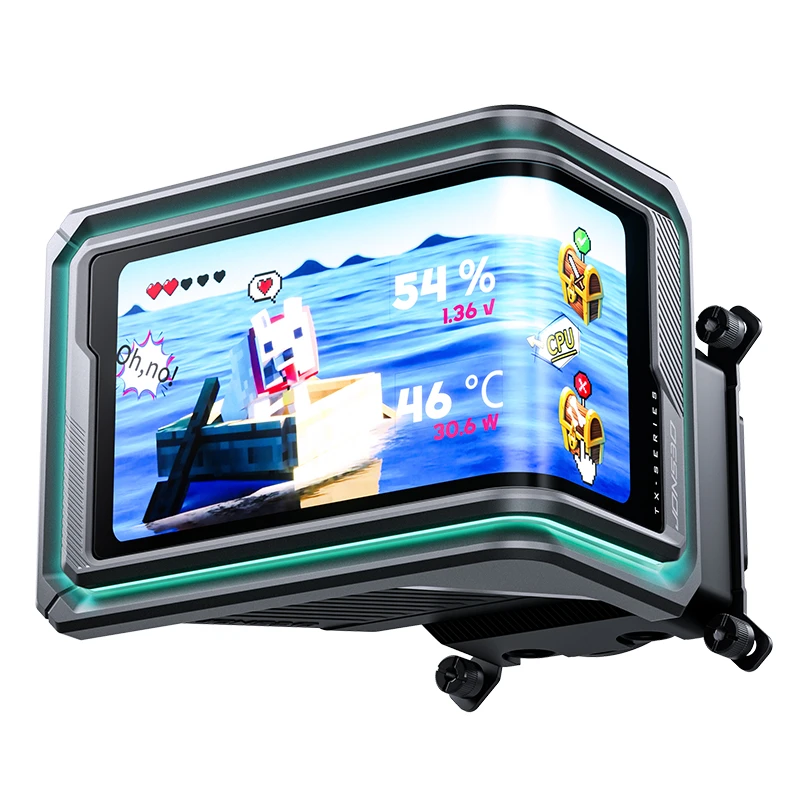

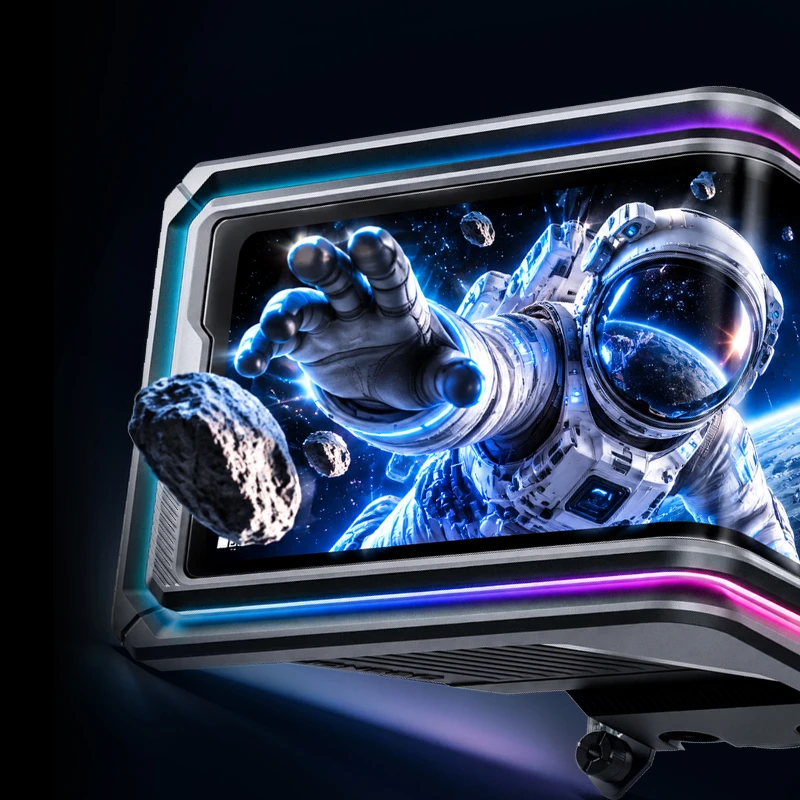

| Screen size：Pump：6.67″ / Fan：11.2″ |
| DPI：Pump：2400*1080DPI / Fan：140*1920DPI |
| Input Power：Pump：5V/550mA / Fan：5V/350mA |
| Luminance：Pump：300cd/㎡ / Fan：350cd/㎡ |
| Refresh rate：60Hz |
| System support：Windows10+ / JONSBO-AIO |
