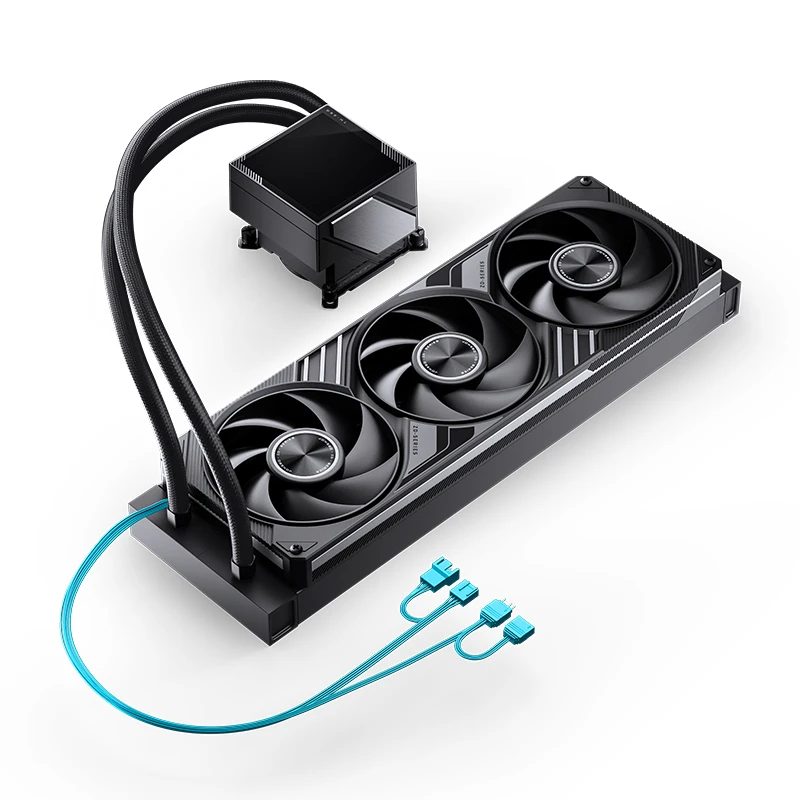

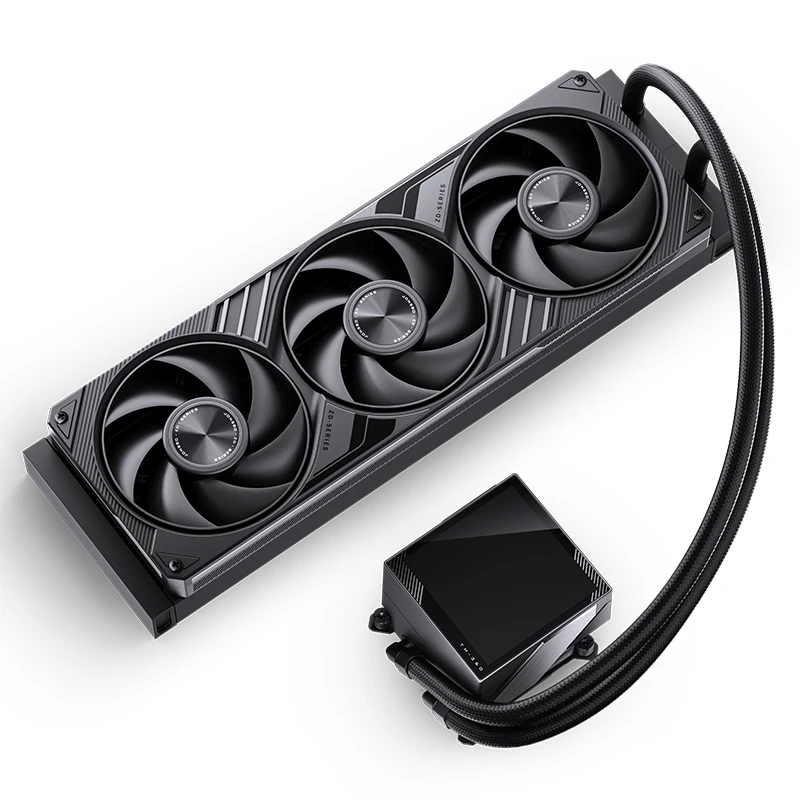

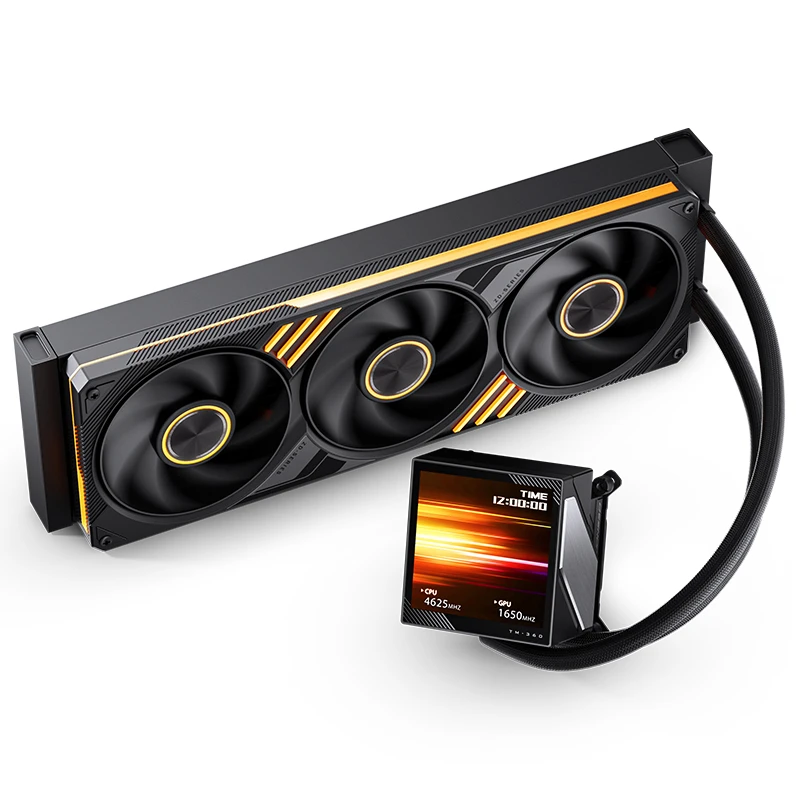

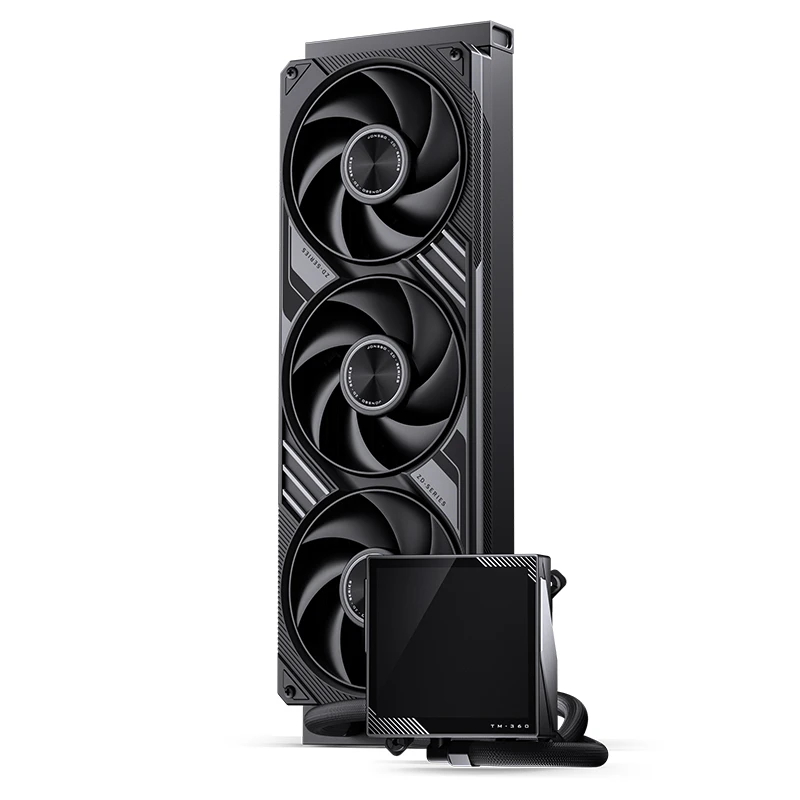

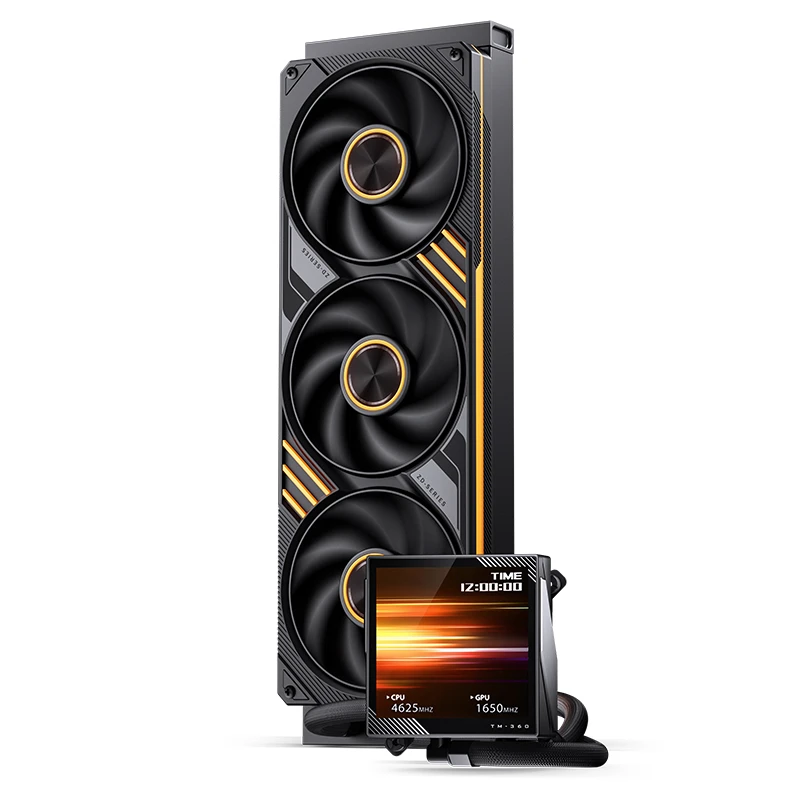

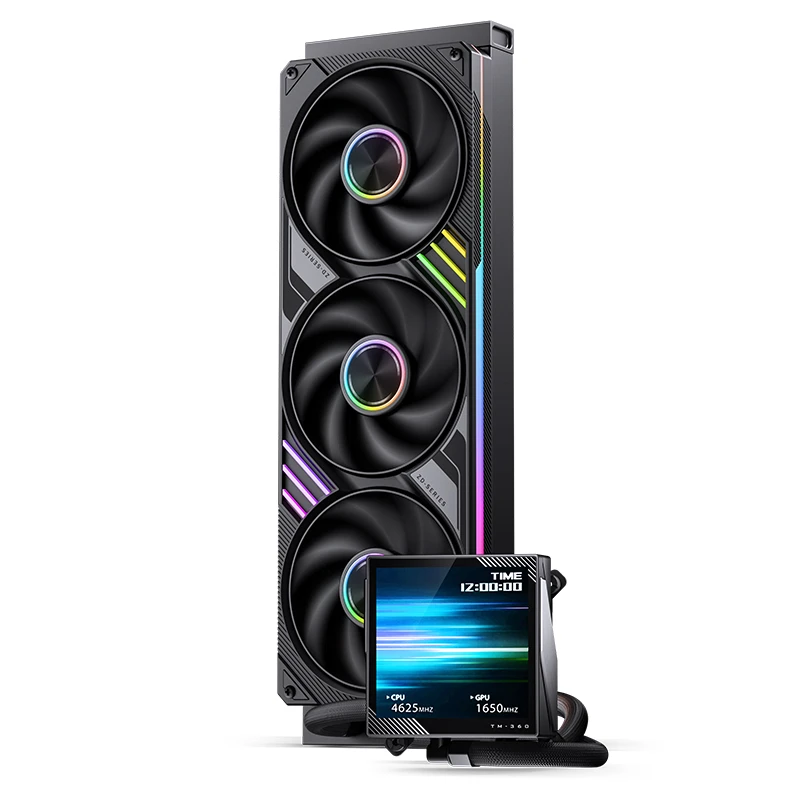

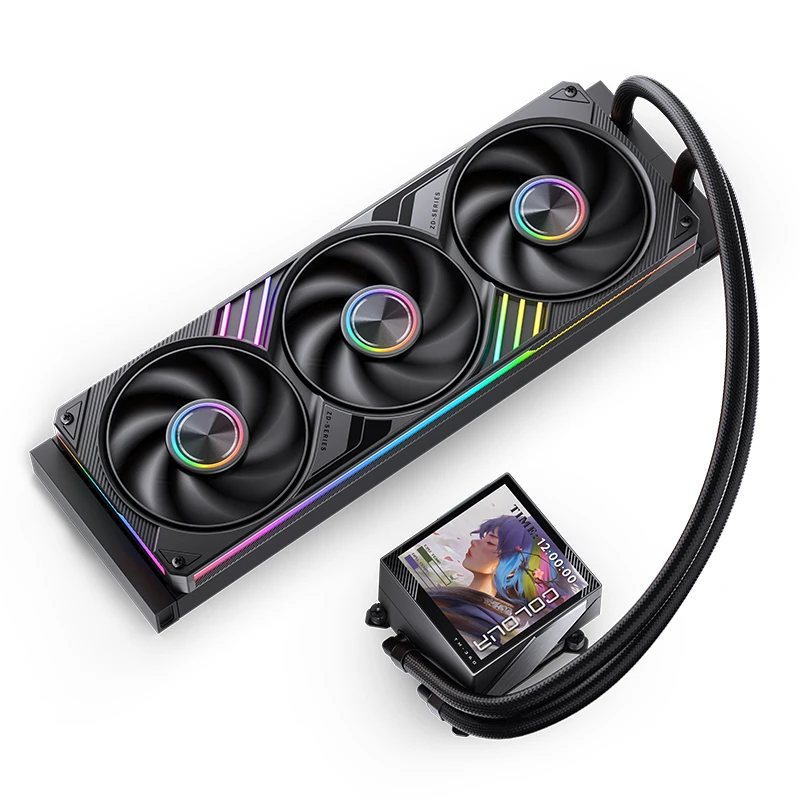

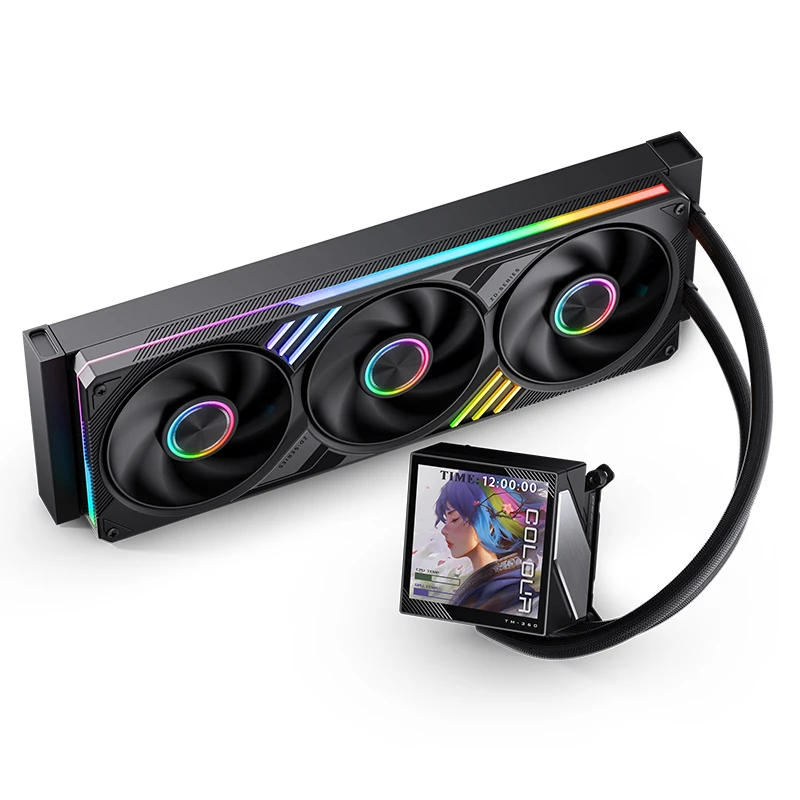

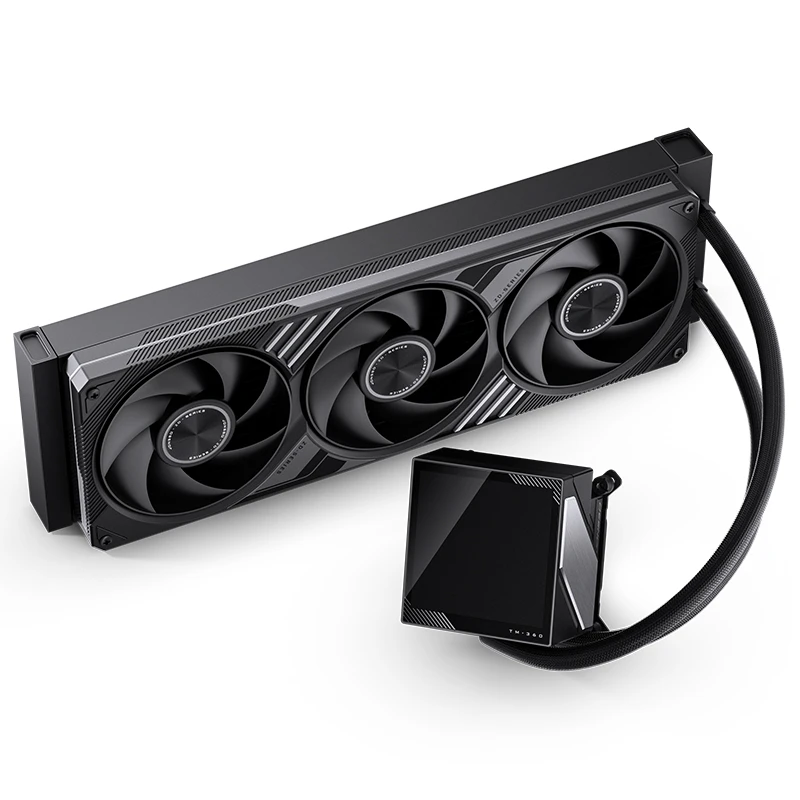

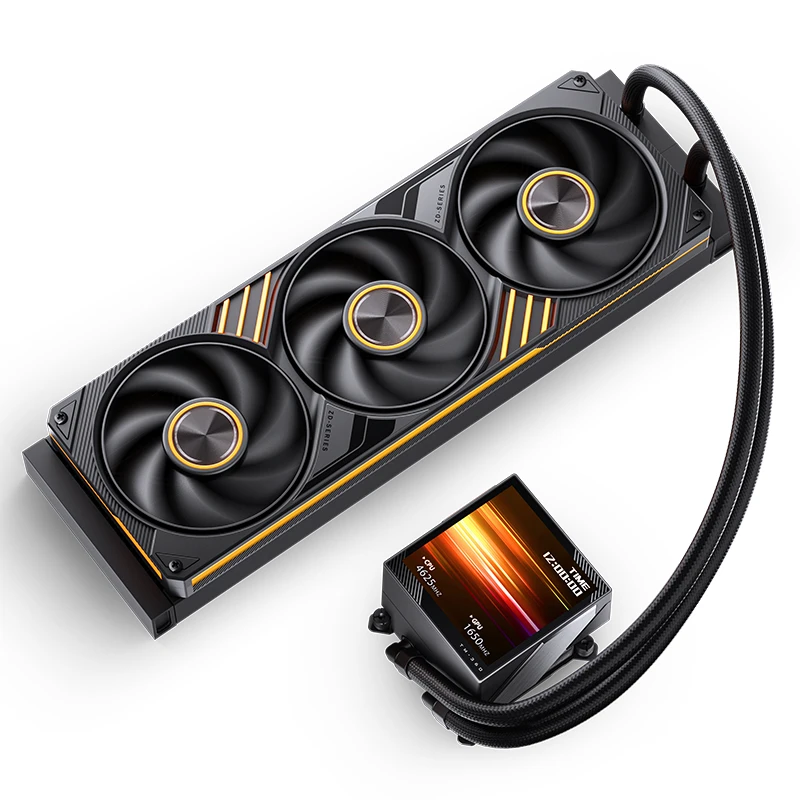

| Model:TM-360 Black |

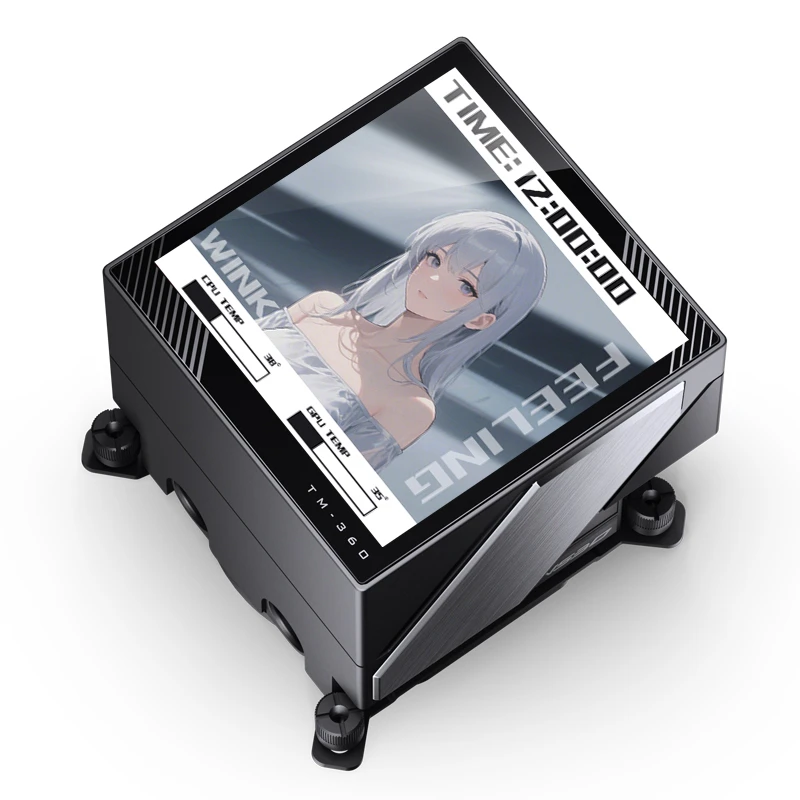

| Product type:LCD Display Water Cooling Radiator |

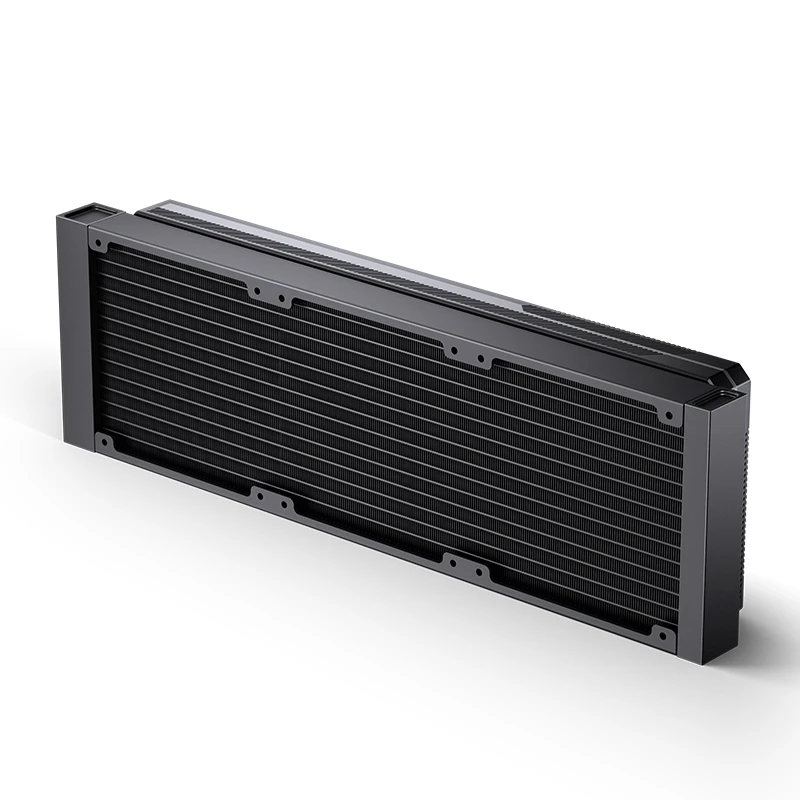

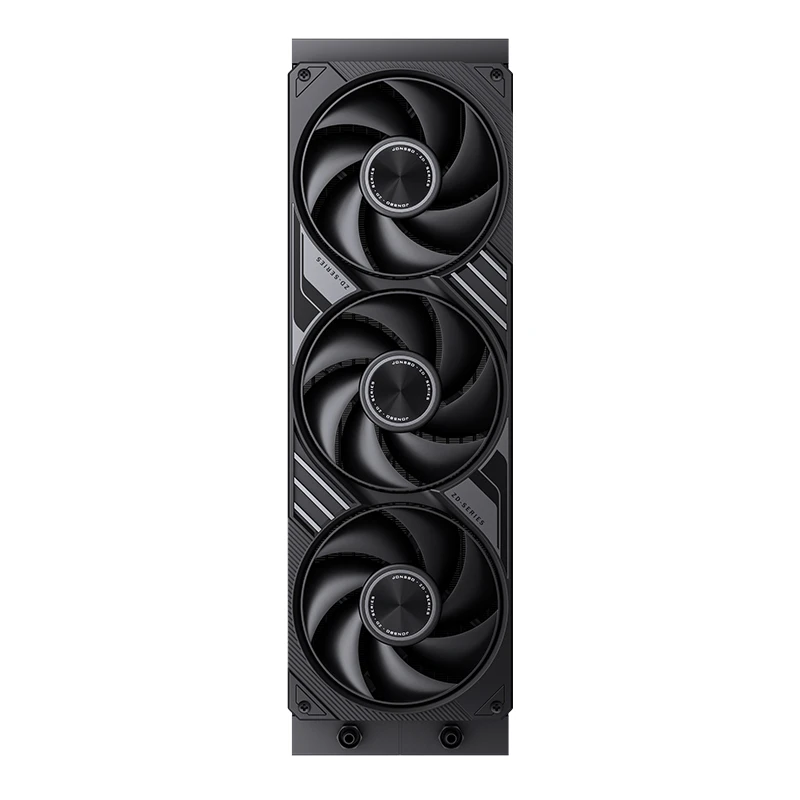

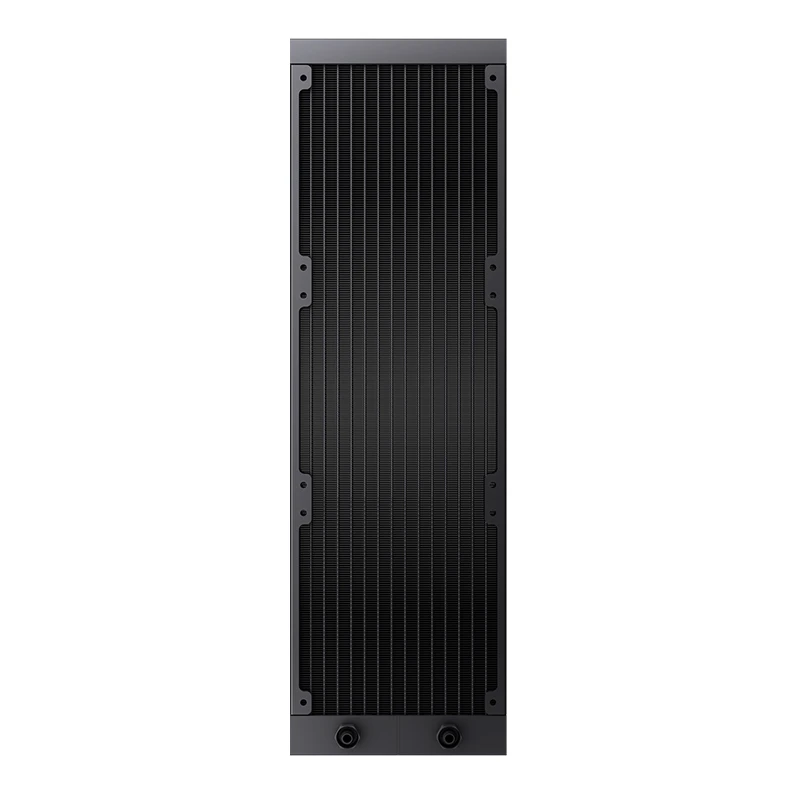

| Size:Pump:85mm*86.5mm*70.2mm;radiator:397mm*120mm*27mm;Fan:360mm*123mm*25mm |
| Fan Speed:700rpm~2400 rpm(±10%) |
| Fan Air Flow:22.46-62.61 CFM(each) |
| Fan Air Pressure:0.69-3.09 mmH2O |
|
Fan Noise Level: 18.6-32.1
dB(A)( max) |
| MTBF:≥40000h Room Temp:25℃ |

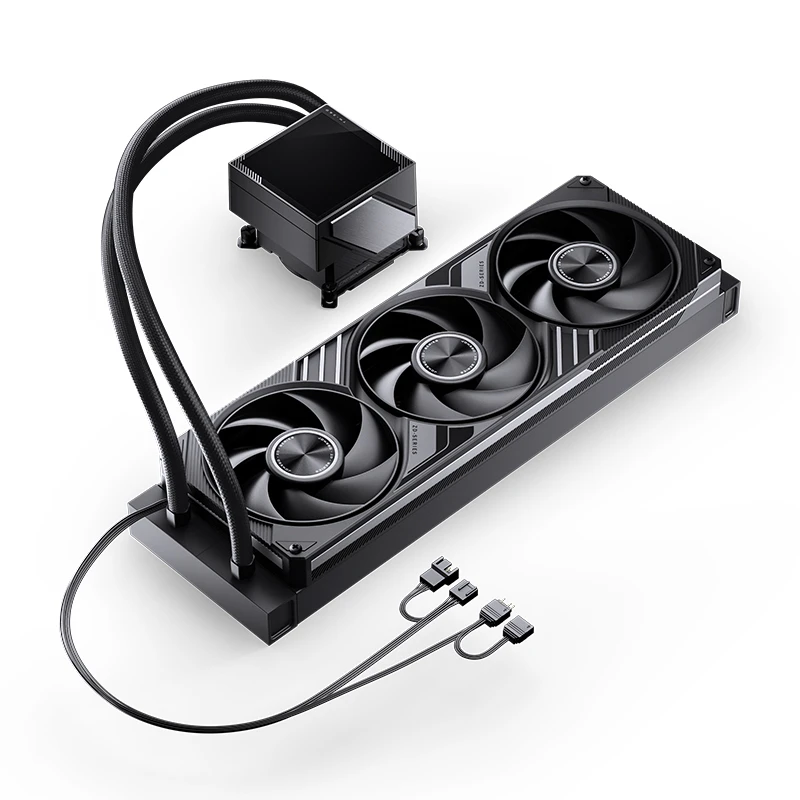

| Fan Connector:FAN 4PIN PWM / LED 3PIN ARGB |
|
Pump Speed:5000rpm(±10%) |
| Pump Working Voltage:12V DC |
| Pump Power Consumption:3.84W(±10%) |
| D-TDP:325W |

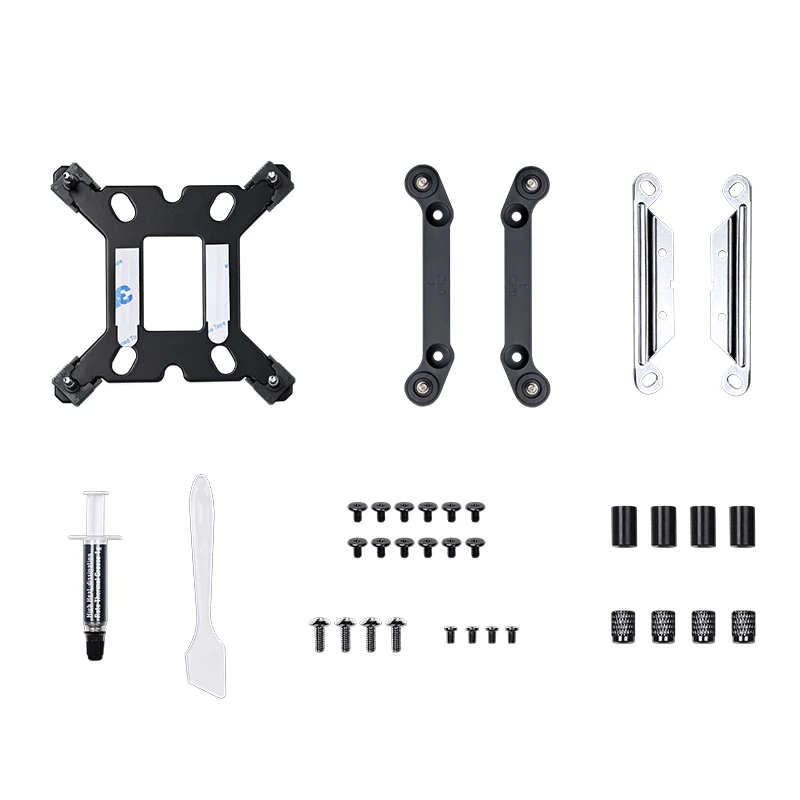

| Platform support:Intel LGA1200/115X/17XX/1851; AMD AM4/AM5 |
