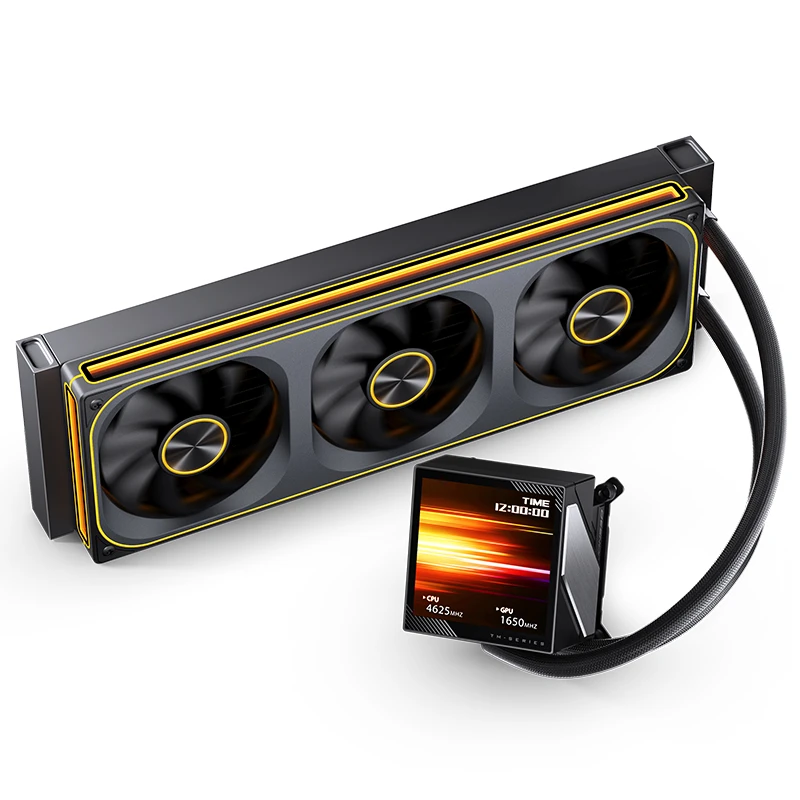

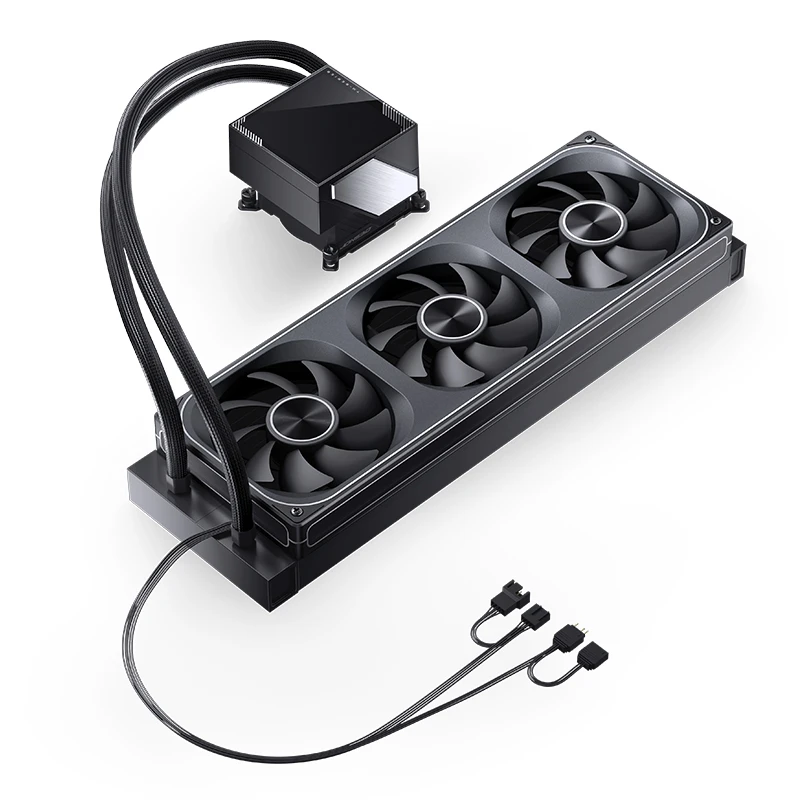

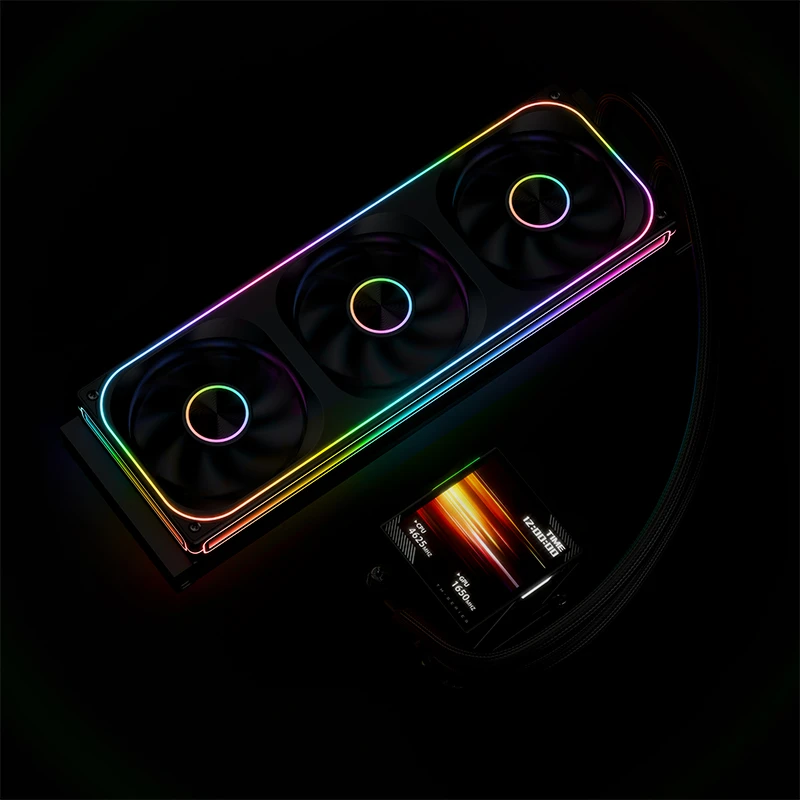

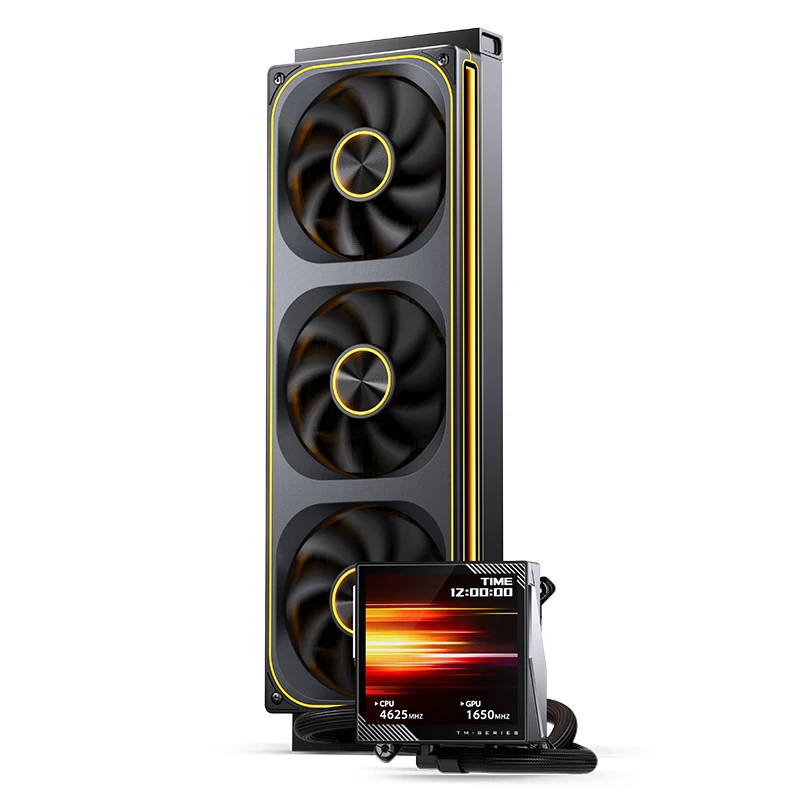

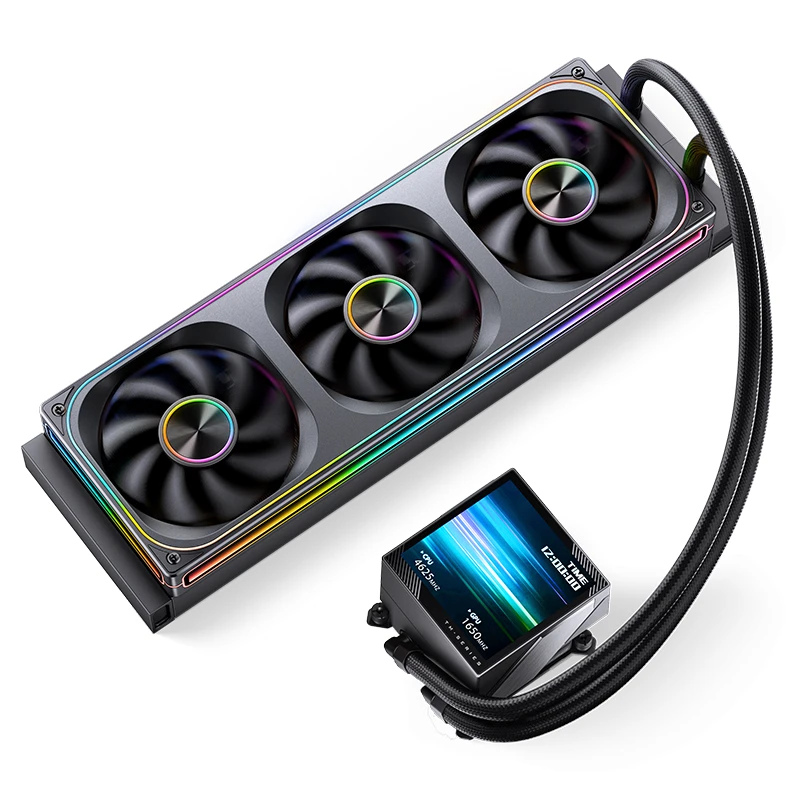

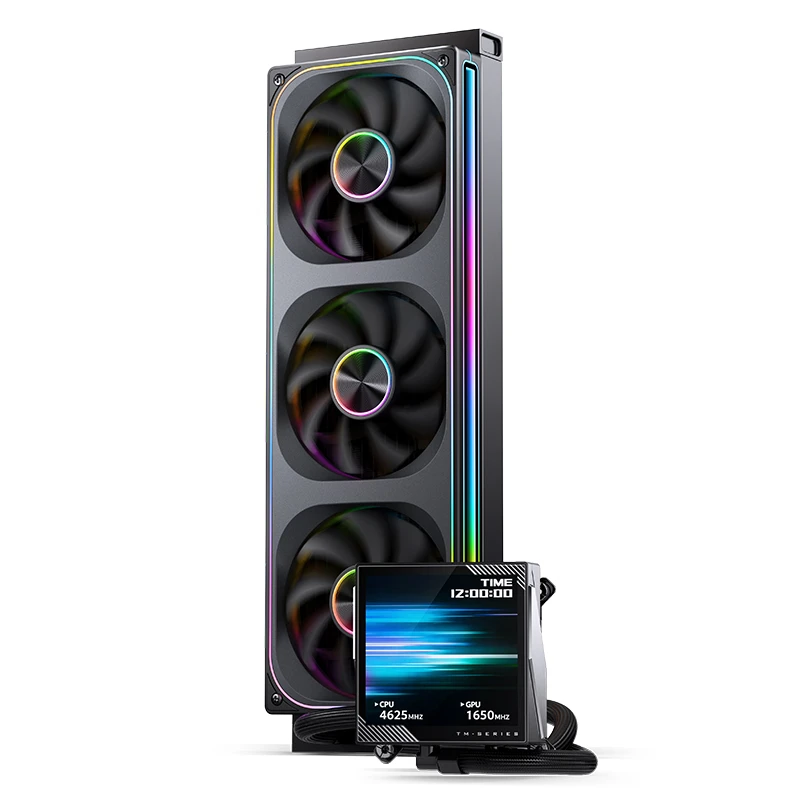

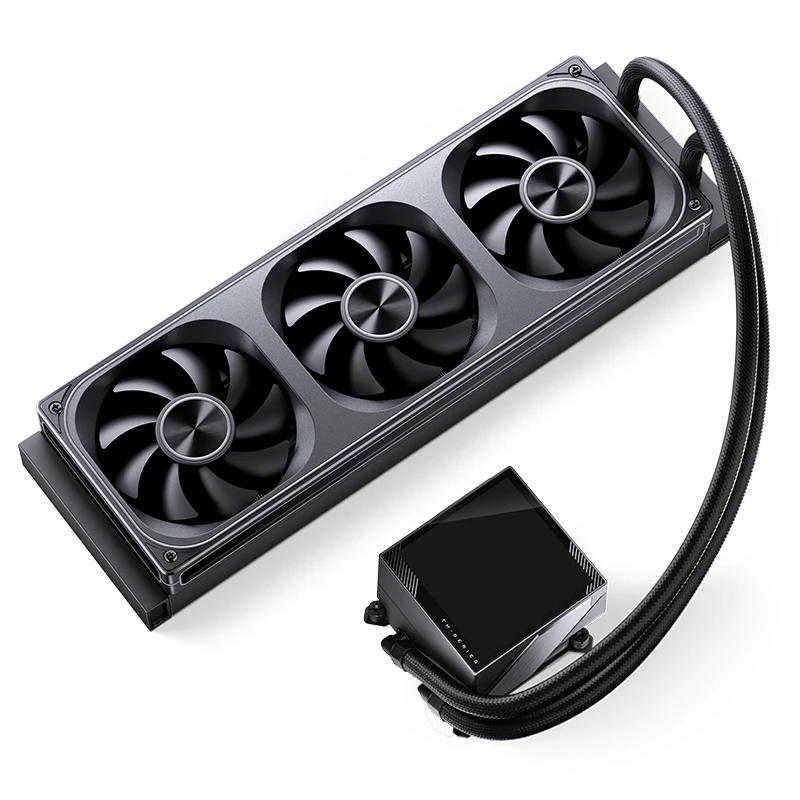

| Model：TM-360A Black |

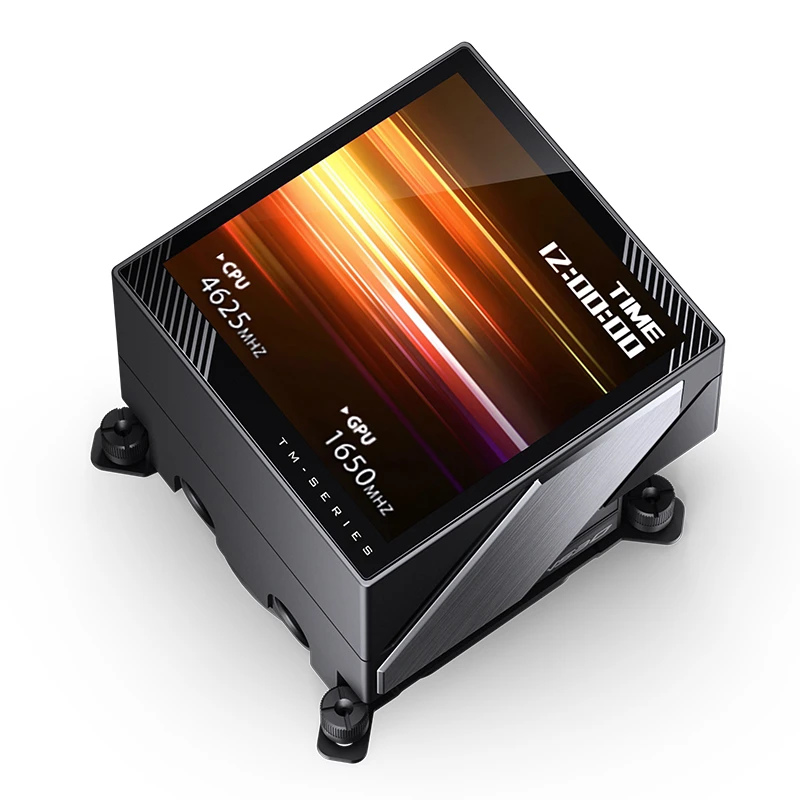

| Product type：LCD Display Water Cooling Radiator |

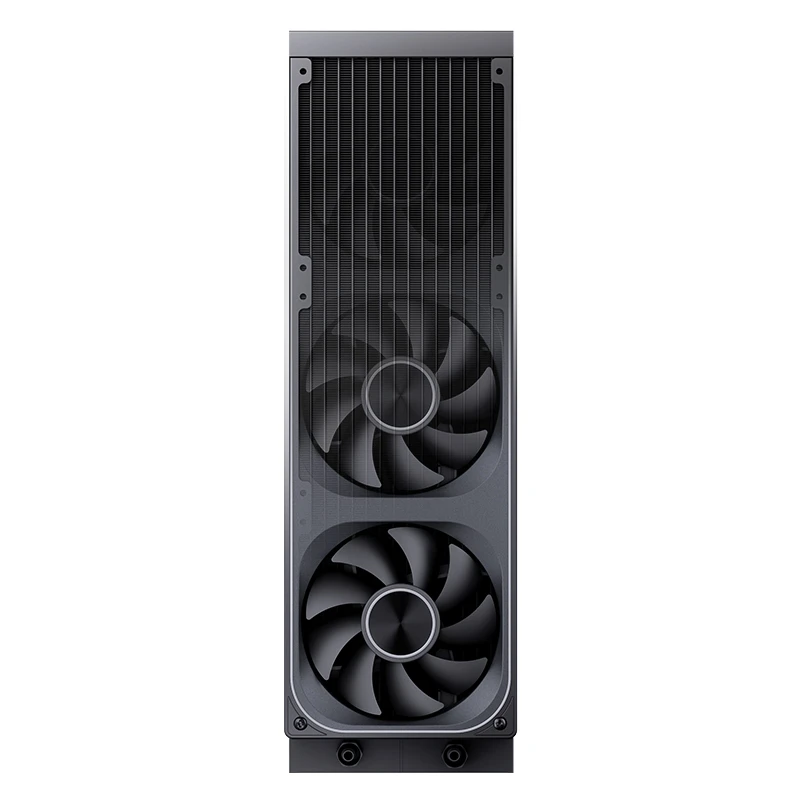

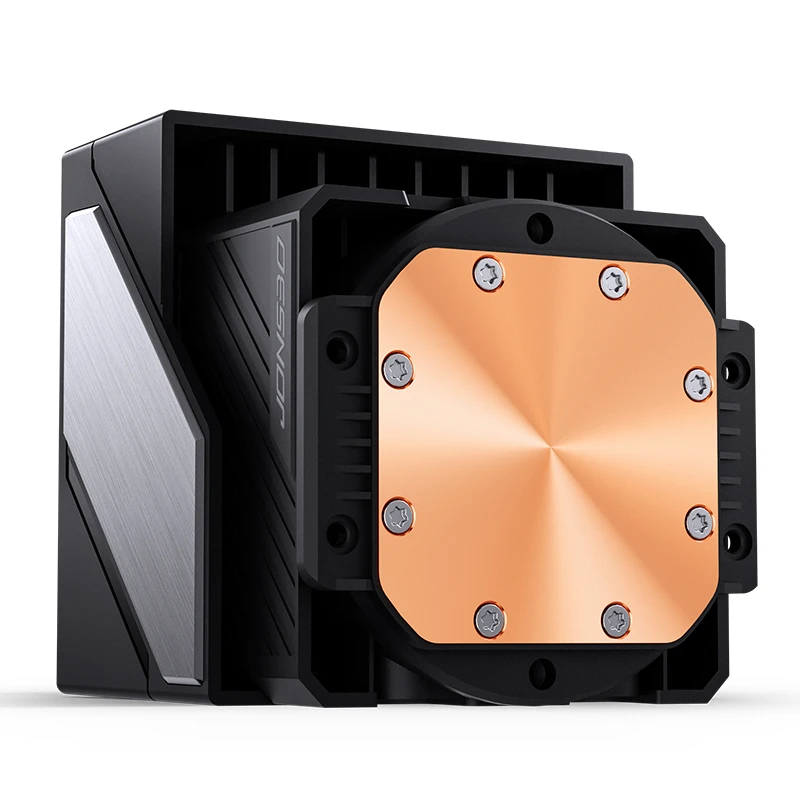

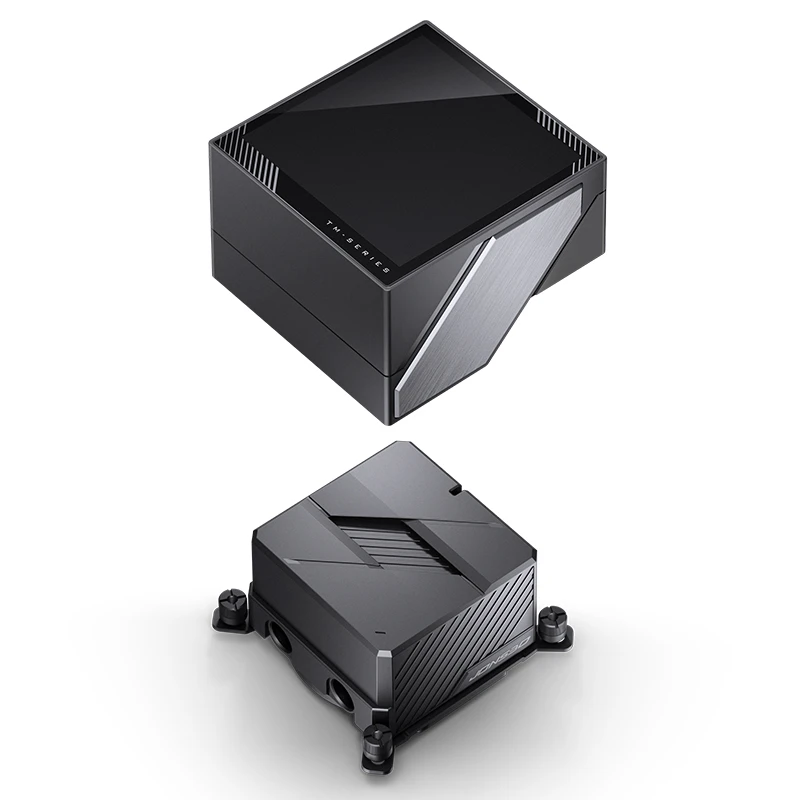

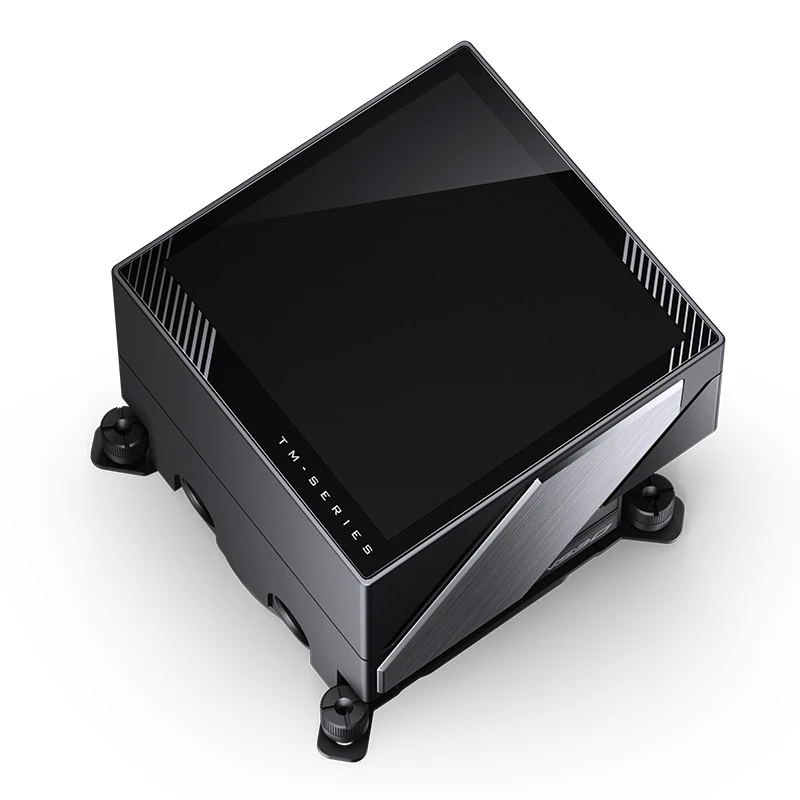

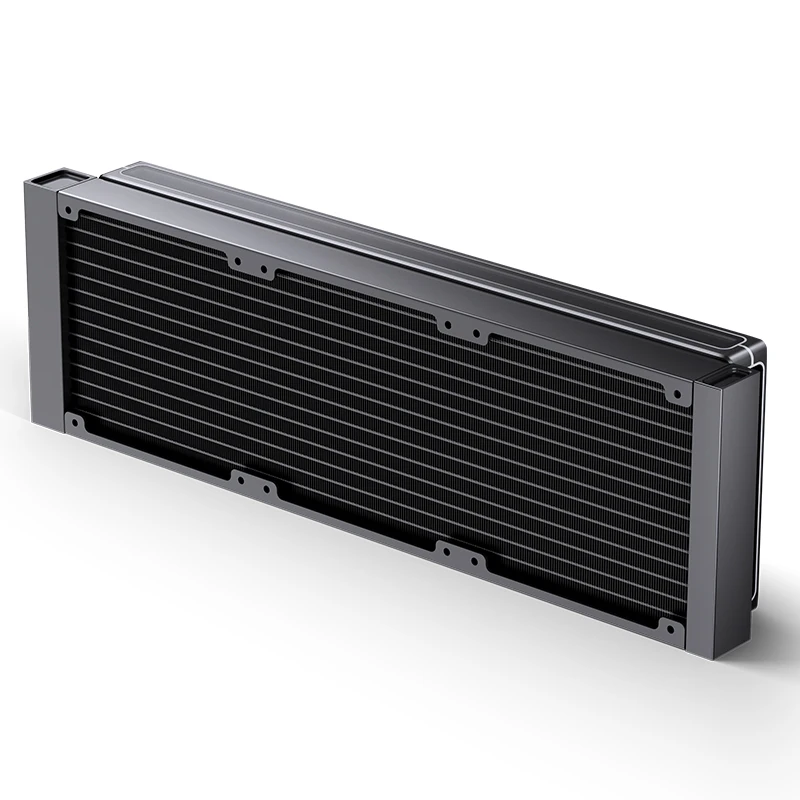

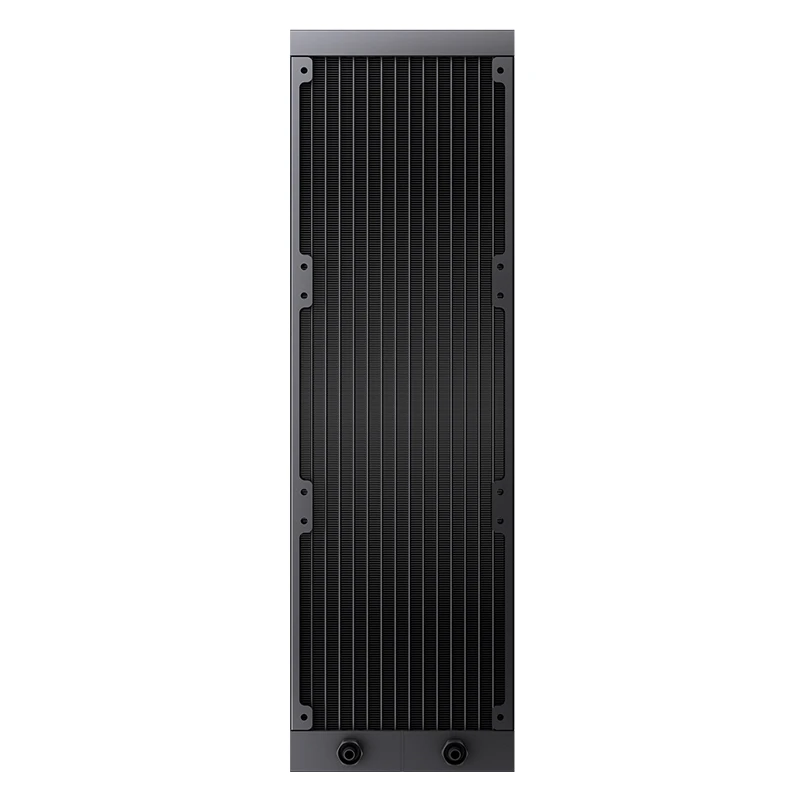

| Size：Pump：85mm*86.5mm*70.2mm；radiator：397mm*120mm*27mm；Fan：362mm*123mm*28mm |
| Fan Speed：700rpm~2400 rpm(±10%) |
| Fan Air Flow：21.46-62.40 CFM(each) |
| Fan Air Pressure：0.49-2.46 mmH2O |
|
Fan Noise Level： 21.3-37.3
dB(A)( max) |
| MTBF：≥20000h Room Temp:25℃ |

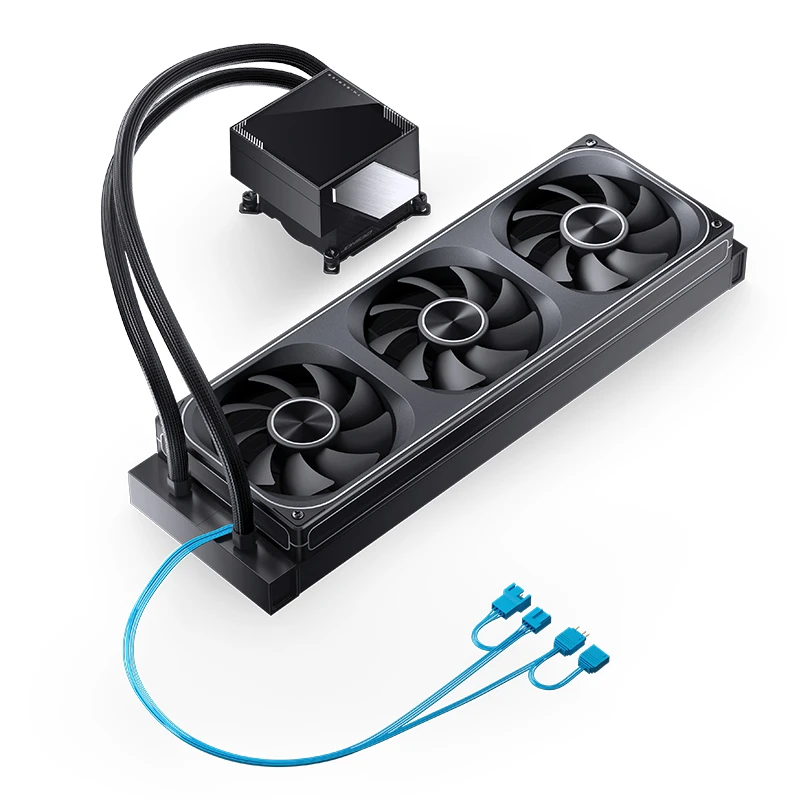

| Fan Connector：FAN 4PIN PWM / LED 3PIN ARGB |
|
Pump Speed：5000rpm(±10%) |
| Pump Working Voltage：12V DC |
| Pump Power Consumption：3.84W(±10%) |
| D-TDP：325W |

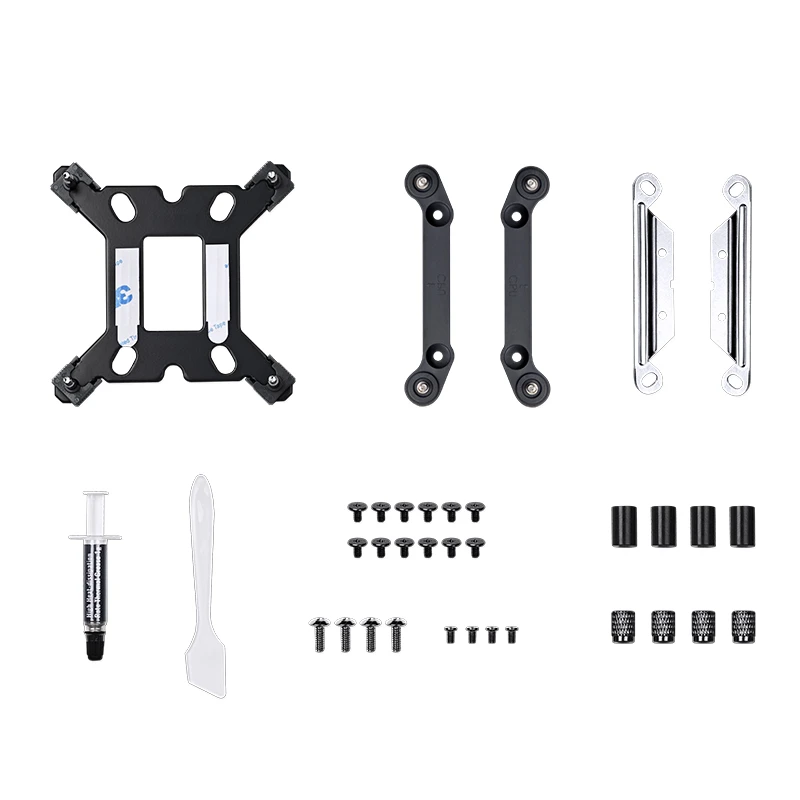

| Platform support：Intel LGA1200/115X/17XX/1851; AMD AM4/AM5 |
