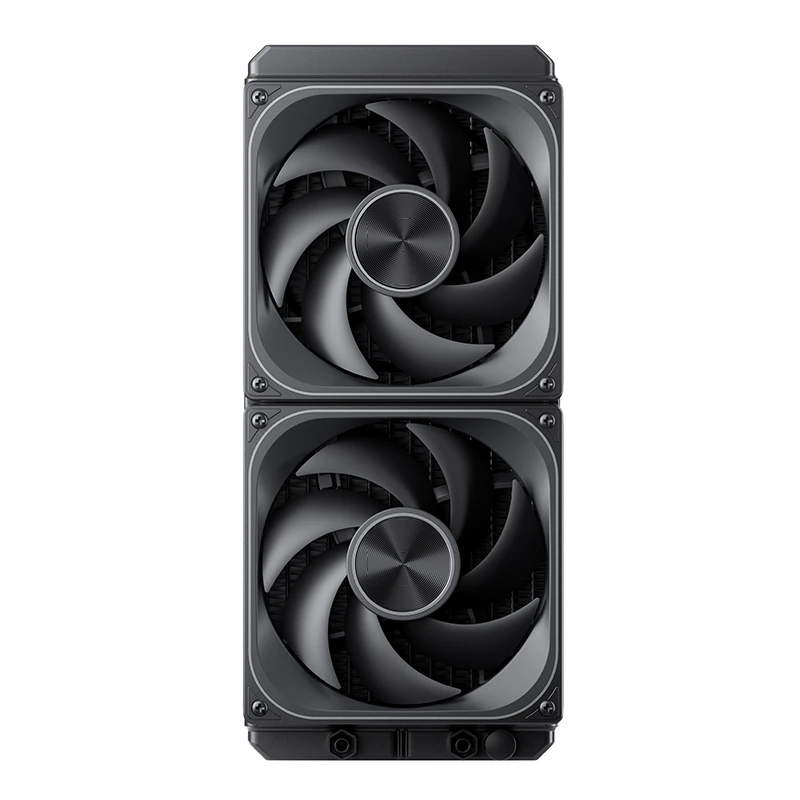

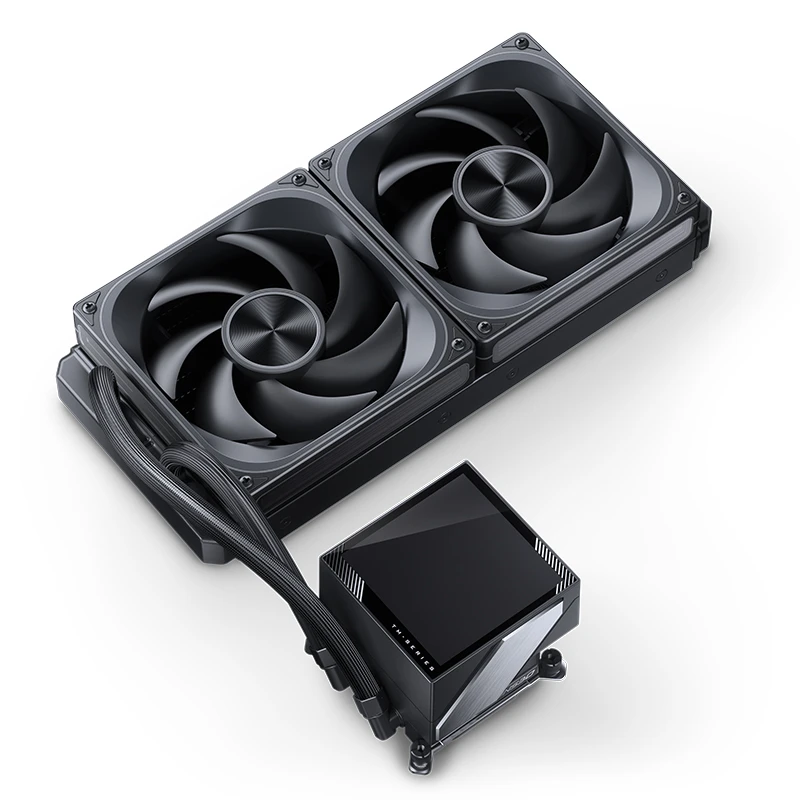

| Model:TM-280 Black |

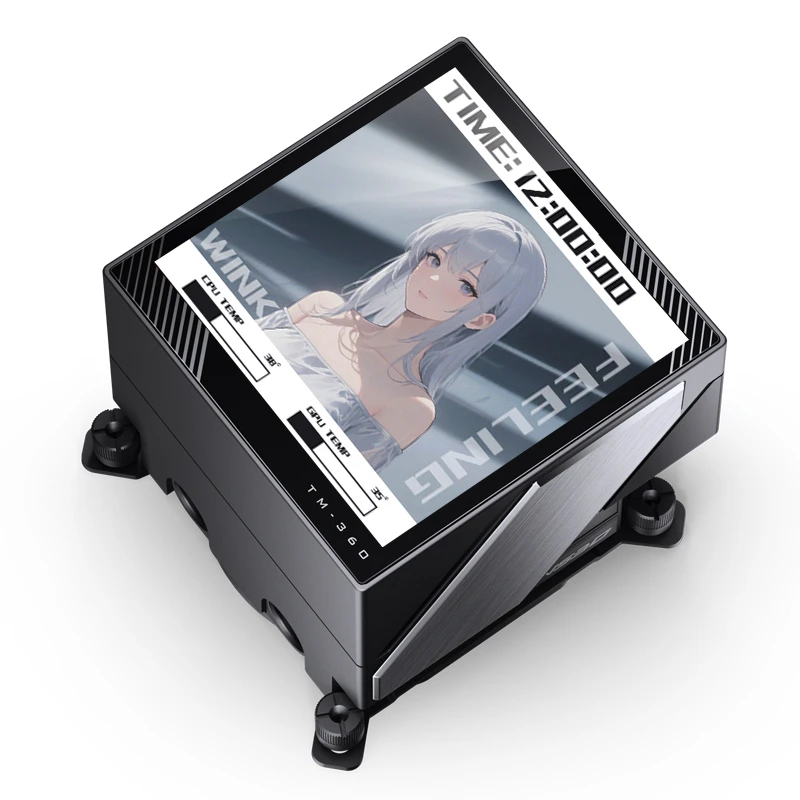

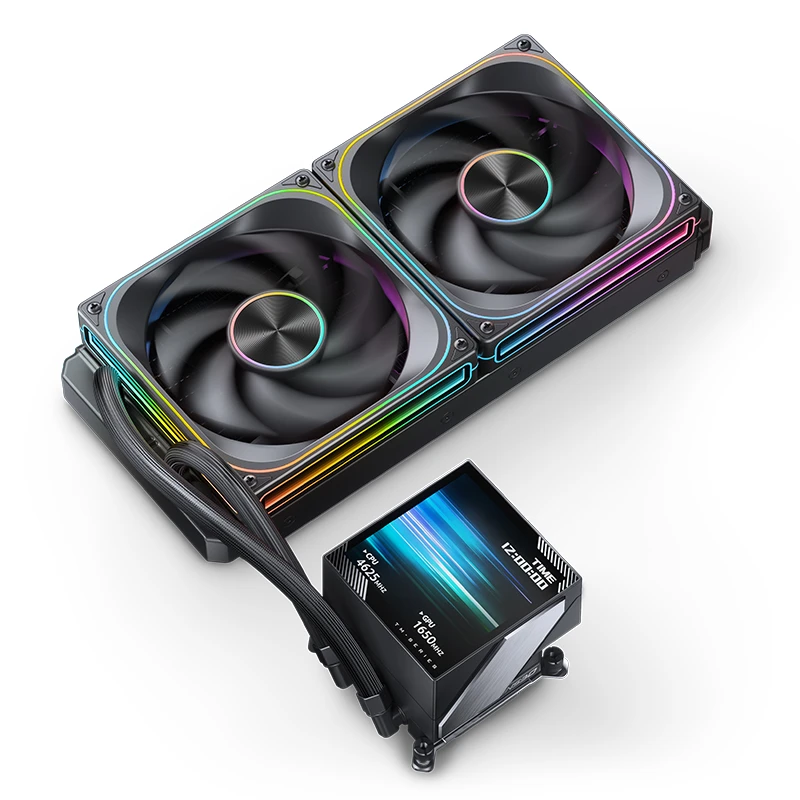

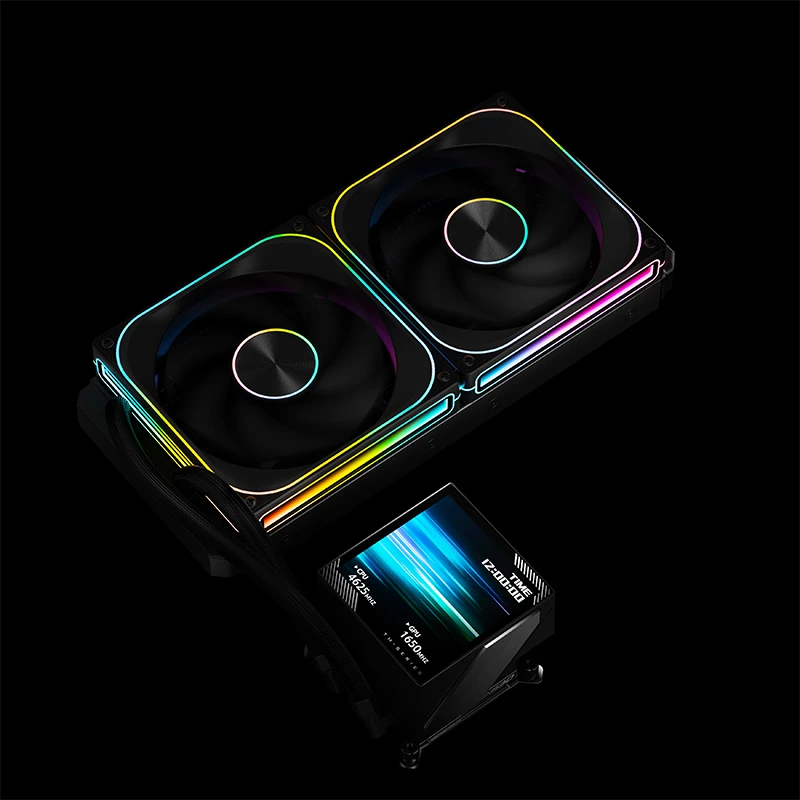

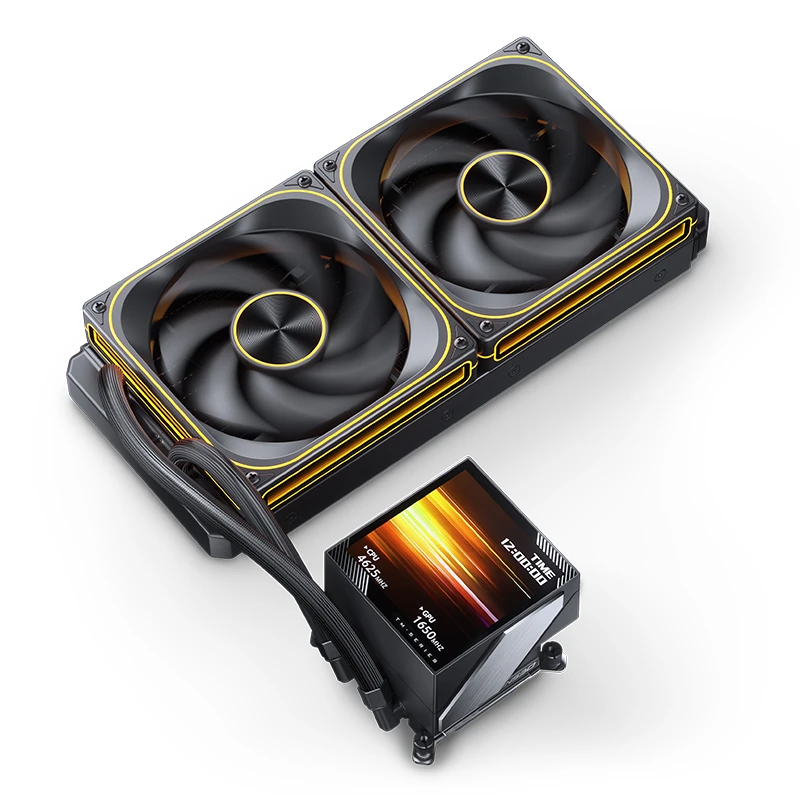

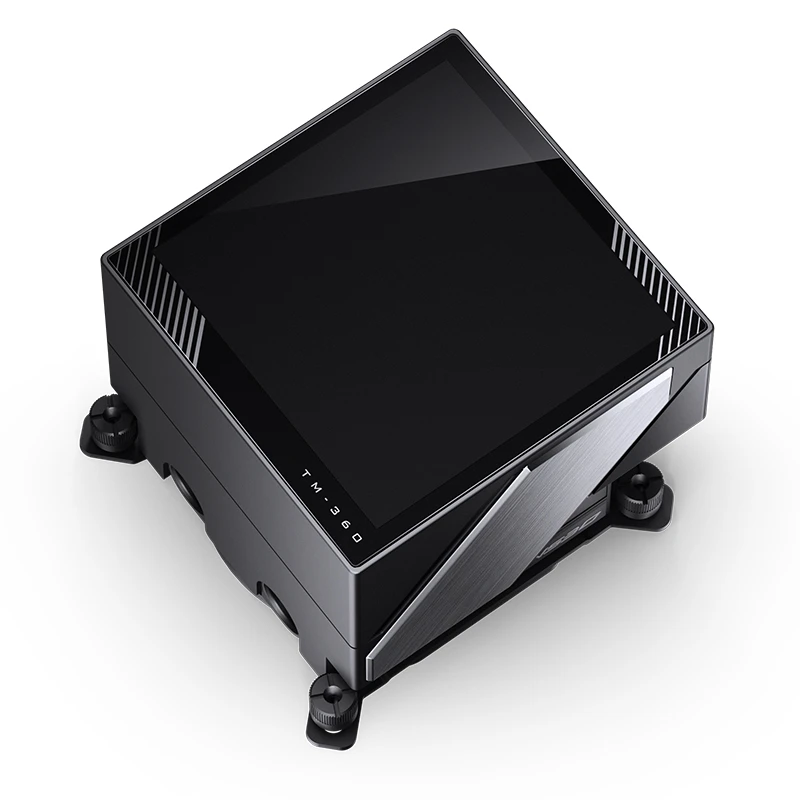

| Product type:LCD Display Water Cooling Radiator |

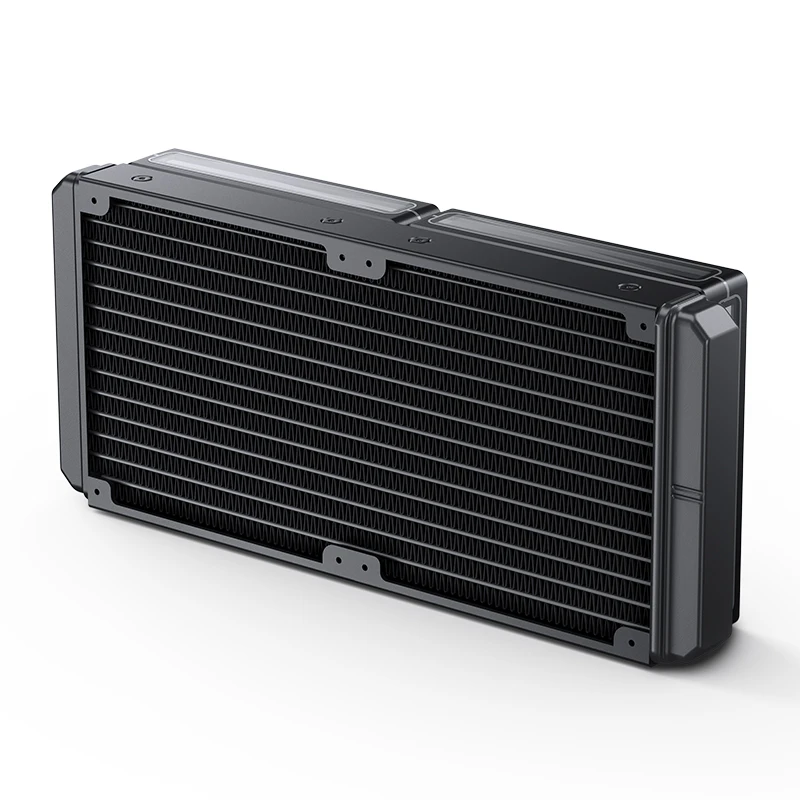

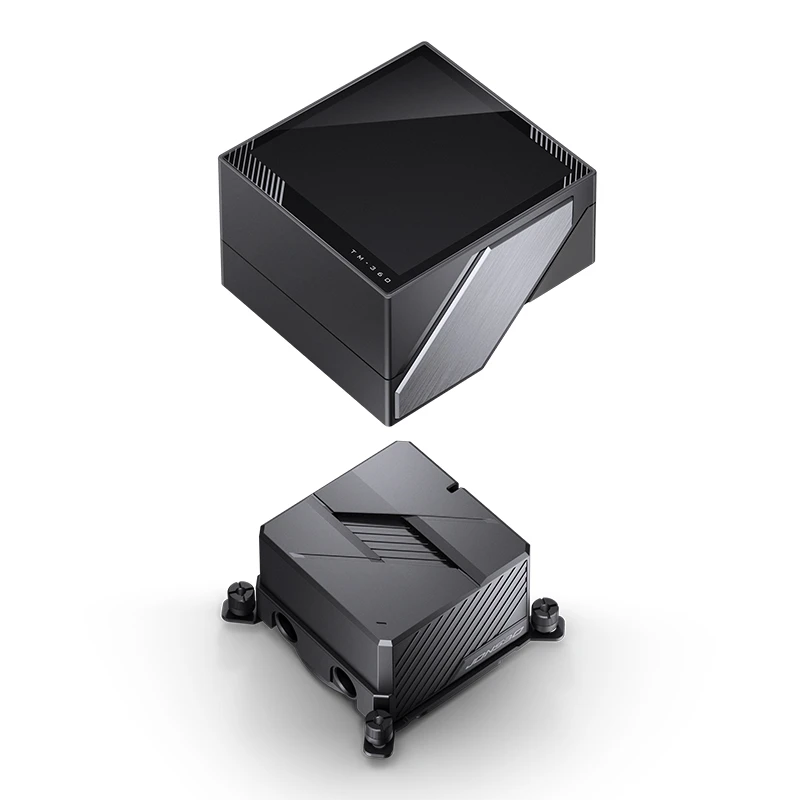

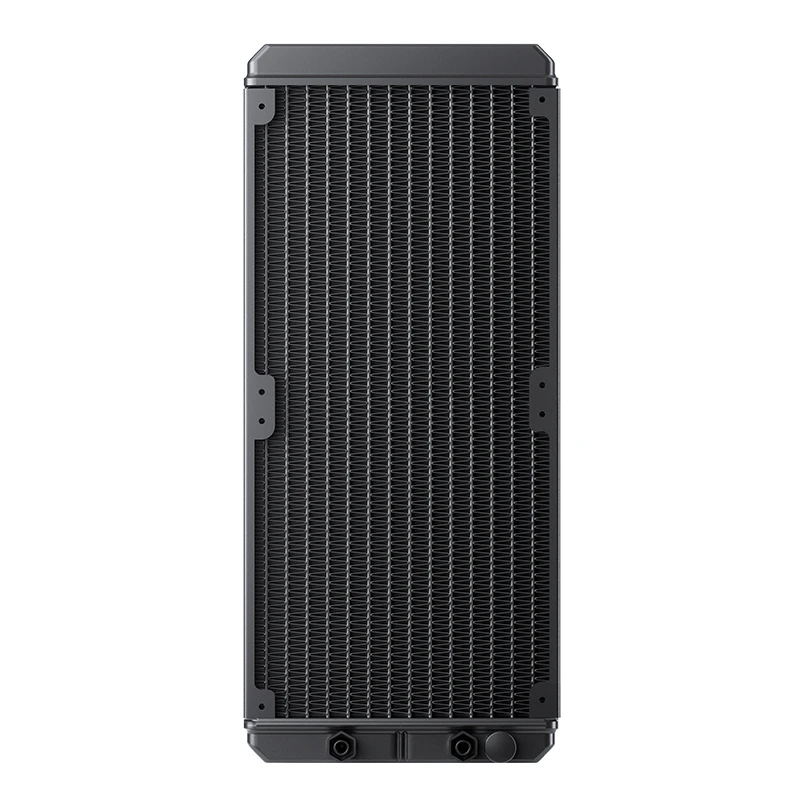

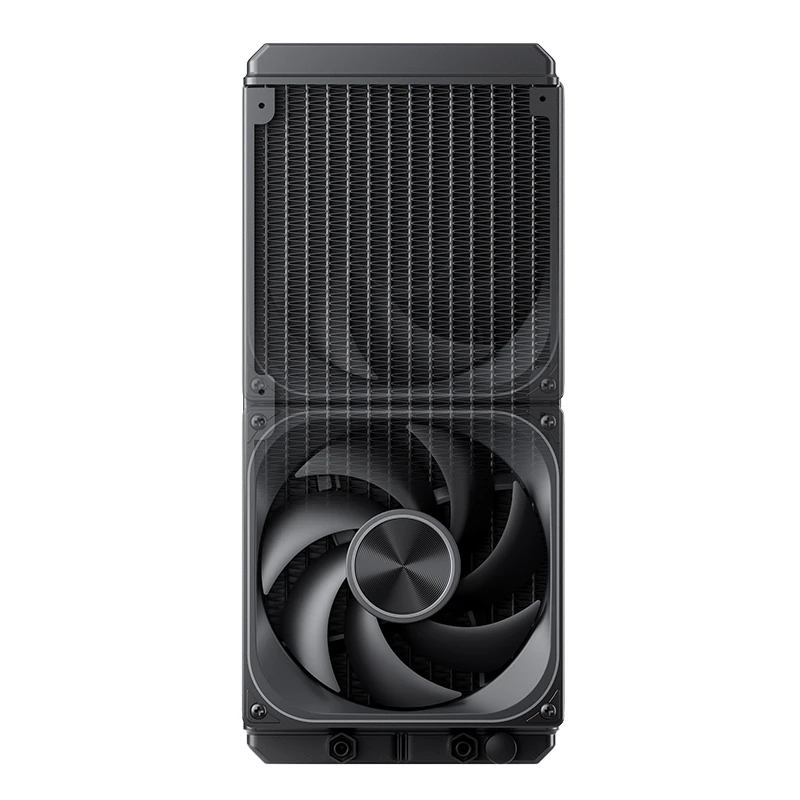

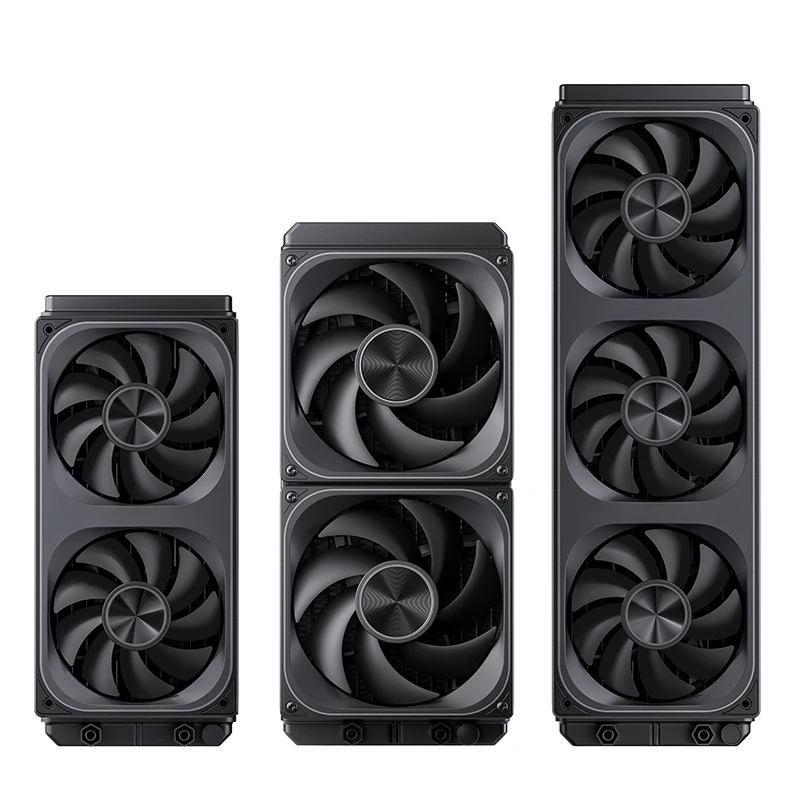

| Size:Pump:85mm*86.5mm*70.2mm;radiator:315mm*137mm*28mm;Fan:280mm*140mm*28mm |
| Fan Speed:700rpm~1800 rpm(±10%) |
| Fan Air Flow:33.70-73.82 CFM(each) |
| Fan Air Pressure:0.47-1.94 mmH2O |
|
Fan Noise Level: 18.3-32.2
dB(A)( max) |
| MTBF:≥20000h Room Temp:25℃ |
| Fan Connector:FAN 4PIN PWM / LED 3PIN ARGB |
|

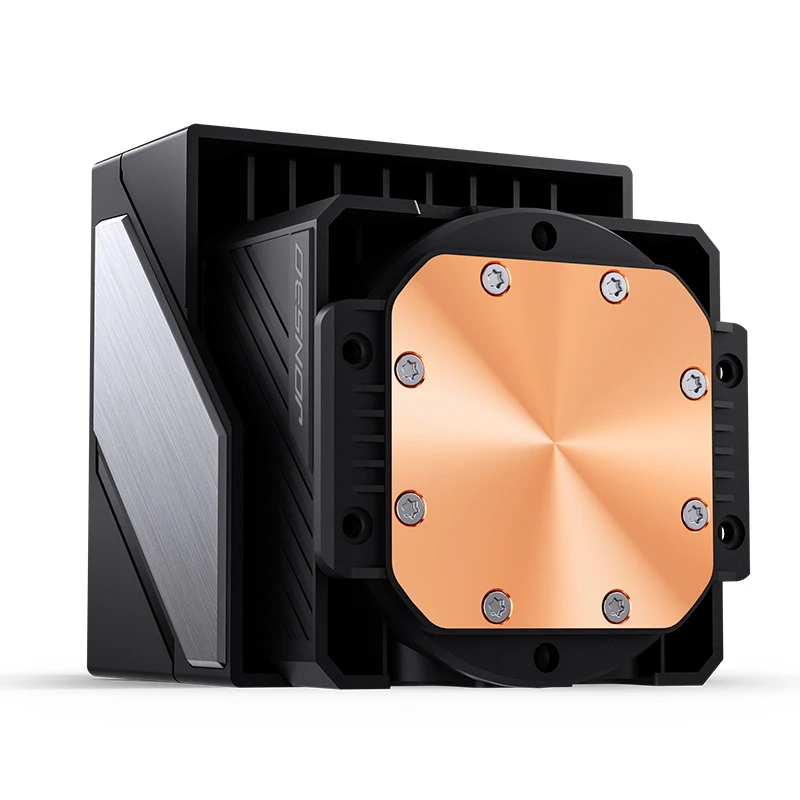

Pump Speed:5000rpm(±10%) |
| Pump Working Voltage:12V DC |
| Pump Power Consumption:3.84W(±10%) |
| D-TDP:285W |

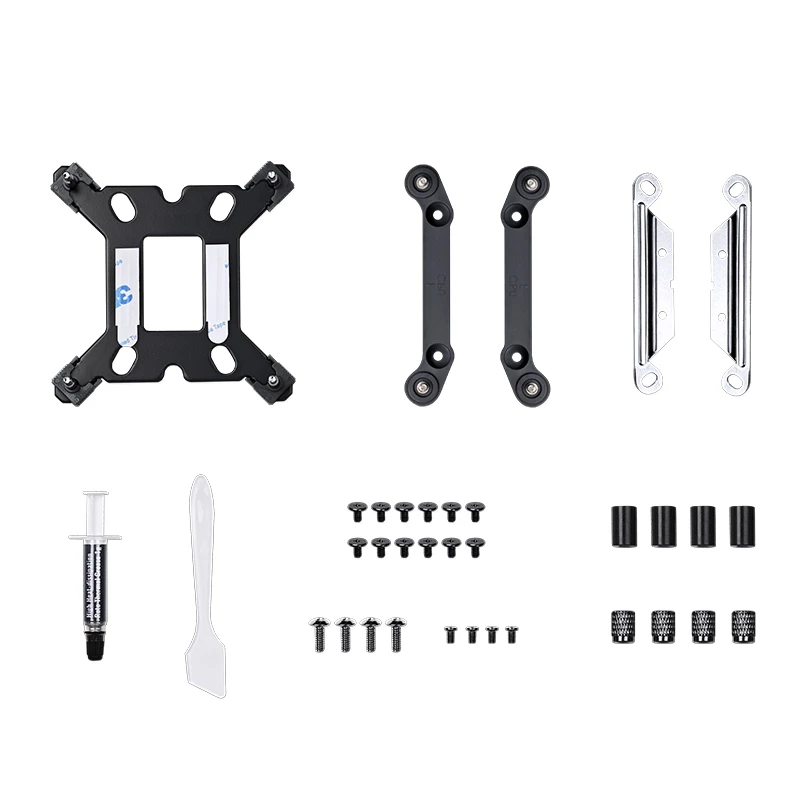

| Platform support:Intel LGA1200/115X/17XX/1851; AMD AM4/AM5 |
