Position：Home>Product>EOL Model - AIO Liquid Radiator EOL Model

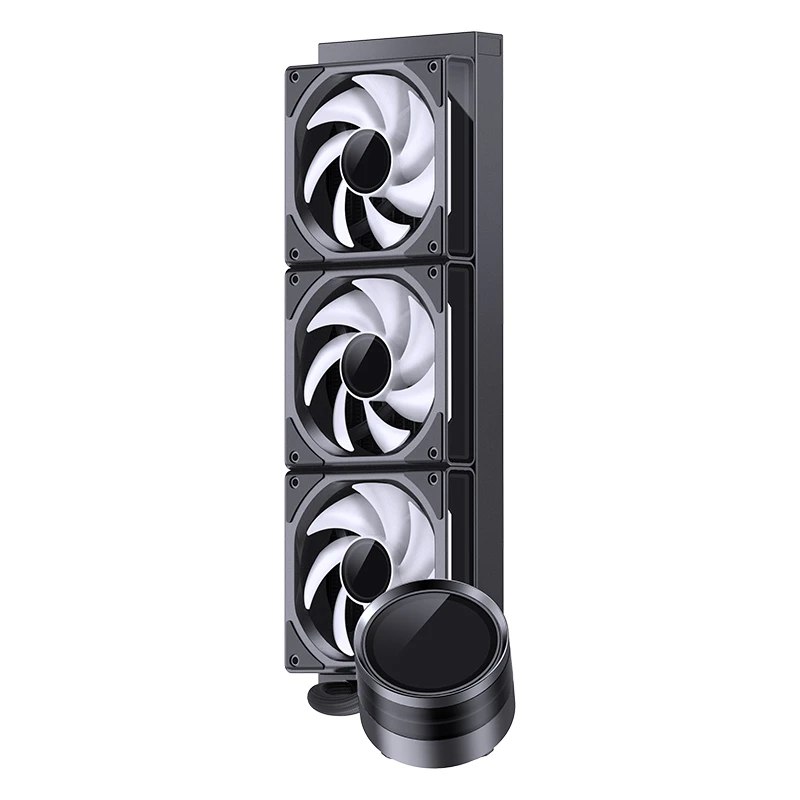

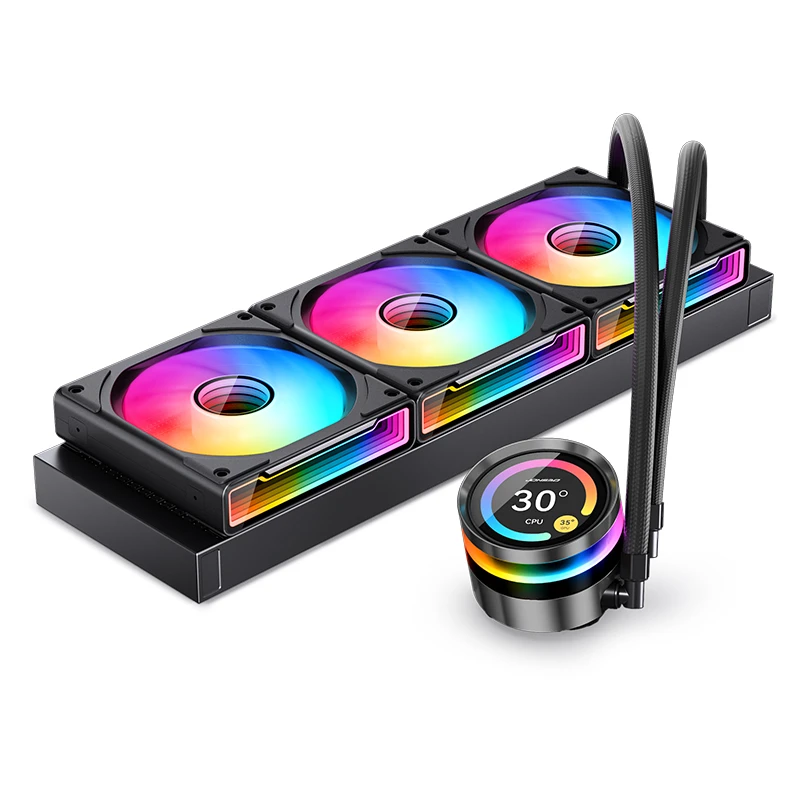

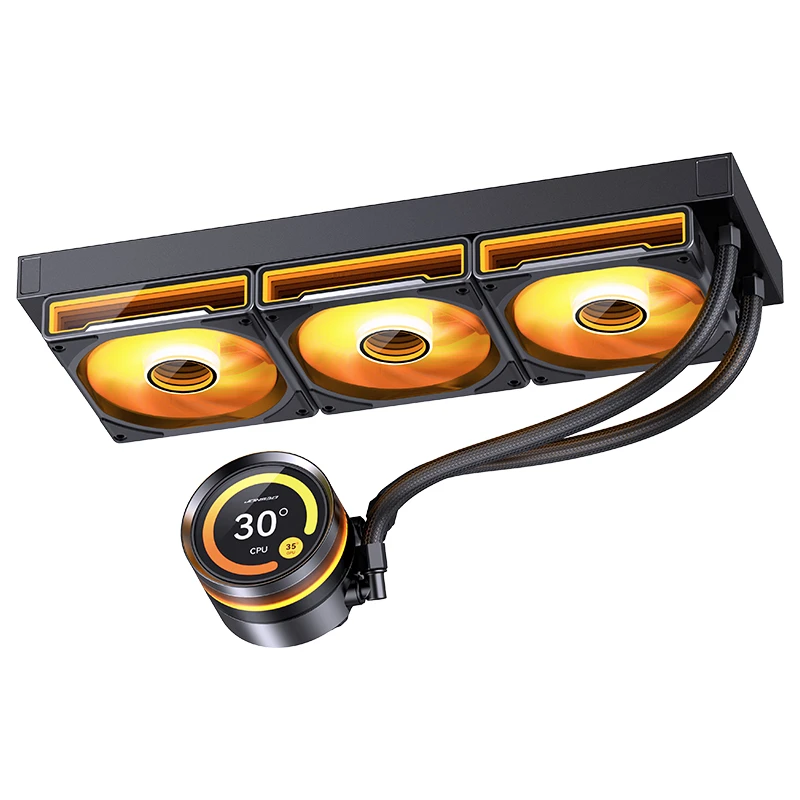

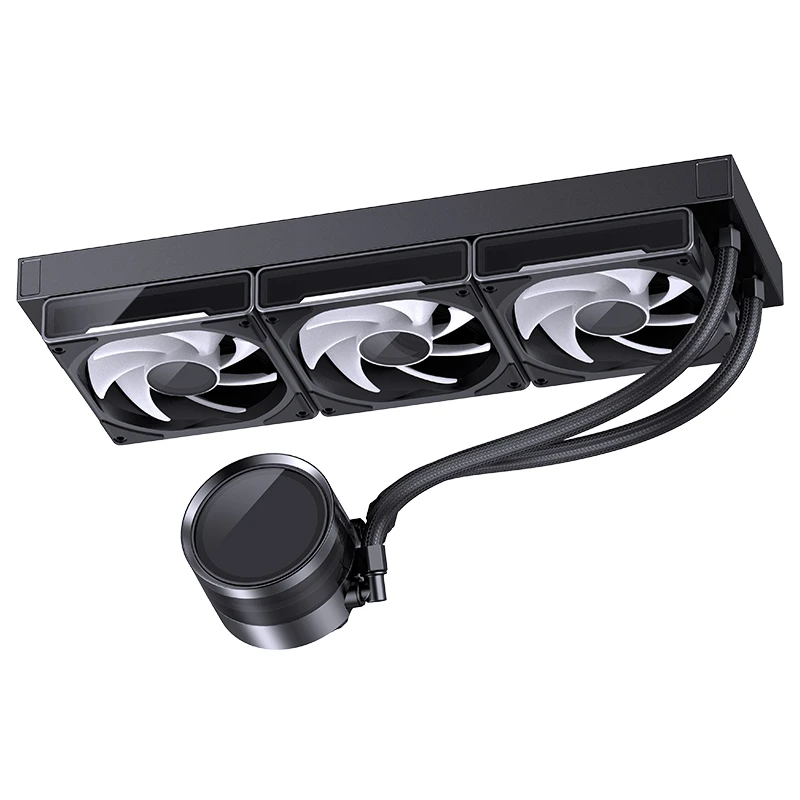

TF2-360SC(BI)

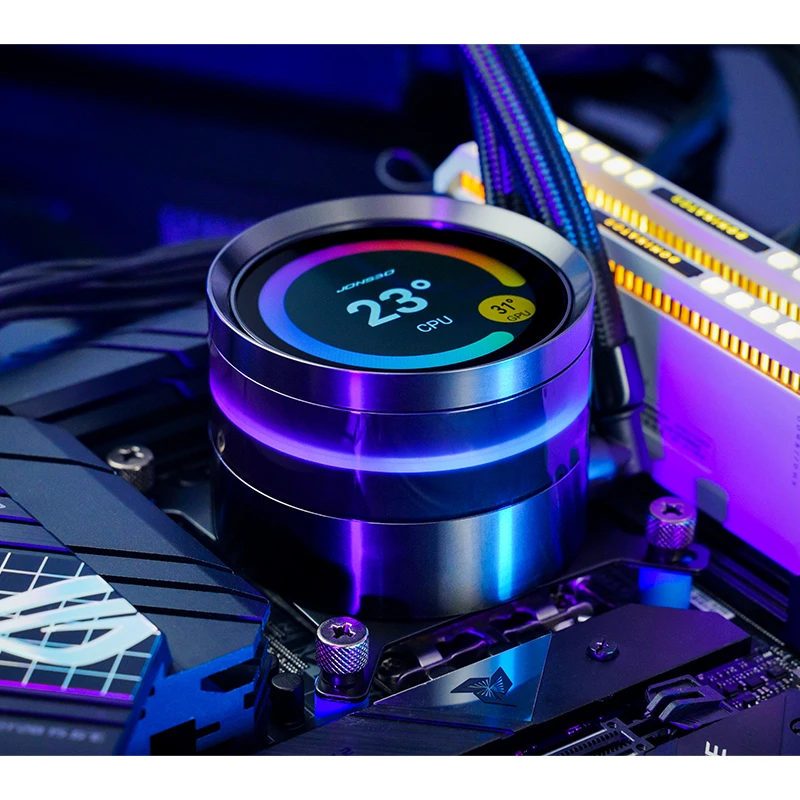

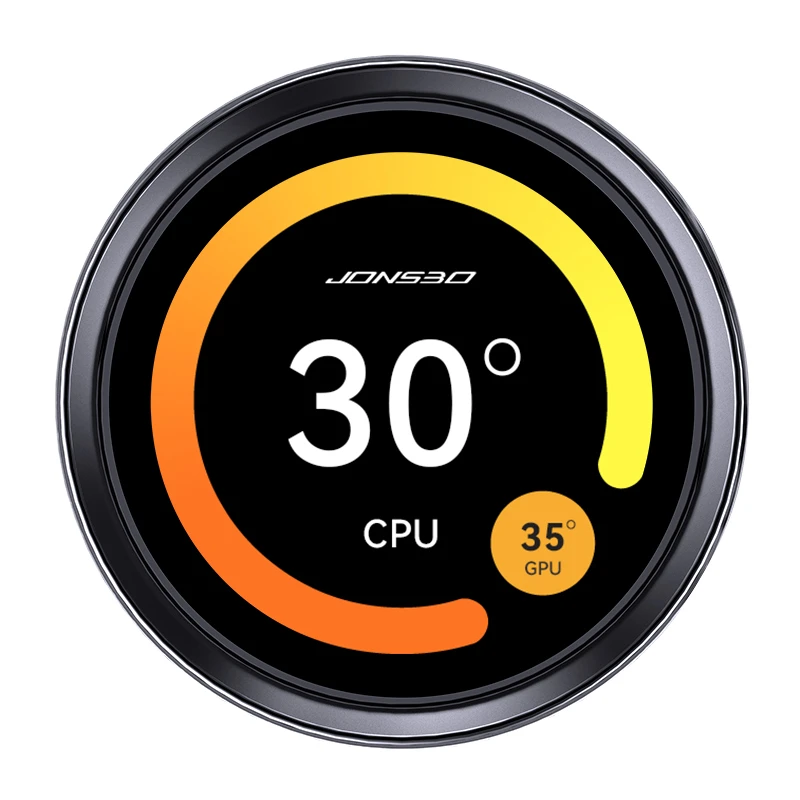

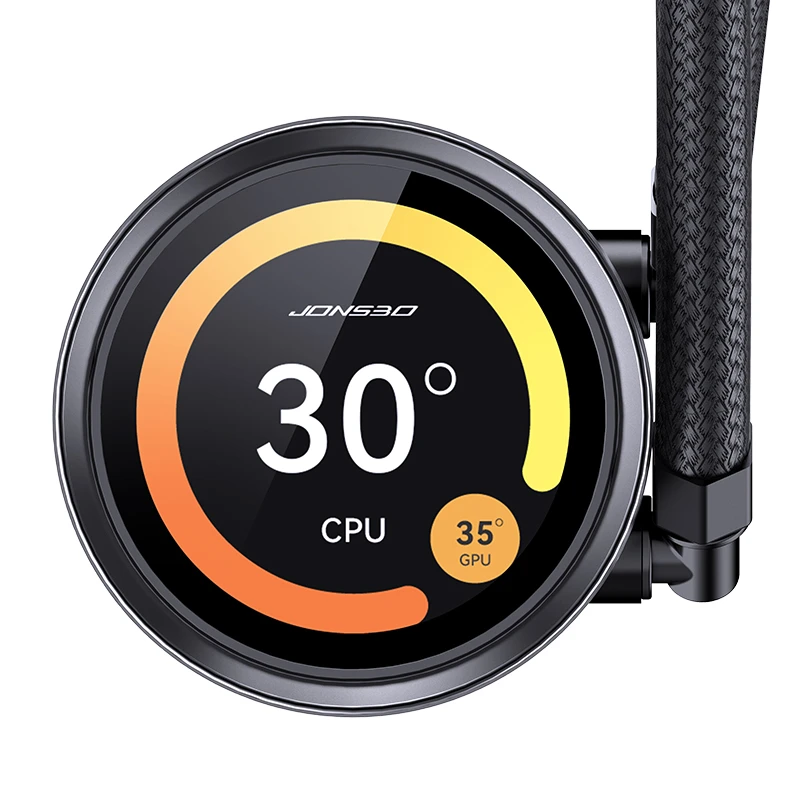

 Screen display spec：

Screen Size：2.1 inches

Screen Resolution：480*480

Screen Brightness：600NITS(MAX)

Image Format：JPG  / PNG / BMP

Video Format：AVI / MP4 / GIF≤1920*1080 DPI


Product Specification：

Model：TF2-360SC(BI)
Product type：IPS LCD screen water cooling

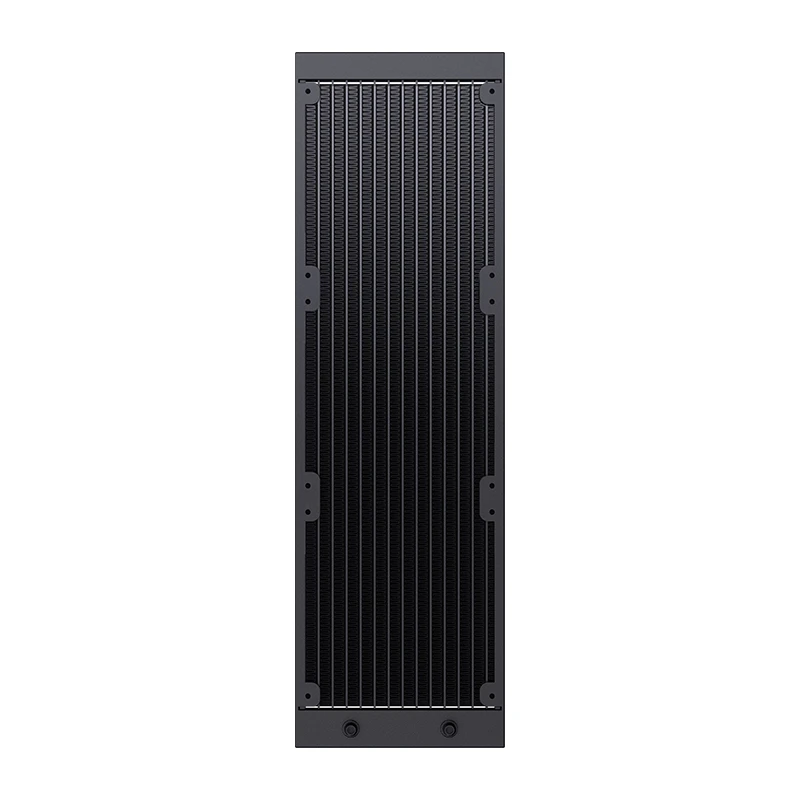

Size：Pump：59.5mm(H)*75mm(Φ)；radiator：397mm*120mm*27mm

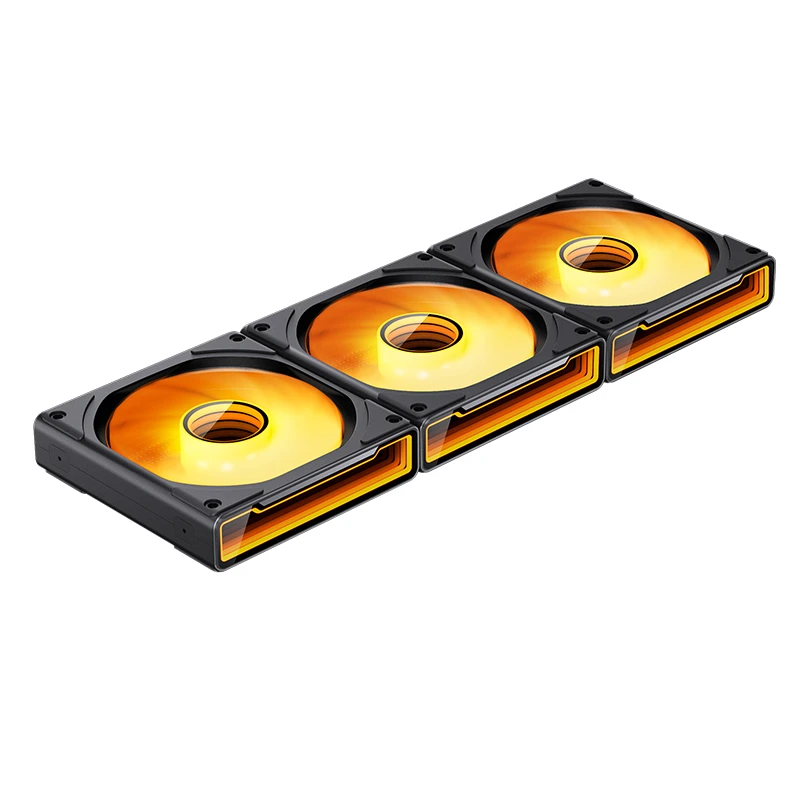

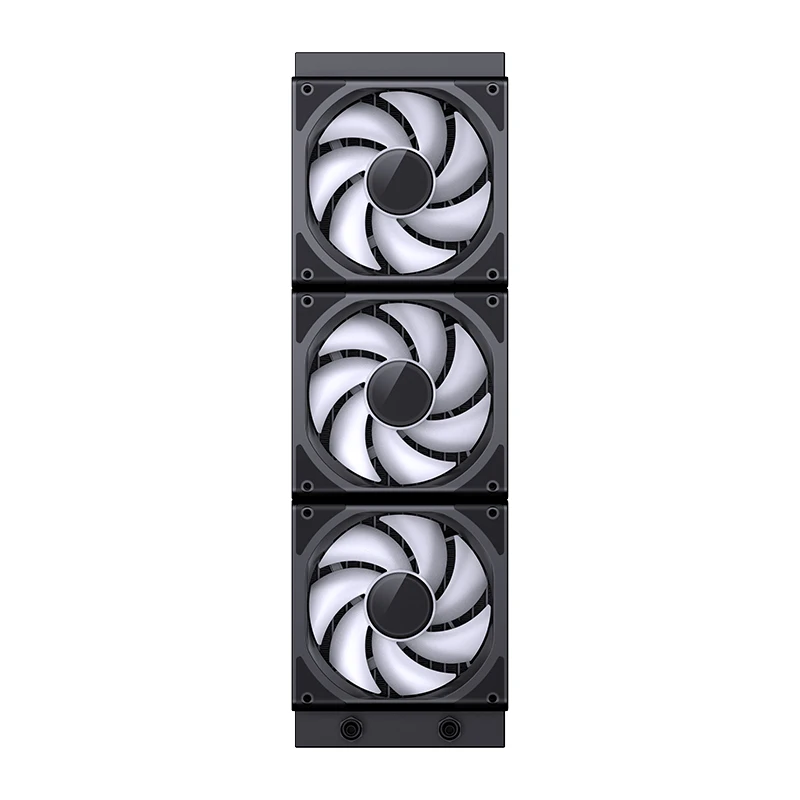

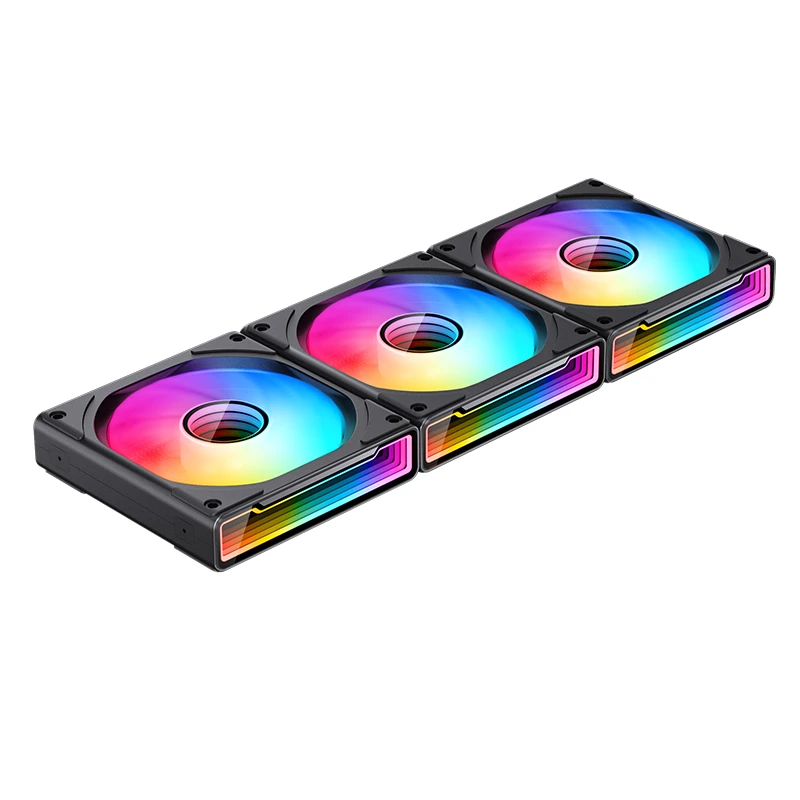

Fan Air Flow：12.95-61.79CFM(each)
Fan Bearing：FDB Bearing
Fan Speed：800-2200rpm(±10%)
Fan Connector：4PIN PWM
Fan Noise Level：20.3-35.8 dB(A)(max)
Pump Power Consumption：

≤

3.36W
Pump Noise Level：

≤

28dB(A)
Pump Working Voltage：12V DC
Pump Speed：800-2200rpm（±10%）
Pump Connector：4PIN PWM

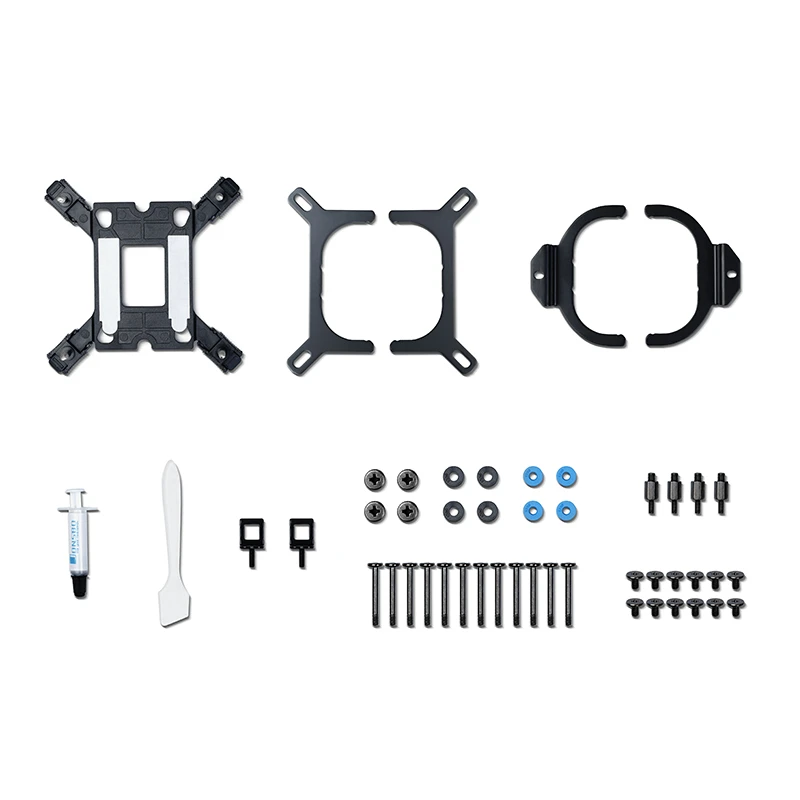

Platform support：Intel LGA1700/1200/115X/2011; AMD AM4/AM5

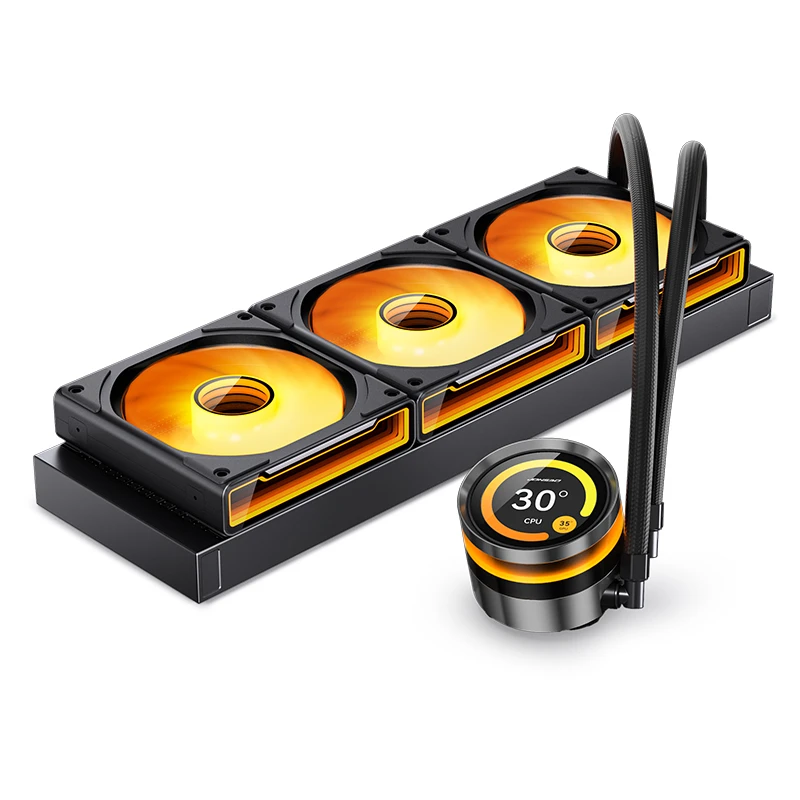

  • 202432578147.webp
  • 202432593966.webp
  • 202432579694.webp
  • 202432544125.webp
  • 202432563949.webp
  • 202432571406.webp
  • 202432532952.webp

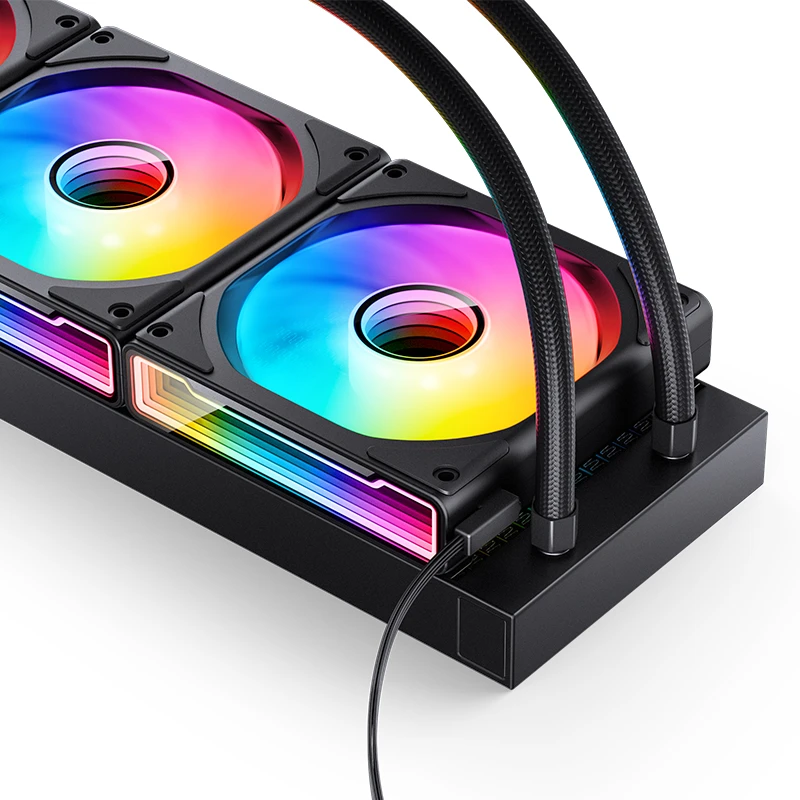

  • 202432549658.webp
  • 202432514090.webp
  • 202432533913.webp
  • 202432589175.webp

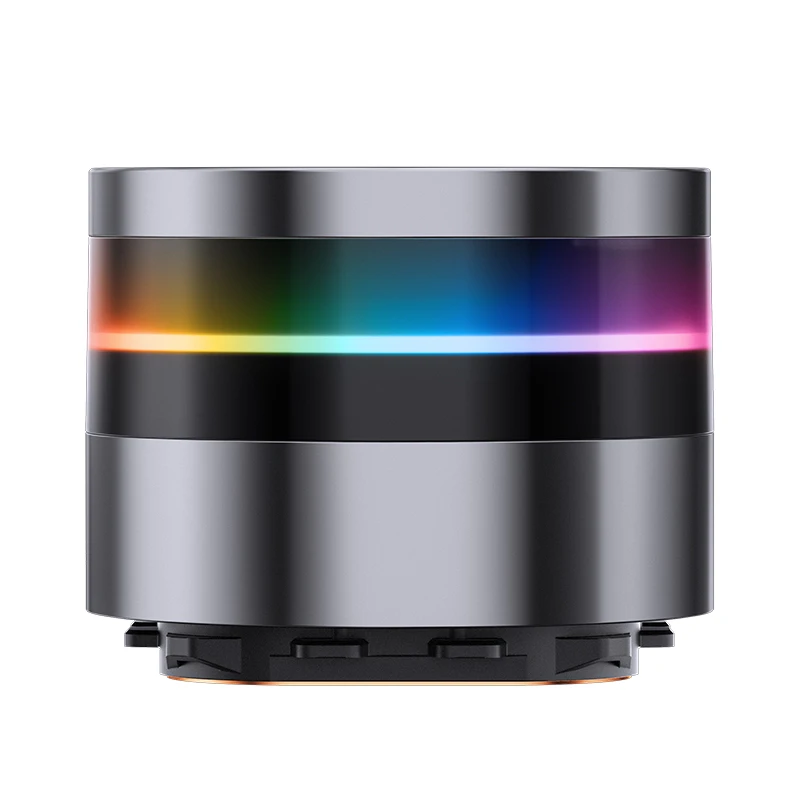

  • 202432534505.webp

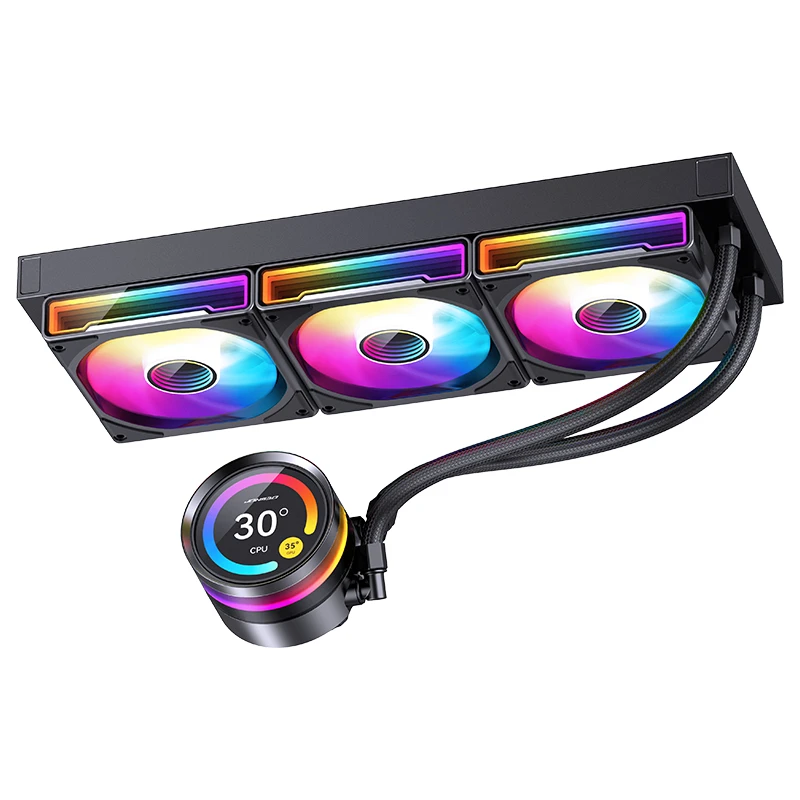

  • 202432551212.webp
  • 202432563447.webp
  • 202432583271.webp
  • 202432590728.webp
  • 202432591580.webp
  • 202432518287.webp
  • 202432572718.webp

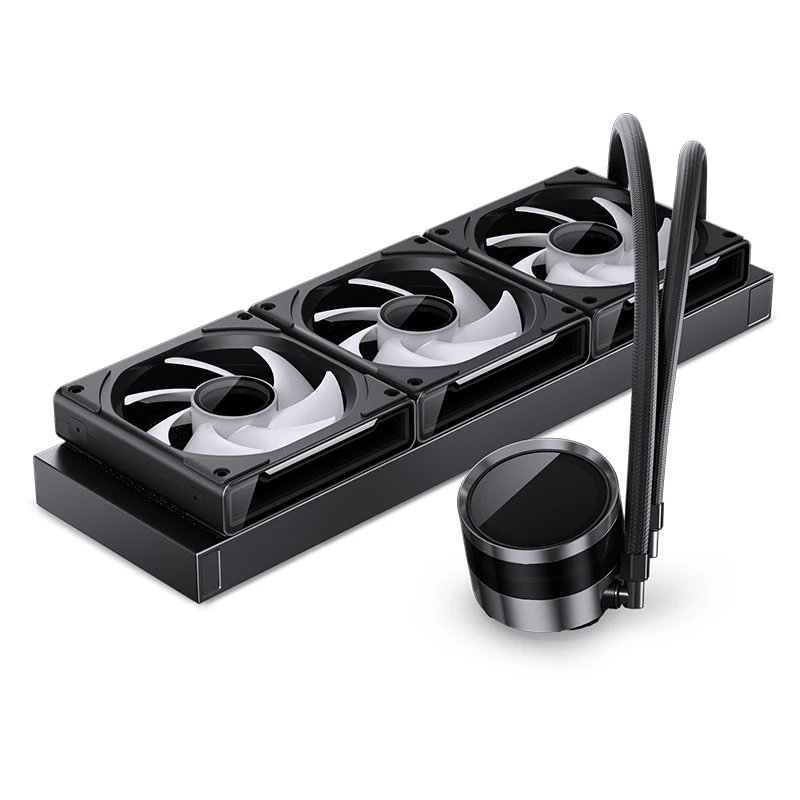

  • 202432592542.webp
  • 202432599999.webp
  • 202432547588.webp
  • 202432564295.webp

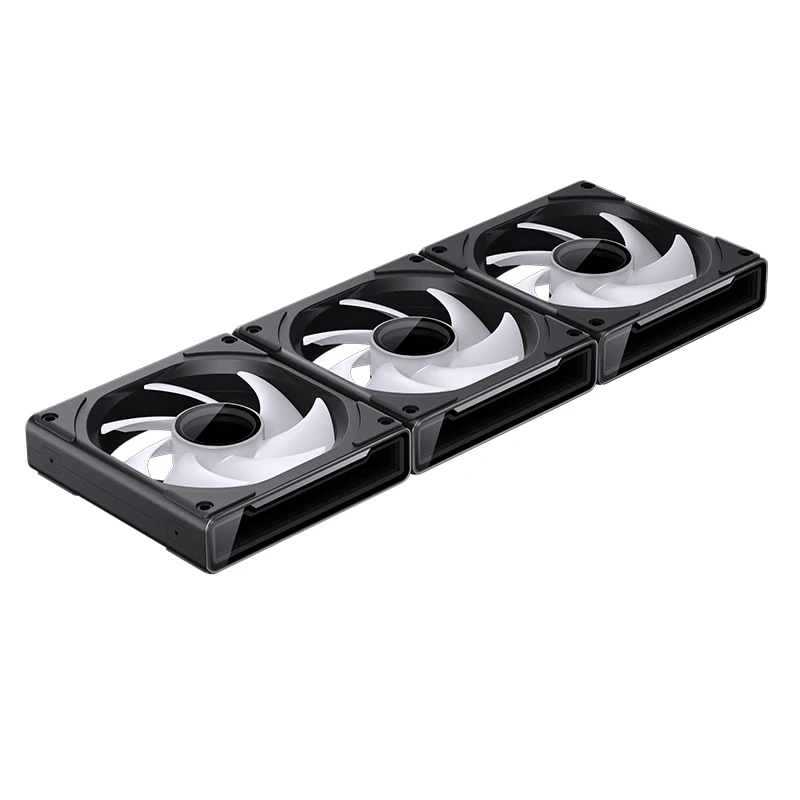

  • 202432528726.webp
  • 202432548550.webp
  • 202432556007.webp

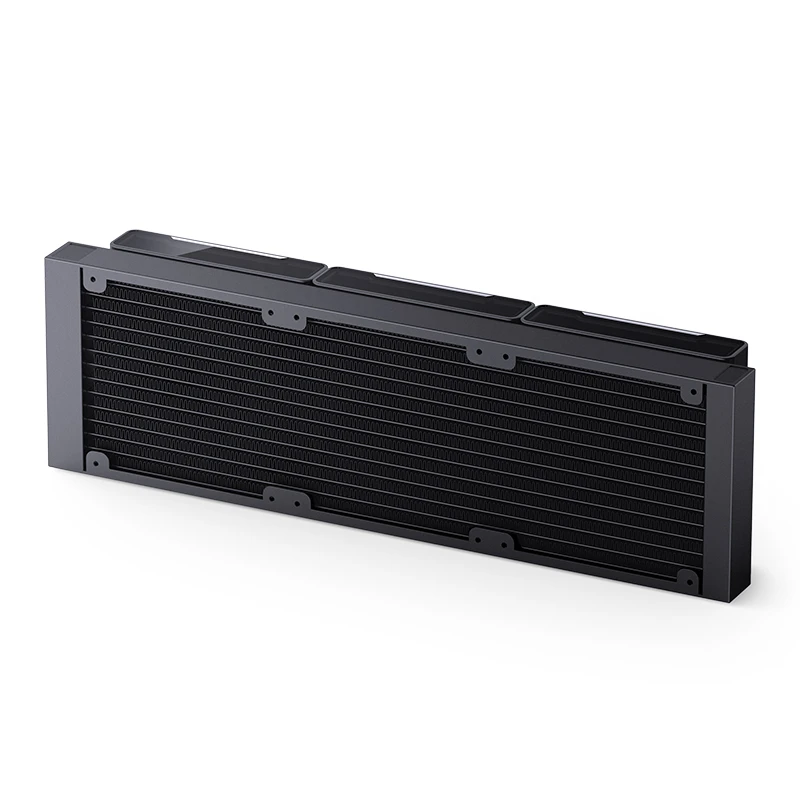

  • 202432530003.webp
