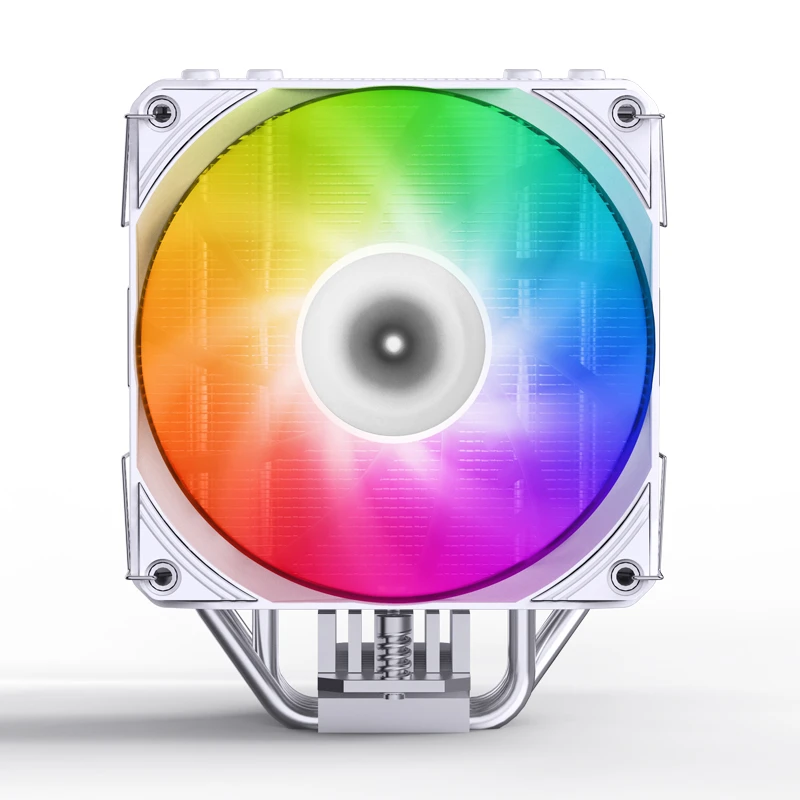

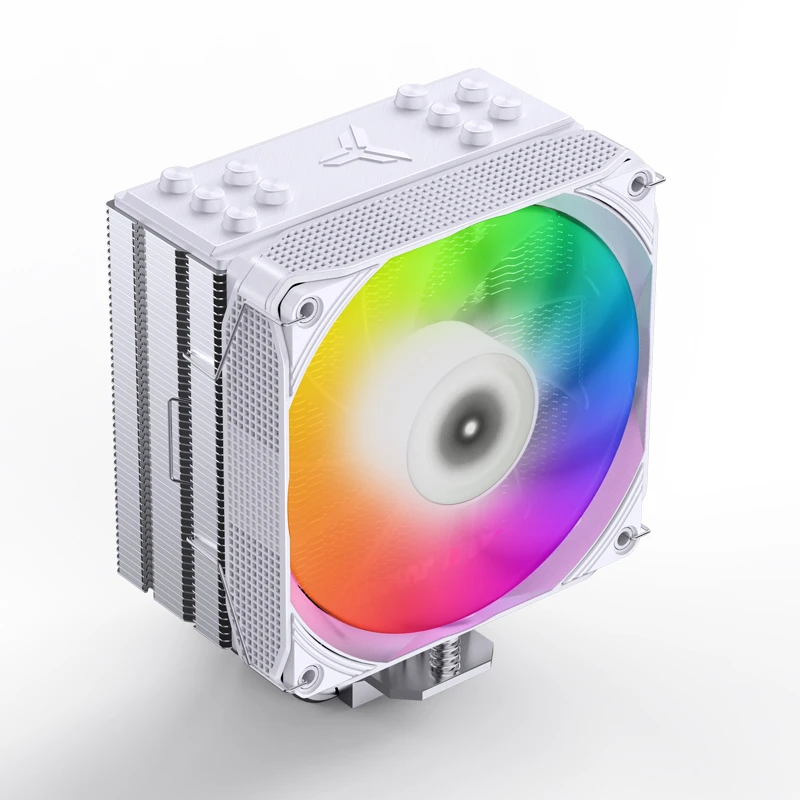

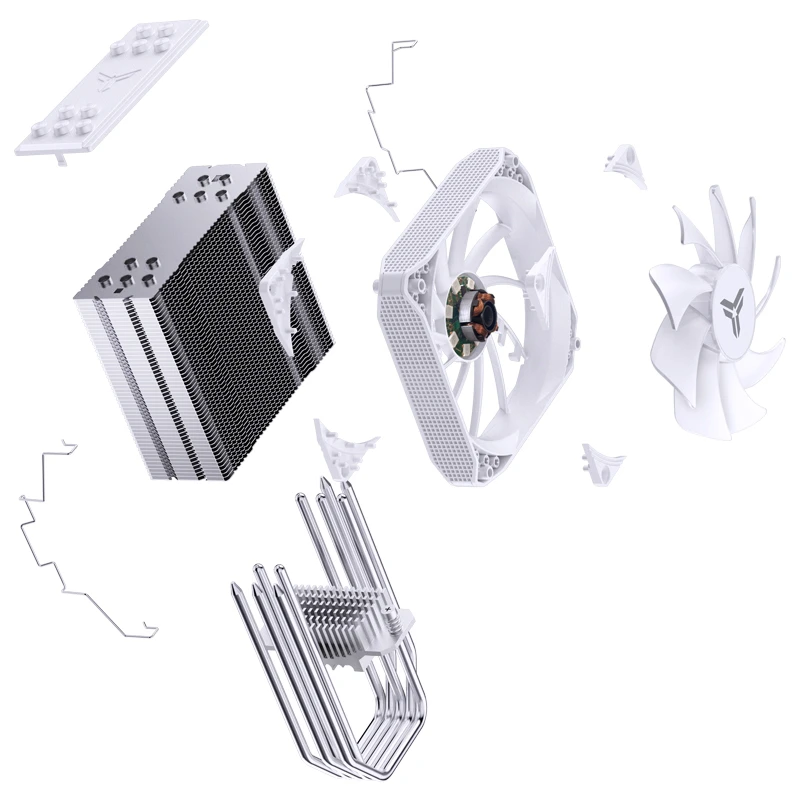

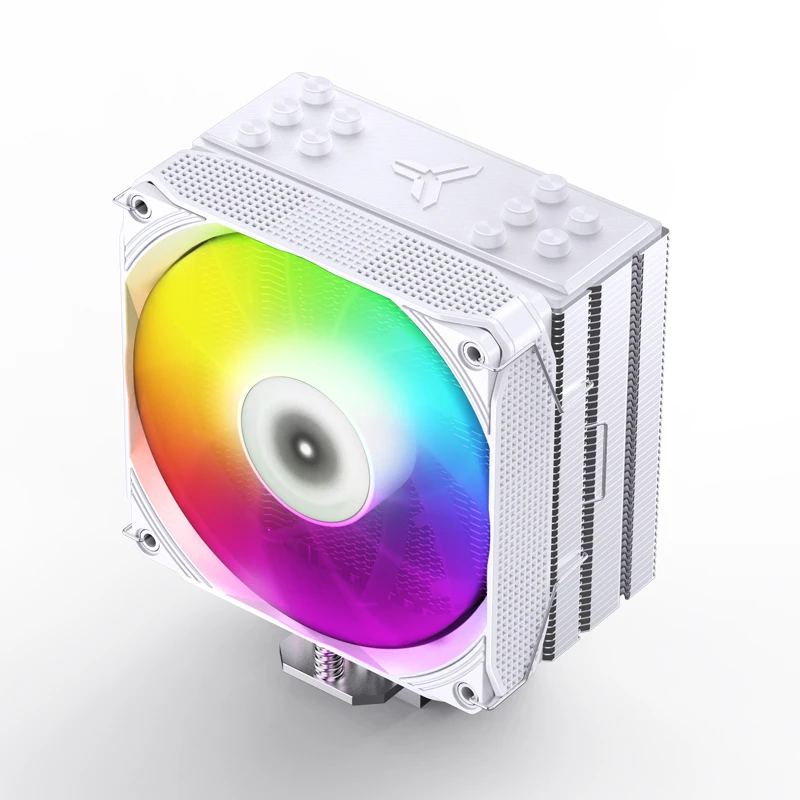

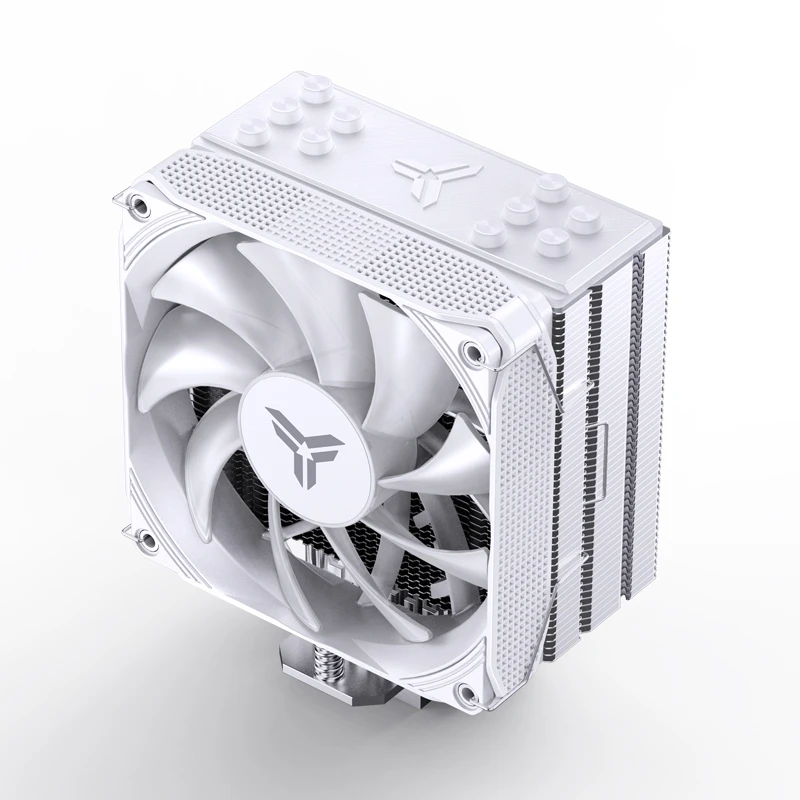

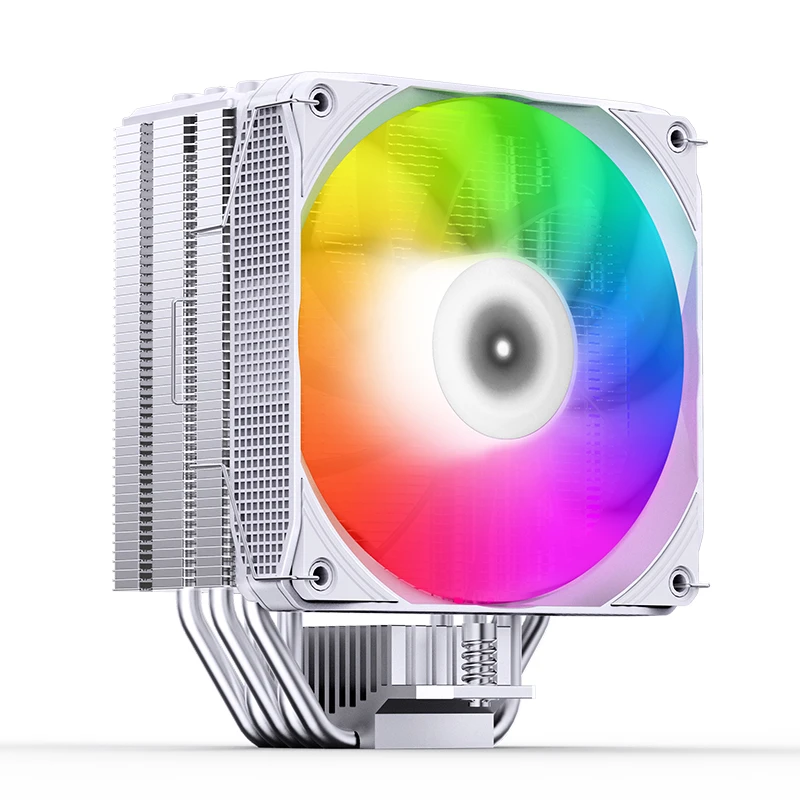

PISA A5 ARGB White

Model：

PISA A5 ARGB White

Dimensions： 120

mm(L)*75mm(W)*153mm(H)

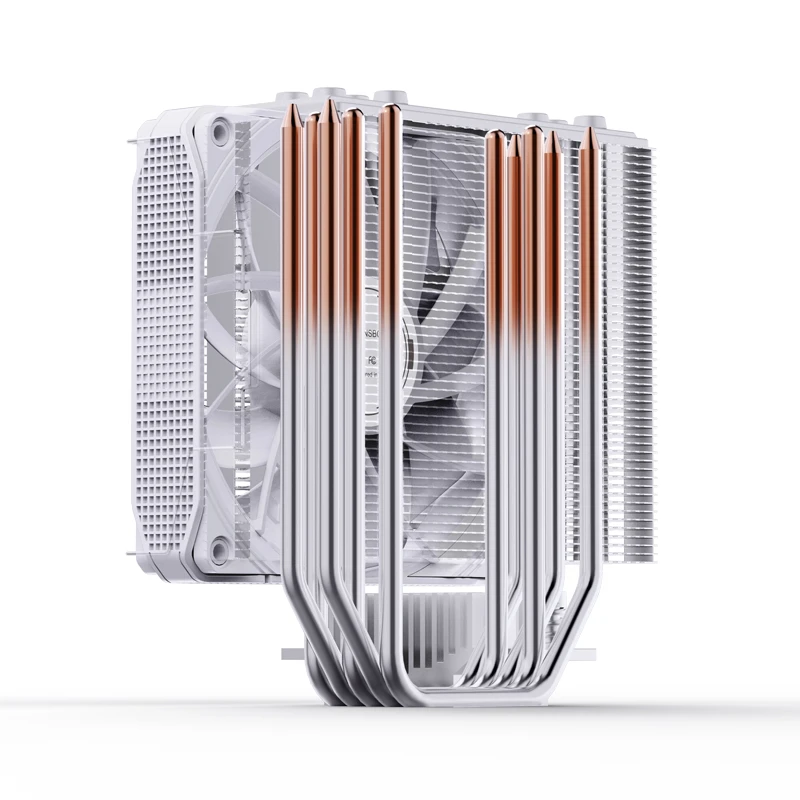

Heatpipe size：Φ6mm*5 PCS
D-TDP：265W

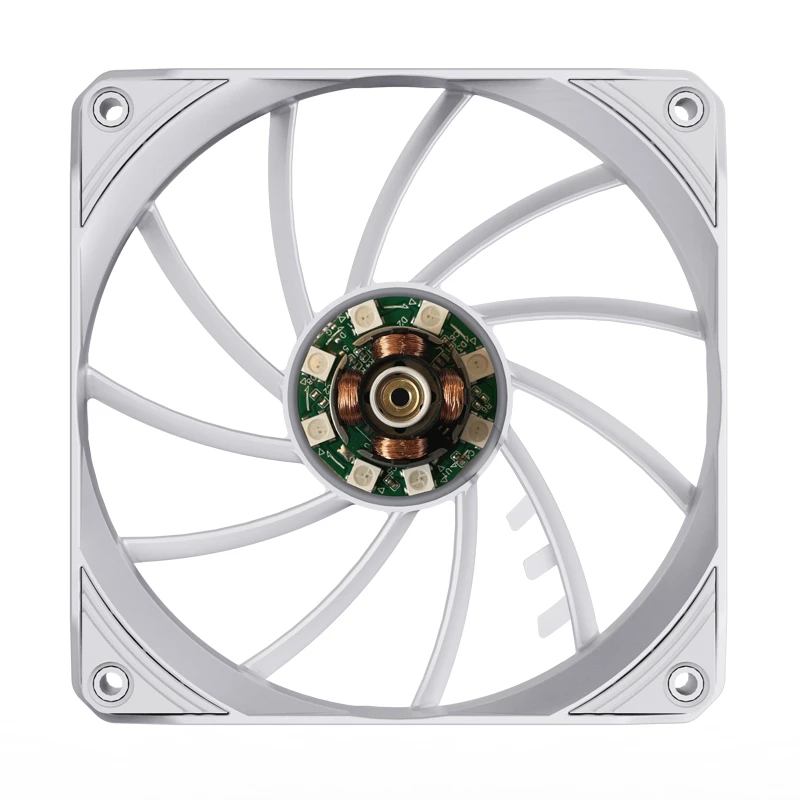

Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：800

-1850RPM(±10%)

Fan Air Flow：81.27CFM(MAX)
Fan Air Pressure：2.23mmH2O(MAX)
Fan Noise Level： 36.8dB(A) (MAX)

Fan Bearing Type： FDB bearing

Fan MTTF：≥50000h @25℃

Connector：FAN 4Pin PWM       ARGB 3PIN

Rated Current：Fan 0.28A  LED 0.36A
Rated Voltage：Fan 12V  LED 5V
Power Consumption： Fan 3.36W  LED 1.8W

Scope of Application： INTEL: LGA 1700/1200/115X             AMD: AM4/AM5

Net Weight：670g

  • 202211824597.webp
  • 202211844420.webp
  • 202211850410.webp

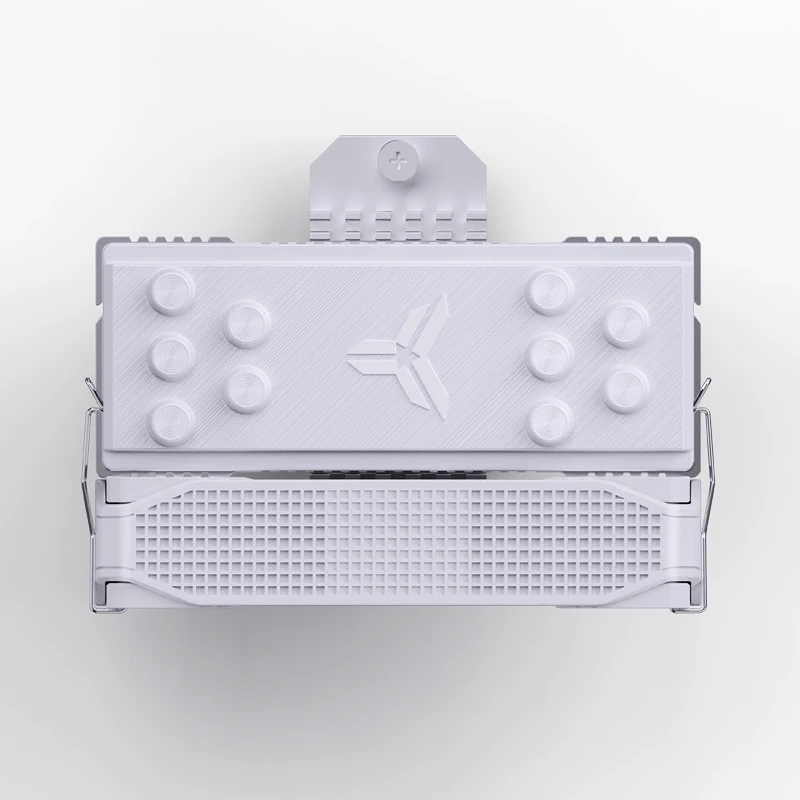

  • 202211842347.webp
  • 202211859053.webp
  • 202211823484.webp

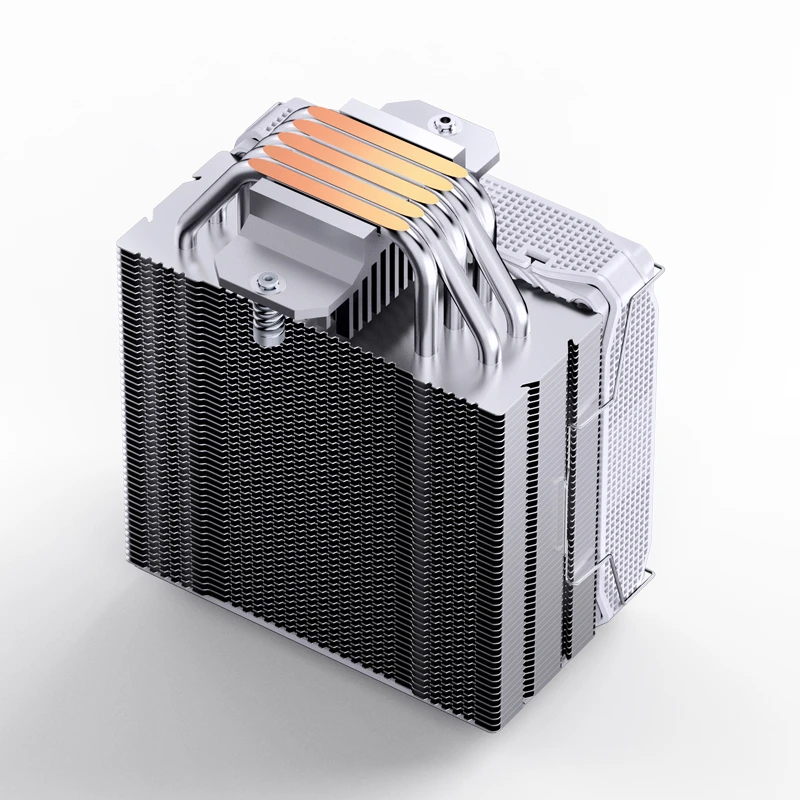

  • 202211819406.webp

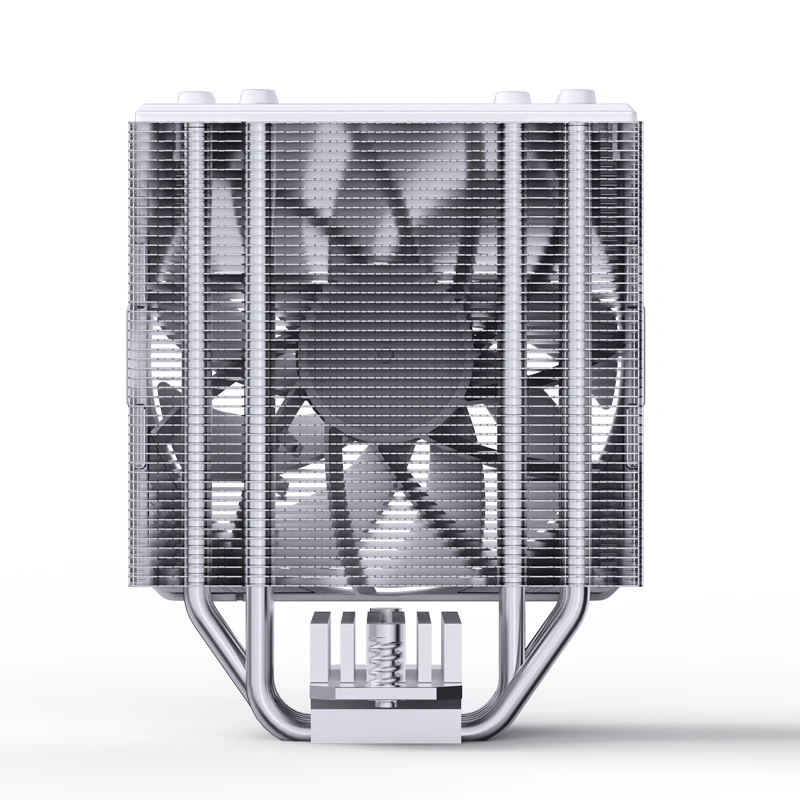

  • 202211892961.webp

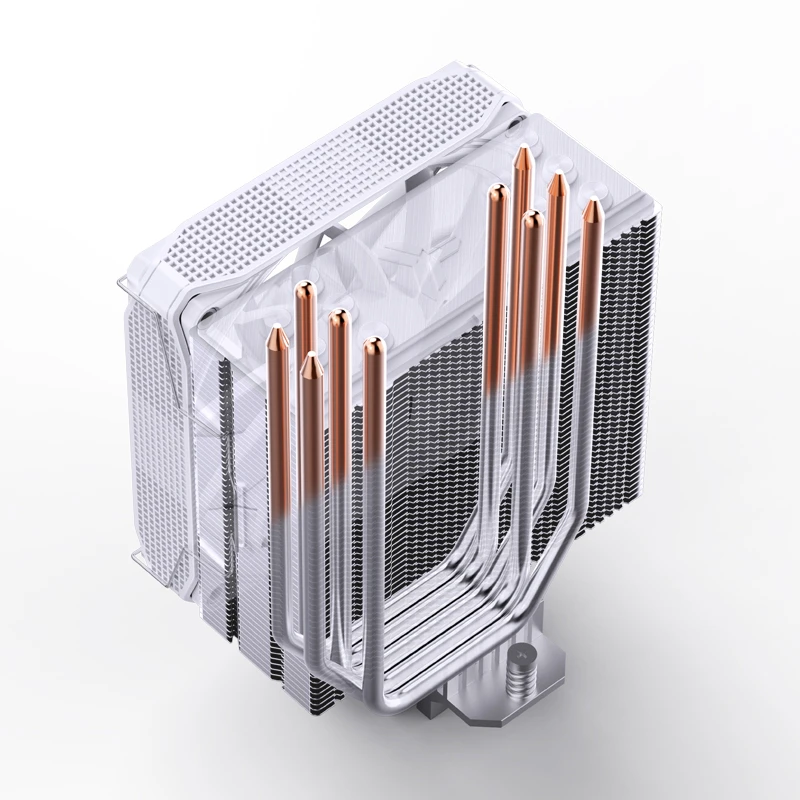

  • 202211889861.webp
  • 202211816568.webp

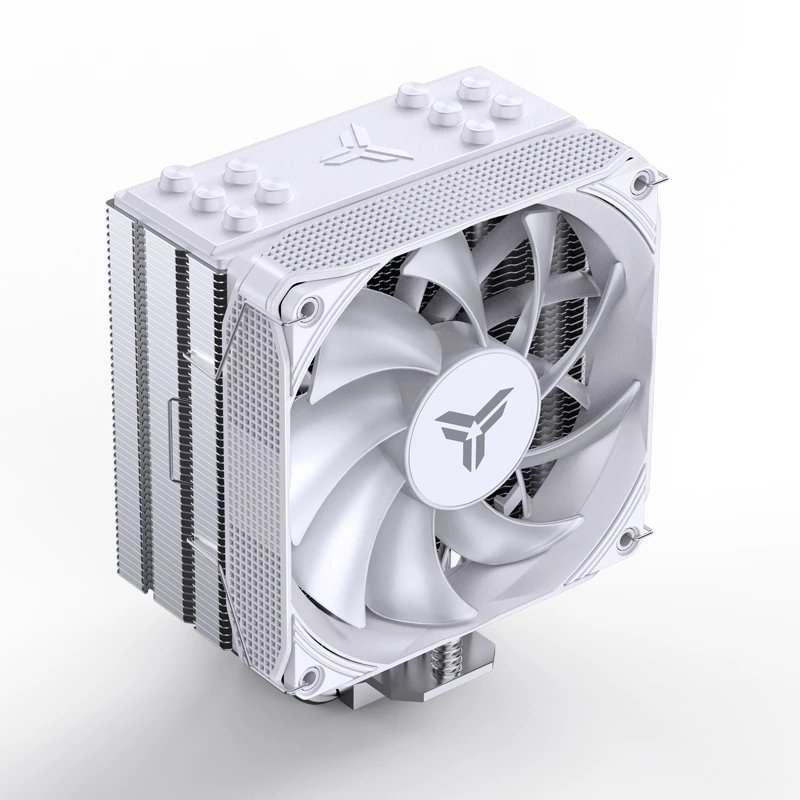

  • 202211847097.webp

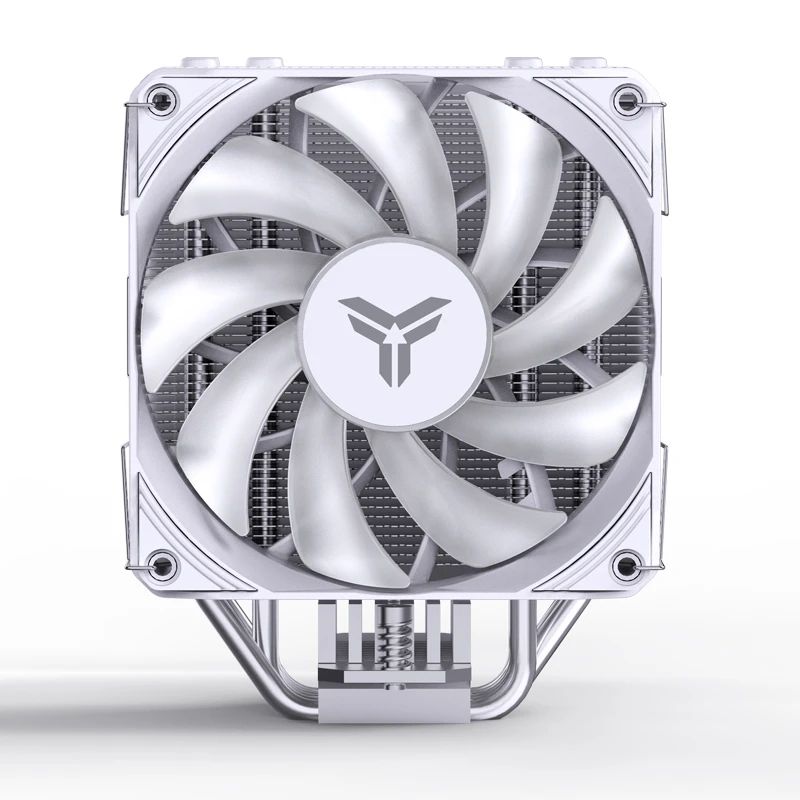

  • 202211866920.webp

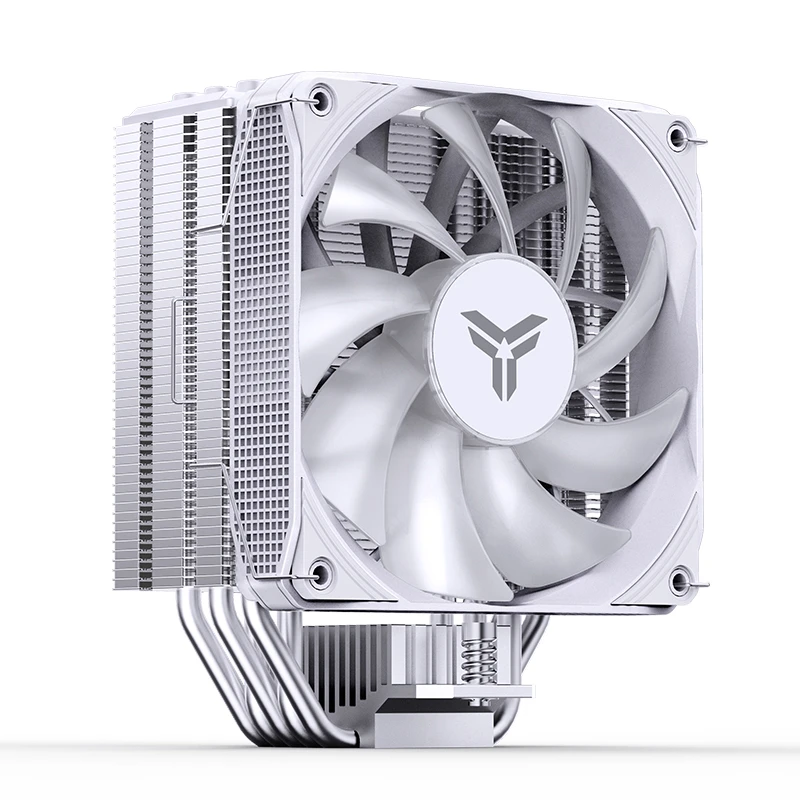

  • 202211872910.webp
  • 202211885688.webp
  • 202211812394.webp

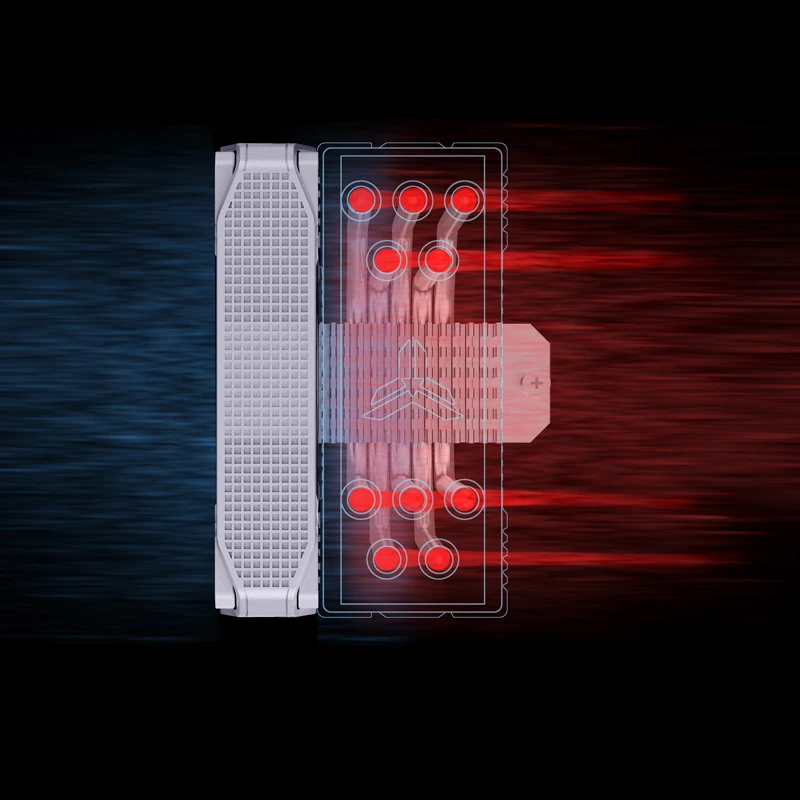

  • 202211890727.webp

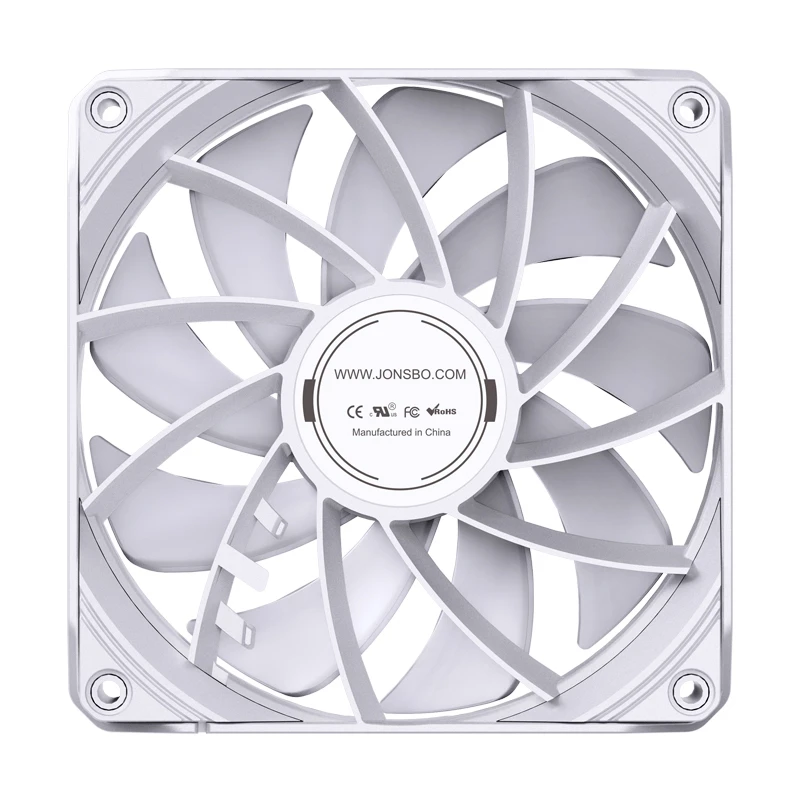

  • 202211820551.webp
