PISA A5 Grey

Model：

PISA A5 Grey

Dimensions： 120

mm(L)*75mm(W)*153mm(H)

Heatpipe size：Φ6mm*5 PCS
D-TDP：265W
Fan Bearing Type：

120mm* 120mm* 25mm

Fan Speed：800

-1850RPM(±10%)

Fan Air Flow：81.27CFM(MAX)
Fan Air Pressure：2.23mmH2O(MAX)
Fan Noise Level： 36.8dB(A) (MAX)

Fan Bearing Type： FDB bearing

Fan MTTF：≥50000h @25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.28A  LED 0.36A
Rated Voltage：Fan 12V  LED 5V
Power Consumption： Fan 3.36W  LED 1.8W

Scope of Application： INTEL: LGA 1700/1200/115X             AMD: AM4/AM5

Net Weight：670g

  • 202211898374.jpg
  • 202211894296.jpg
  • 202211811753.jpg

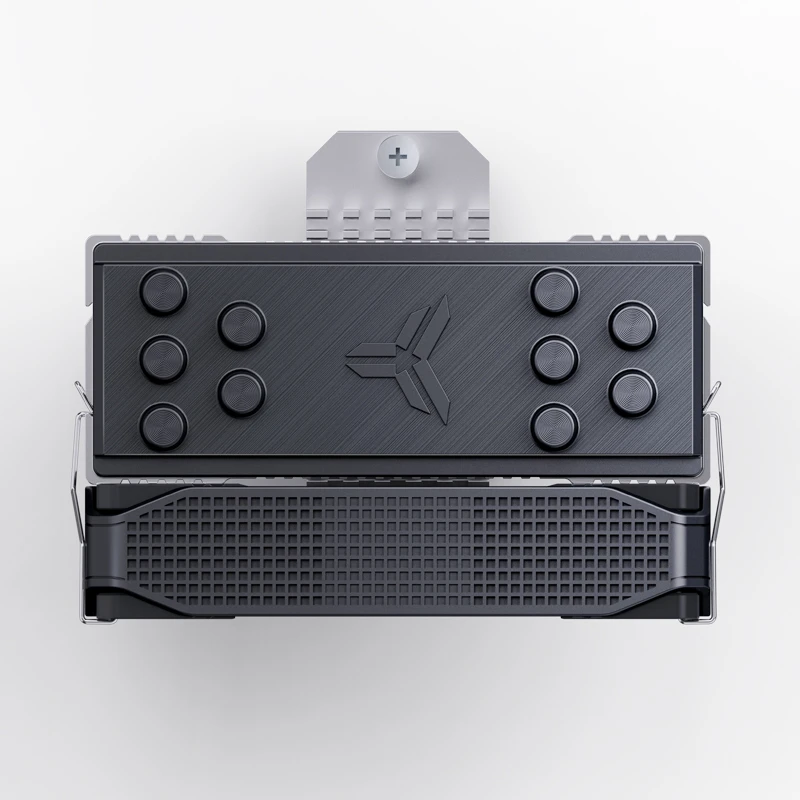

  • 202211860901.jpg

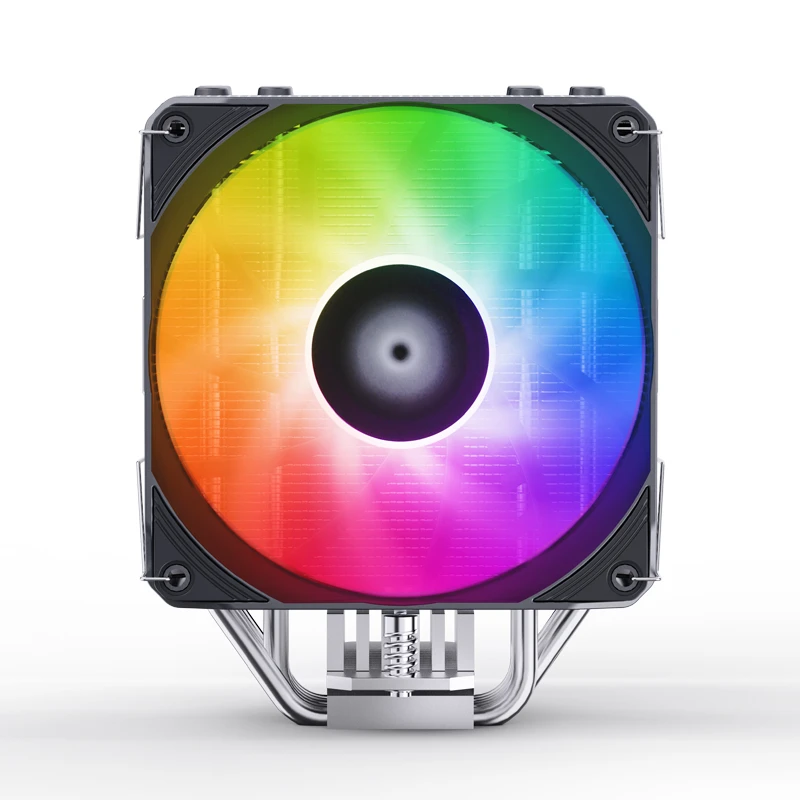

  • 202211877608.jpg

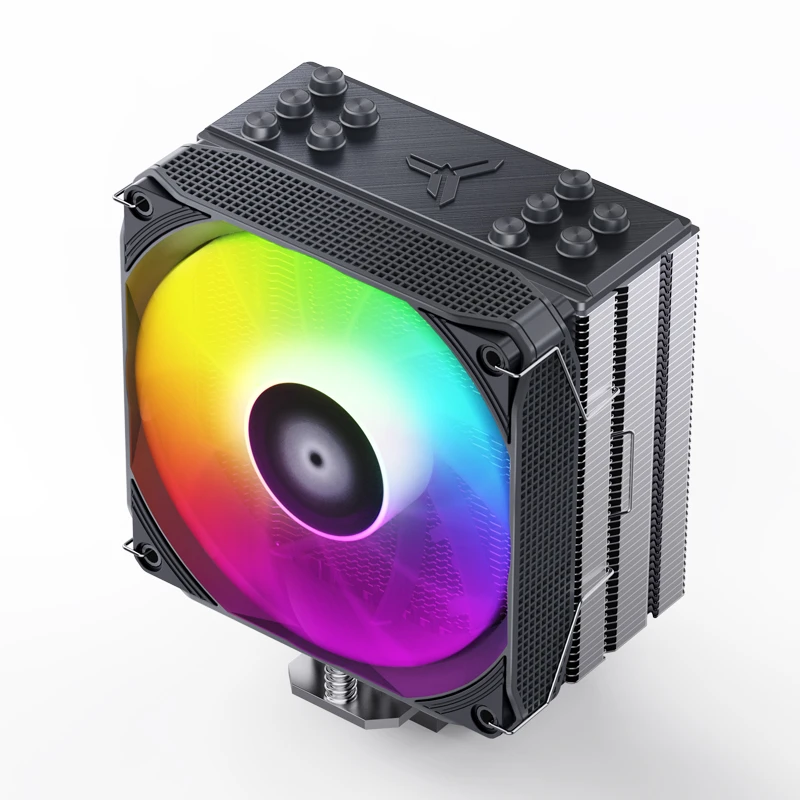

  • 202211818137.jpg

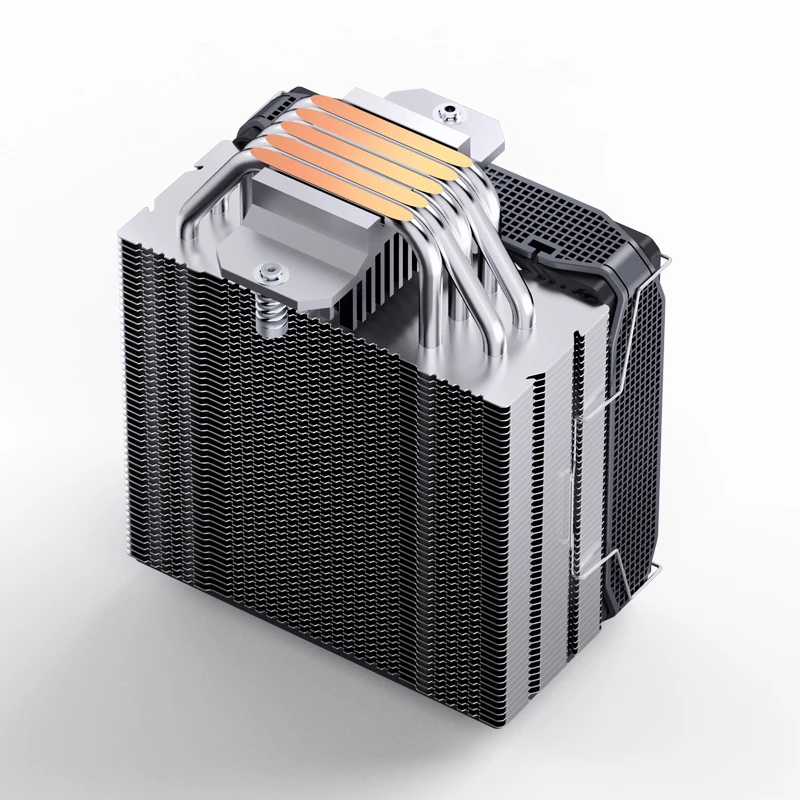

  • 202211837960.jpg

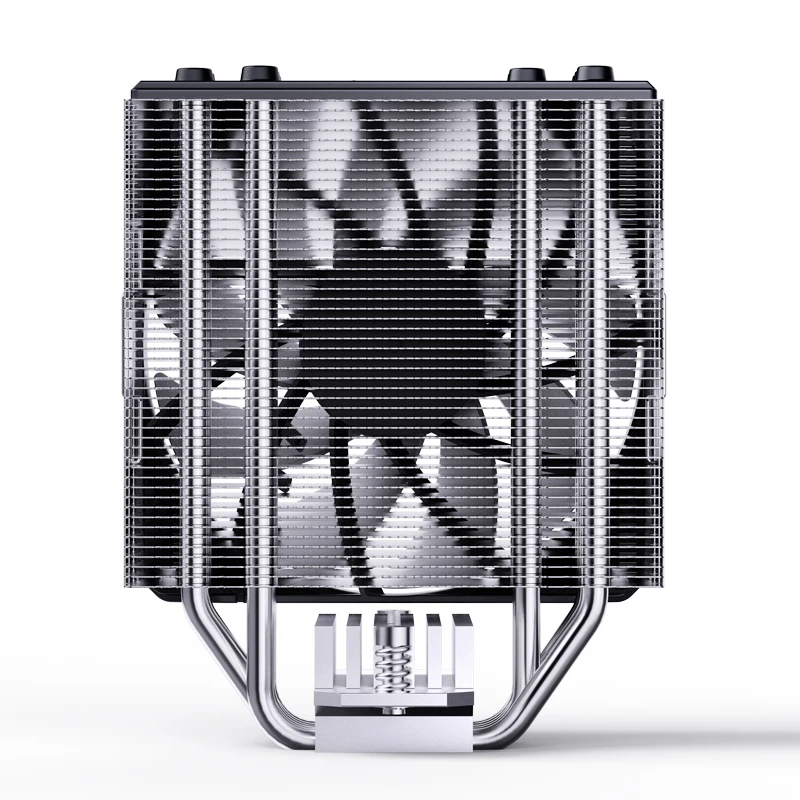

  • 202211827124.jpg

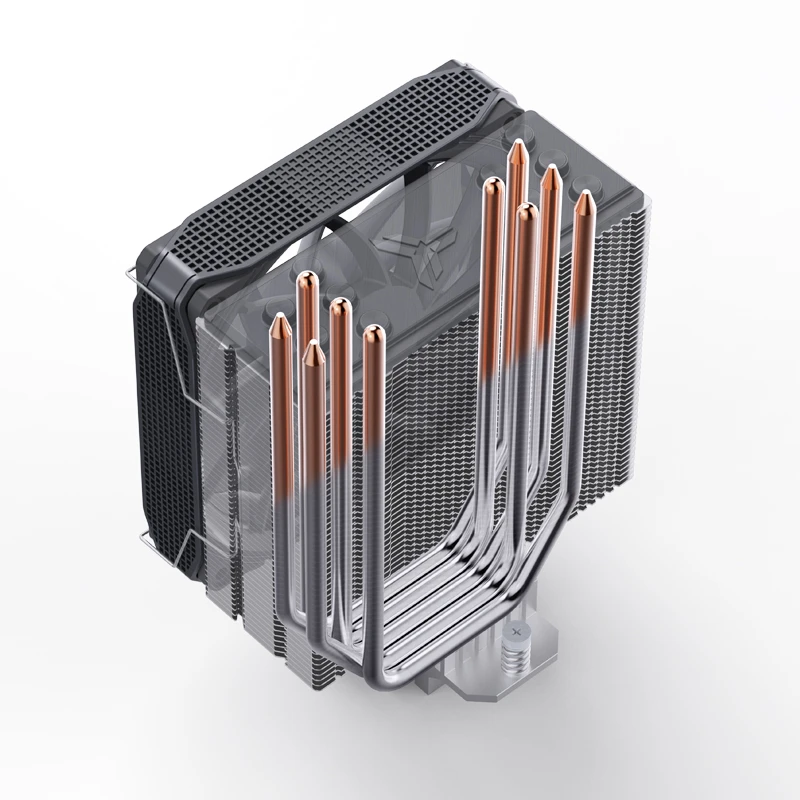

  • 202211841105.jpg

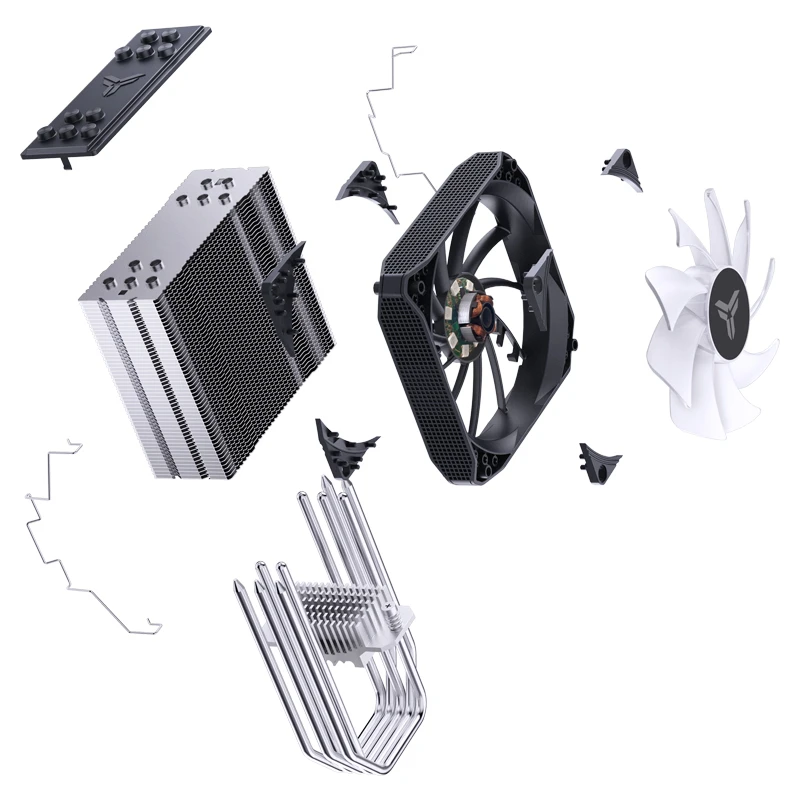

  • 202211828301.jpg

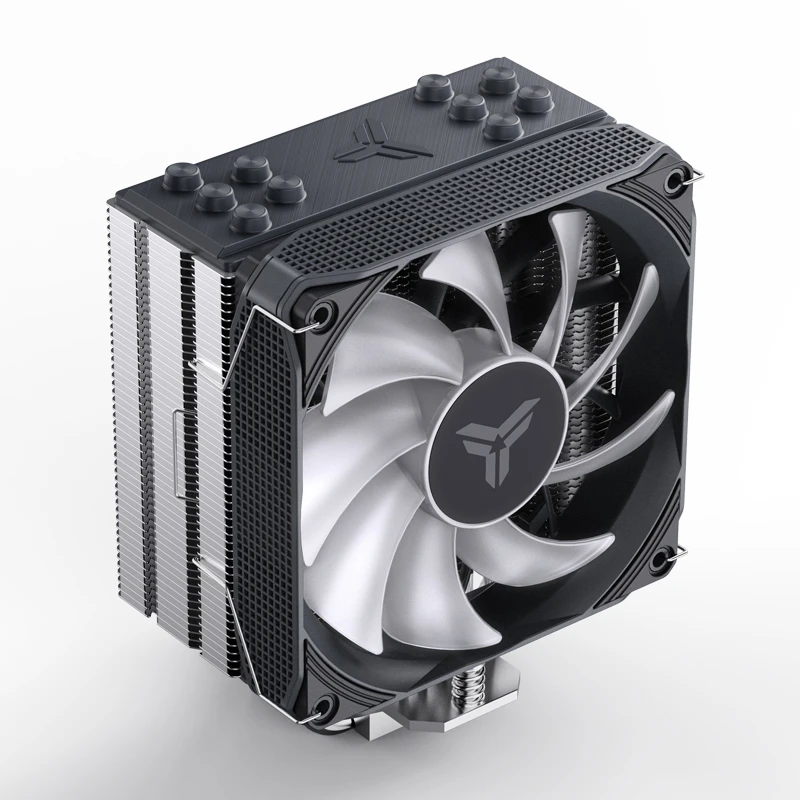

  • 202211882732.jpg

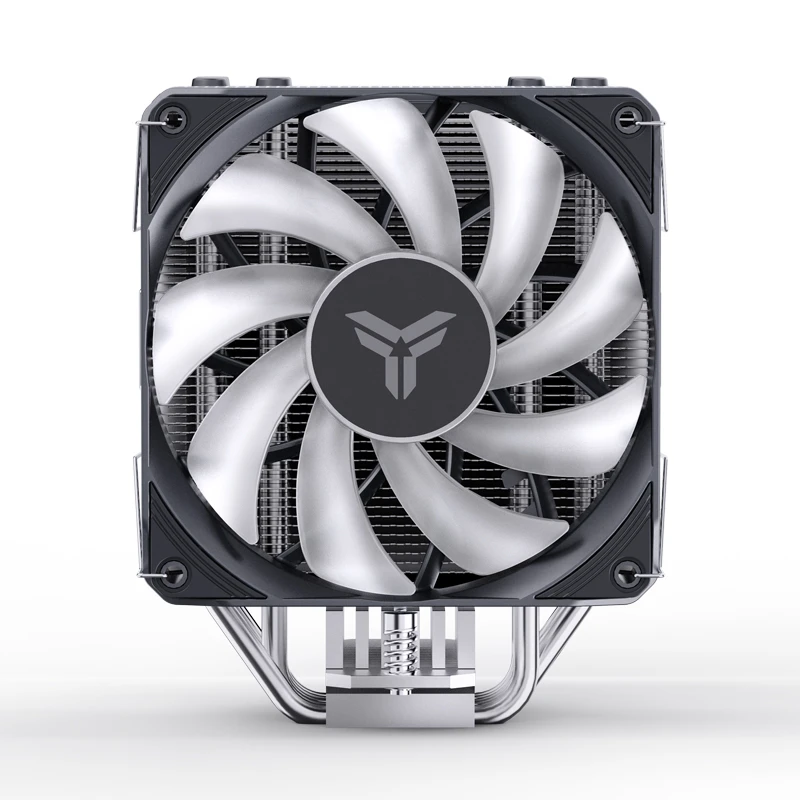

  • 202211878654.jpg

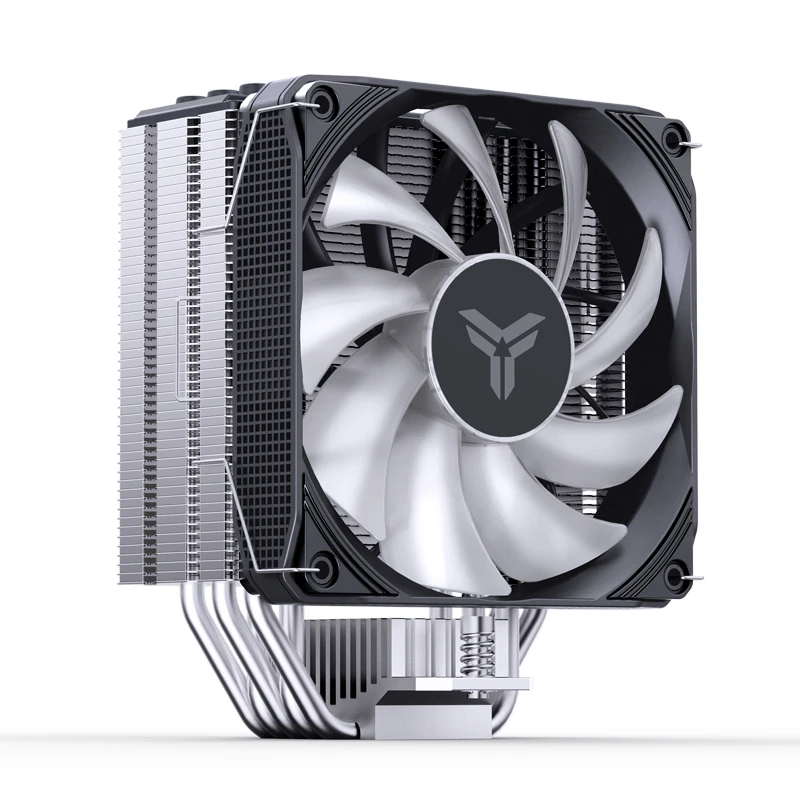

  • 202211867817.jpg

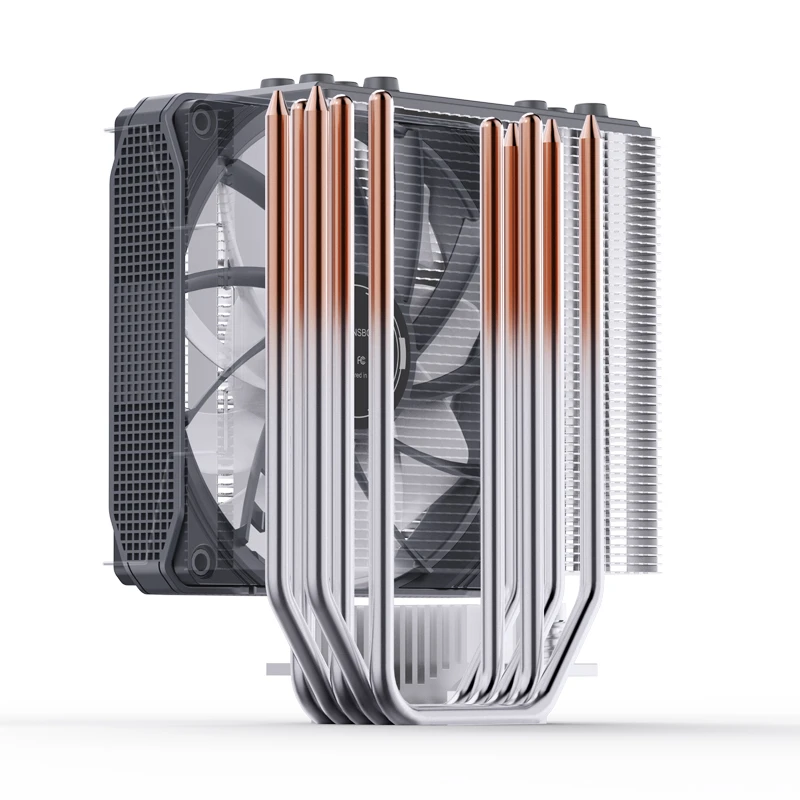

  • 202211873467.jpg

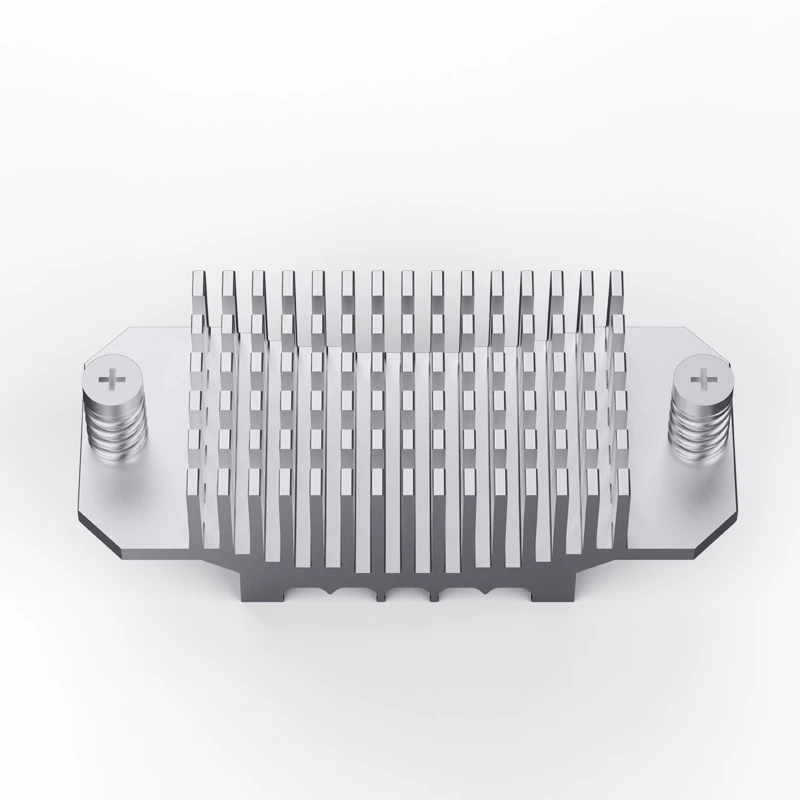

  • 202211890173.jpg

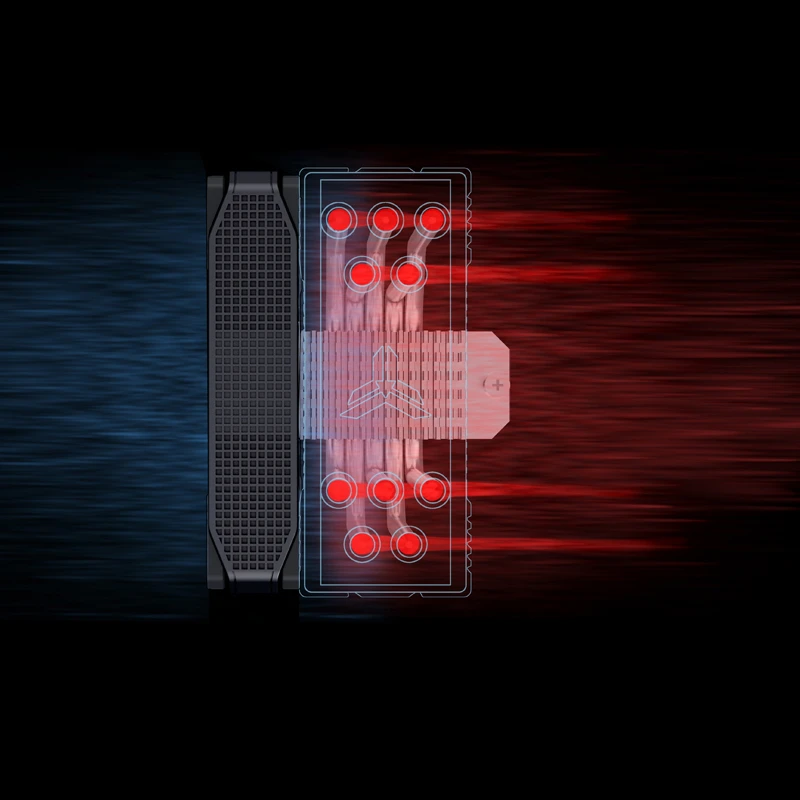

  • 202211830702.jpg

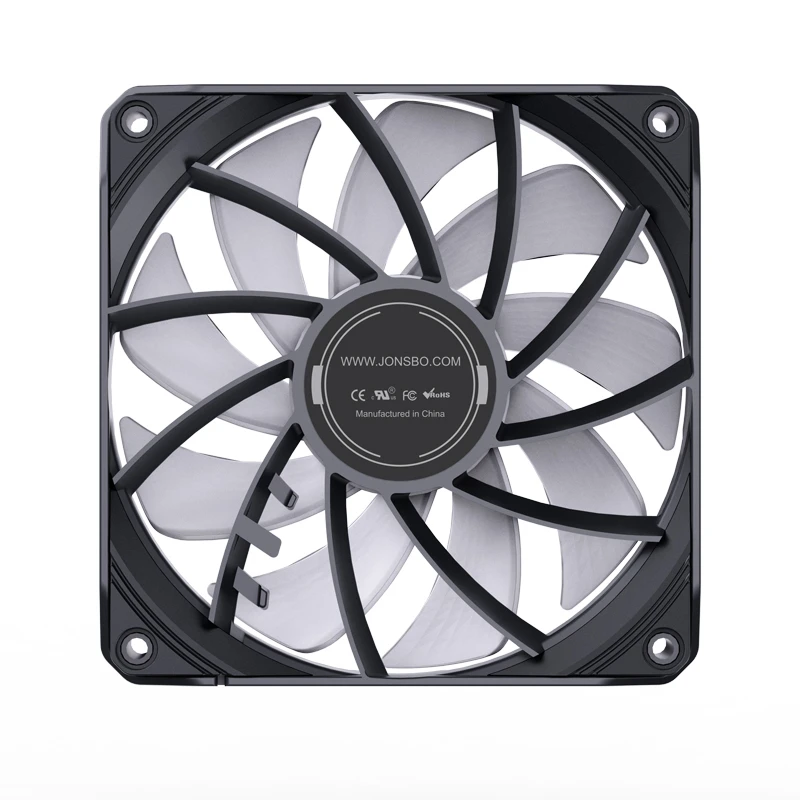

  • 202211850526.jpg

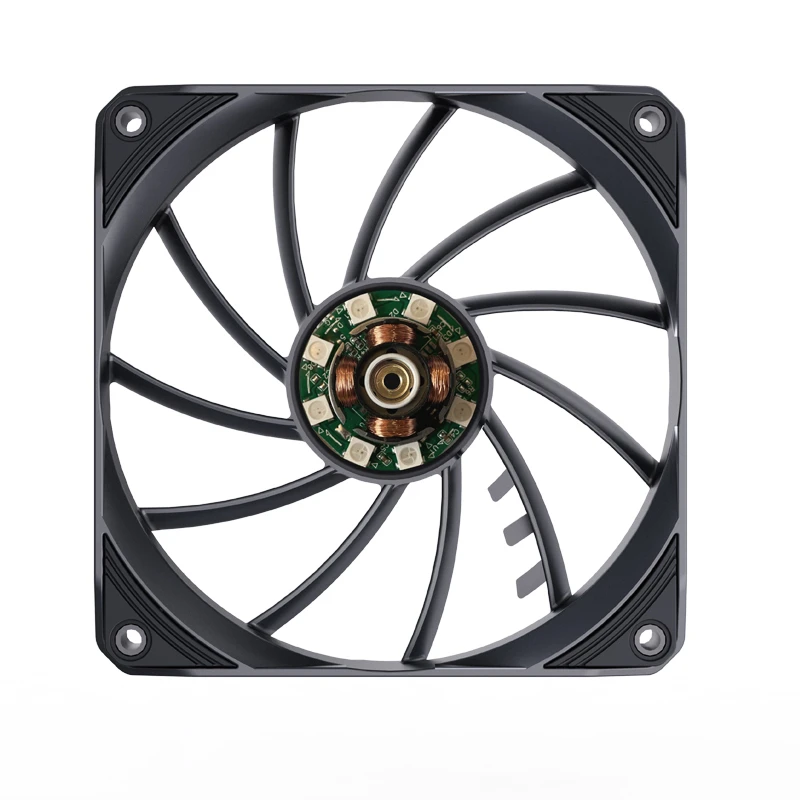

  • 202211834081.jpg
