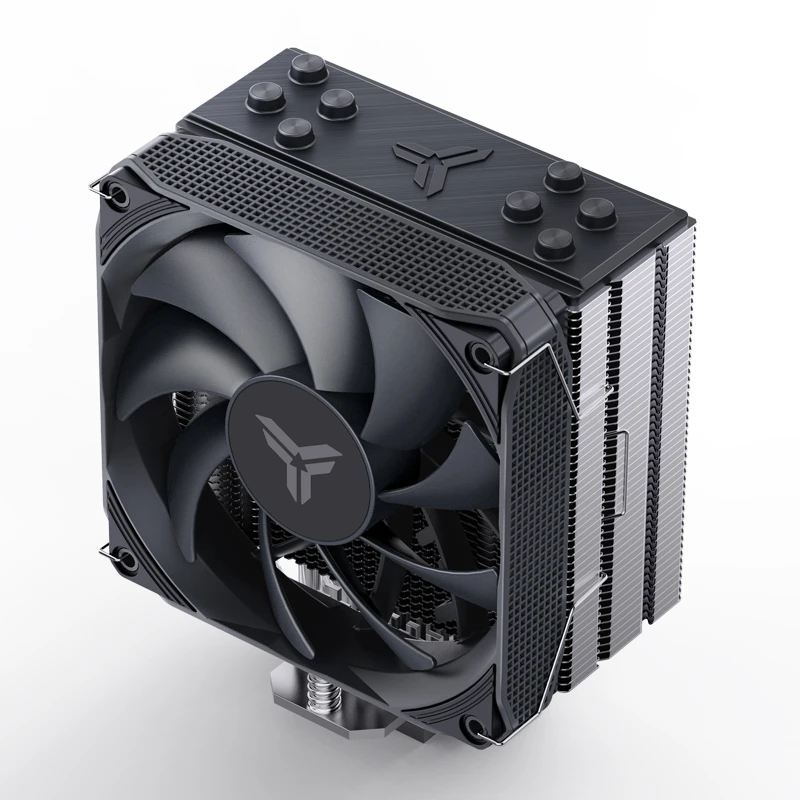

PISA A4 Grey

Model：

PISA A4 Grey

Dimensions： 120

mm(L)*75mm(W)*153mm(H)

Heatpipe size：Φ6mm*4 PCS
D-TDP：250W
Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：800

-1850RPM(±10%)

Fan Air Flow：81.27CFM(MAX)
Fan Air Pressure：2.23mmH2O(MAX)
Fan Noise Level： 36.8dB(A) (MAX)

Fan Bearing Type： FDB bearing

Fan MTTF：≥50000h @25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.28A
Rated Voltage：Fan 12V
Power Consumption： Fan 3.36W

Scope of Application： INTEL: LGA 1700/1200/115X             AMD: AM4/AM5

Net Weight：620g

  • 202211811383.jpg
  • 202211841912.jpg

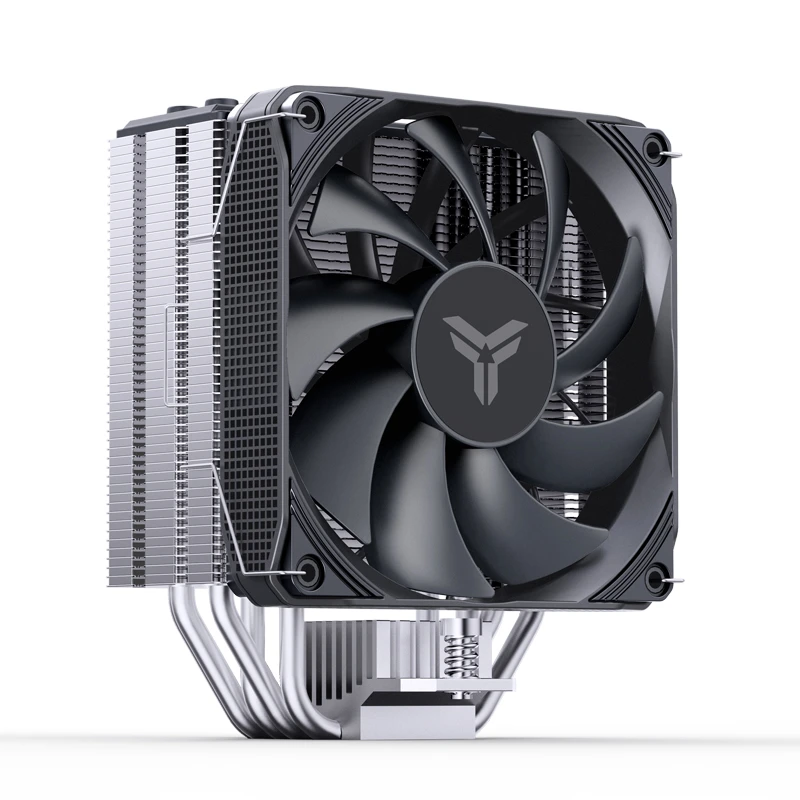

  • 202211861736.jpg
  • 202211845291.jpg
  • 202211861953.jpg

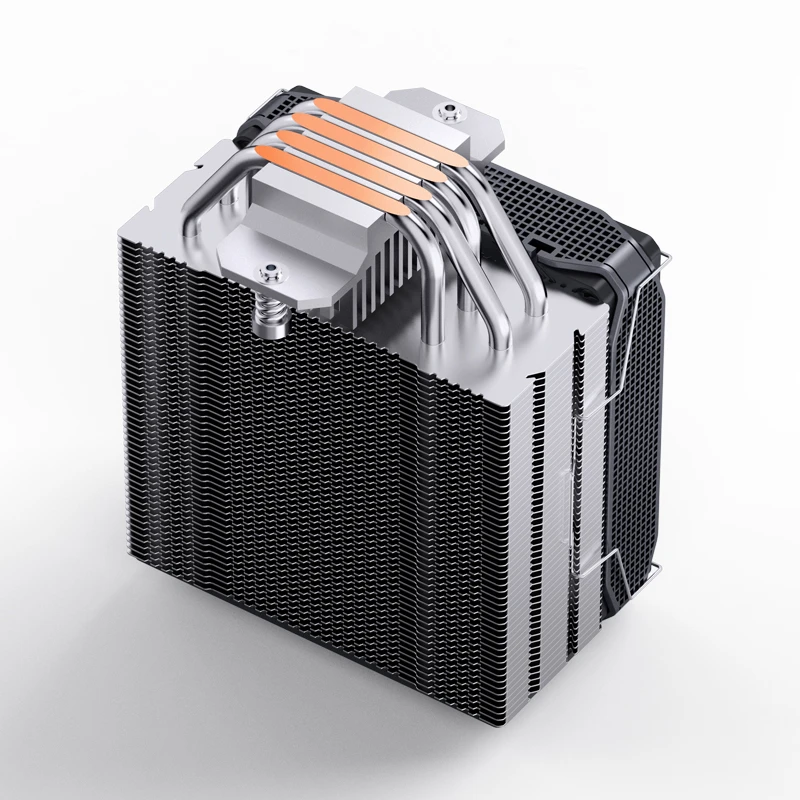

  • 202211854757.jpg

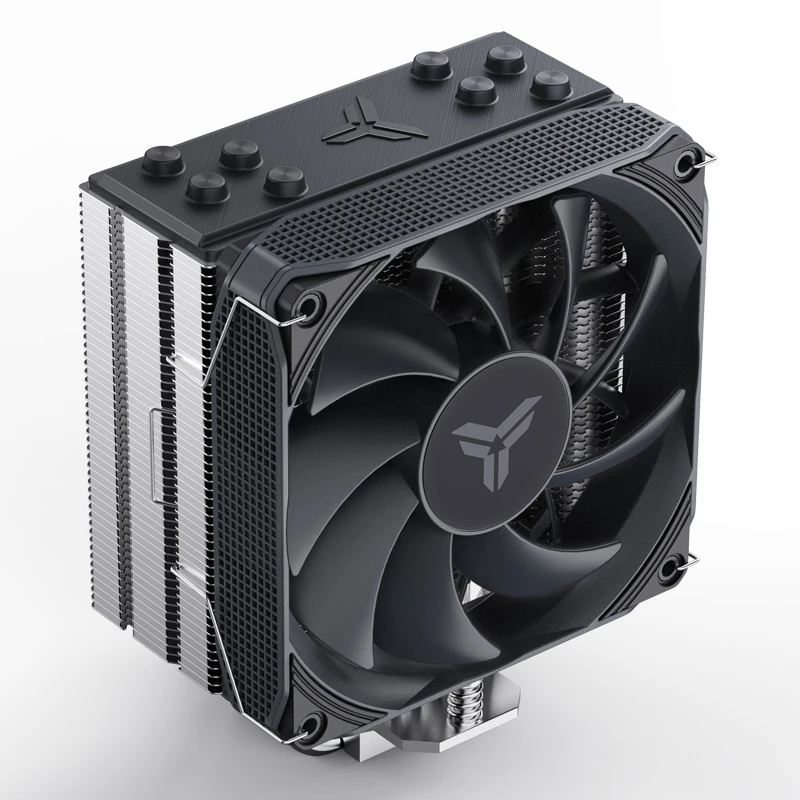

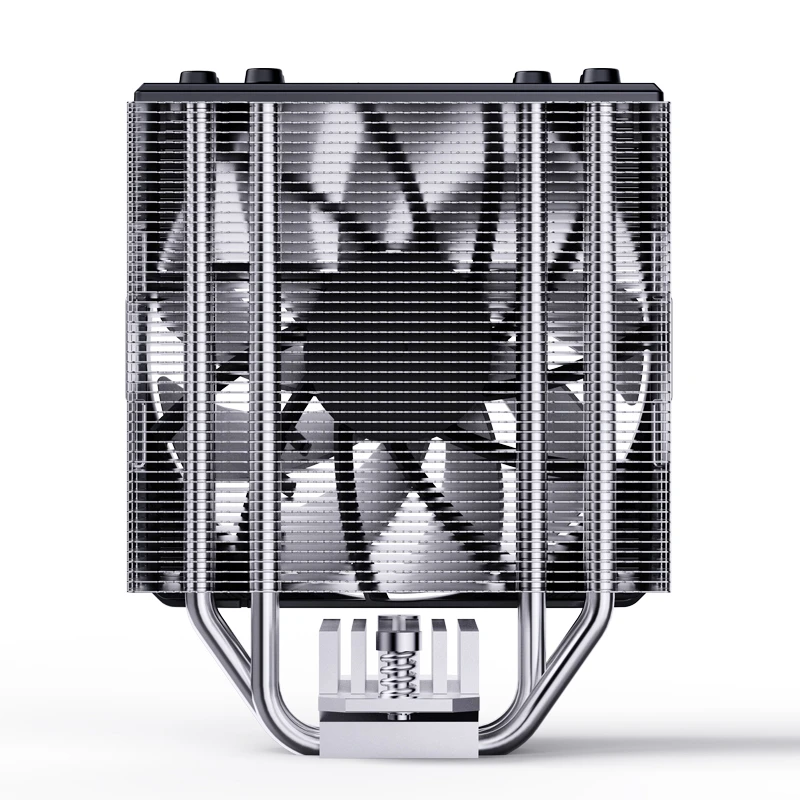

  • 202211819189.jpg

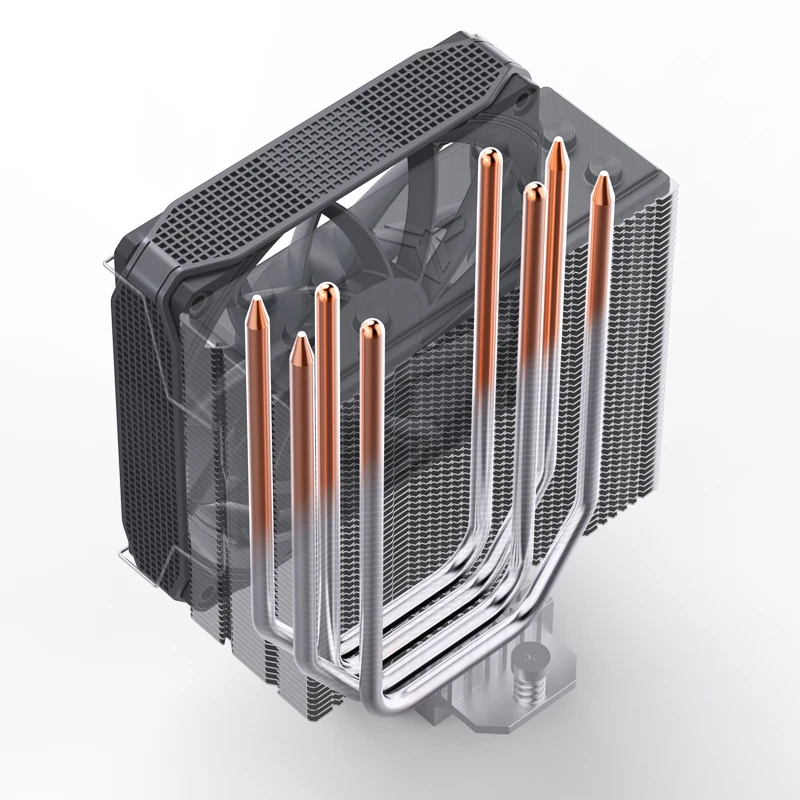

  • 202211839012.jpg

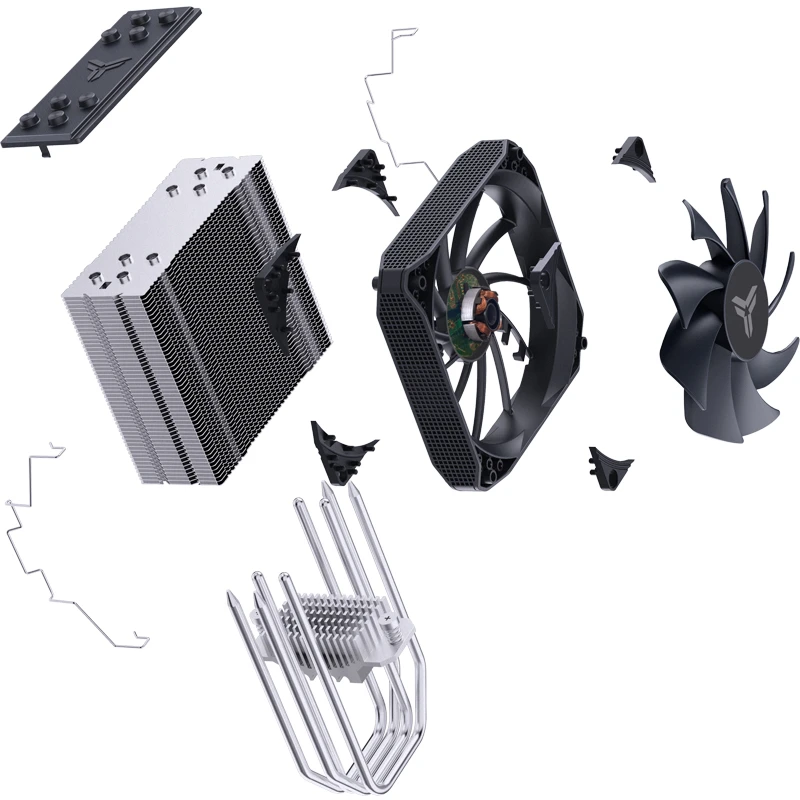

  • 202211822568.jpg

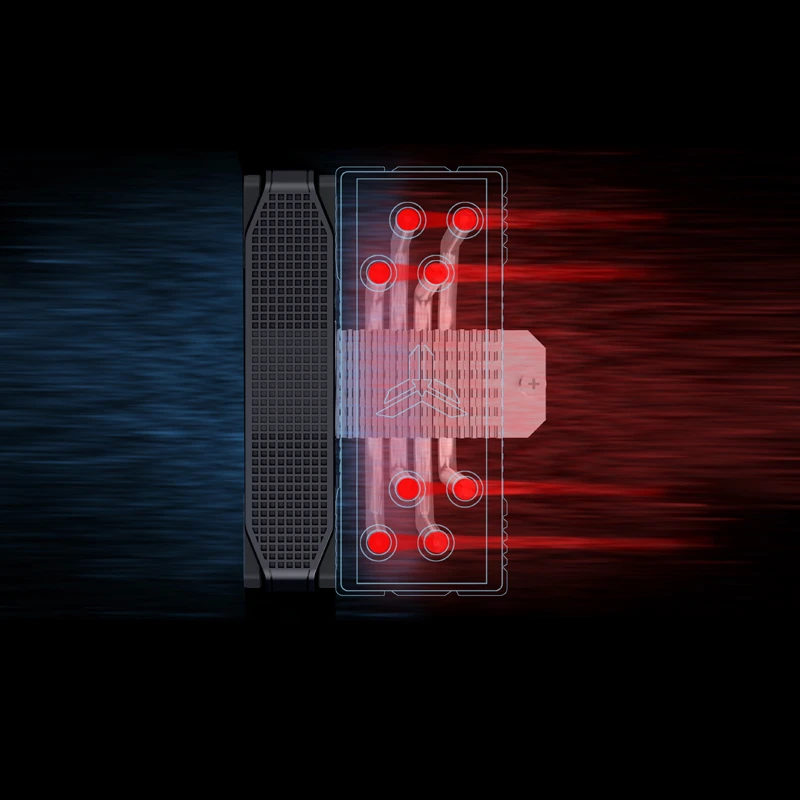

  • 202211890011.jpg

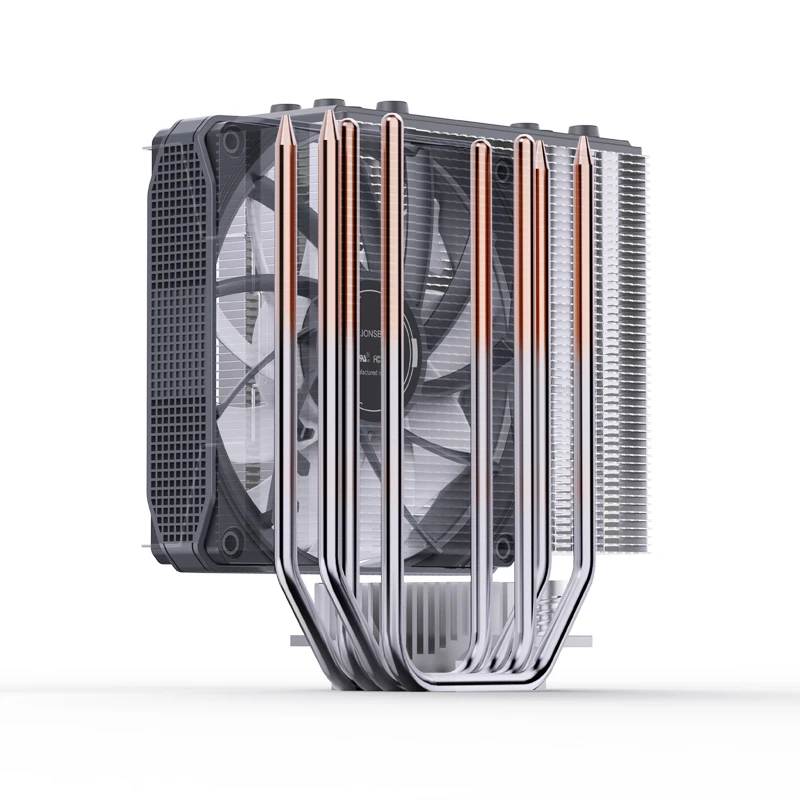

  • 202211816717.jpg

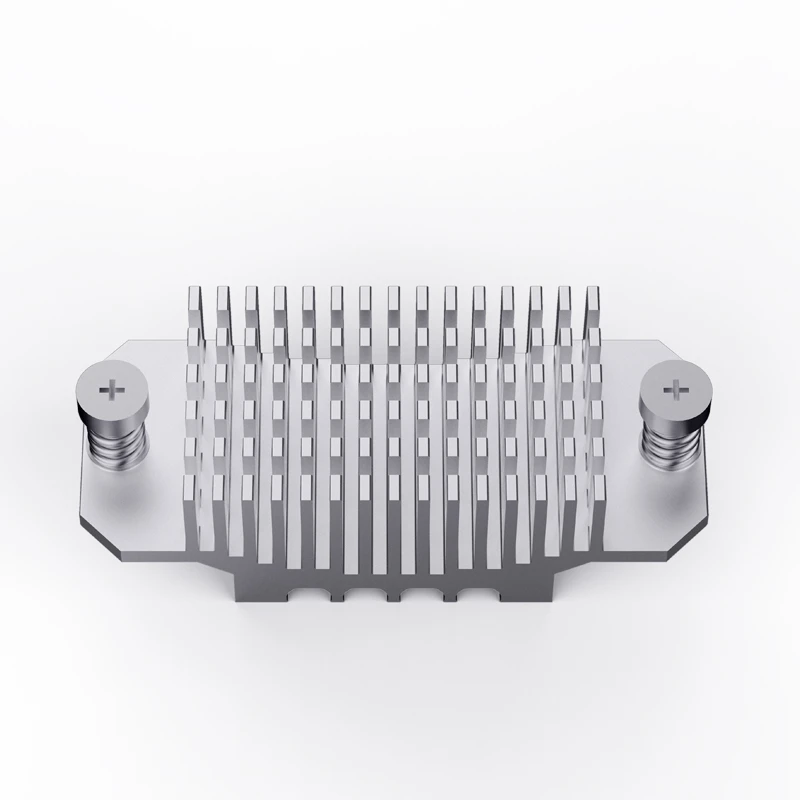

  • 202211847246.jpg

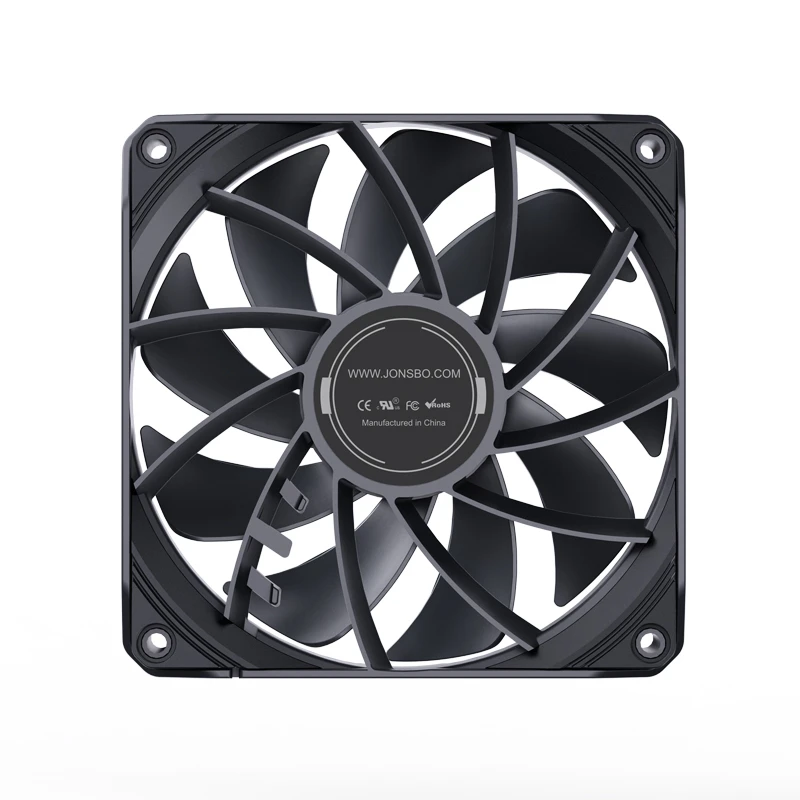

  • 202211867070.jpg

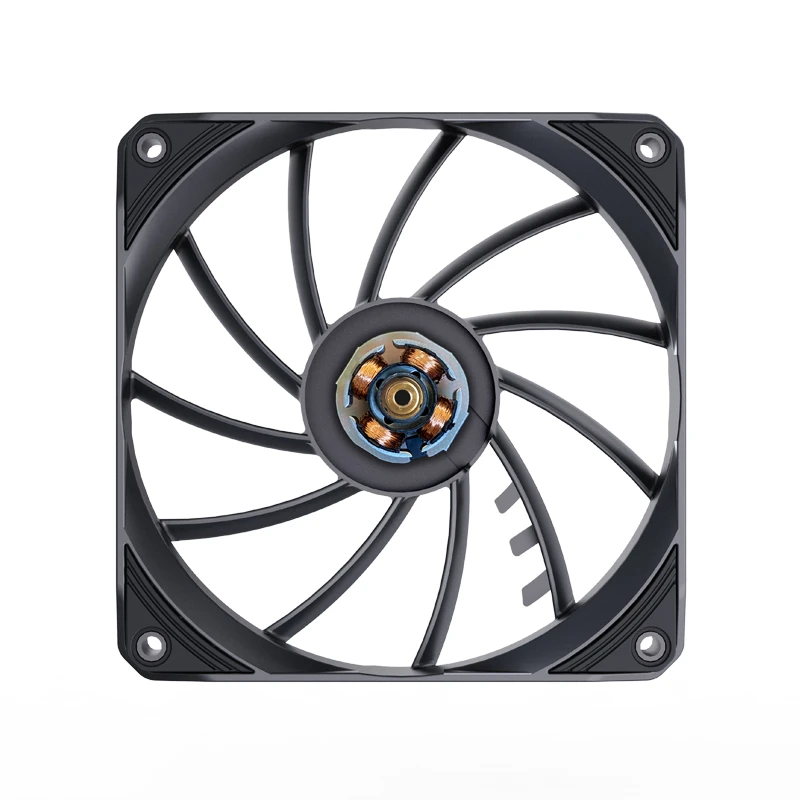

  • 202211850625.jpg
