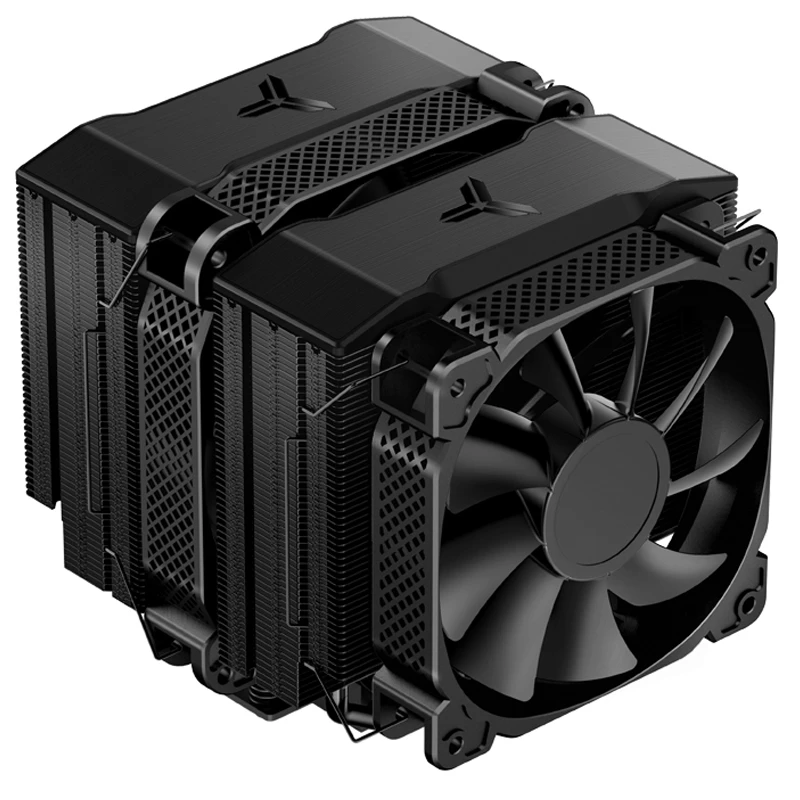

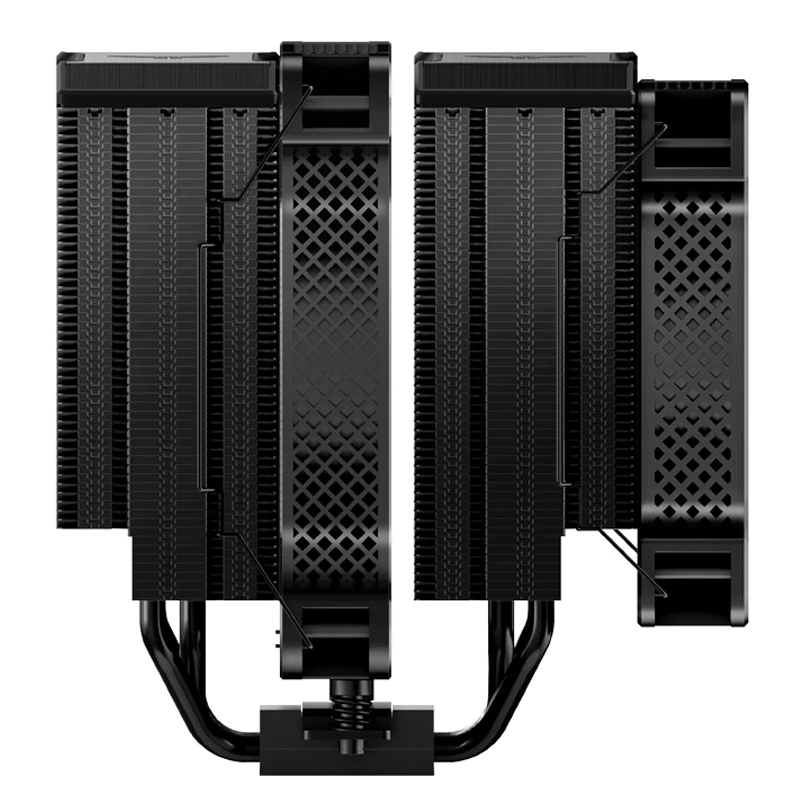

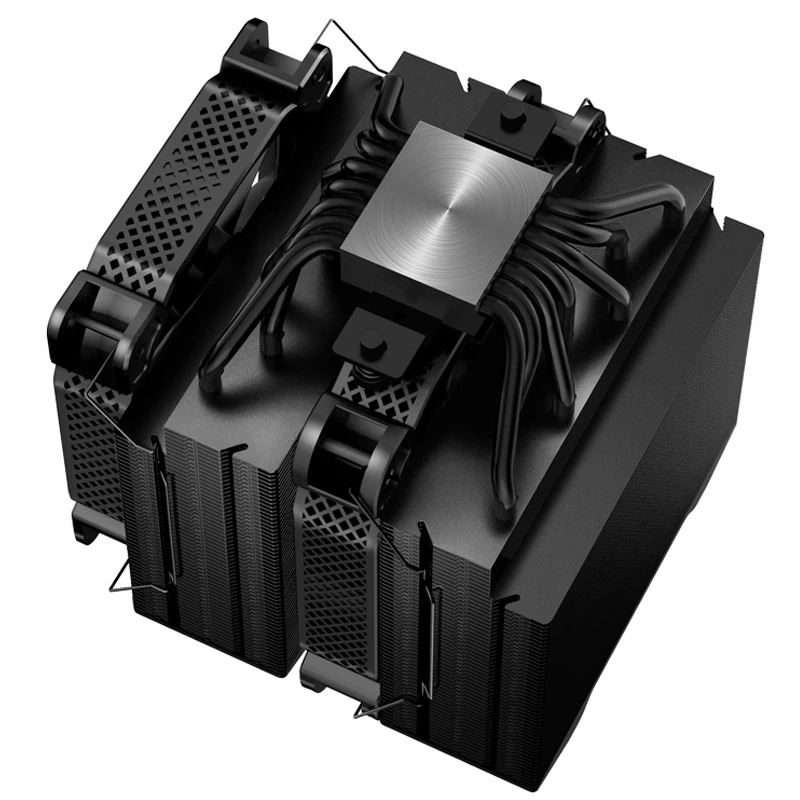

HX7280

Model: HX7280
Overall Dimensions:140 * 155 *160 mm
Heatsink set size: 140 * 127 * 160mm
Fan size:140 * 140 * 25mm  *2
Fan size:120 * 120 * 25mm  *1

Heatpipe size:Ø6mmx7pcs
TDP:280W
Fan Speed(14cm):700-1800RPM±10%                            Fan Speed(L.N.A 14cm):1200RPM±10%
Air Flow(14cm):34.57-90.2 CFM                                     Air Flow(L.N.A 14cm):57.81 CFM(MAX)

Air Pressure(14cm):0.46-2.74 mmH20                             Air Pressure(L.N.A 14cm)1.14 mmH20(MAX)

Noise Level(14cm):≤38 dbA                                       Noise Level(L.N.A 14cm):≤28dbA

Fan Speed(12cm):700-1800RPM±10%                        Fan Speed(L.N.A 12cm):1100RPM±10%

Air Flow(12cm):32.47-83.04 CFM                                 Air Flow(L.N.A 12cm):45.56 CFM(MAX)

Air Pressure(12cm):0.47-2.68 mmH20                            Air Pressure(L.N.A 12cm)0.86 mmH20(MAX)

Noise Level(12cm):≤37.6dbA                                    Noise Level(L.N.A 12cm):≤28dbA

Connector/Pin Type:4 PIN PWM
Bearing:

FDB Bearing

Voltage range(14cm):12V DC
Max. input current(14cm)0.21A
Max. input power(14cm):2.52W
Voltage range(12cm):12V DC

Max. input current(12cm)0.20A

Max. input power(12cm):2.4W

Socket compatibility:Intel LGA1200/115X/1700/2011, AMD AM4

Net. Weight:1280g

Note:L.N.A= Low Noise Adaptor
