Screen display spec：
Dimension：24.6mm(W) * 131.7mm(H) * 205.3mm(L)
Display size：8〞 Color TFT-LCD Colors：16.7M Resolution：1280*800
Response Time：30ms(Typ.) Brightness：300cd/m2(Typ.) Contrast Ratio：1000（Typ.）
I/O：MINI-HDMI*1(Video Signal) TYPE-C*1 Refresh Rate(max.)：60Hz Working Temperture：0-50℃
Product Specification：

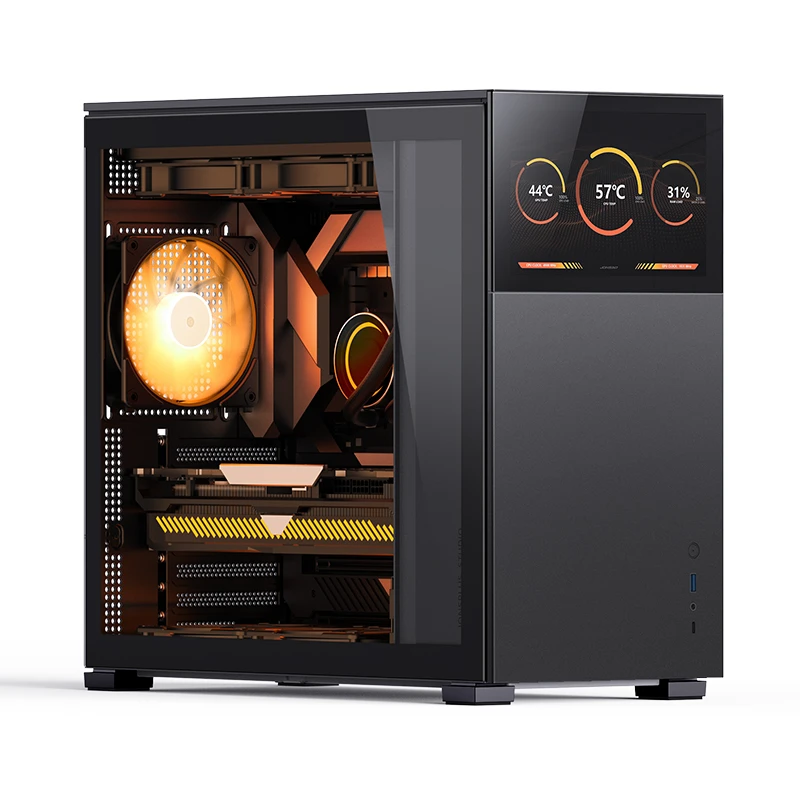

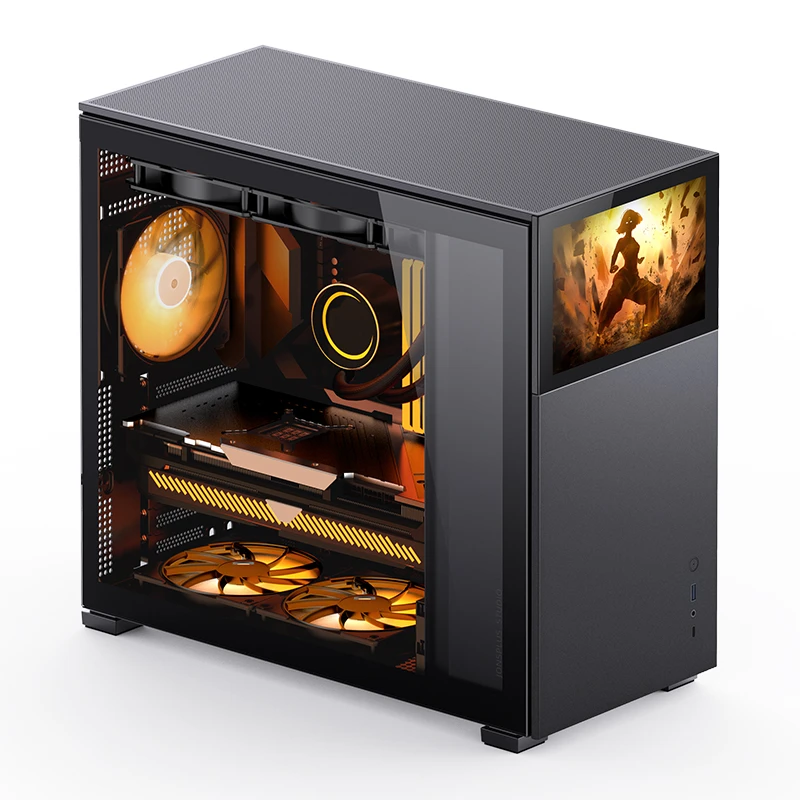

Model：D41 STD SCREEN Black
Dimension: 205mm (W) * 392mm(H) *440mm(D) (Vol: 35.4L)
*Depth does not include the PCI brackets outside the chassis, height does not include case stand
205mm (W) * 407mm(H) * 452mm(D) (overall size)
Material：0.6mm+0.7mm steel panel
Drive Bay：2.5〞SSD*3+3.5〞HDD*2
Motherboard：ATX / M-ATX
PCI expansion slots：7
Front I/O：USB3.2 Gen 2 Type-C*1 / USB3.0*1/Audio & Mic*1
Power supply support：ATX
CPU cooler support：168mm
Graphics card support：330-400mm
Fan mounting position：Top 120mm*3 or 140mm*2 Rear 120*1mm Bottom 120mm*3 or 140mm*2 Front 120mm*1
Radiator support： Top 240/280/360*1 Rear 120*1 Bottom 240/360*1
Weight: Net 7.08KG
