D32 STD White

Model:D32 STD

Color:White

Dimensions (w/o feet and other protrusions):384mm x 207mm x 302mm (depth/width/height)

Dimensions (with feet and other protrusions)395mm x 207mm x 314mm (depth/width/height)

Case Material:SPCC Steel(0.7mm+0.8mm)

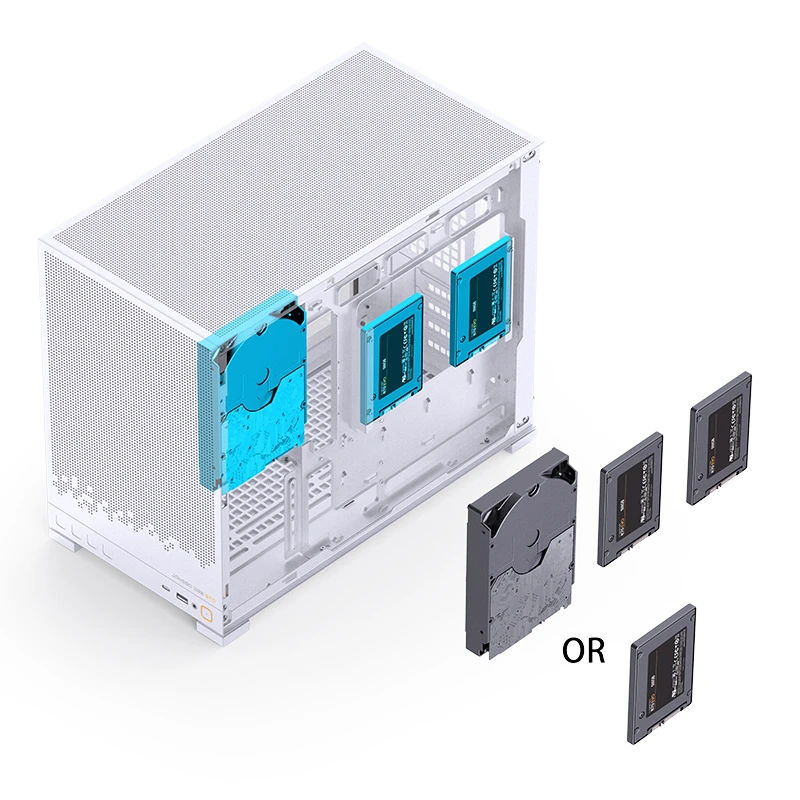

Drive Bay: 2.5": Up to 3                       3.5": Up to 1, shared with one of 2.5" mounts

Front IO Port:USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

FAN:Top: 2 x 120mm / 2 x 140mm                  Rear: 1 x 120mm                     Bottom: 3 x 120mm / 2 x 140mm

Radiator supportTop,up to 240mm

ATX PS2 PSU Clearance

      • When the GPU is installed in the first PCI-E slot of the chassis, the maximum length of the power supply is 150mm, and the recommended length is ≤140mm
      • When the GPU is installed in the second PCI-E slot of the chassis, the maximum length of the power supply is 170mm, and the recommended length is ≤160mm
      • When the GPU length is ≤288mm, the power supply length is limited to 200mm (not compatible with 16A plugs)

SFX PSU SupportSFX / SFX-L

CPU Air Cooler Clearance:Up to 164mm (Intel CPU) or 163mm (AMD CPU)

GPU ClearanceUp to 365mm

Weight:N.W. 4.5kg / G.W. 5.5kg
