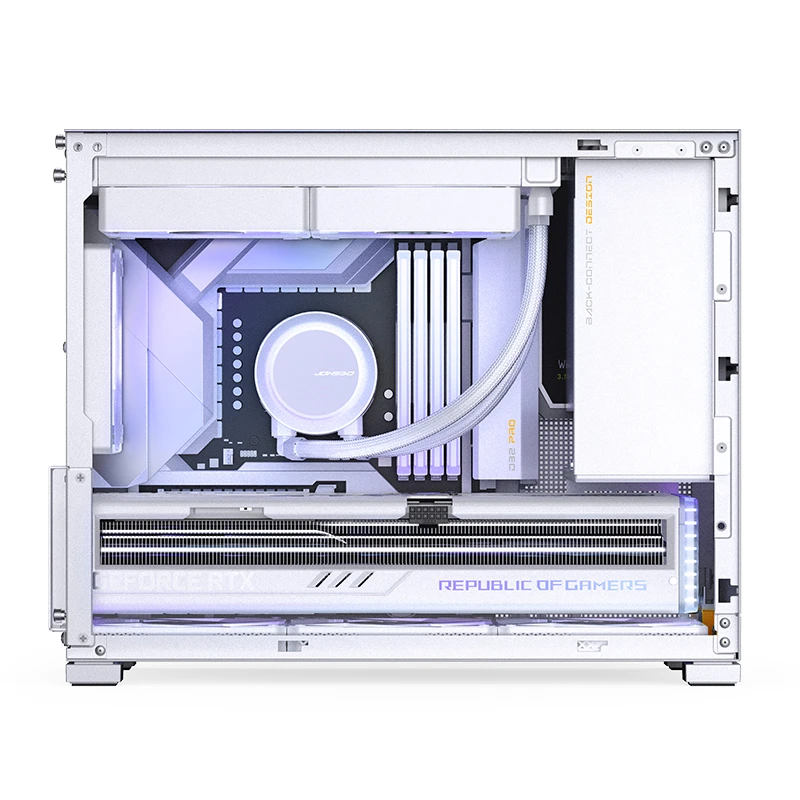

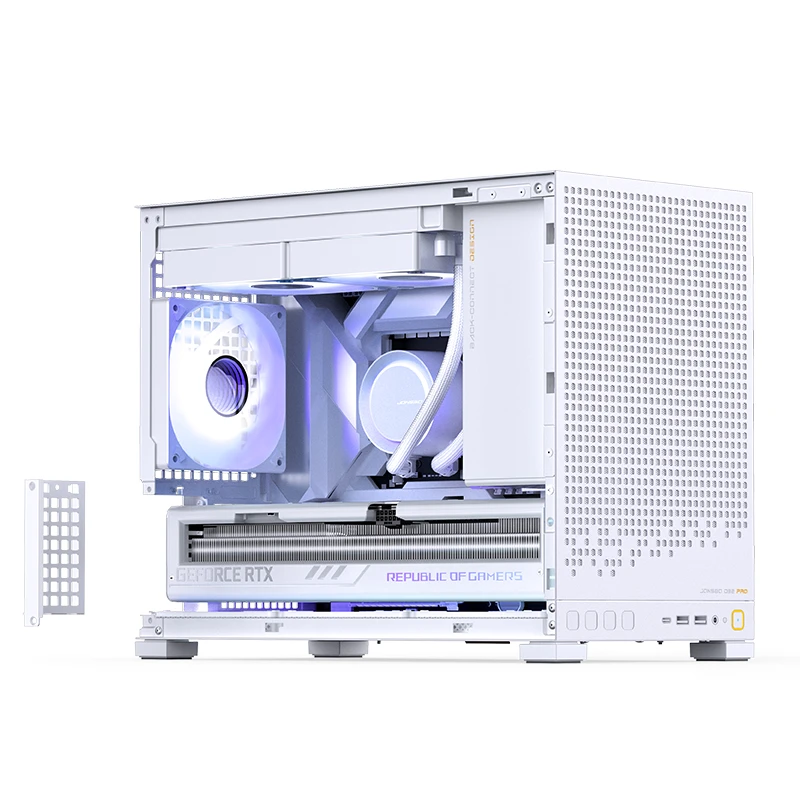

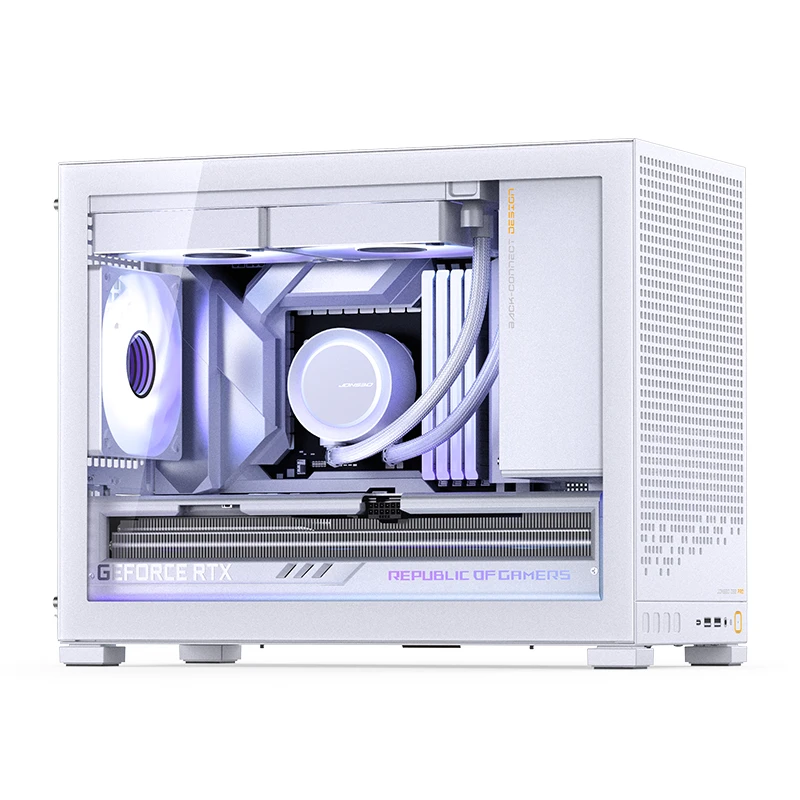

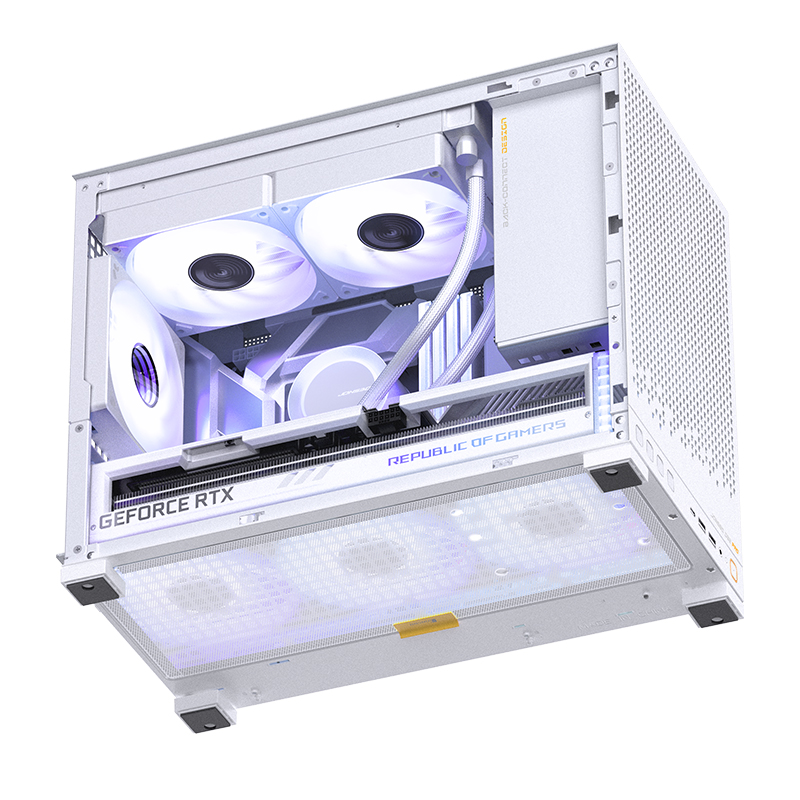

D32 PRO White

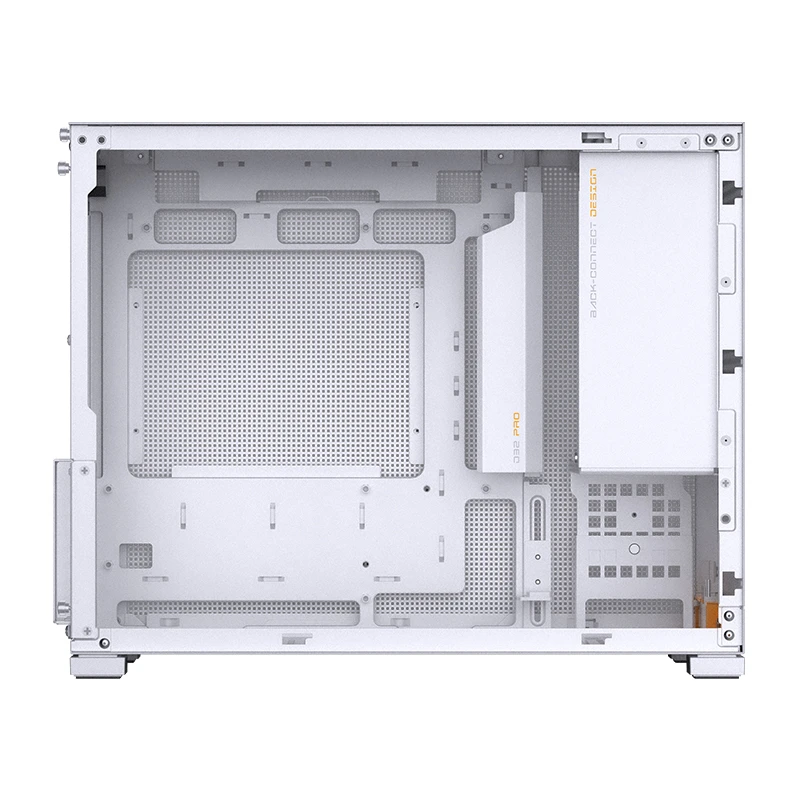

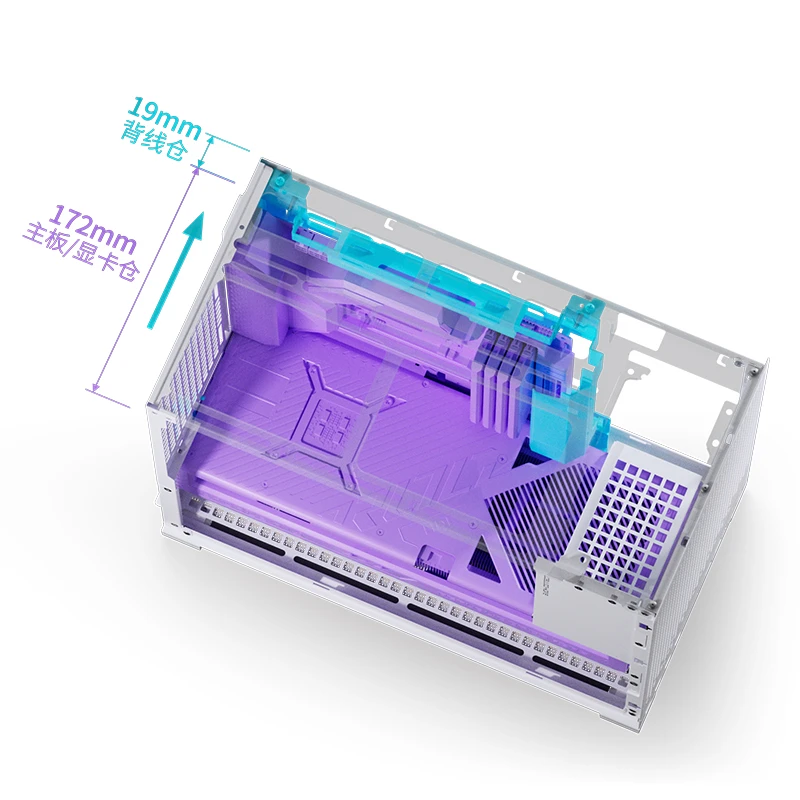

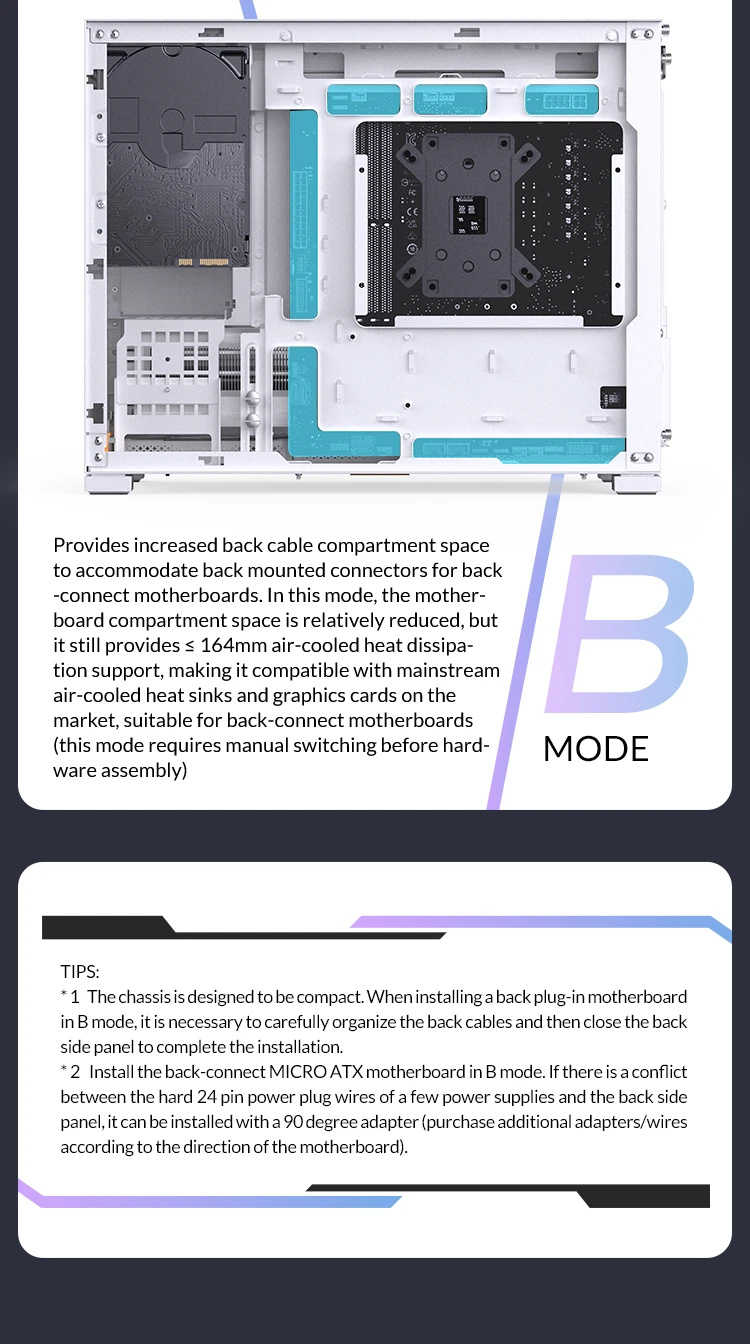

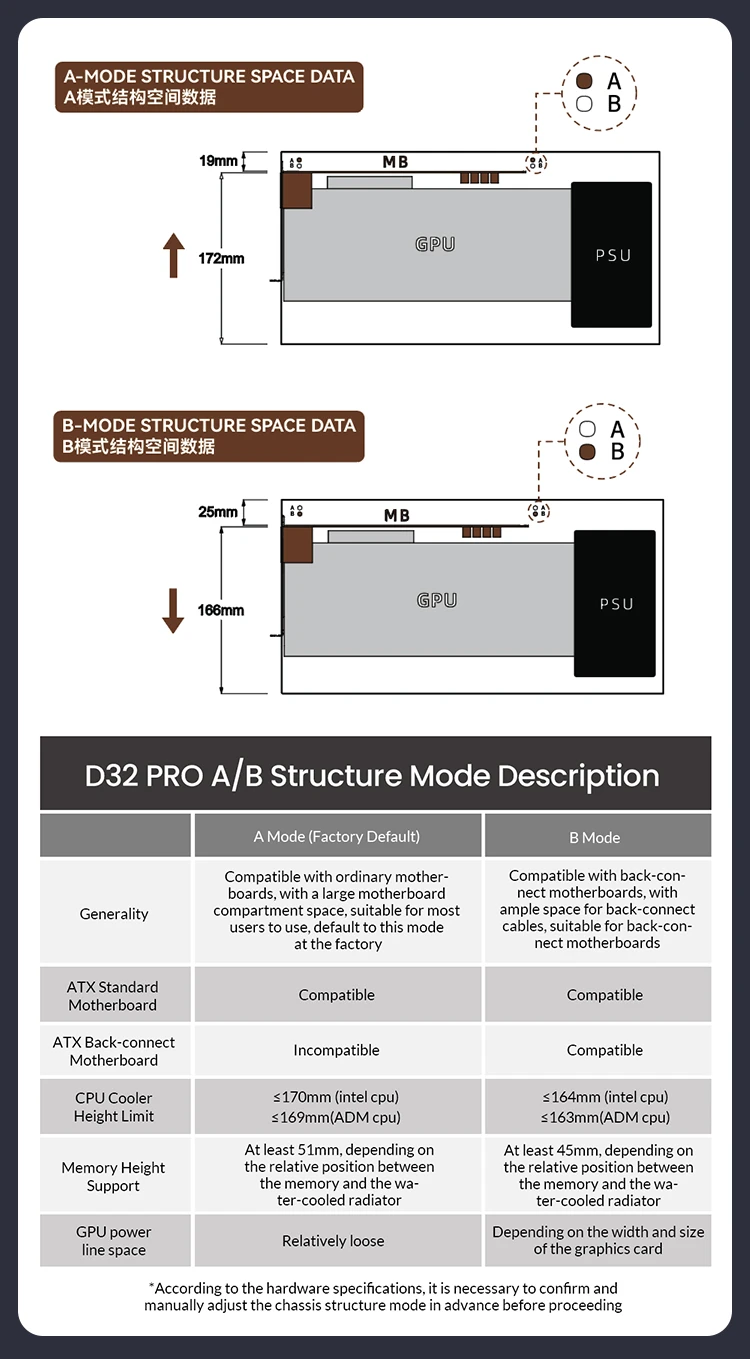

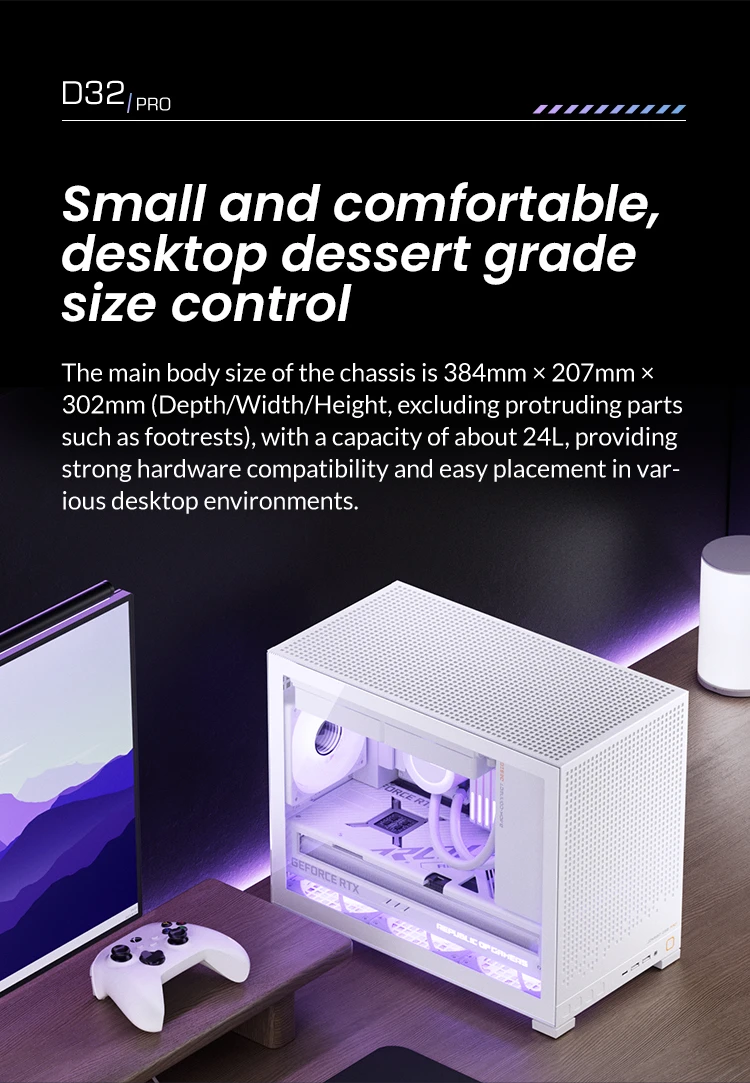

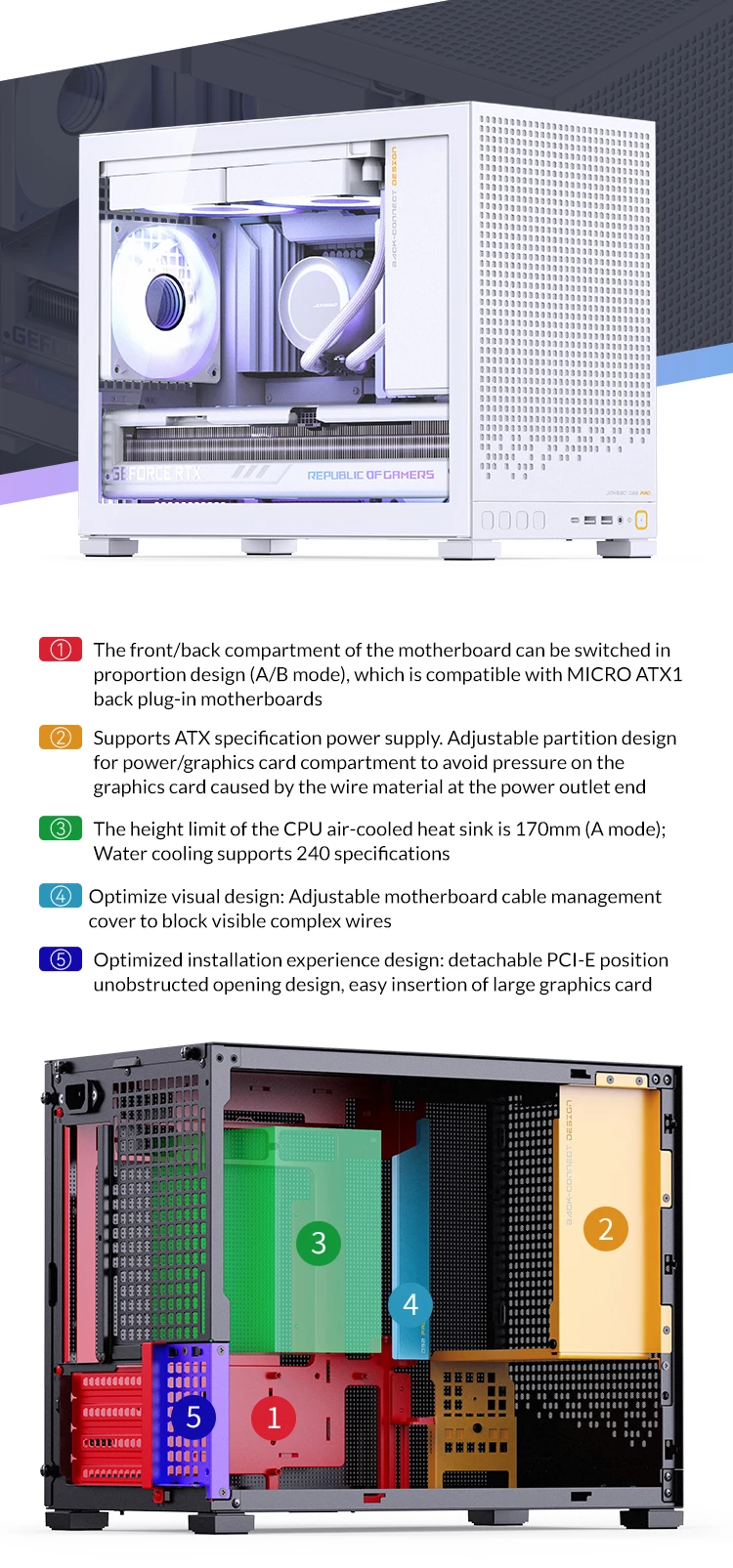

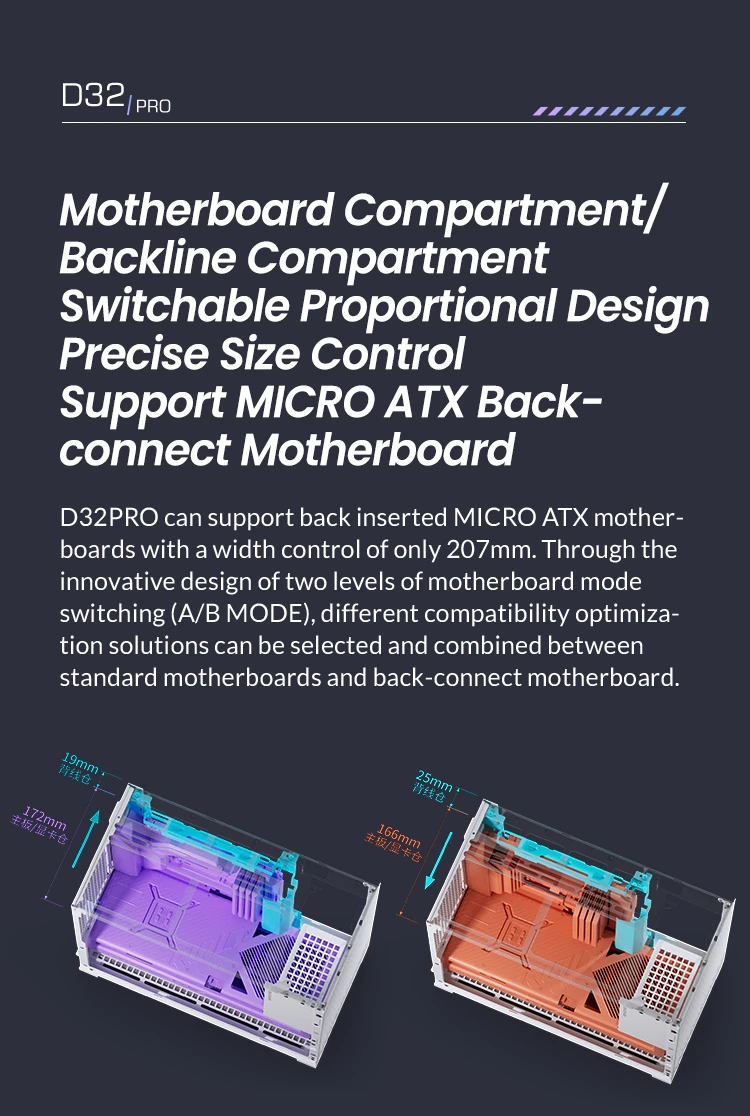

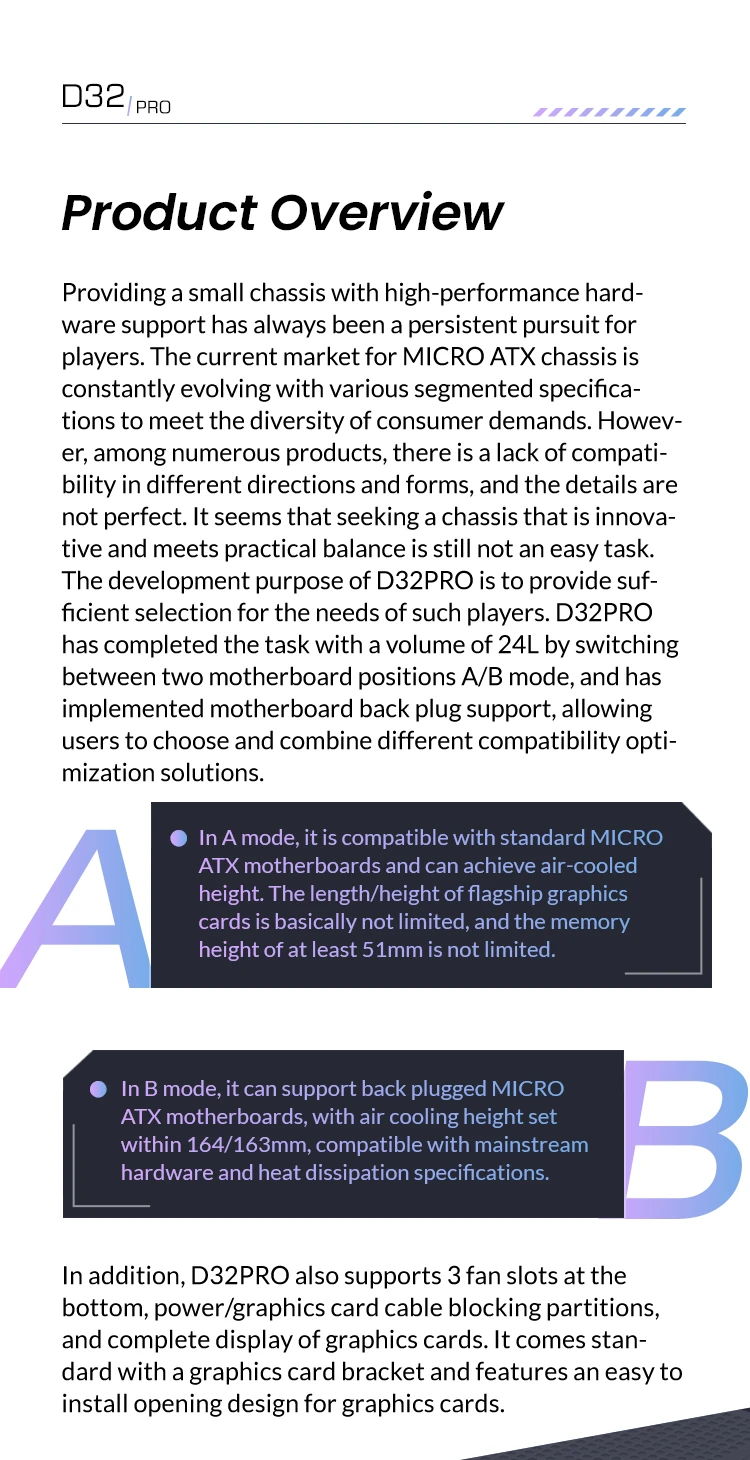

Providing a small chassis with high-performance hardware support has always been a persistent pursuit for players. The current market for MICRO ATX chassis is constantly evolving with various segmented specifications to meet the diversity of consumer demands. However, among numerous products, there is a lack of compatibility in different directions and forms, and the details are not perfect. It seems that seeking a chassis that is innovative and meets practical balance is still not an easy task. The development purpose of D32PRO is to provide sufficient selection for the needs of such players. D32PRO has completed the task with a volume of 24L by switching between two motherboard positions A/B mode, and has implemented motherboard back plug support, allowing users to choose and combine different compatibility optimization solutions.

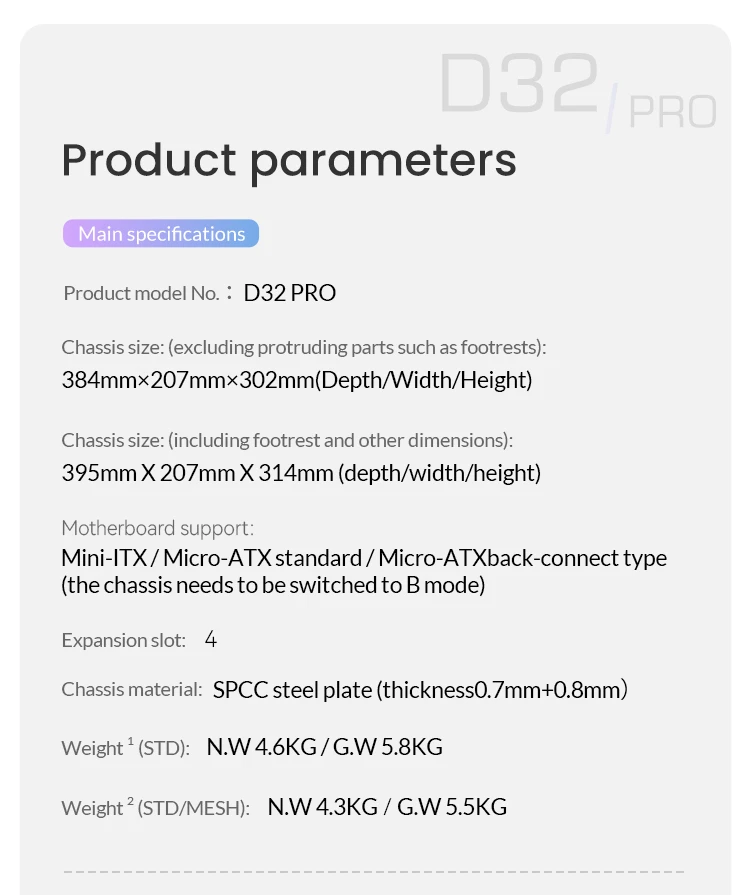

Model:D32 PRO

Color:White

Case Material:SPCC Steel(0.7mm+0.8mm)

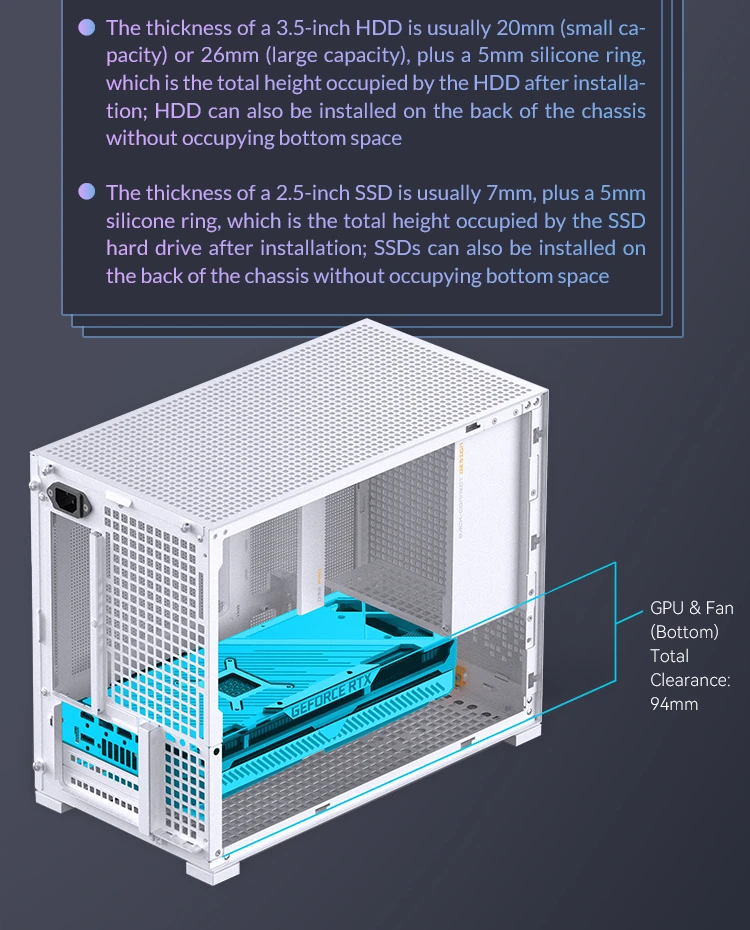

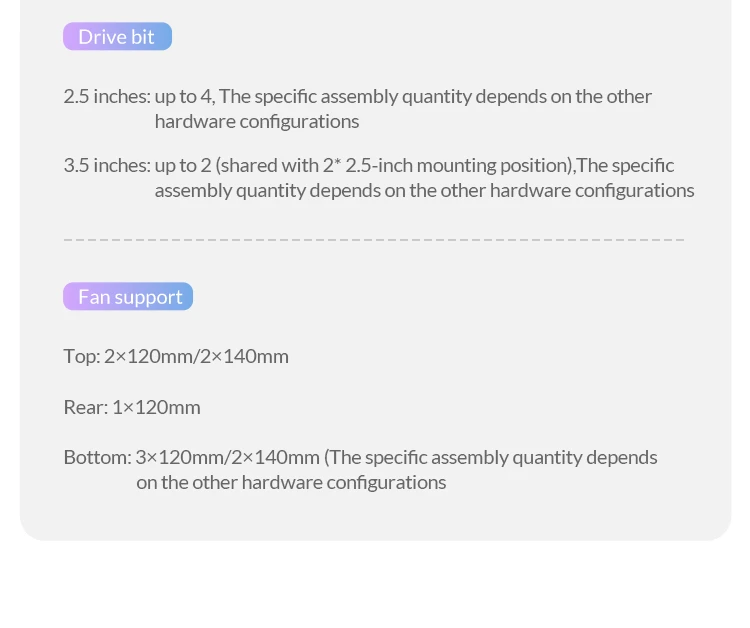

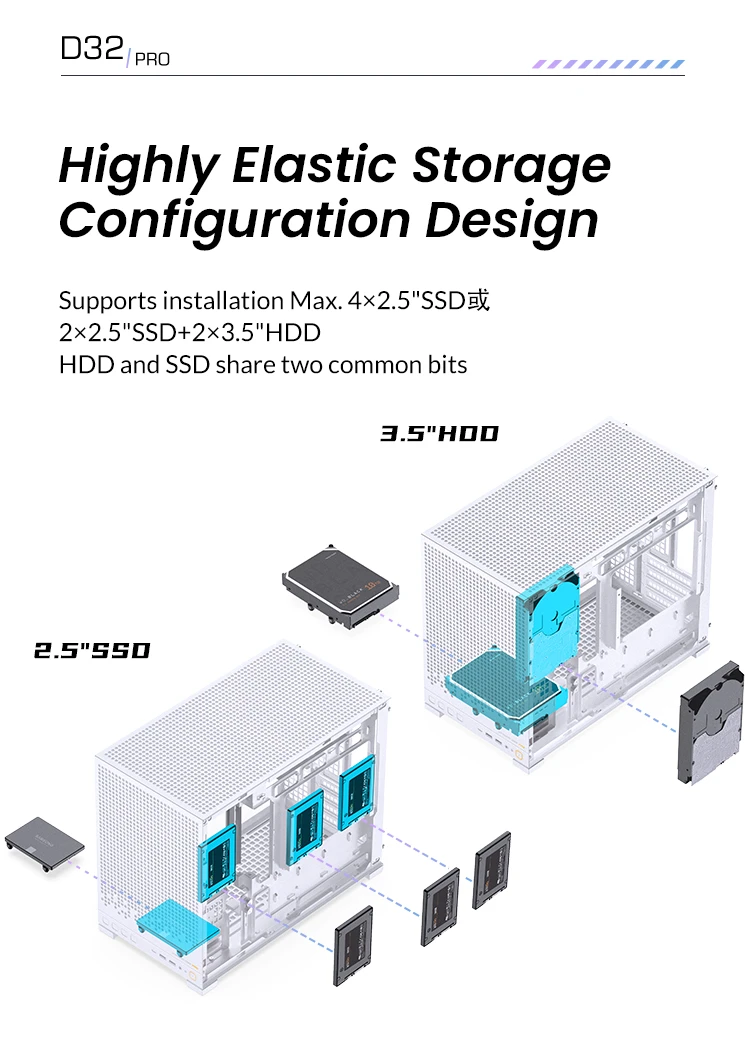

Drive Bay: 2.5": up to 4, depends on other hardware configurations

                 3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations

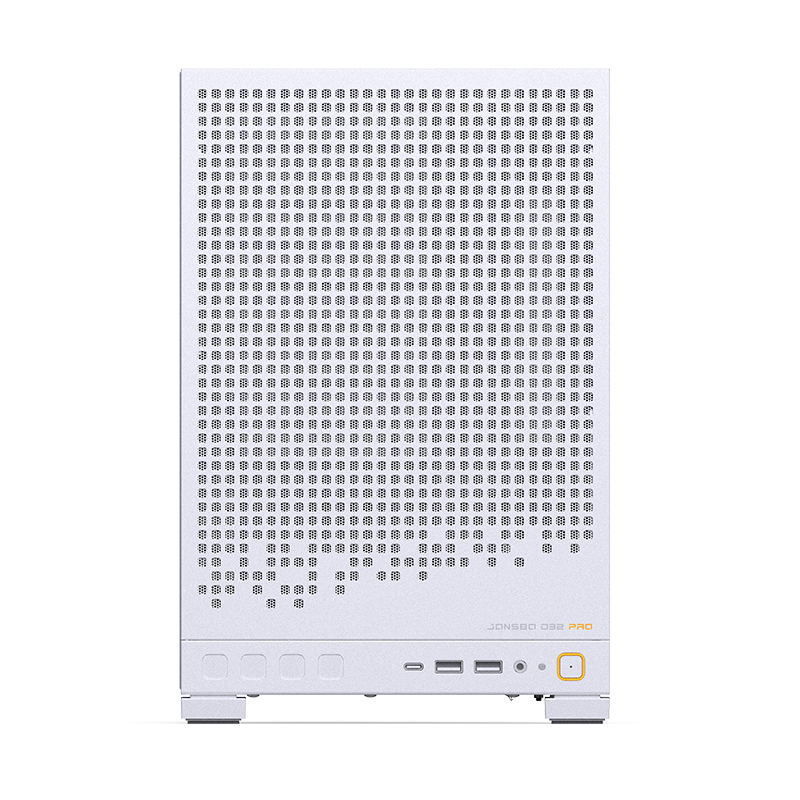

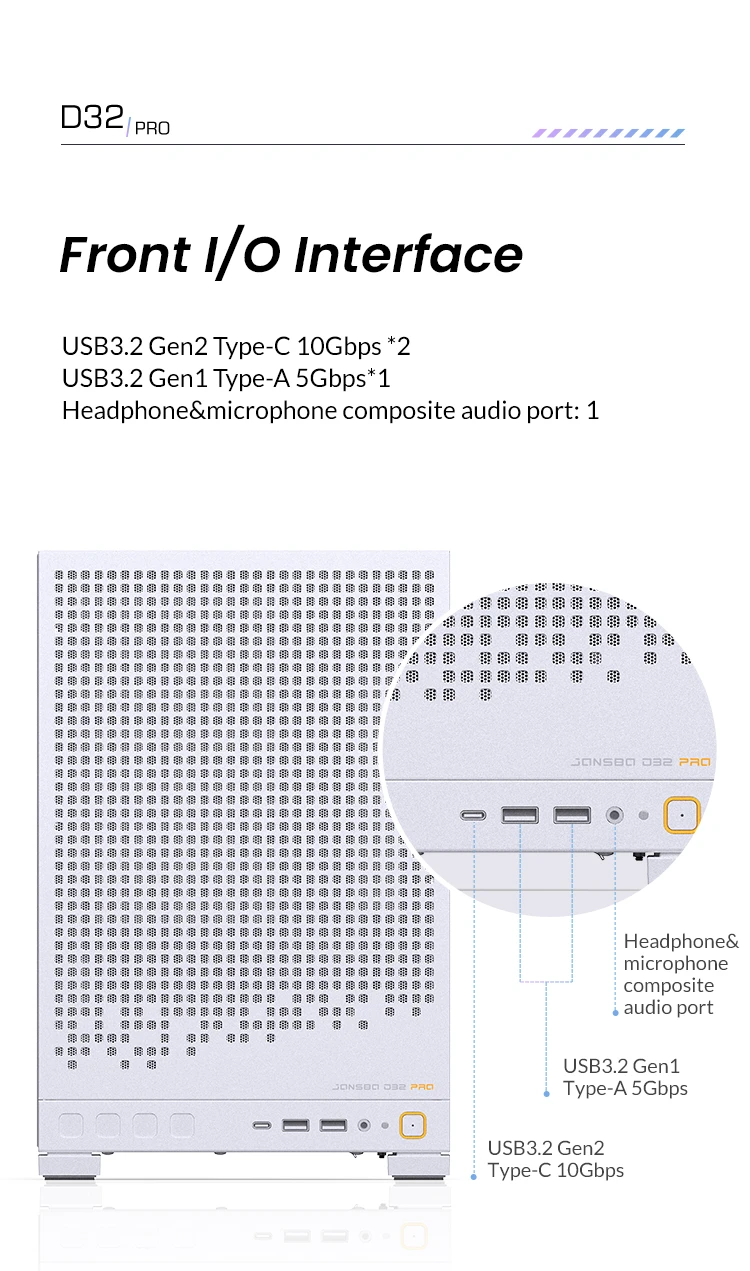

Front IO Port:USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

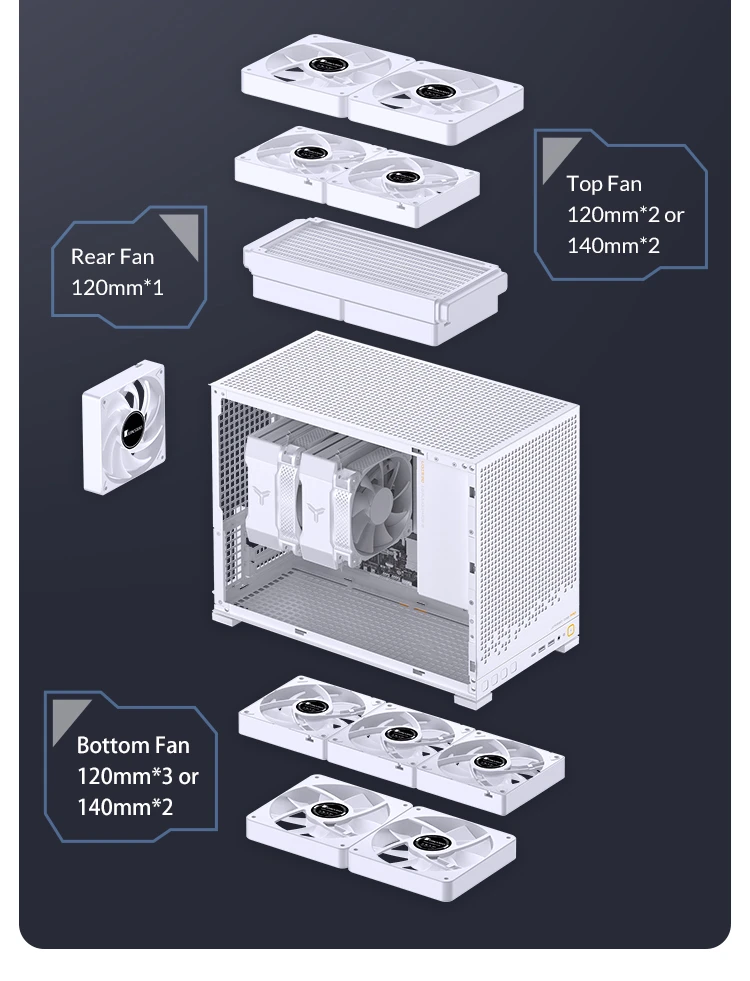

FAN:Top: 2 x 120mm / 2 x 140mm                  Rear: 1 x 120mm                     Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations

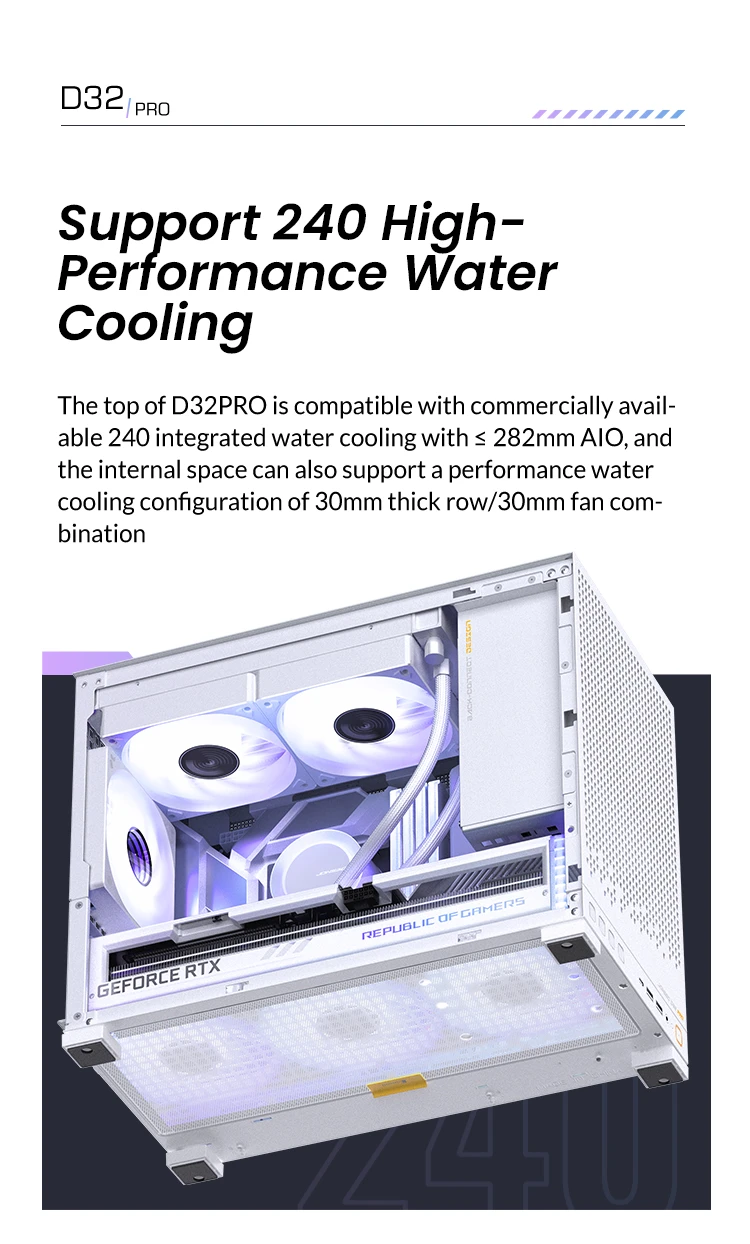

Radiator supportTop,up to 240mm

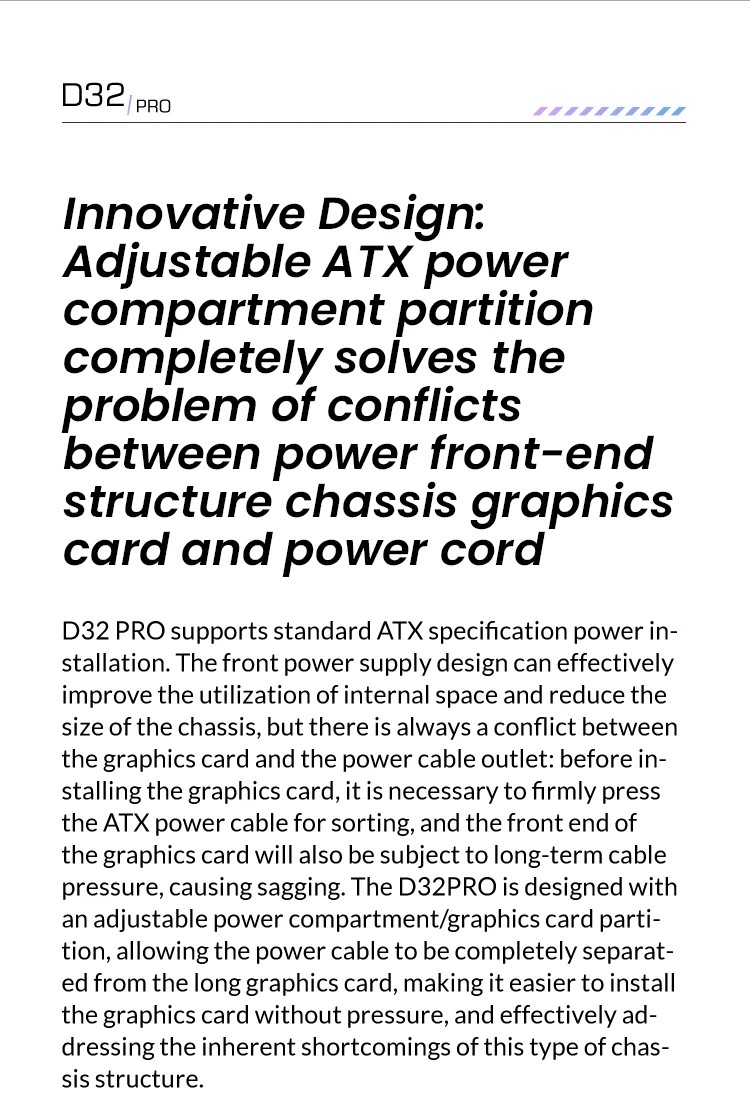

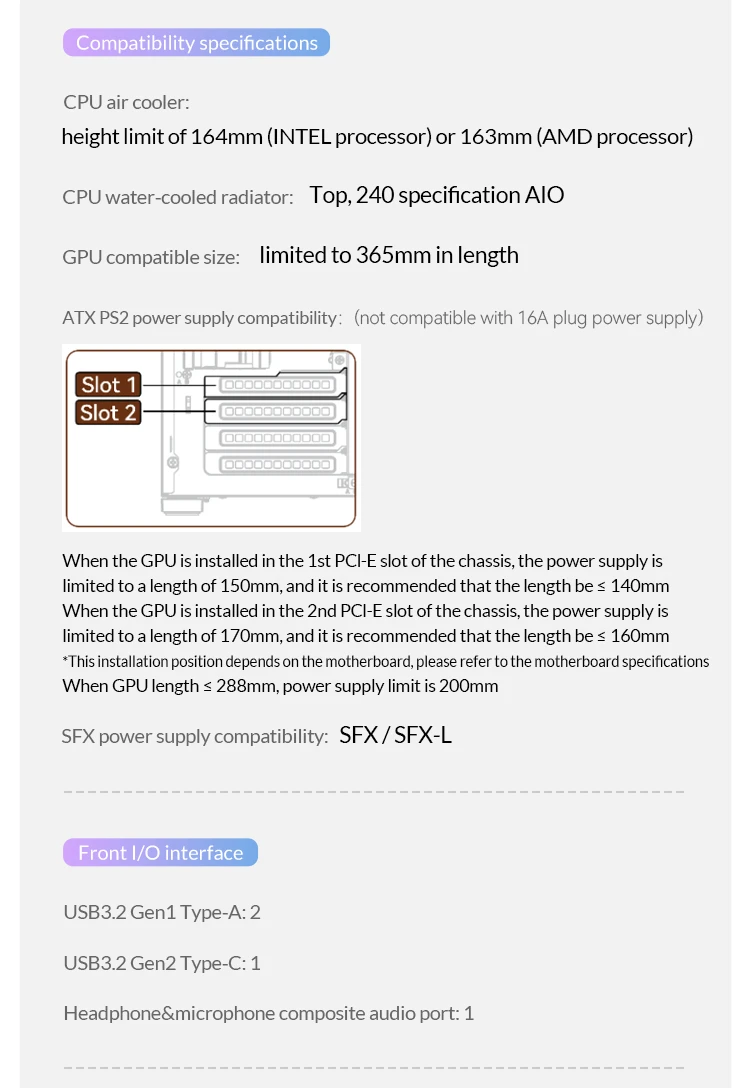

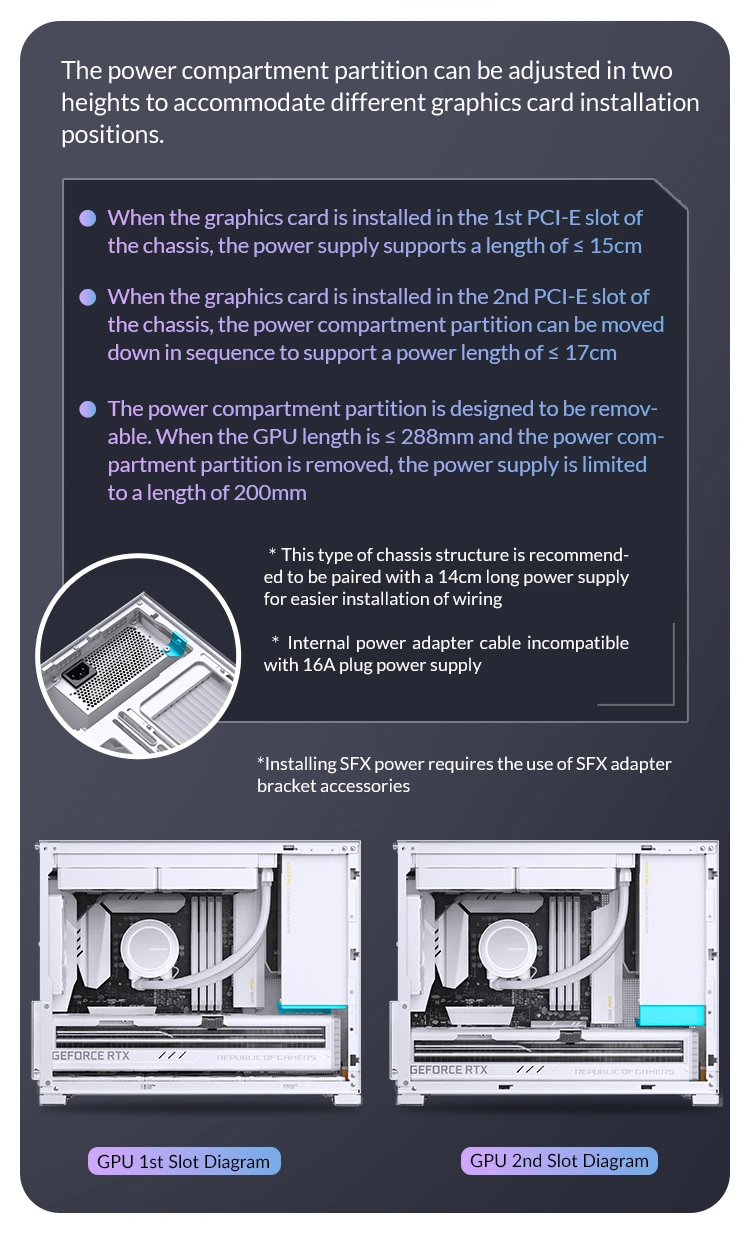

ATX PS2 PSU Clearance

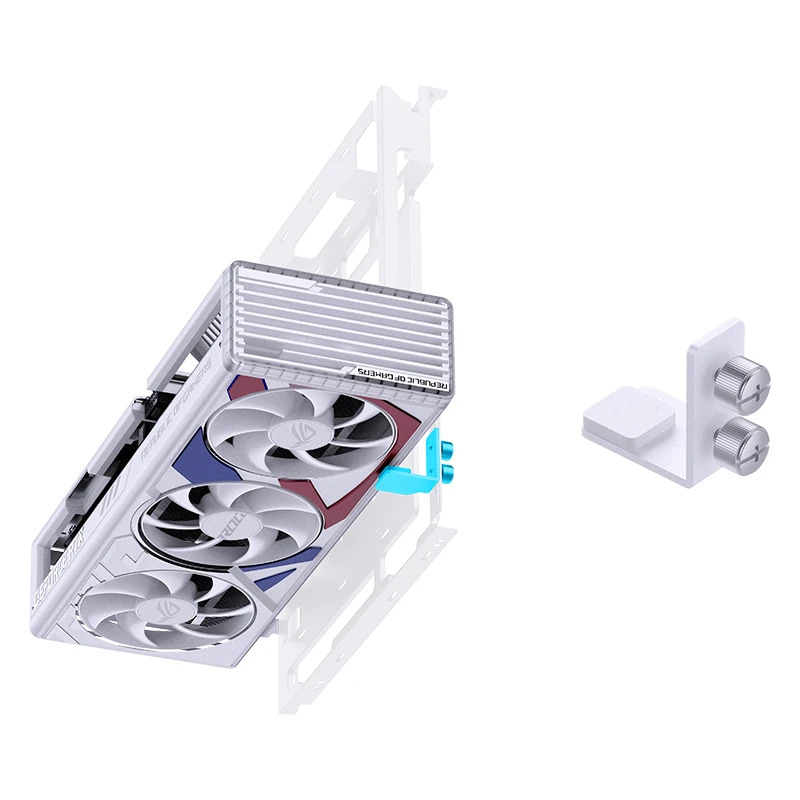

       • When the GPU is installed in the second PCI-E slot of the chassis, the maximum
length of the power supply is 170mm, and the recommended length is ≤160mm
       *This mounting position depends on the motherboard, please refer to the motherboard specifications
       • When the GPU length is ≤288mm and the power compartment partition is removed, the power supply
length is limited to 200mm (not compatible with 16A plugs)

SFX PSU SupportSFX / SFX-L

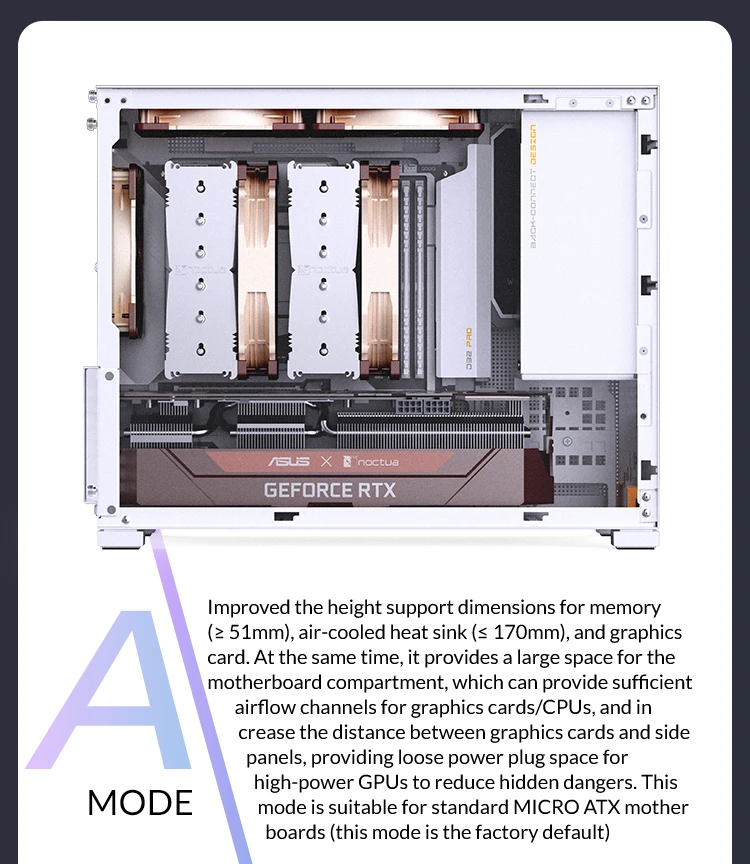

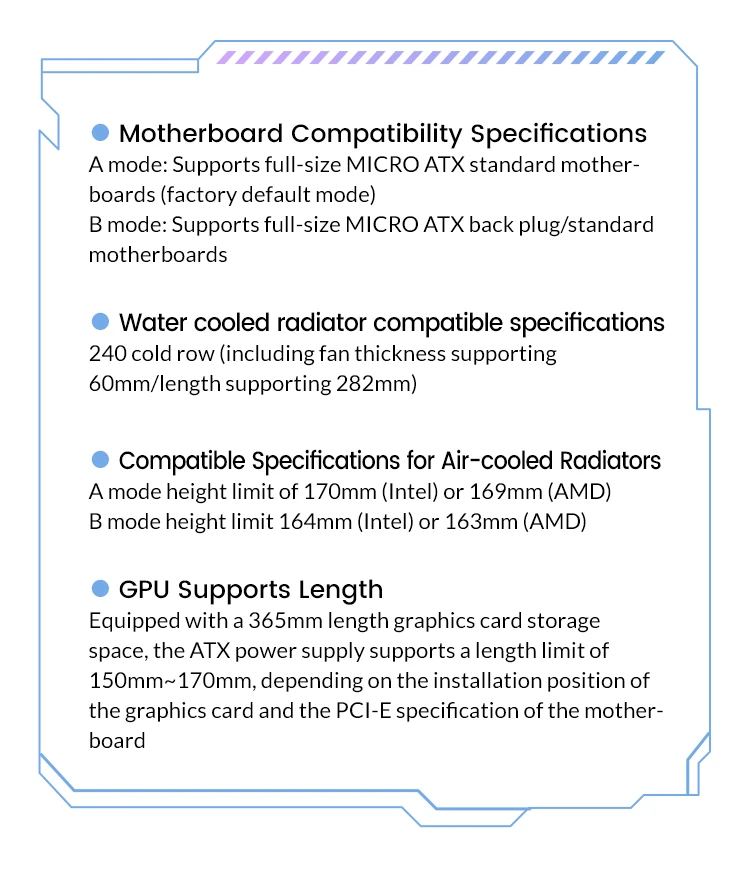

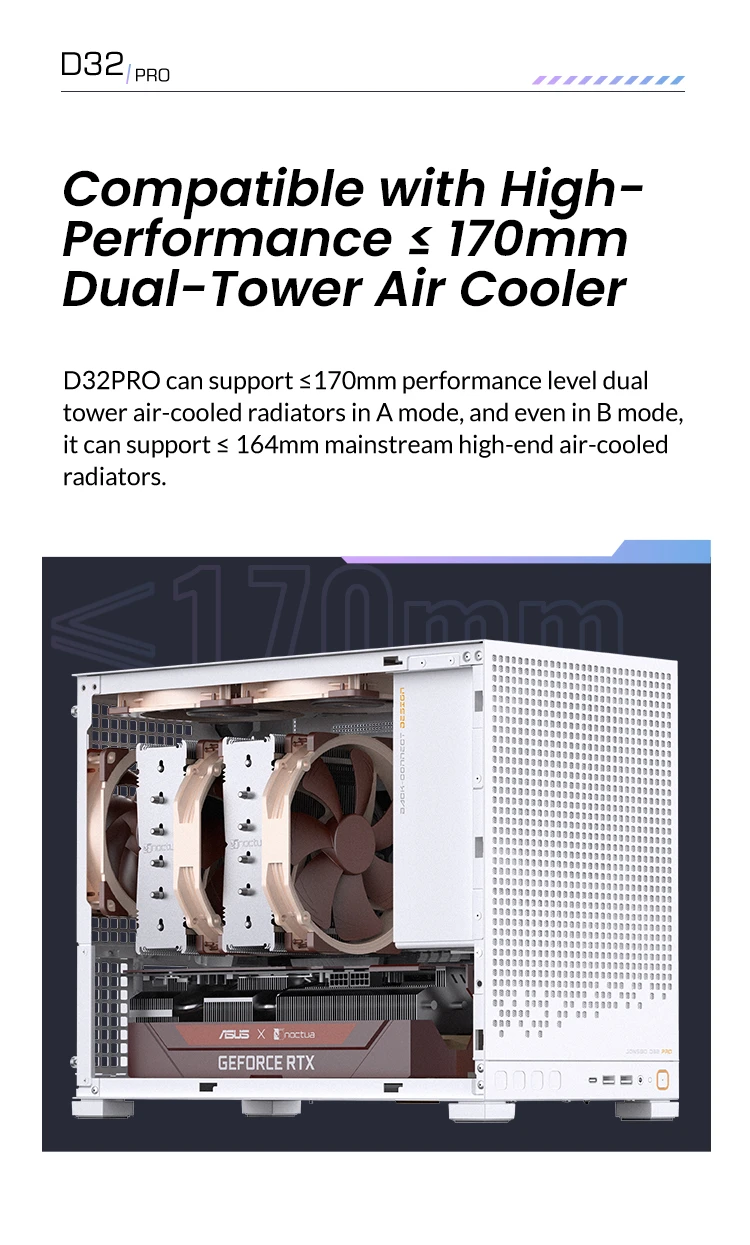

CPU Air Cooler Clearance:In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)

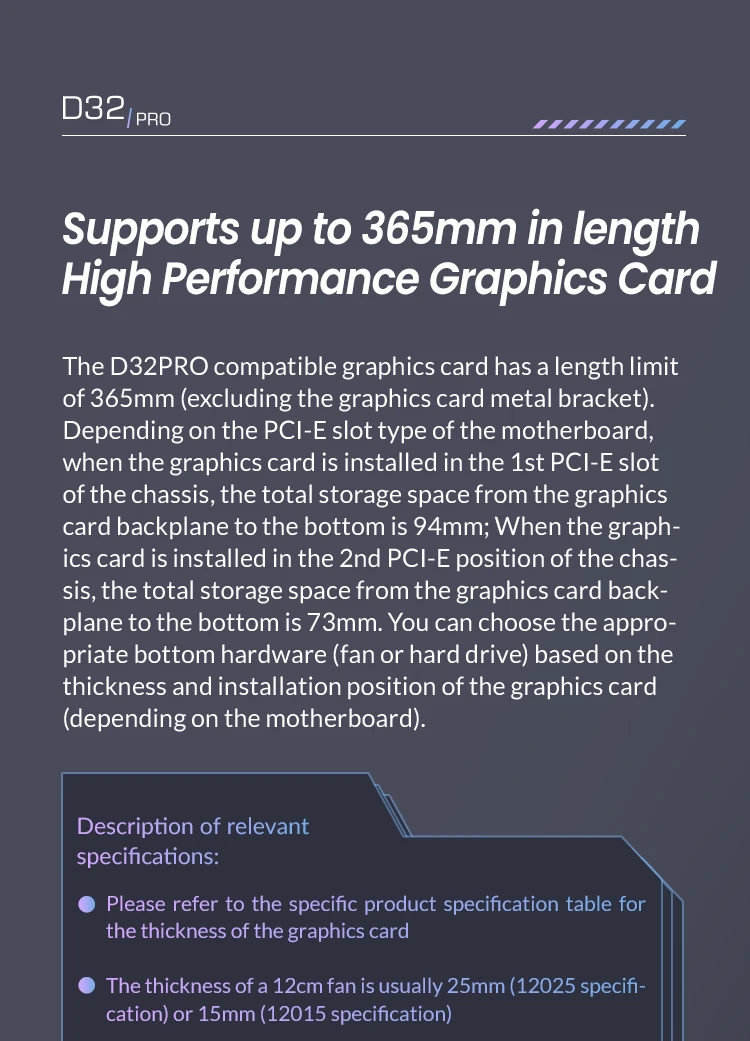

GPU ClearanceUp to 365mm

Weight:N.W. 4.6kg / G.W. 5.8kg
