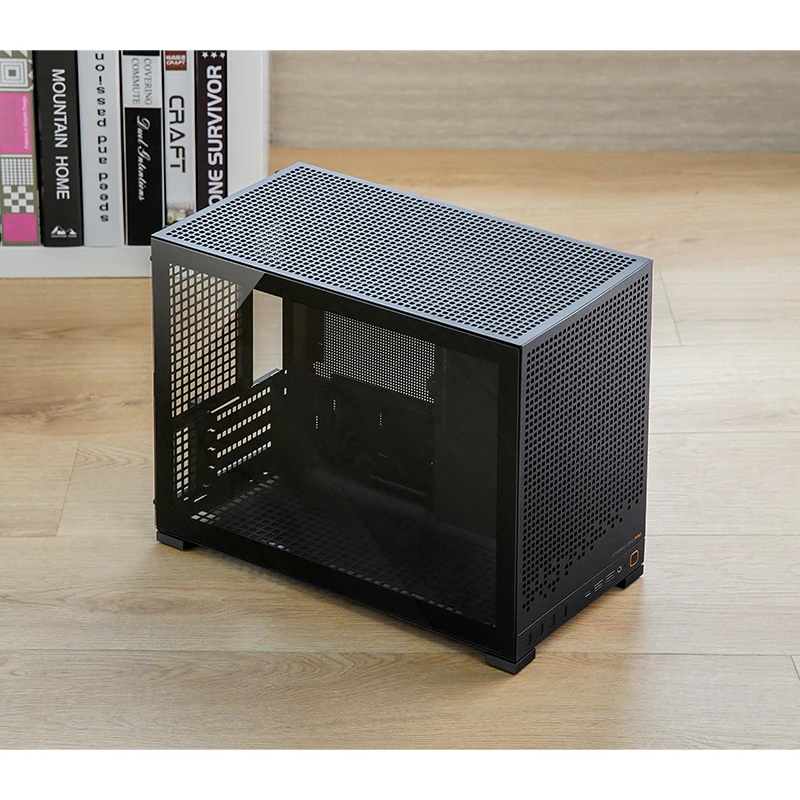

Model：D32 PRO |
| Color：Black |
|
|
|
|
|

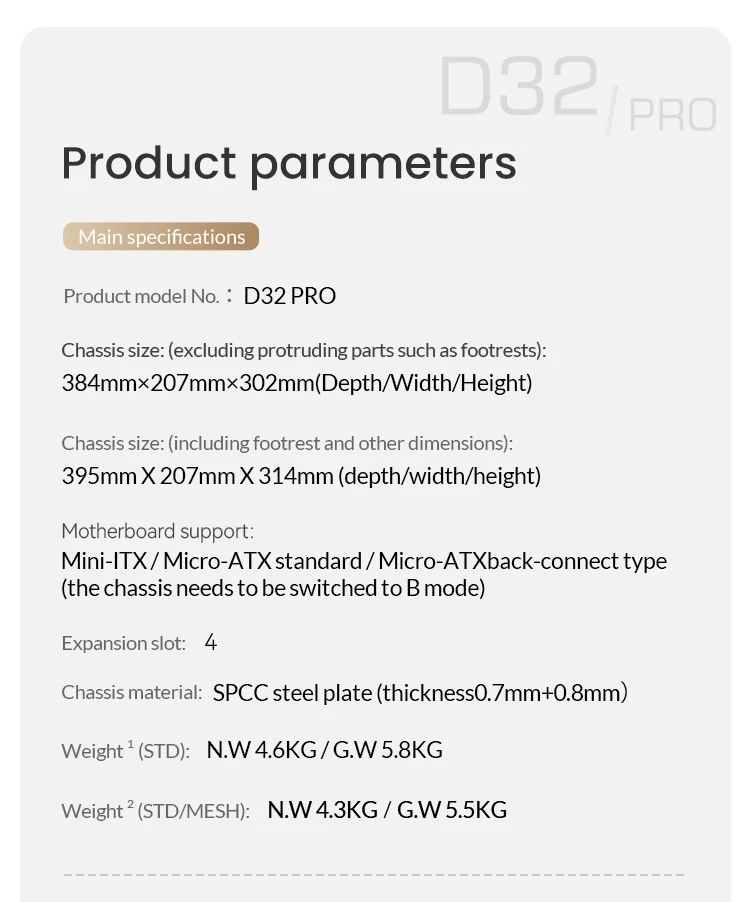

Case Material：SPCC Steel(0.7mm+0.8mm) |
|

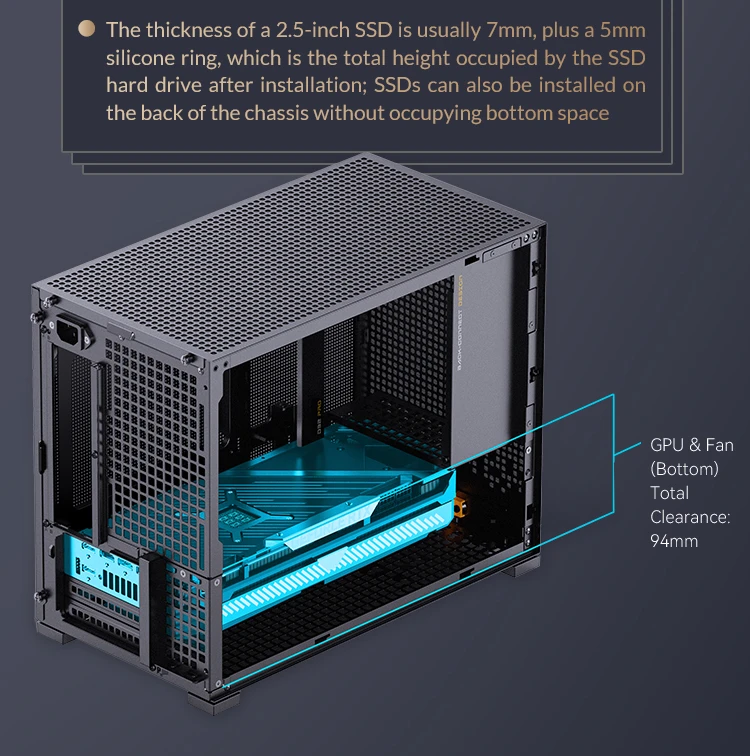

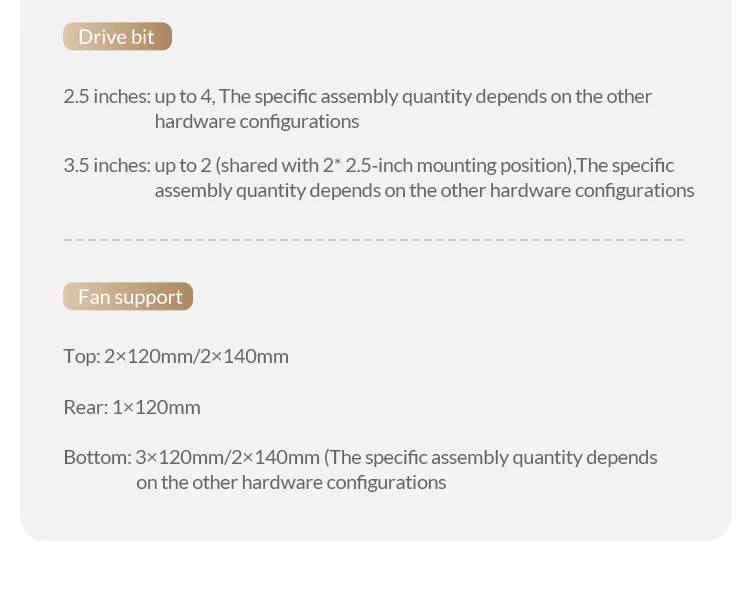

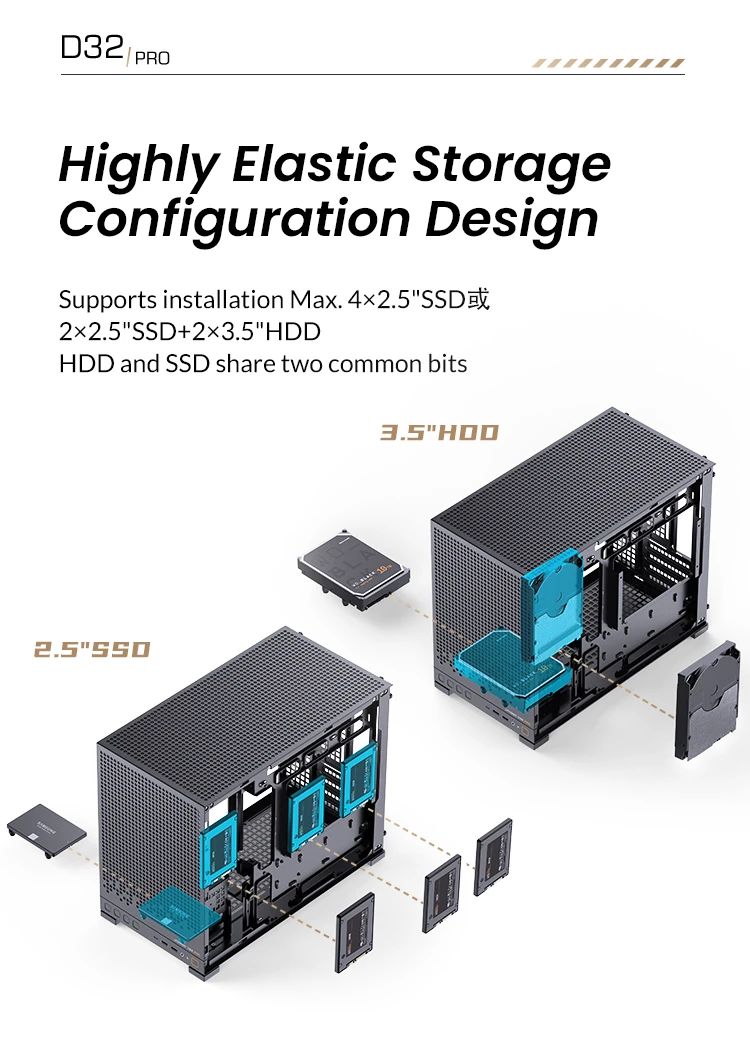

Drive Bay： 2.5": up to 4, depends on other hardware configurations
3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations
|
|

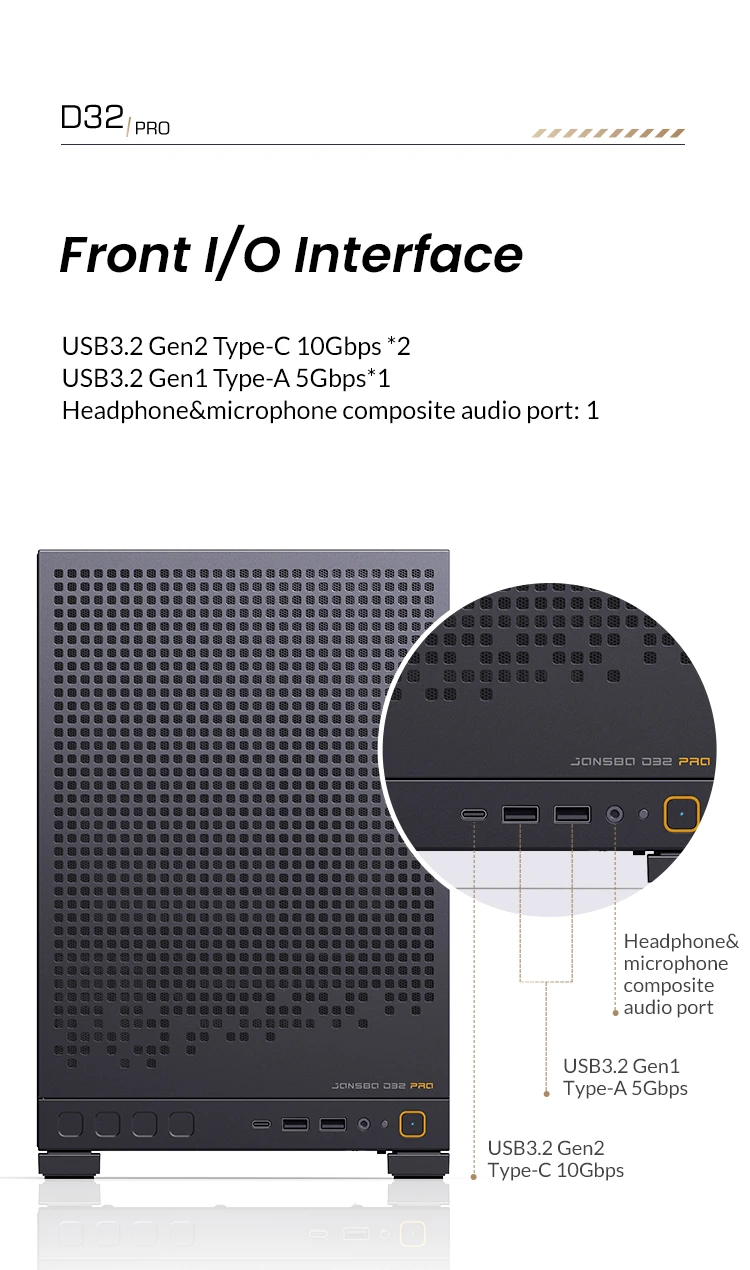

Front IO Port：USB3.2 Gen1 Type-A*2/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1 |
|

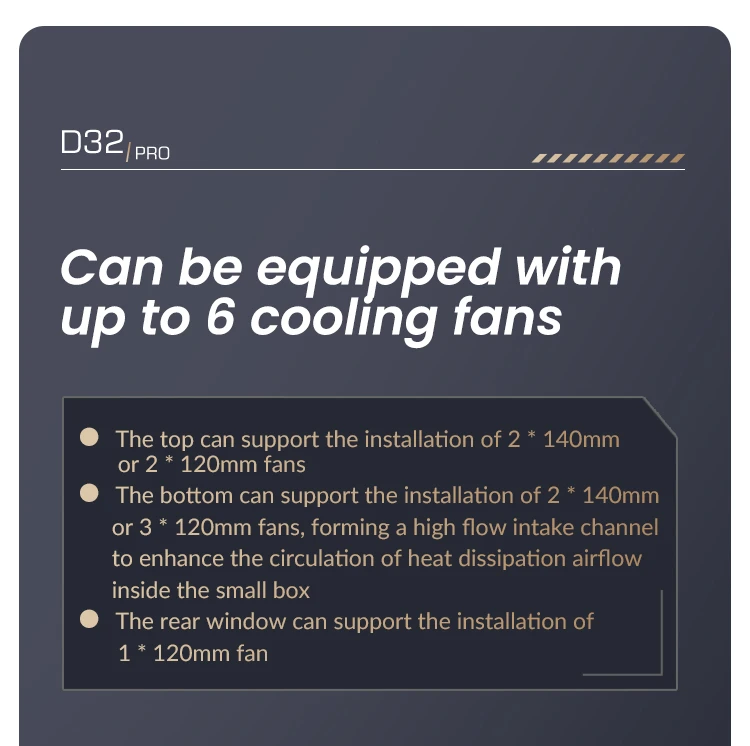

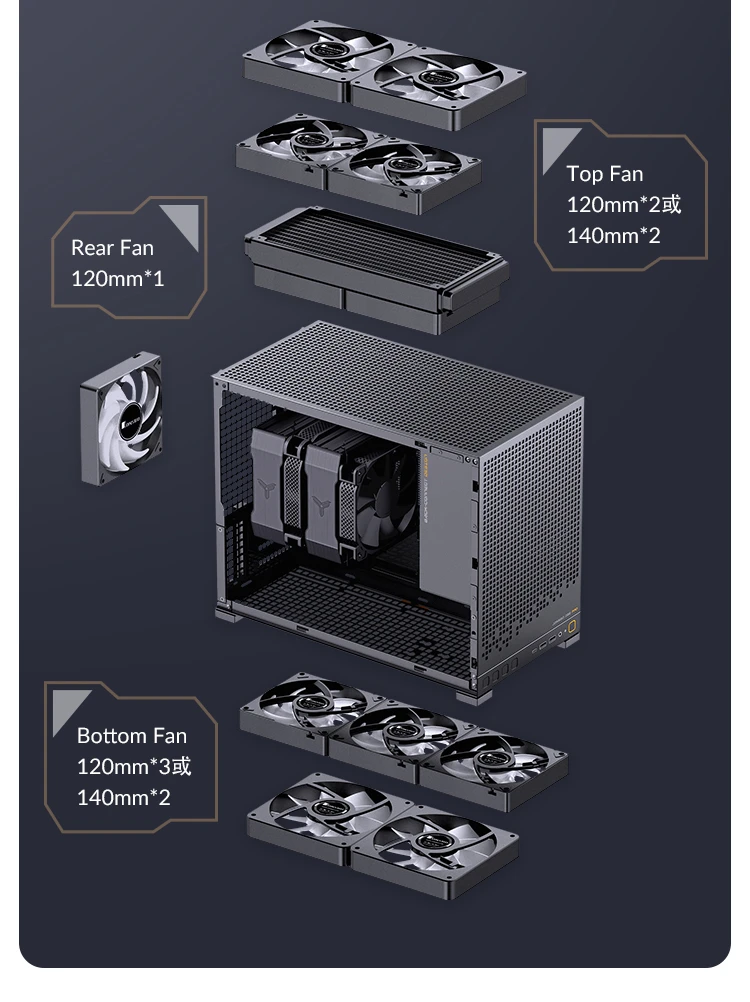

FAN：Top: 2 x 120mm / 2 x 140mm Rear: 1 x 120mm Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations |
|

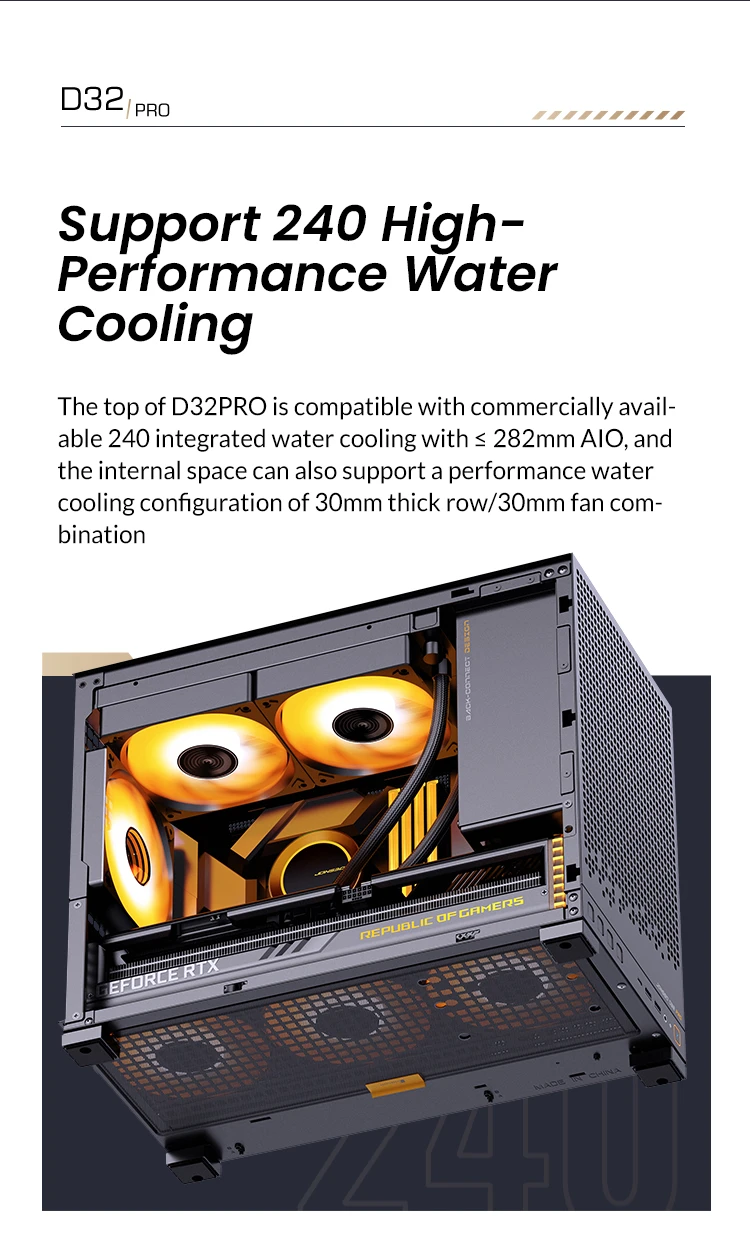

Radiator support：Top，up to 240mm |
|

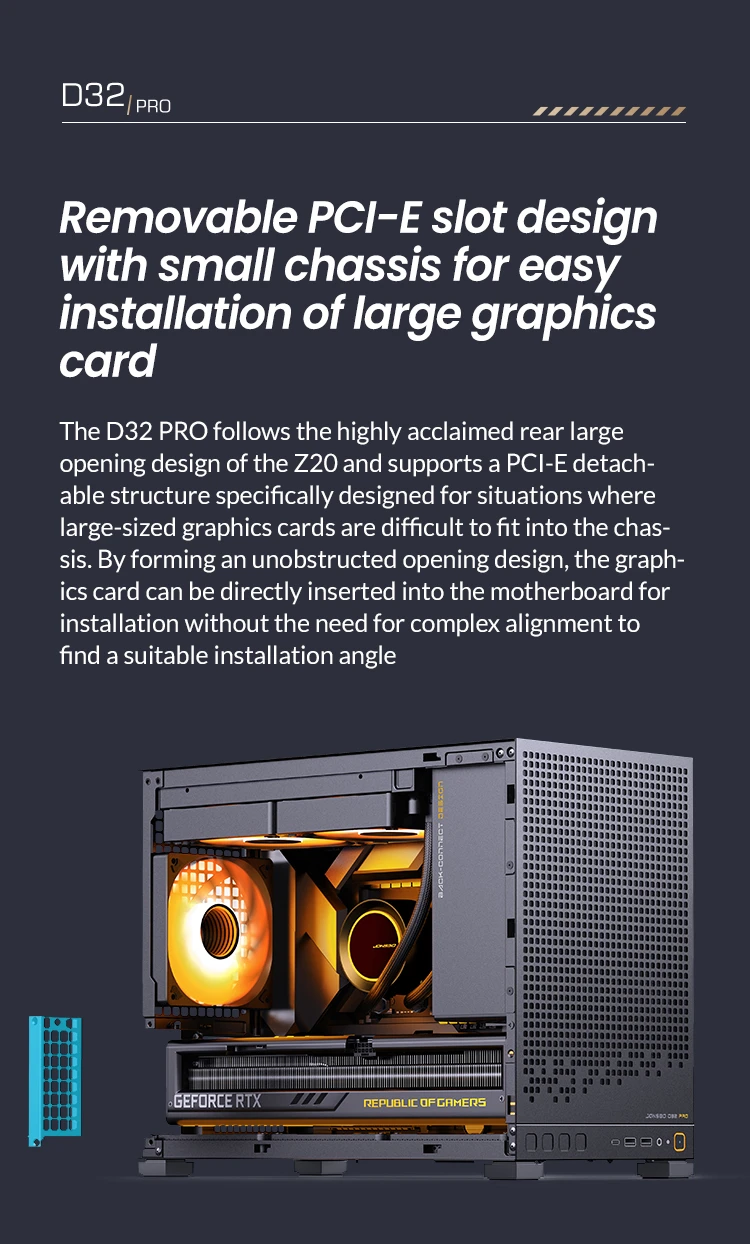

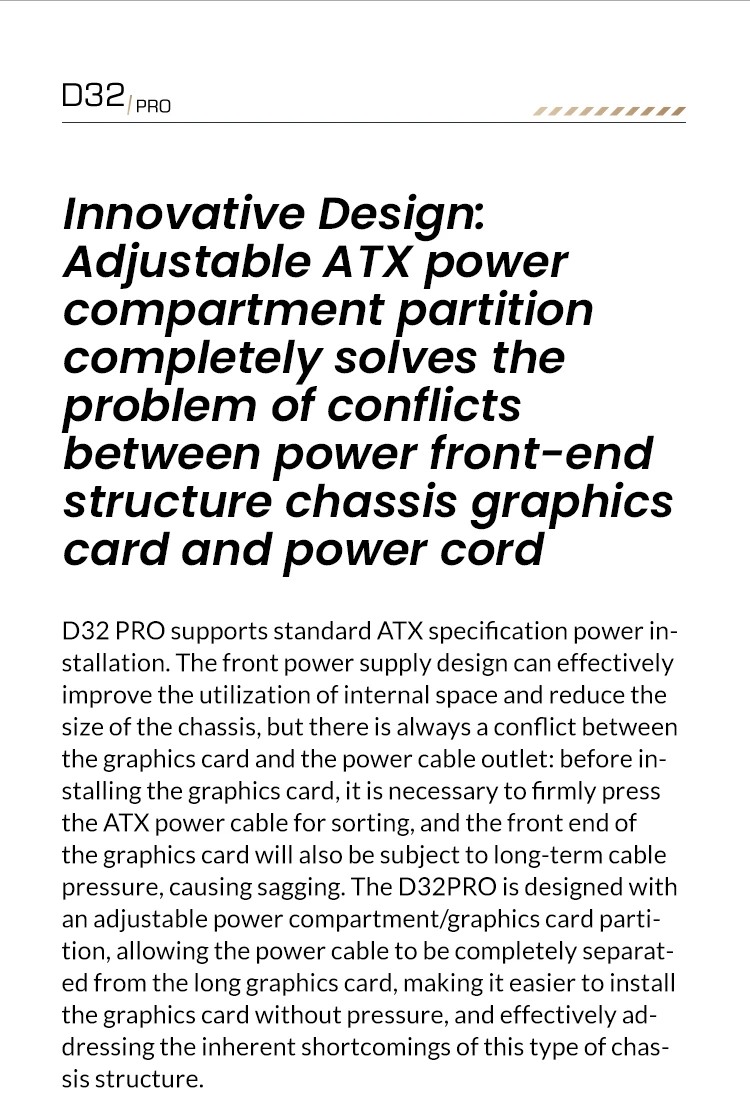

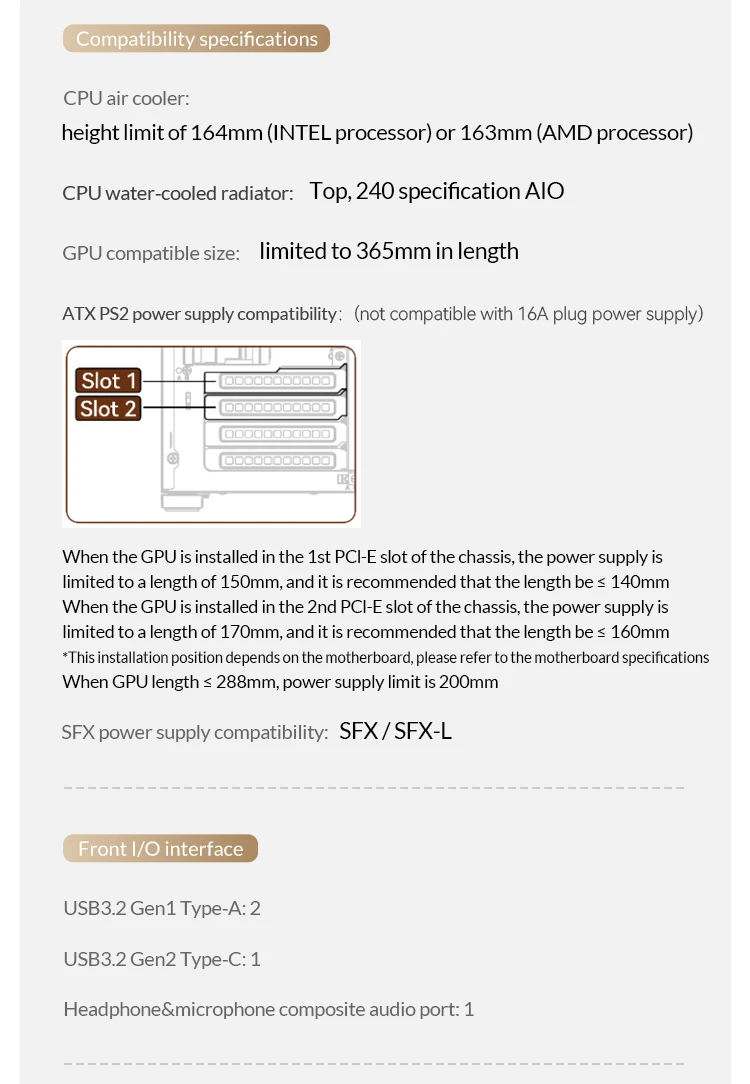

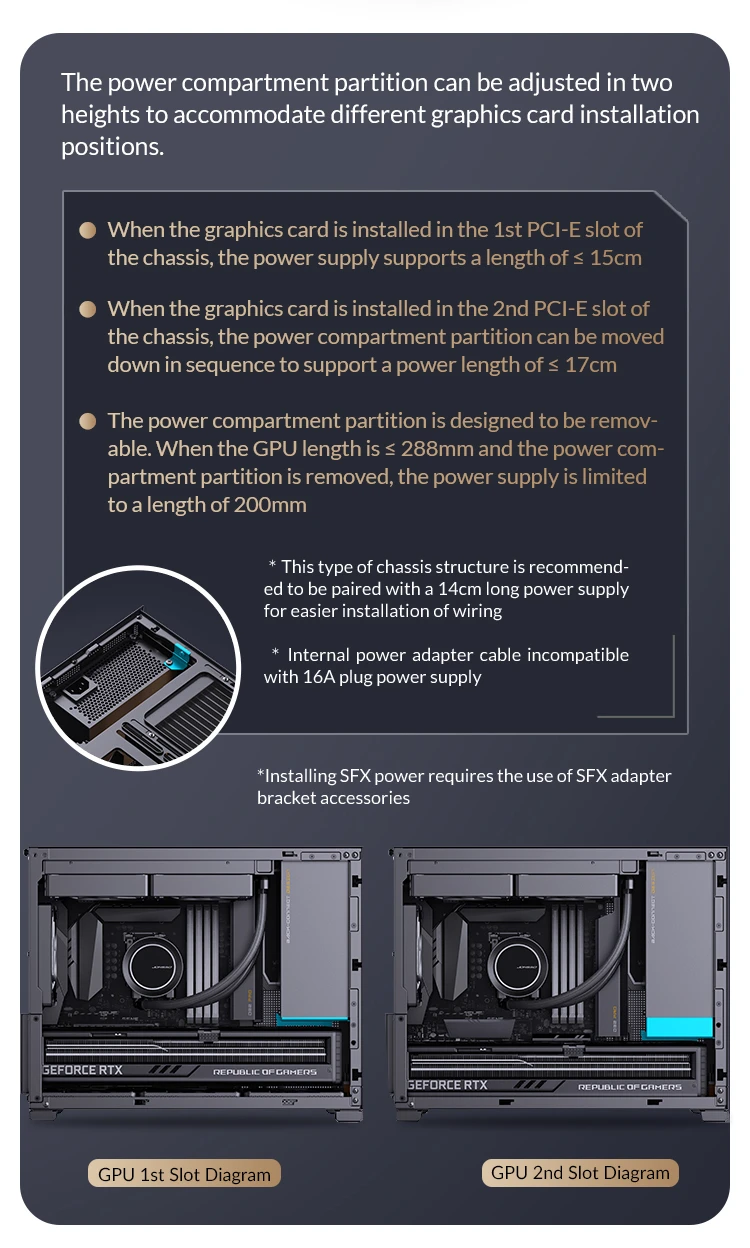

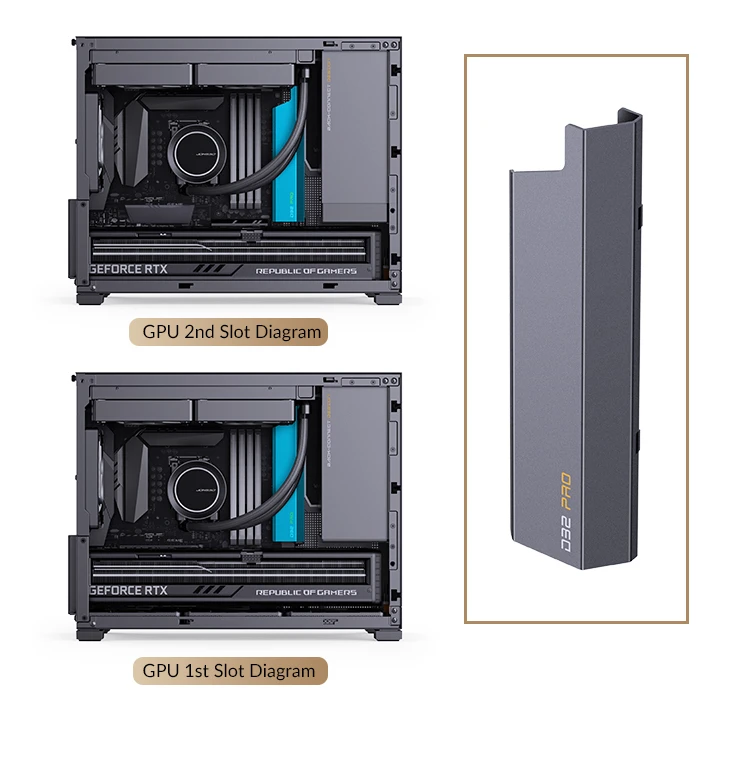

• When the GPU is installed in the first PCI-E slot of the chassis, the maximum
length of the power supply is 150mm, and the recommended length is ≤140mm
• When the GPU is installed in the second PCI-E slot of the chassis, the maximum
length of the power supply is 170mm, and the recommended length is ≤160mm
• When the GPU length is ≤288mm and the power compartment partition is removed, the power supply
length is limited to 200mm (not compatible with 16A plugs)
|
|

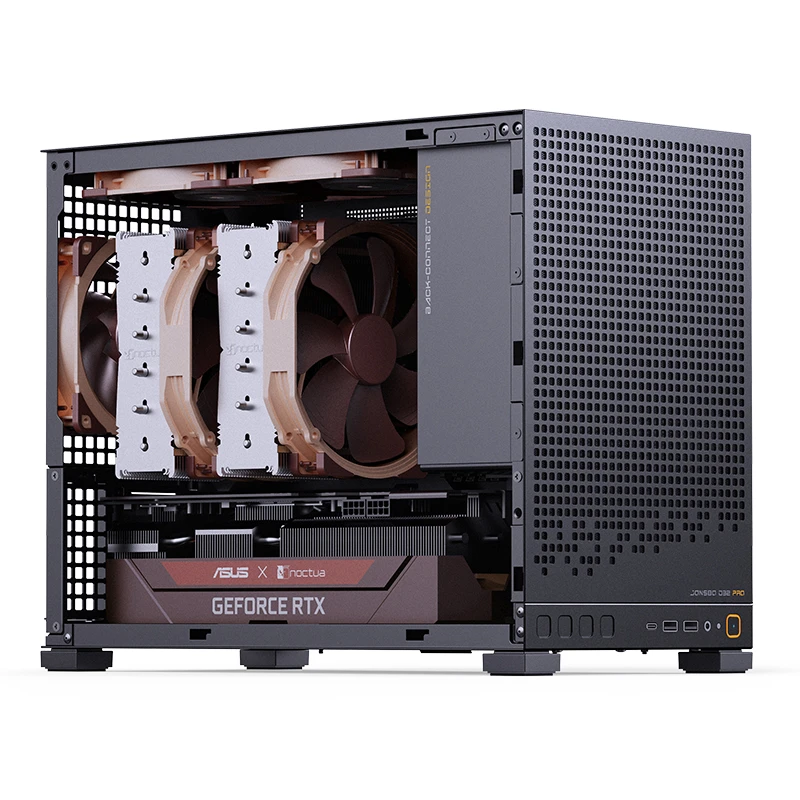

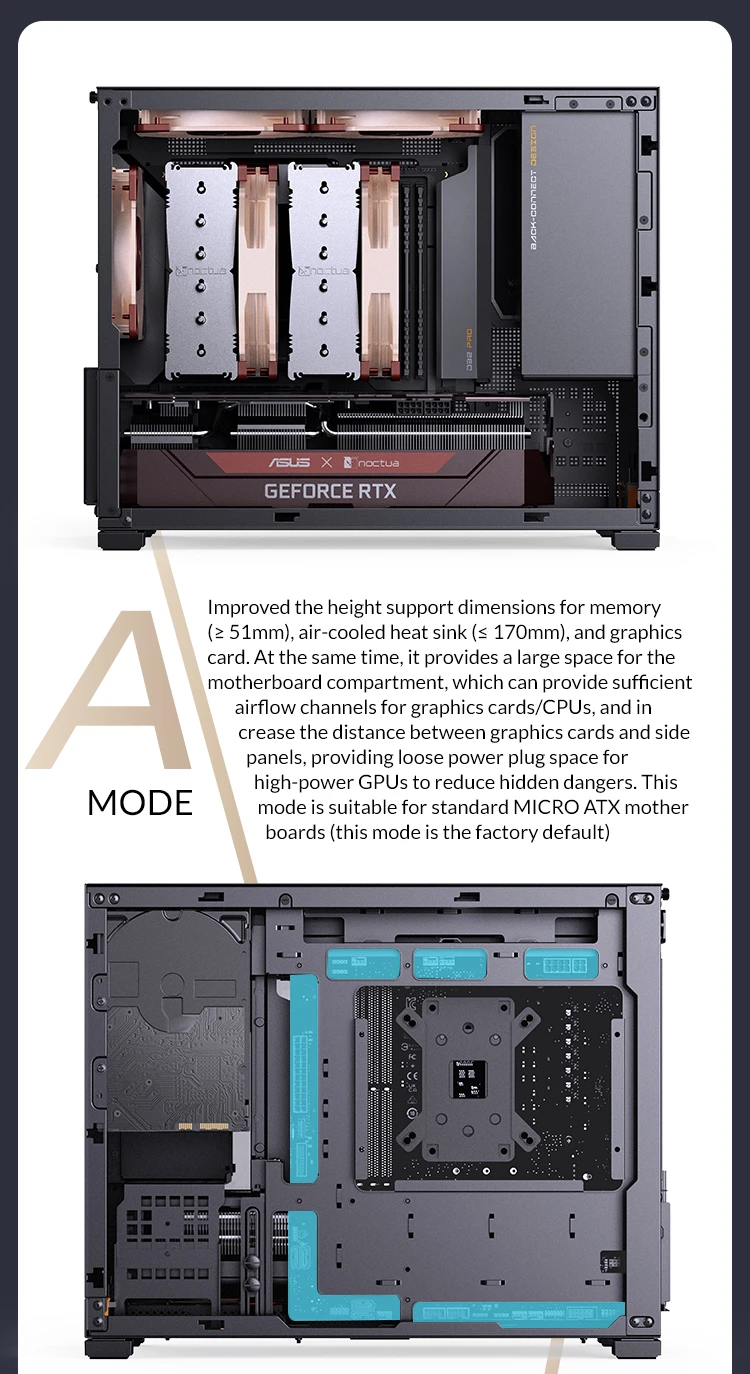

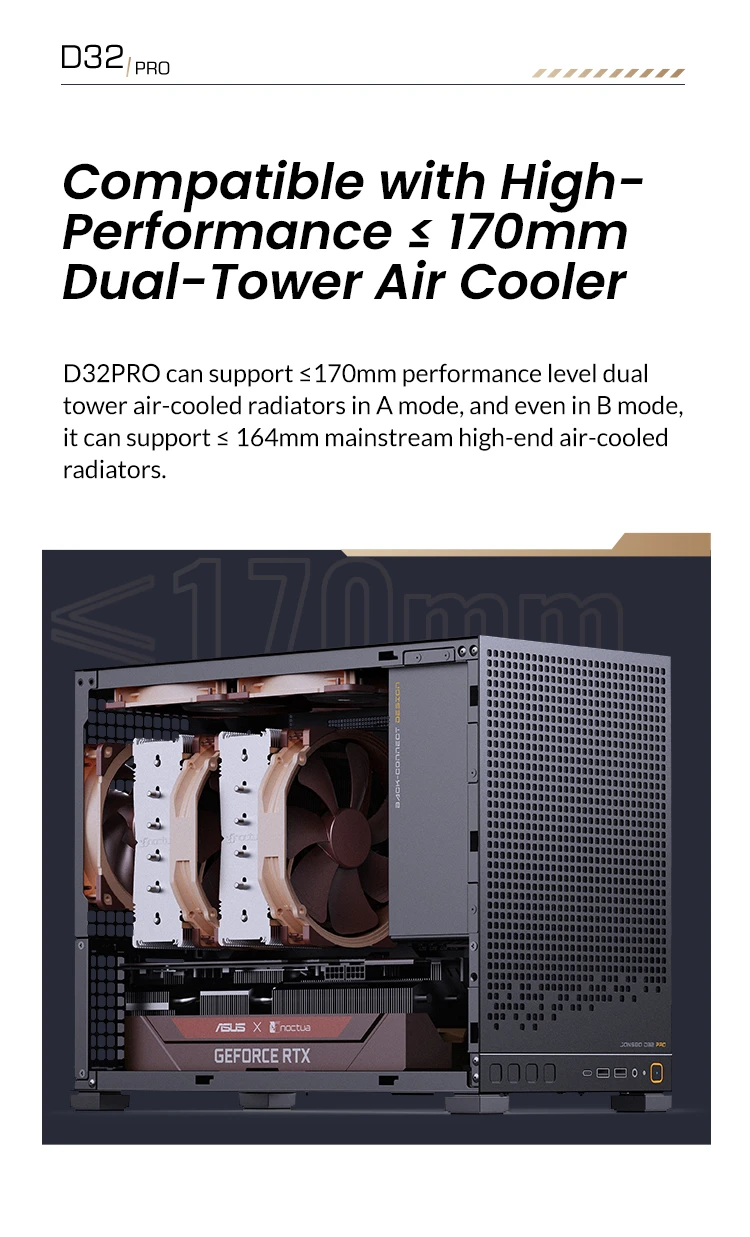

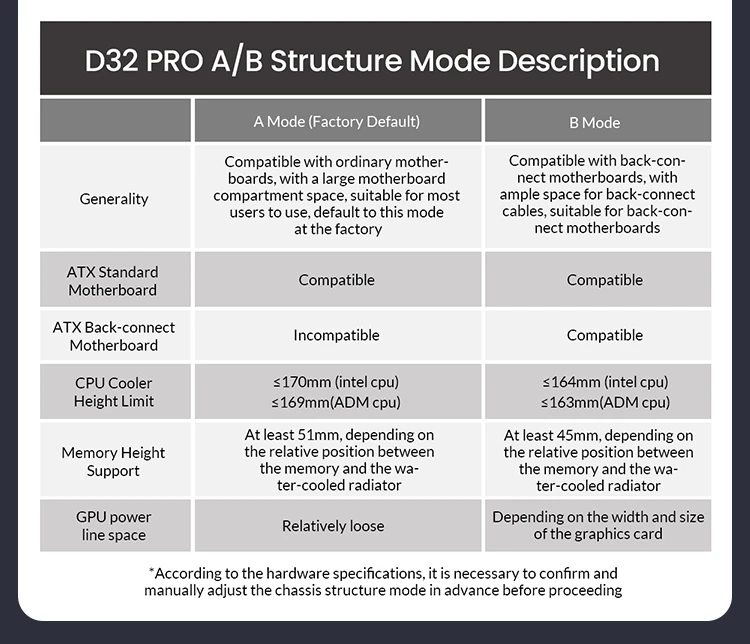

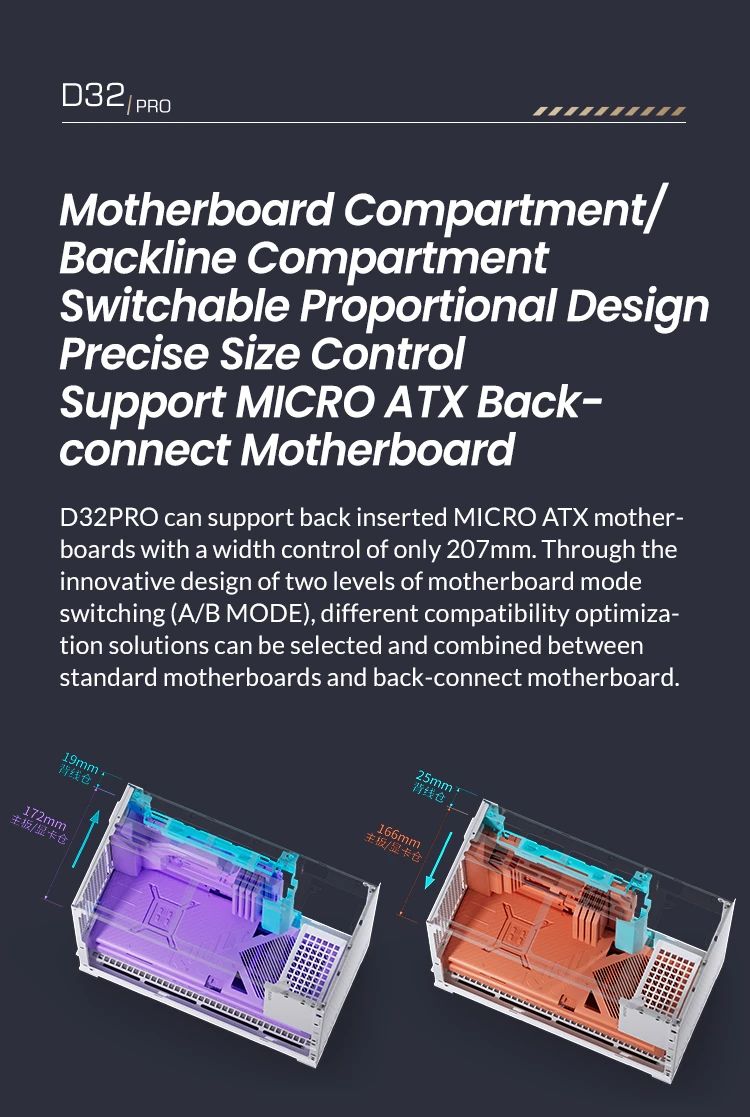

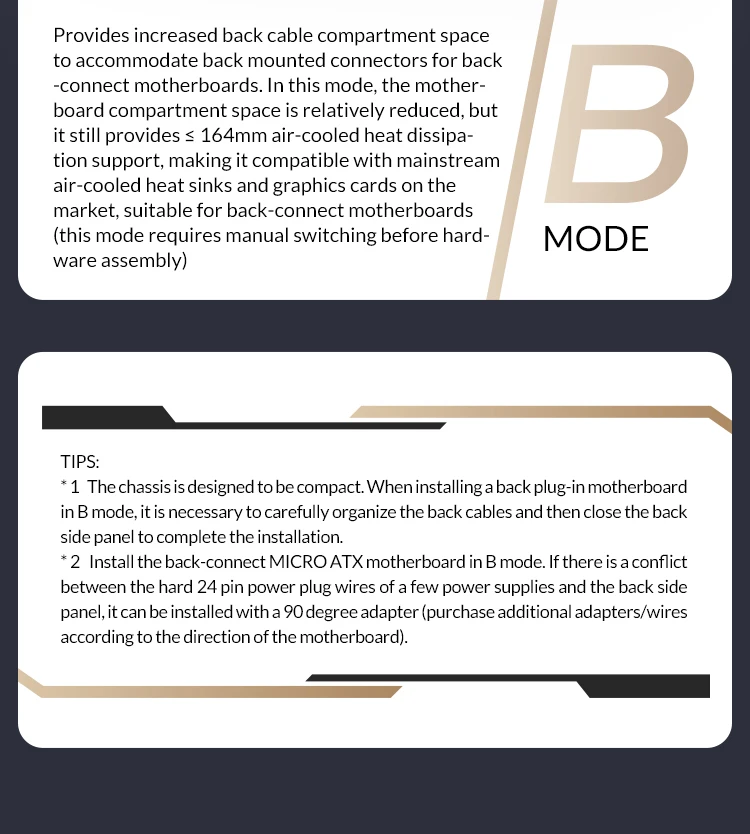

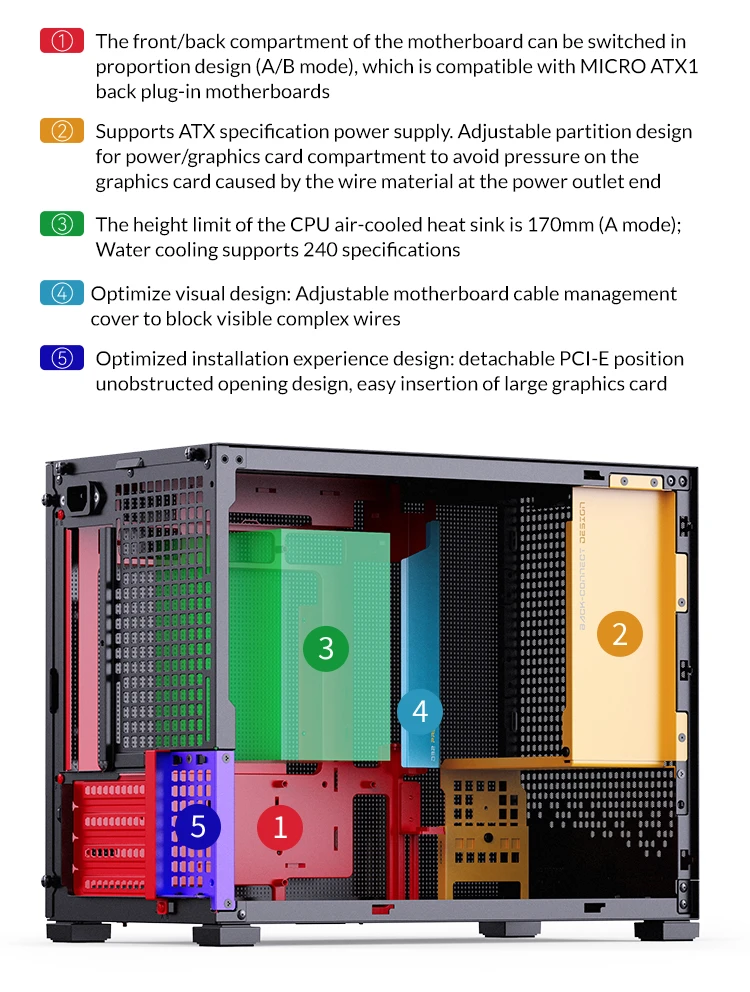

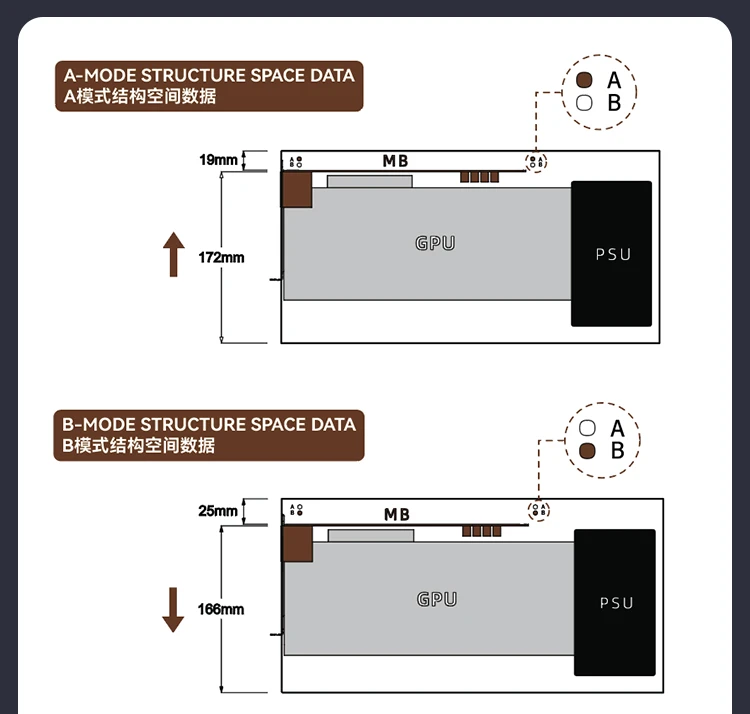

CPU Air Cooler Clearance：In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU) |
|

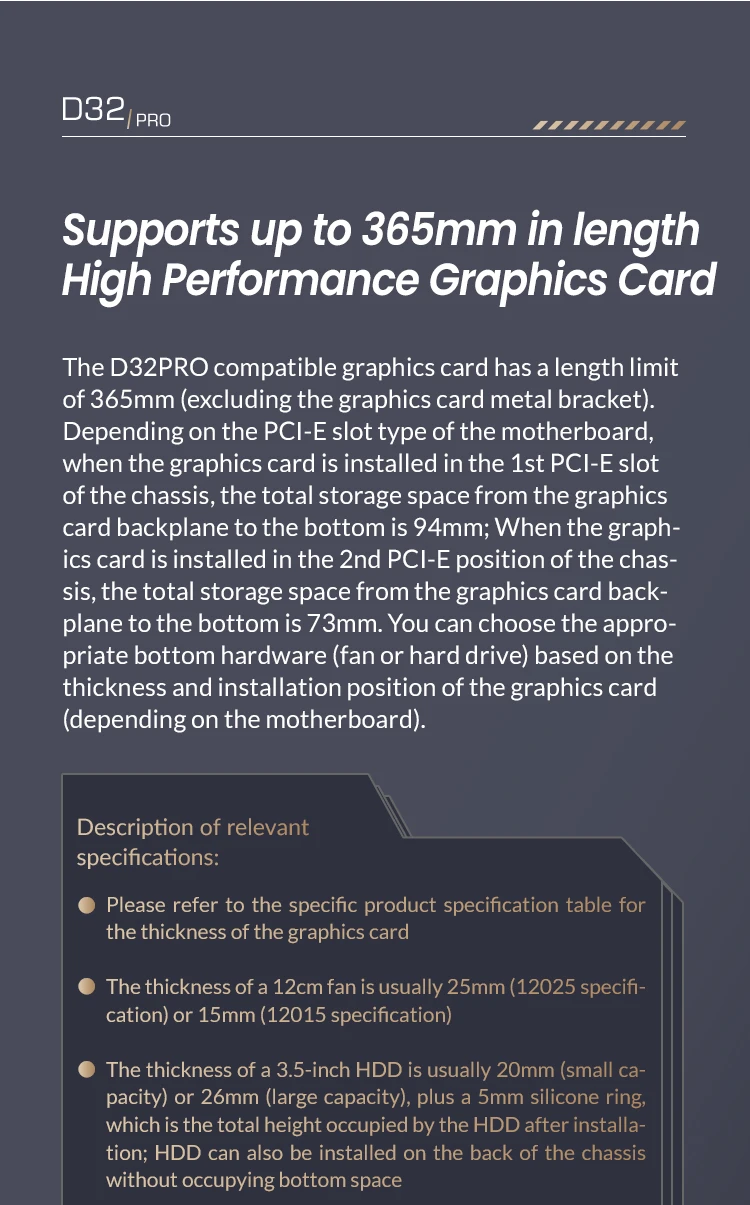

GPU Clearance：Up to 365mm |
|
Weight：N.W. 4.6kg / G.W. 5.8kg |
