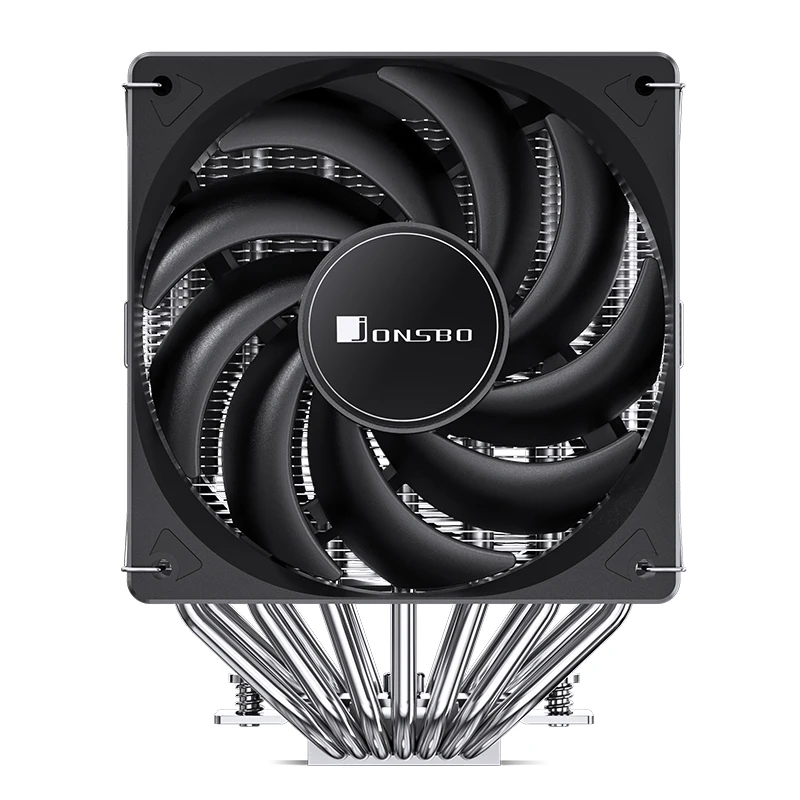

CR-3000 Standard

Model：

CR-3000 Standard

Dimensions： 120

mm(L)*132mm(W)*160mm(H)

Heatpipe size：Φ6mm*7PCS
D-TDP：260W

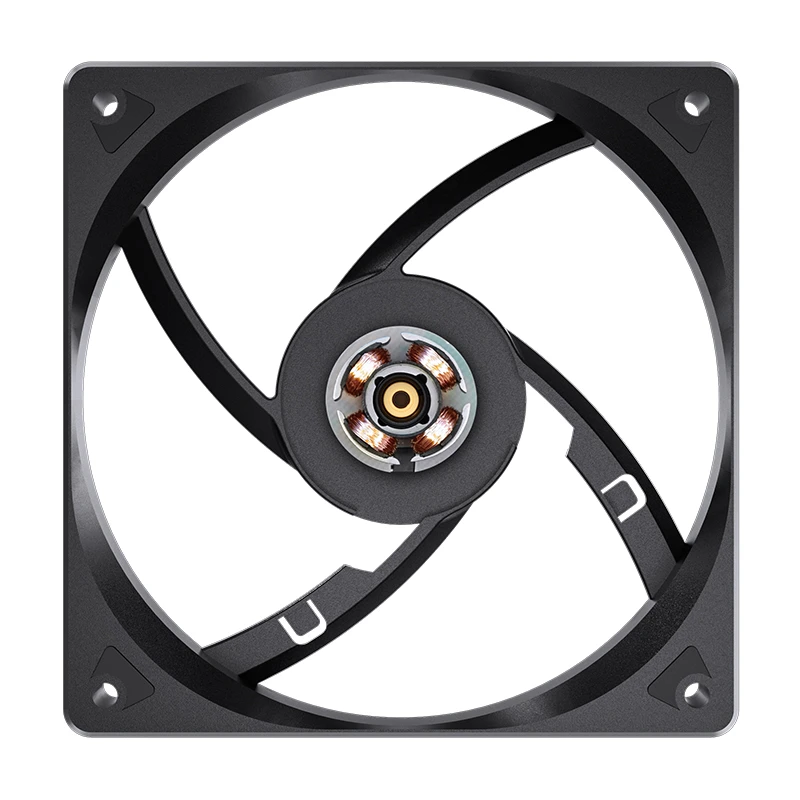

Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：600

-1500RPM(±10%)

Fan Air Flow：28.12-59.48CFM(MAX)

Fan Air Pressure：0.26-1.61mmH2O

Fan Noise Level： 22-32dB(A) (MAX)

Fan Bearing Type：Hydraulic bearing

Fan MTTF：≥40000h @25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.32A(MAX)
Rated Voltage：Fan 12V
Power Consumption： Fan 3.84W(MAX)

Scope of Application： INTEL: LGA 1700/1200/115X/2011            AMD: AM4/AM5

Net Weight：1061g
