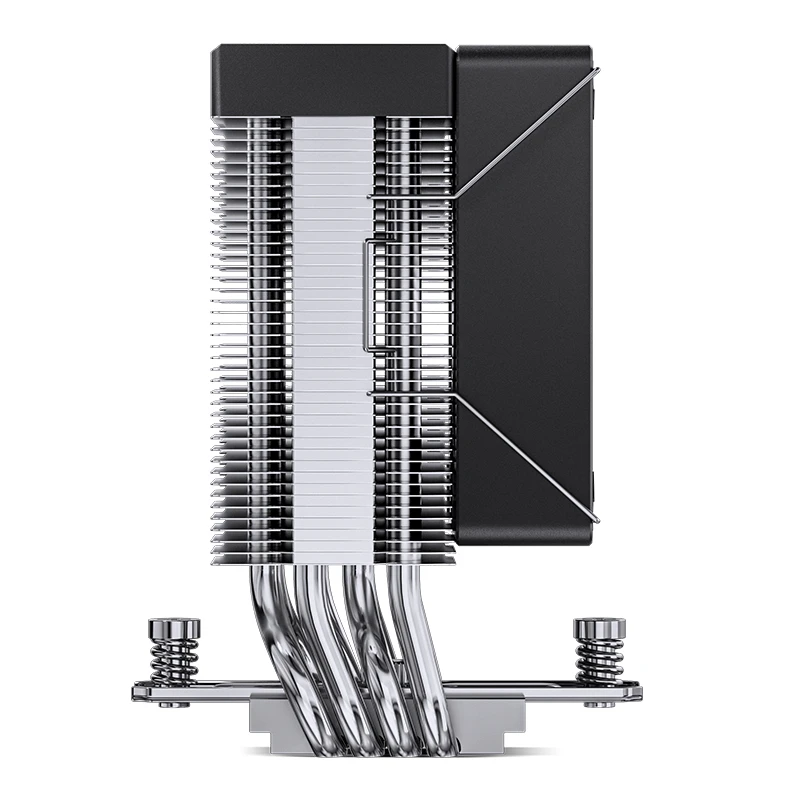

CR-1400 V2 Color Black

Model： CR-1400 V2  Color Black
Dimensions：92

mm(L)*70mm(W)*133mm(H)

Heatpipe size：Φ6mm*4 PCS
D-TDP：

180W

Fan Dimensions：

92mm* 92mm* 25mm

Fan Speed：800

-2200RPM(±10%)

Fan Air Flow：11.95-38.2CFM(MAX)
Fan Air Pressure：0.25-2.0mmH2O(MAX)
Fan Noise Level：22.3-33.8dB(A)(MAX)
Fan Bearing Type：Hydraulic bearing


Fan MTTF： ≥40000h @25℃

Connector：FAN 4PIN PWM

Rated Current： Fan 0.19A(MAX)
Rated Voltage：Fan 12V
Power Consumption：Fan 2.28W(MAX)
Scope of Application： INTEL: LGA 1700/1200/115X       AMD: AM4/AM5
