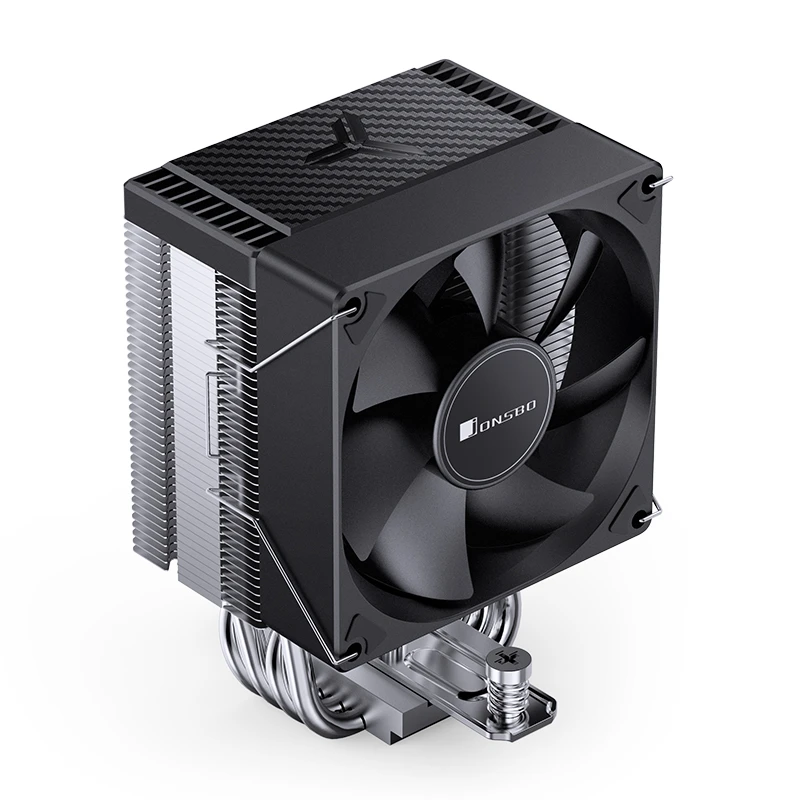

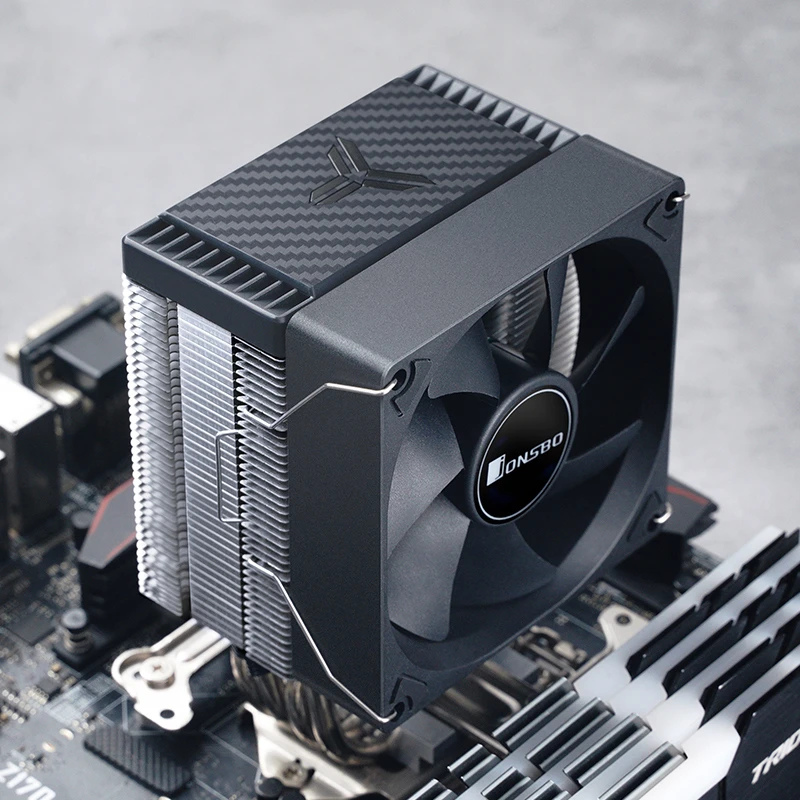

CR-1400 EVO Standard

Model：

CR-1400 EVO Standard

Dimensions：92

mm(L)*70mm(W)*130mm(H)

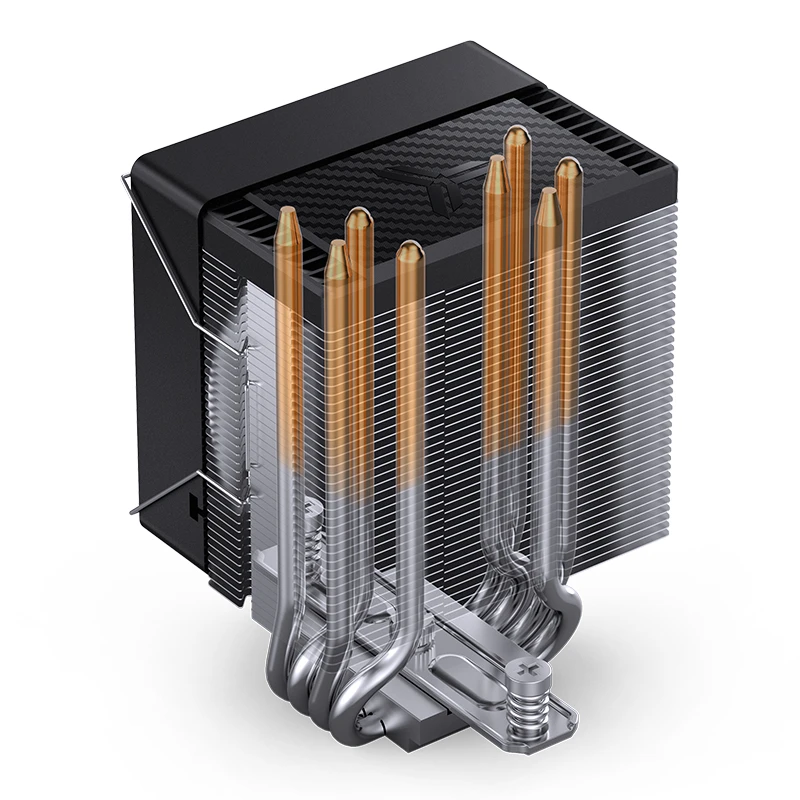

Heatpipe size：Φ6mm*4PCS
D-TDP：180W
Fan Dimensions：

92mm* 92mm* 25mm

Fan Speed：800

-2200RPM(±10%)

Fan Air Flow：11.95-38.2CFM(MAX)

Fan Air Pressure：0.25-2.0mmH2O

Fan Noise Level： 22.3-33.8dB(A) (MAX)

Fan Bearing Type： Hydraulic bearing

Fan MTTF：≥40000h @25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.19A(MAX)
Rated Voltage：Fan 12V
Power Consumption： Fan 2.28W(MAX)

Scope of Application： INTEL: LGA 1700/1200/115X            AMD: AM4/AM5

Net Weight：341g
