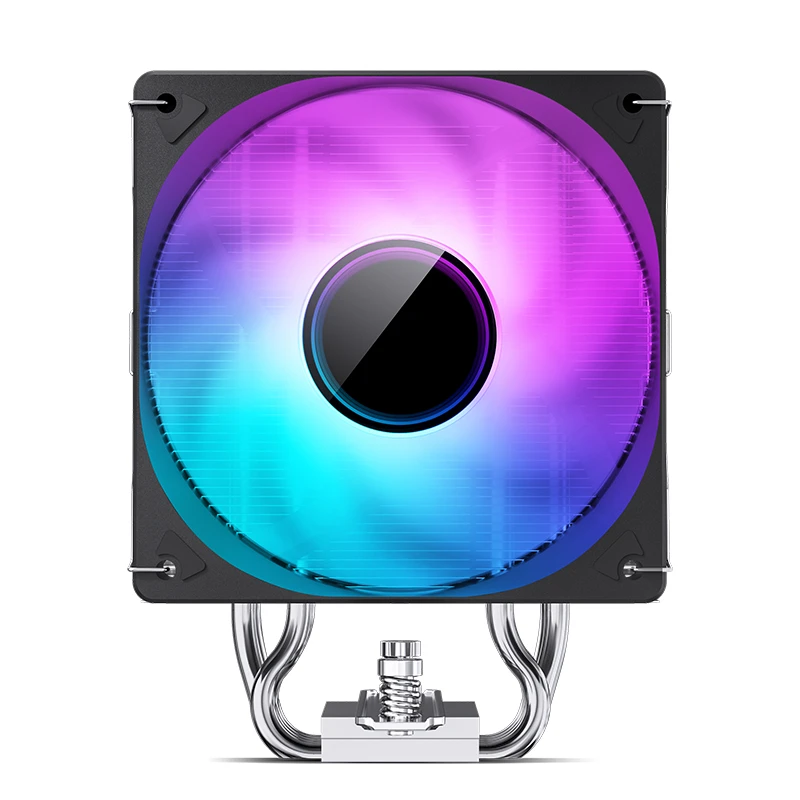

CR-1000 V2 Color Black

Model：

CR-1000 V2 Color Black

Dimensions： 120

mm(L)*71mm(W)*157mm(H)

Heatpipe size：Φ6mm*4PCS
D-TDP：220W

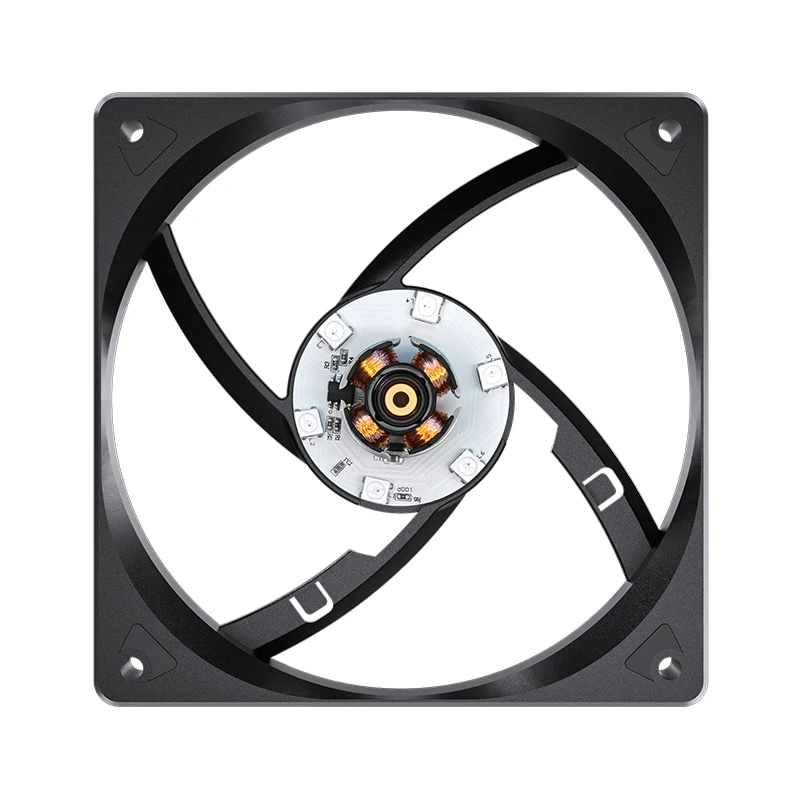

Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：600

-1500RPM(±10%)

Fan Air Flow：28.12-59.48CFM(MAX)

Fan Air Pressure：0.26-1.81mmH2O

Fan Noise Level： 22-32dB(A) (MAX)

Fan Bearing Type： Hydraulic bearing

Fan MTTF：≥40000h @25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.16A(MAX)
Rated Voltage：Fan 12V
Power Consumption： Fan 1.92W(MAX)

Scope of Application： INTEL: LGA 1700/1200/115X            AMD: AM4/AM5
