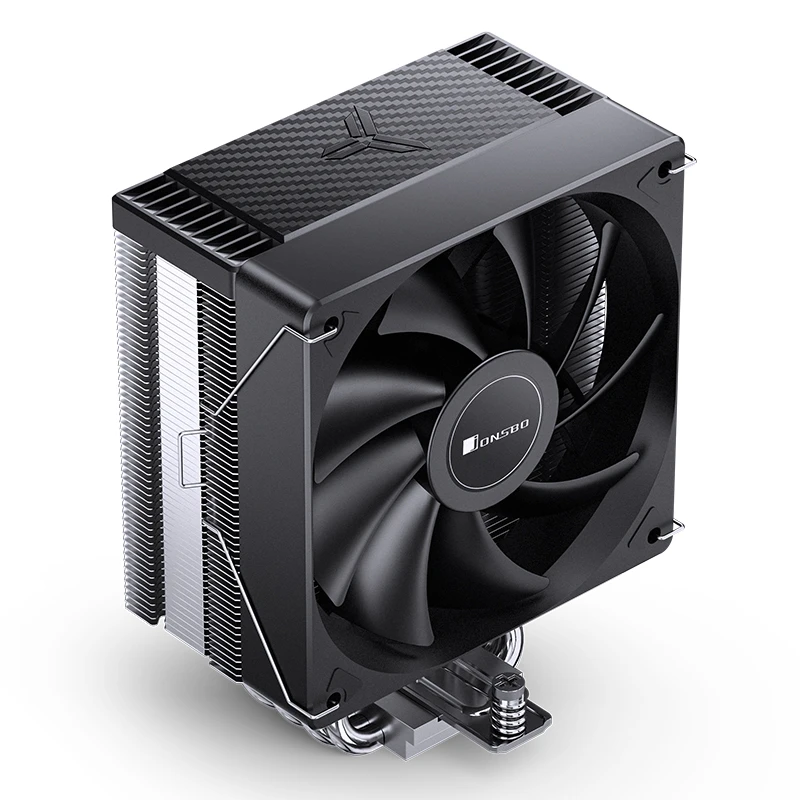

CR-1000MAX V2 Standard

Model：

CR-1000MAX V2 Standard

Dimensions： 120

mm(L)*71mm(W)*157mm(H)

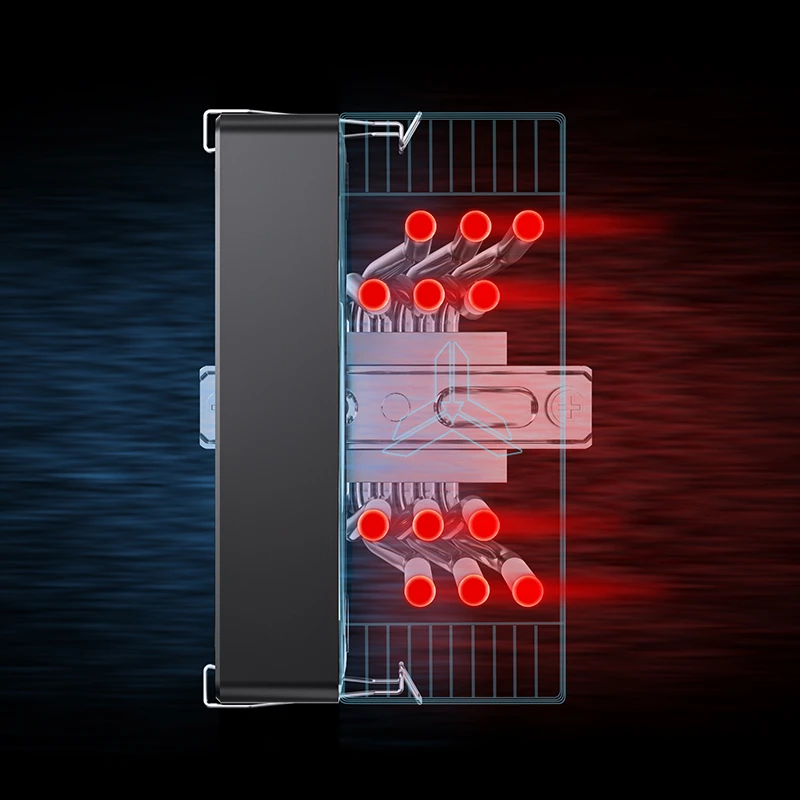

Heatpipe size：Φ6mm*6PCS
D-TDP：230W
Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：800

-1800RPM(±10%)

Fan Air Flow：28.12-70.8CFM(MAX)

Fan Air Pressure：0.46-1.93mmH2O

Fan Noise Level： 17.4-33.2dB(A) (MAX)

Fan Bearing Type： Hydraulic bearing

Fan MTTF：≥40000h Room Temp:25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.26A
Rated Voltage：Fan 12V
Power Consumption： Fan 3.12W

Scope of Application： INTEL: LGA 1700/1200/115X/1851            AMD: AM4/AM5

  • 2025121114956.webp
  • 2025121175244.webp
  • 2025121169603.webp

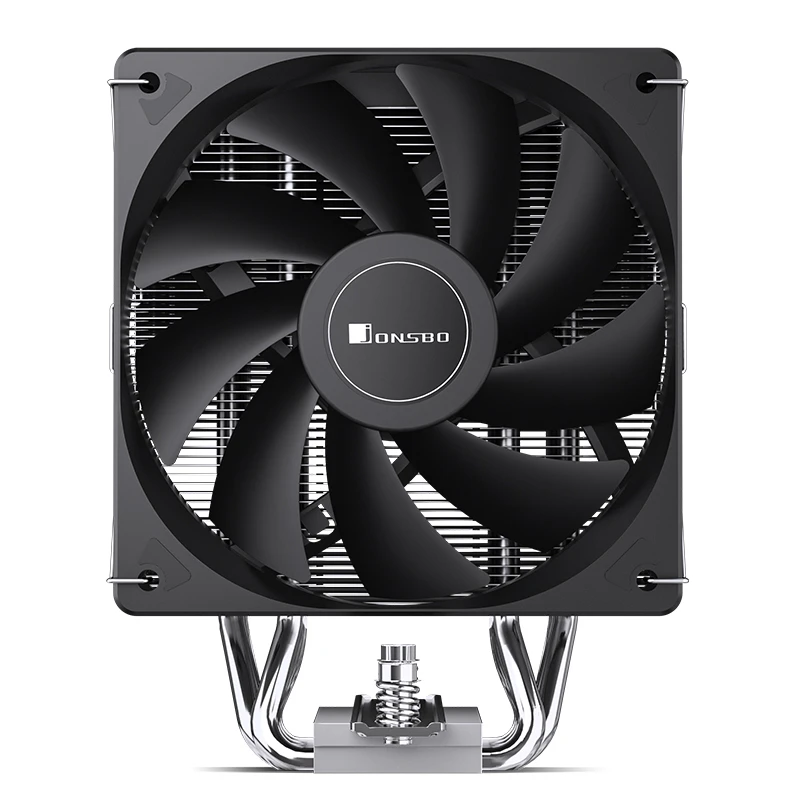

  • 2025121192472.webp
  • 2025121186481.webp
  • 2025121170673.webp
  • 2025121181275.webp

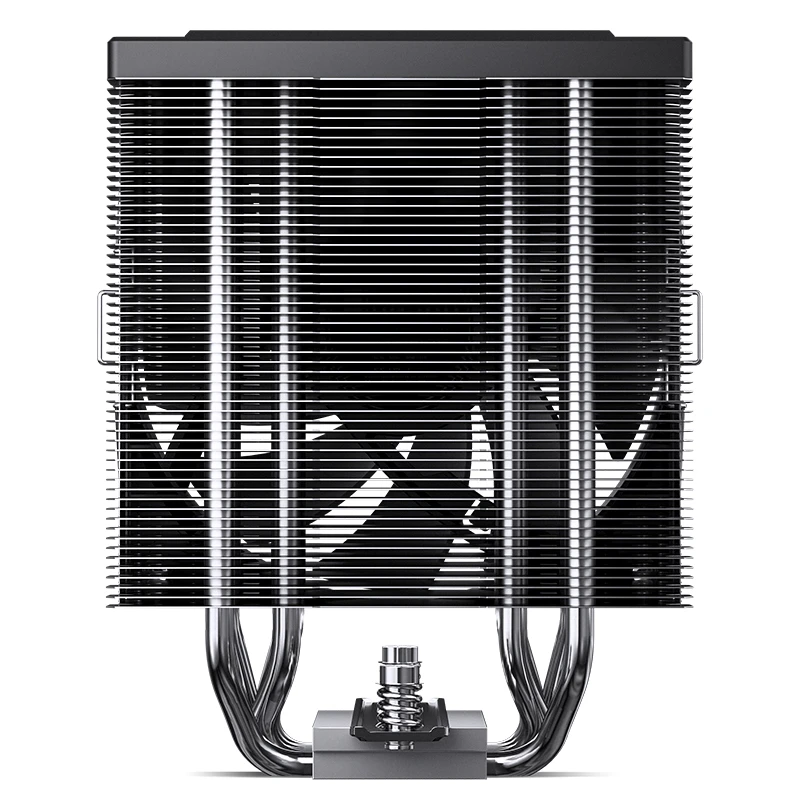

  • 2025121118231.webp
  • 2025121160348.webp

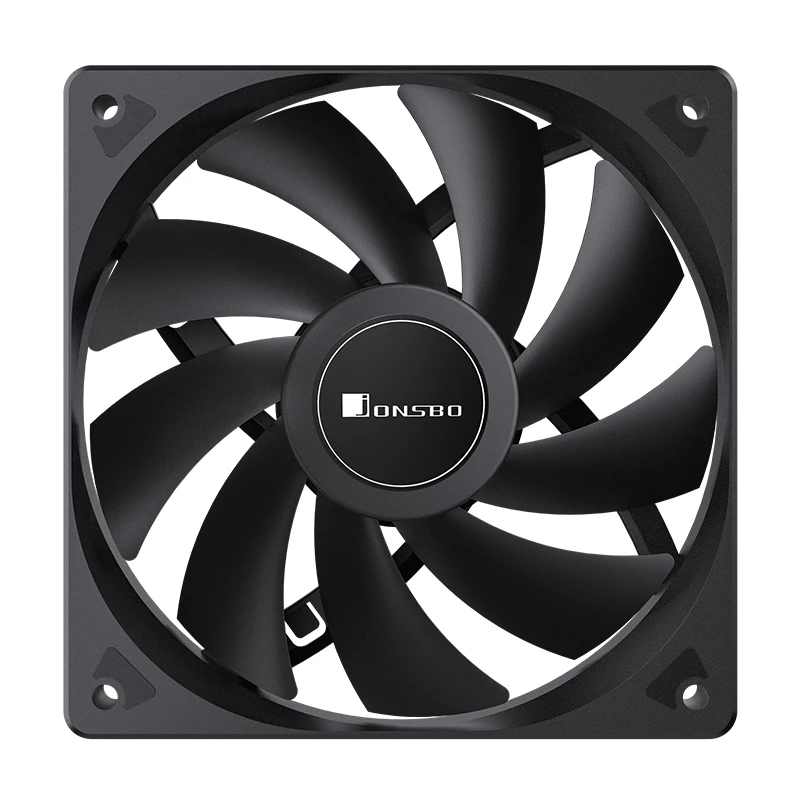

  • 2025121173441.webp

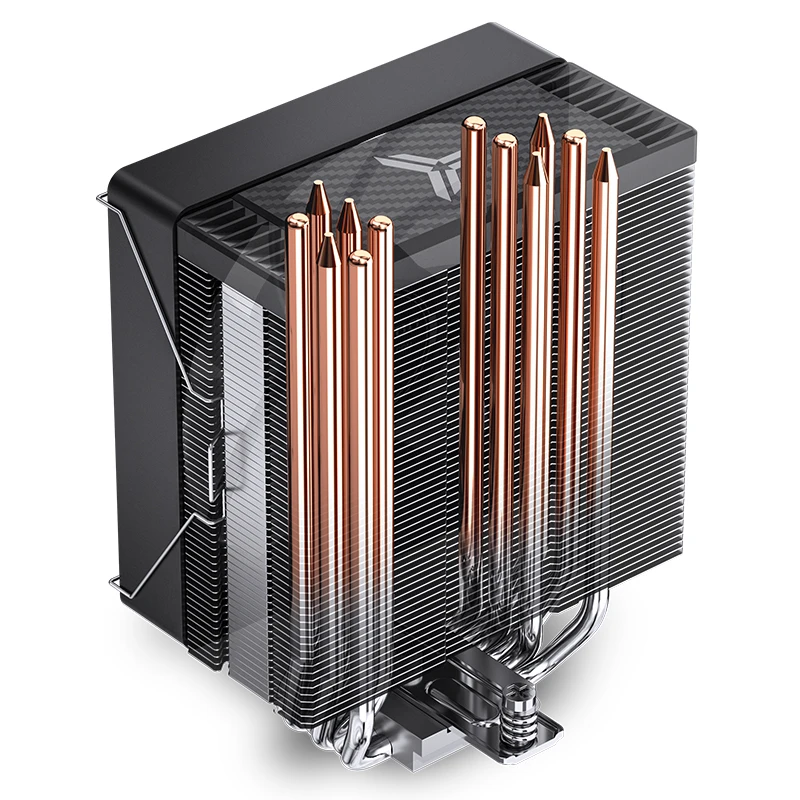

  • 2025121115175.webp

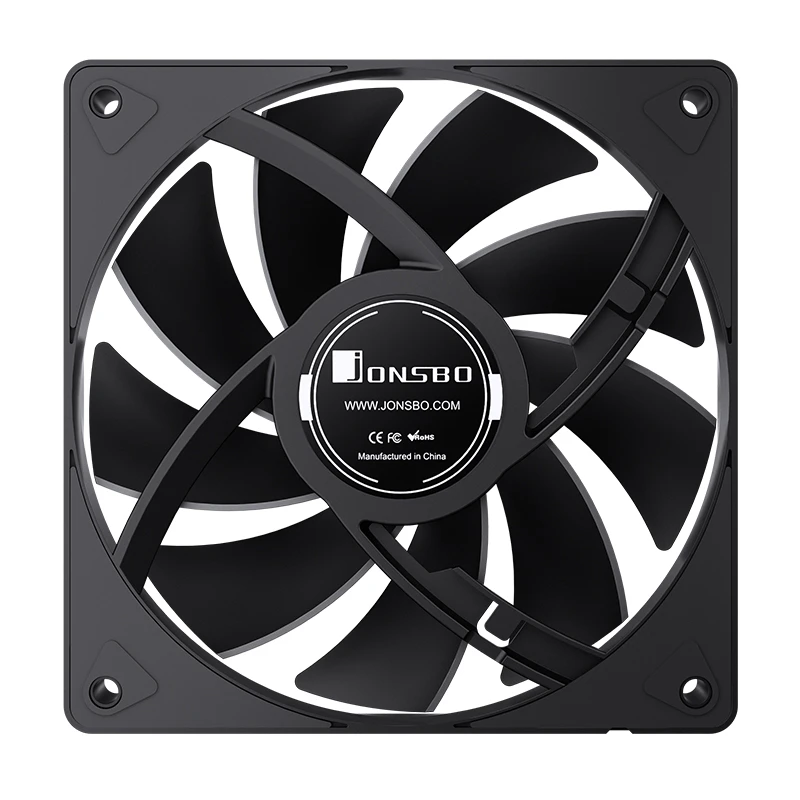

  • 2025121196956.webp
