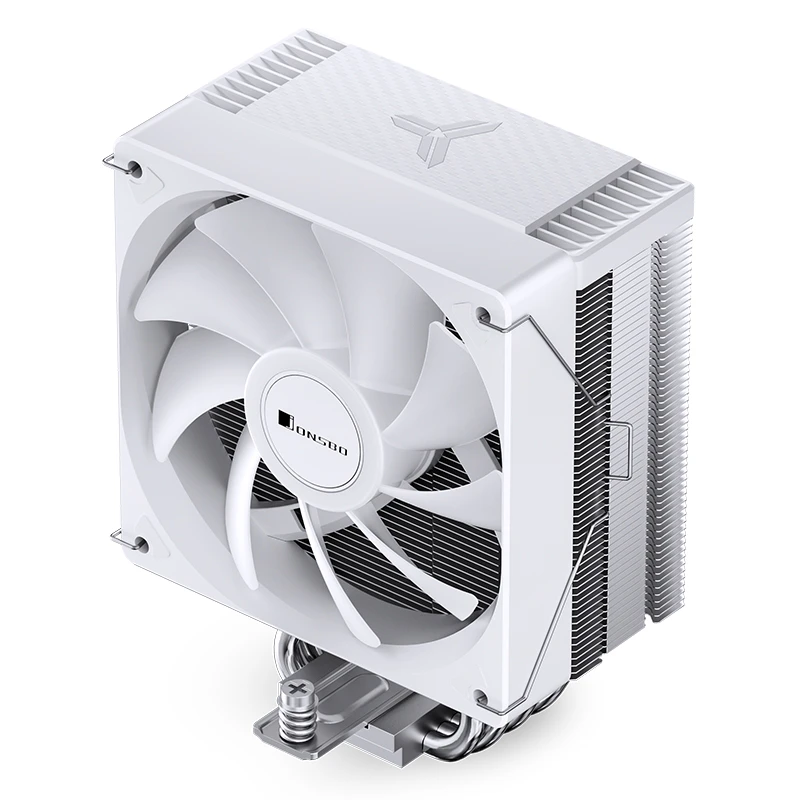

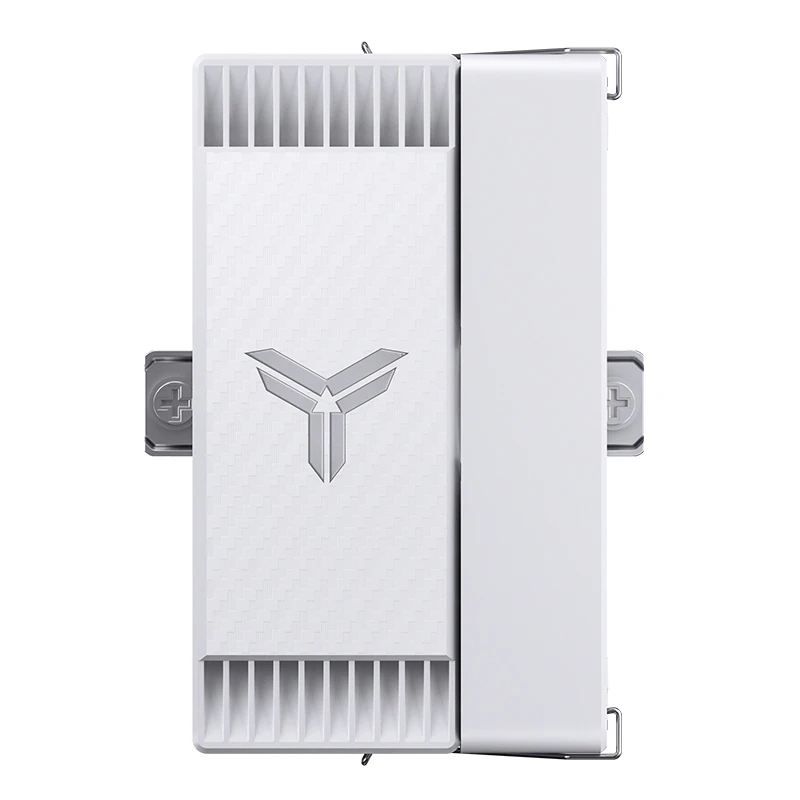

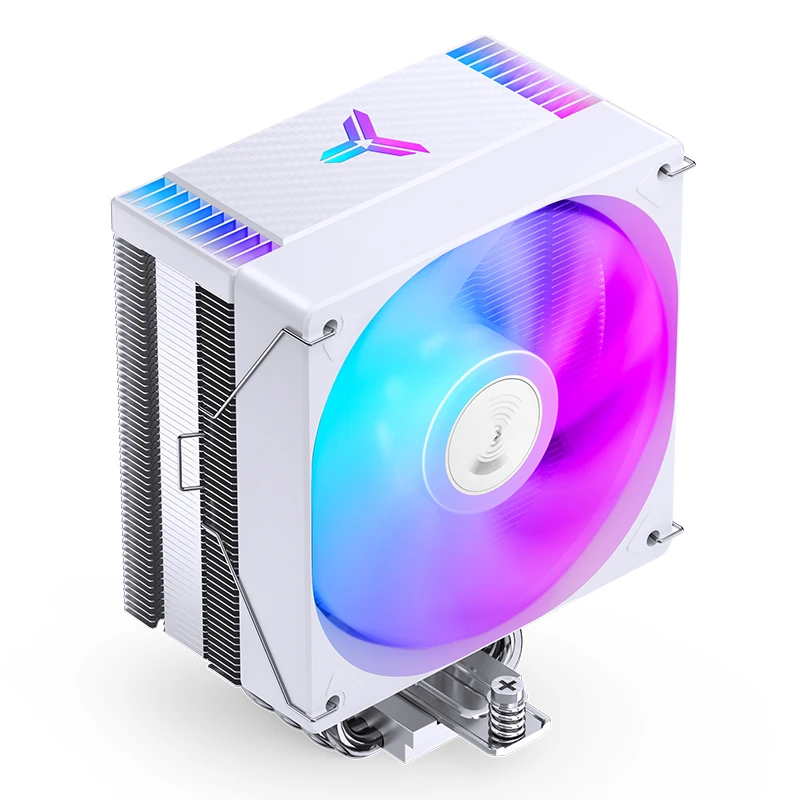

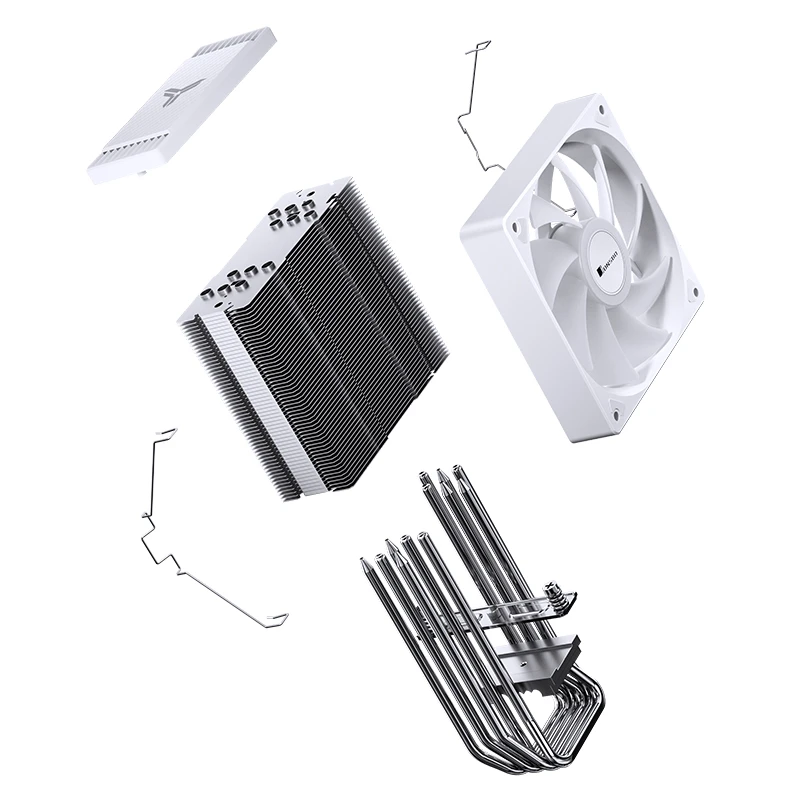

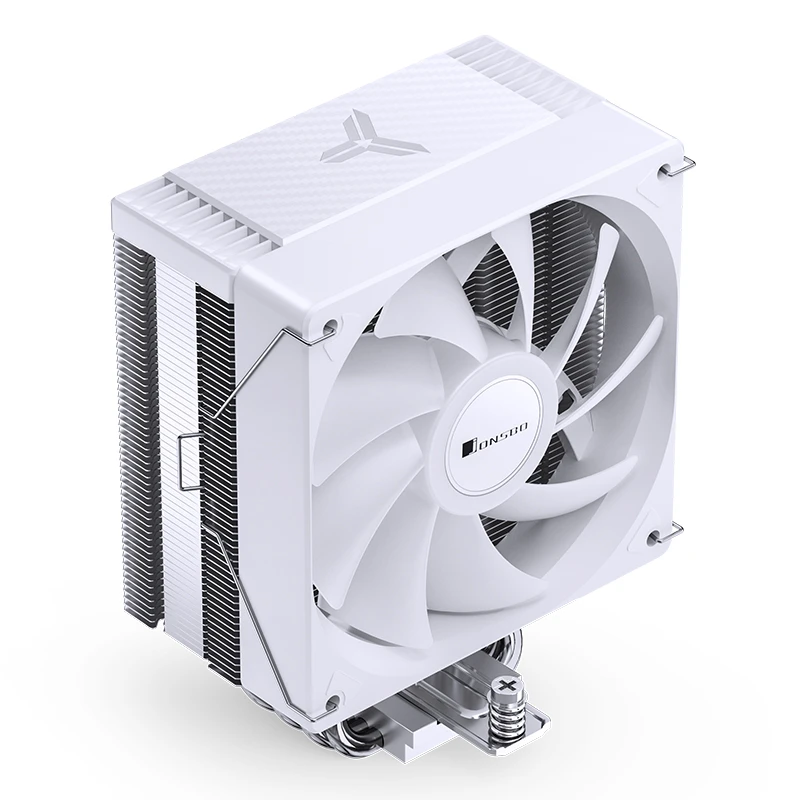

CR-1000MAX V2 Color White

Model：

CR-1000MAX V2 Color White

Dimensions： 120

mm(L)*71mm(W)*157mm(H)

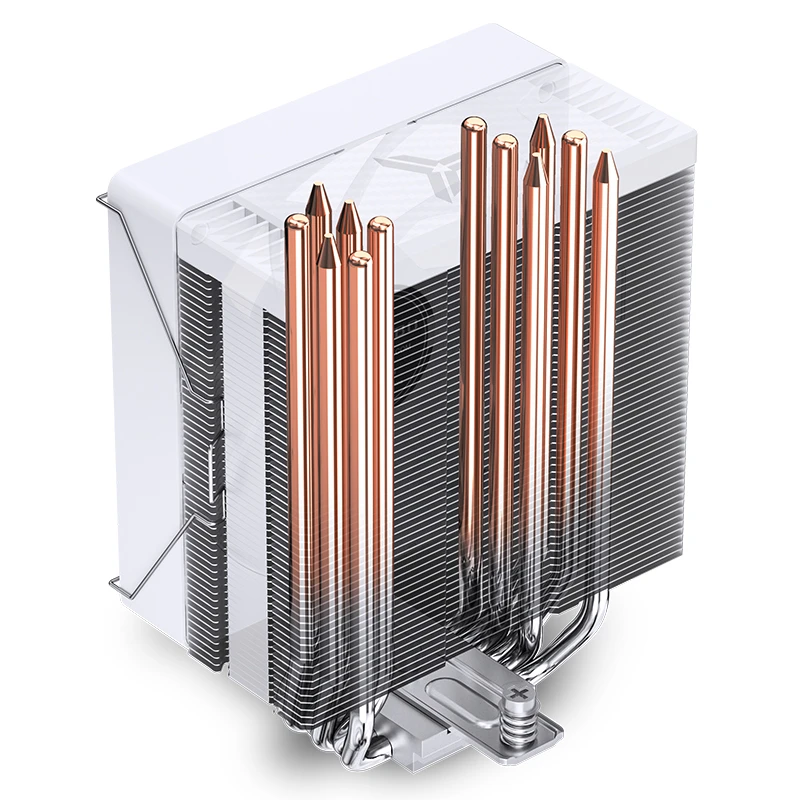

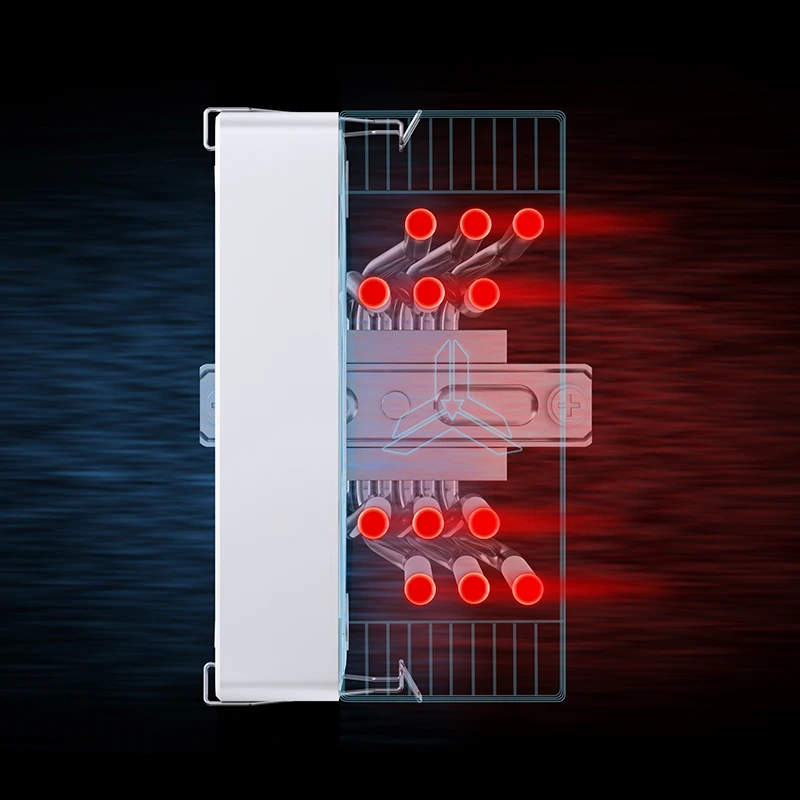

Heatpipe size：Φ6mm*6PCS
D-TDP：230W
Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：800-18

00RPM(±10%)

Fan Air Flow：28.12-70.8CFM(MAX)

Fan Air Pressure：0.46-1.93mmH2O(MAX)

Fan Noise Level： 17.4-33.2dB(A) (MAX)

Fan Bearing Type： Hydraulic bearing

Fan MTTF：≥40000h Room Temp:25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.38A
Rated Voltage：Fan 12V
Power Consumption： Fan 4.56W

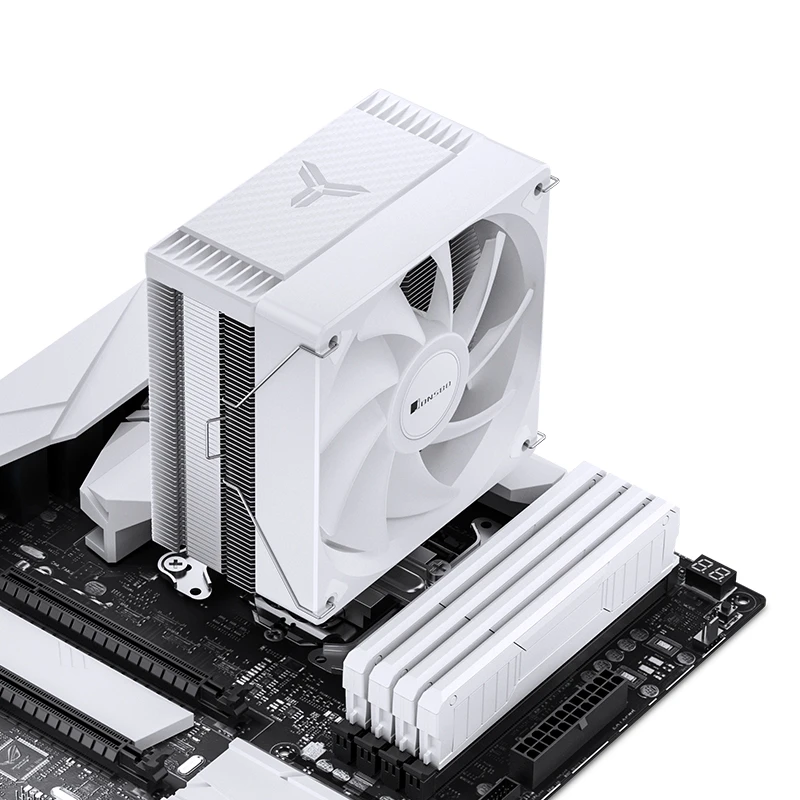

Scope of Application： INTEL: LGA 1700/1200/115X/1851            AMD: AM4/AM5

  • 2025121130583.webp

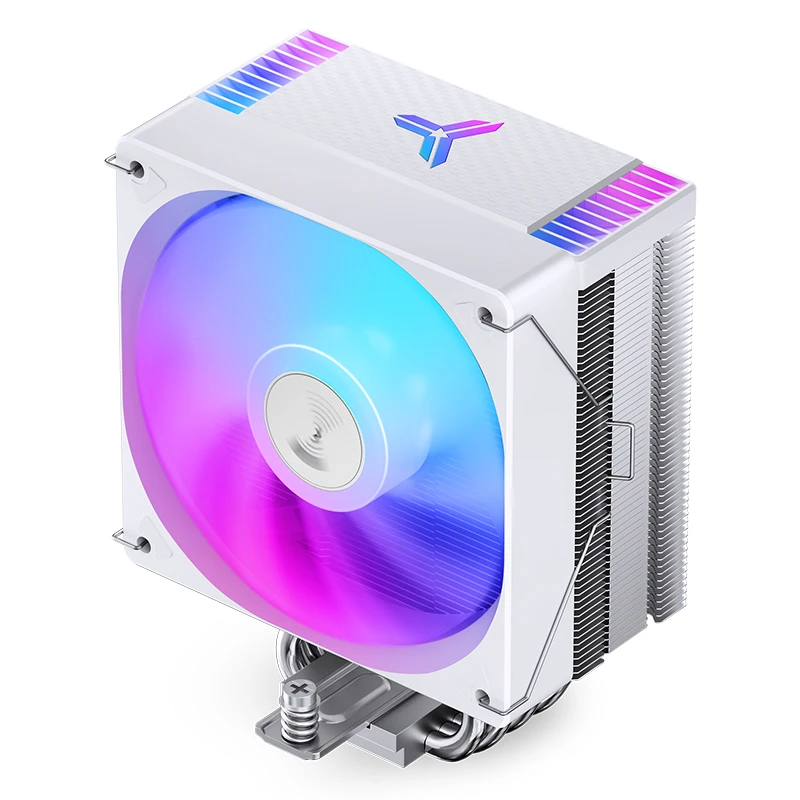

  • 2025121134691.webp
  • 2025121121482.webp
  • 2025121199619.webp
  • 2025121117714.webp
  • 2025121132079.webp
  • 2025121153162.webp

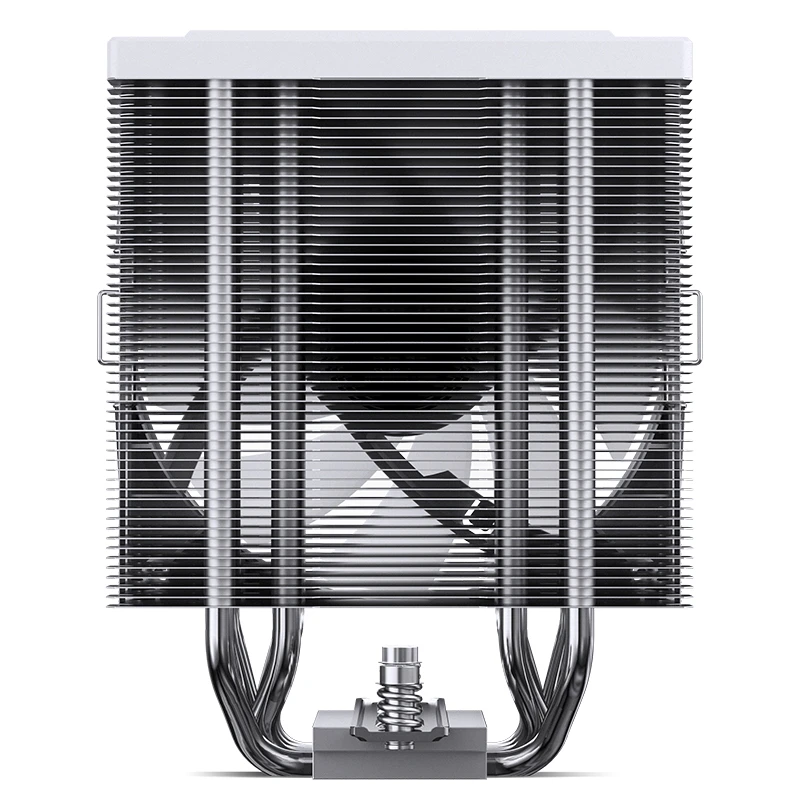

  • 2025121177922.webp
  • 2025121167113.webp

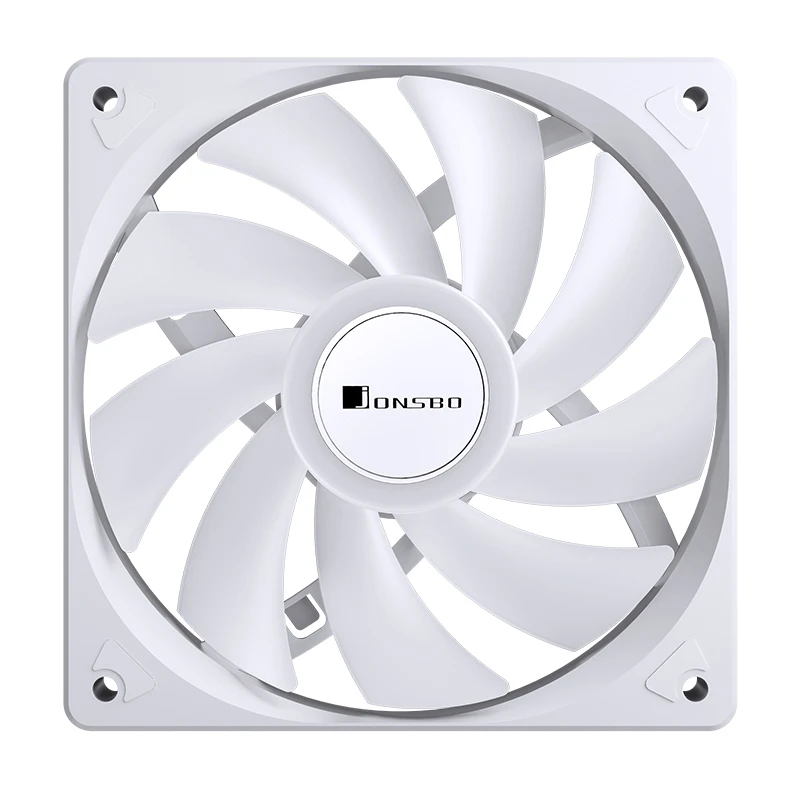

  • 2025121121531.webp
  • 2025121118921.webp
  • 2025121192626.webp
  • 2025121176270.webp

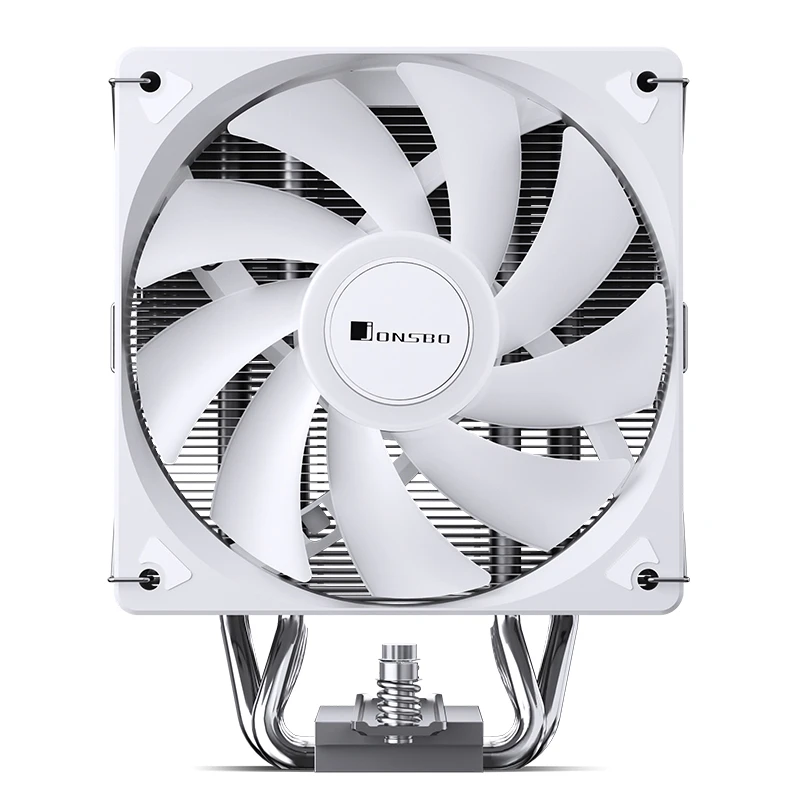

  • 2025121188836.webp
  • 2025121184132.webp

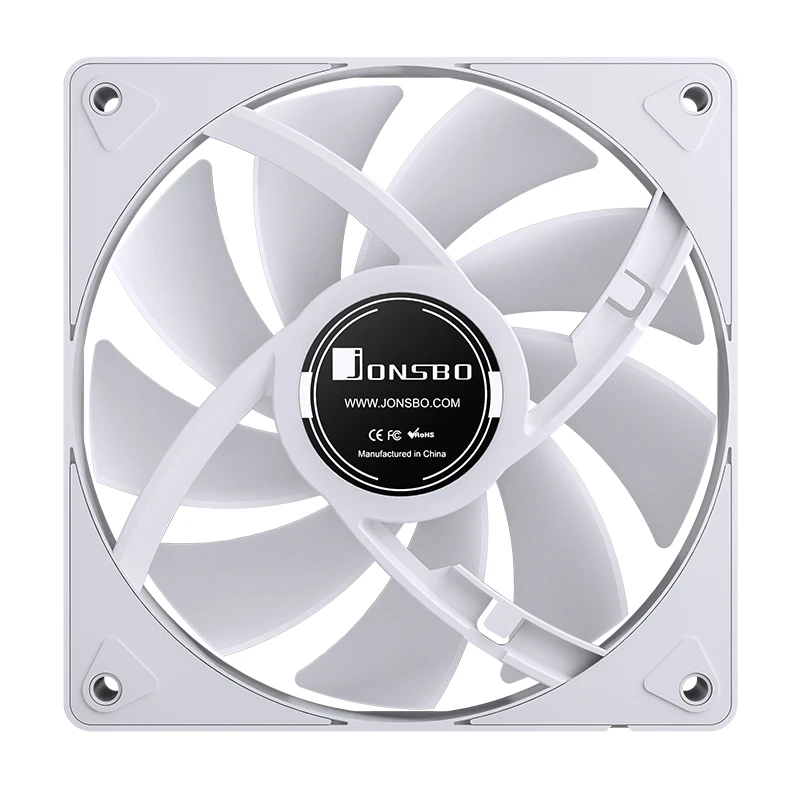

  • 2025121139062.webp
