Position：Home>Product>Air Cooling Radiator - Tower Radiator

CR-1000MAX V2 Color

Model：

CR-1000MAX V2 Color Black

Dimensions： 120

mm(L)*71mm(W)*157mm(H)

Heatpipe size：Φ6mm*6PCS
D-TDP：230W
Fan Dimensions：

120mm* 120mm* 25mm

Fan Speed：800-18

00RPM(±10%)

Fan Air Flow：28.12-70.8CFM(MAX)

Fan Air Pressure：0.46-1.93mmH2O(MAX)

Fan Noise Level： 17.4-33.2dB(A) (MAX)

Fan Bearing Type： Hydraulic bearing

Fan MTTF：≥40000h Room Temp:25℃

Connector：FAN 4Pin PWM

Rated Current：Fan 0.38A
Rated Voltage：Fan 12V
Power Consumption： Fan 4.56W

Scope of Application： INTEL: LGA 1700/1200/115X/1851            AMD: AM4/AM5

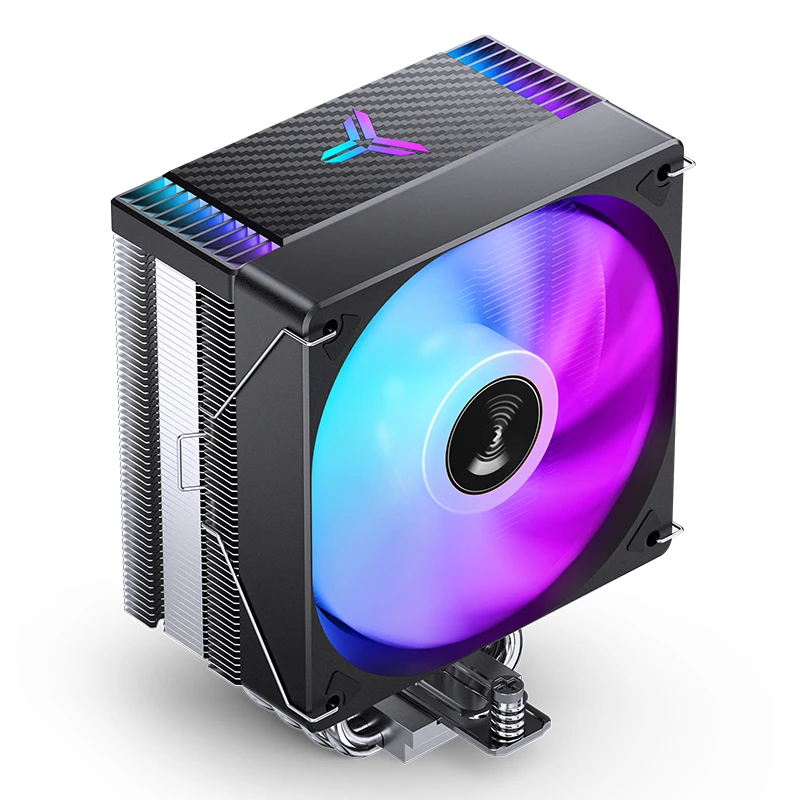

  • 2025121160329.webp
  • 2025121121977.webp

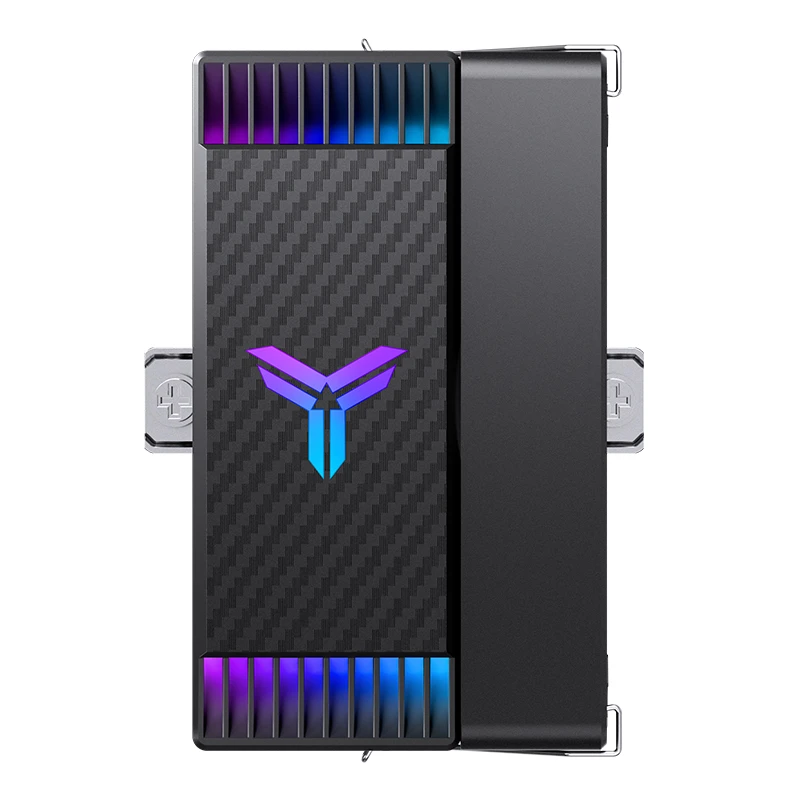

  • 2025121137969.webp

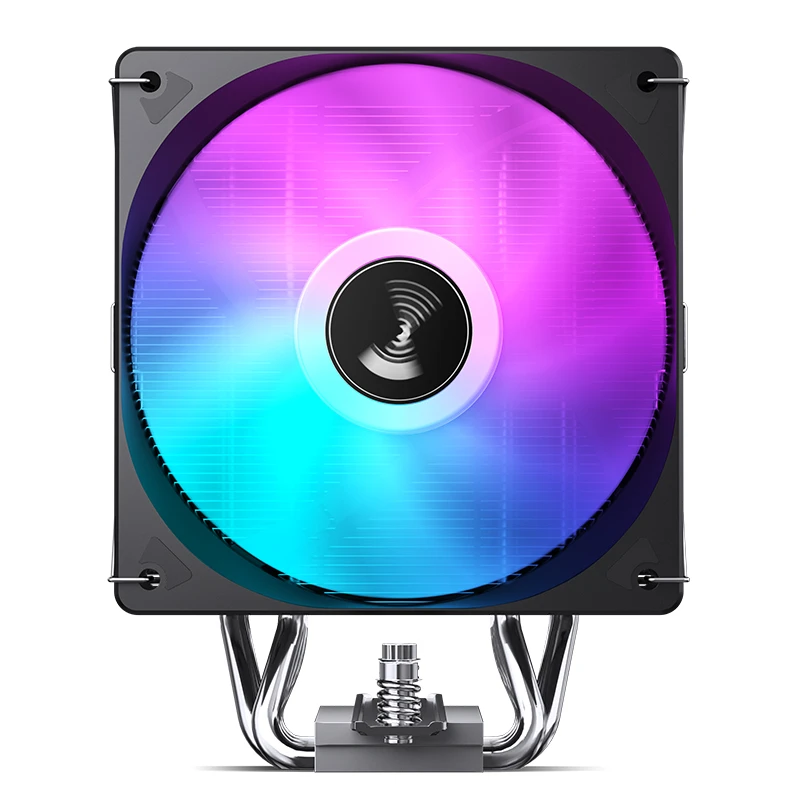

  • 2025121126105.webp

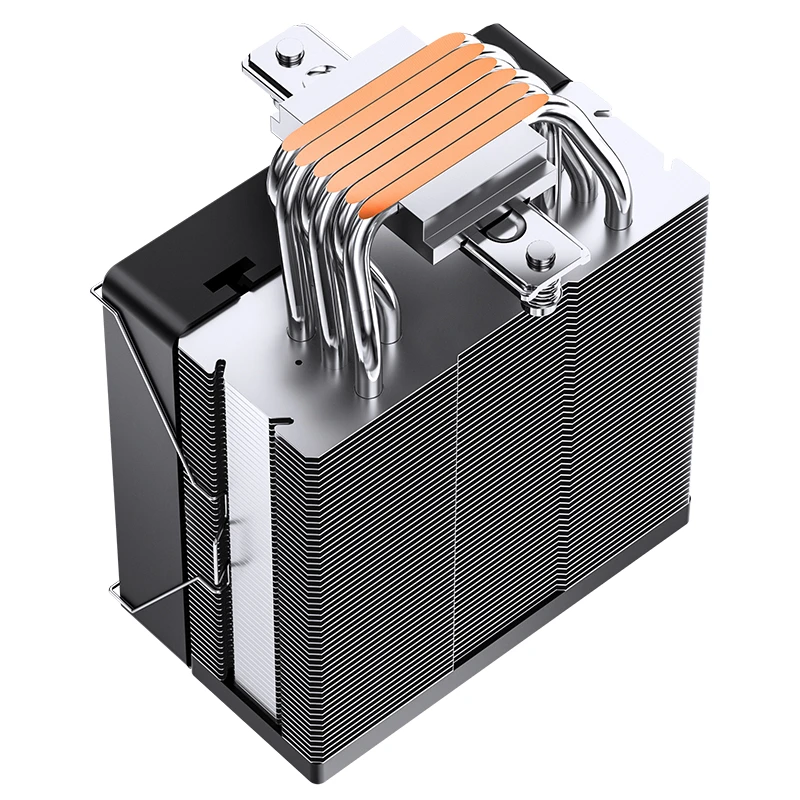

  • 2025121180686.webp

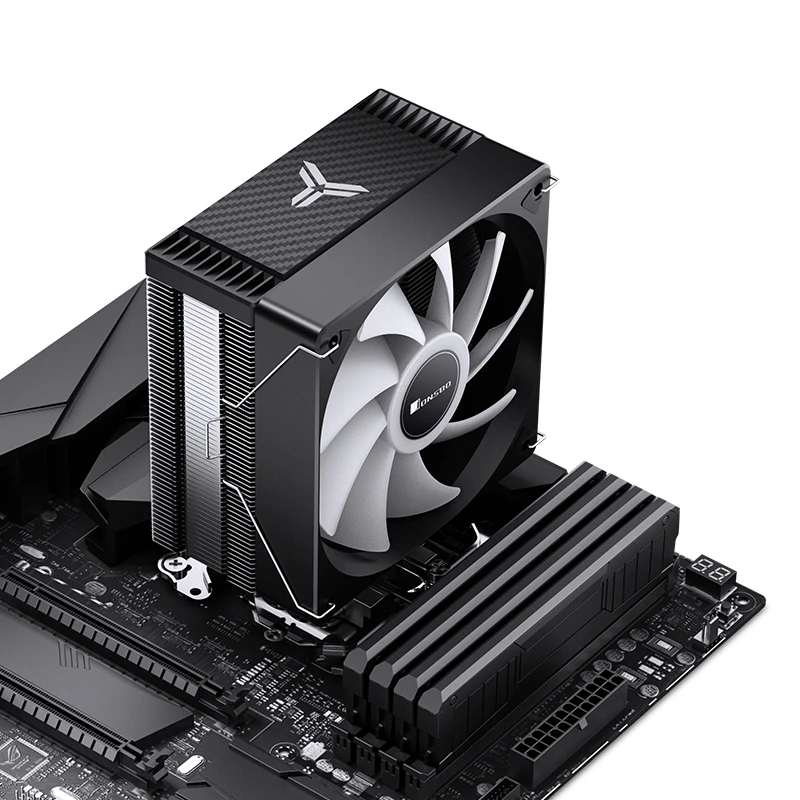

  • 2025121190761.webp

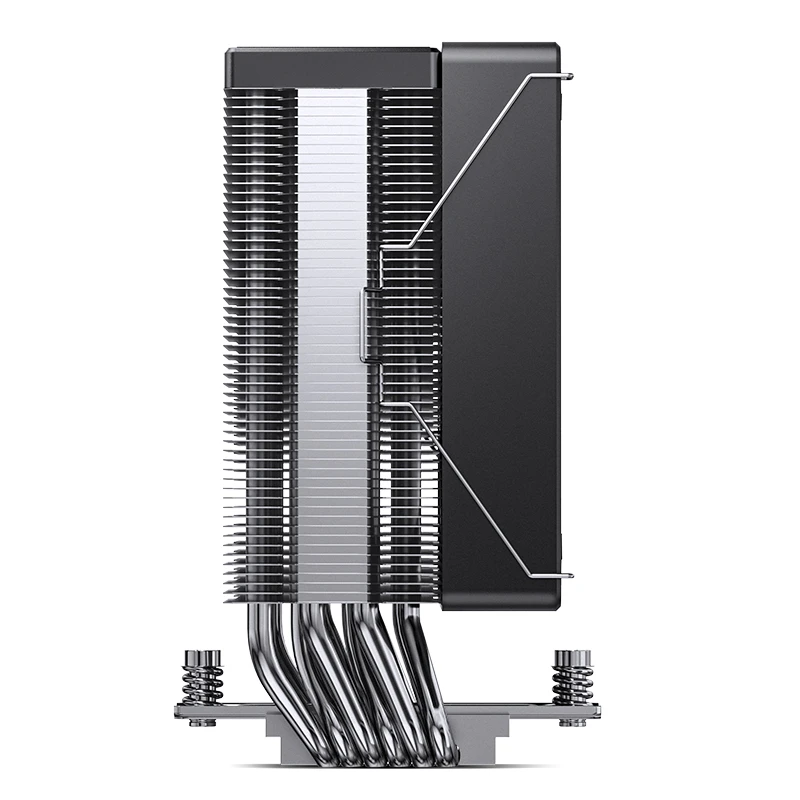

  • 2025121151354.webp

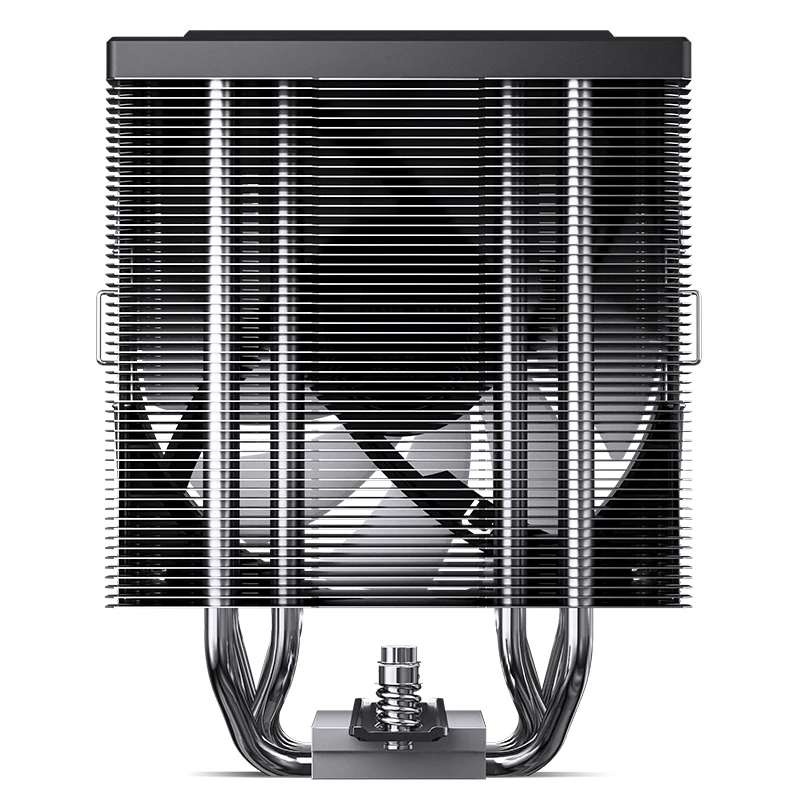

  • 2025121123774.webp
  • 2025121136340.webp

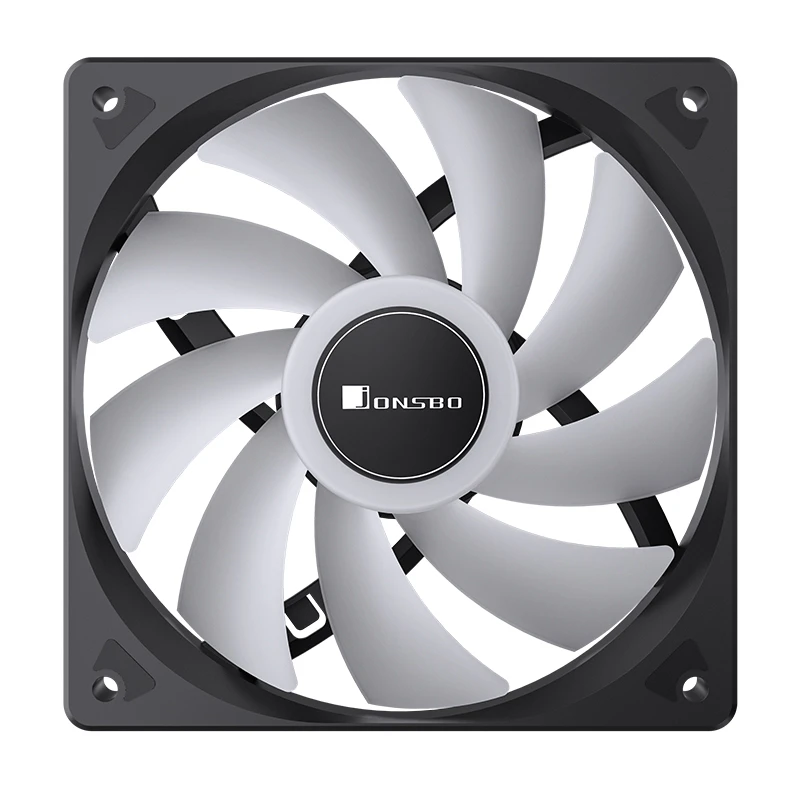

  • 2025121162465.webp

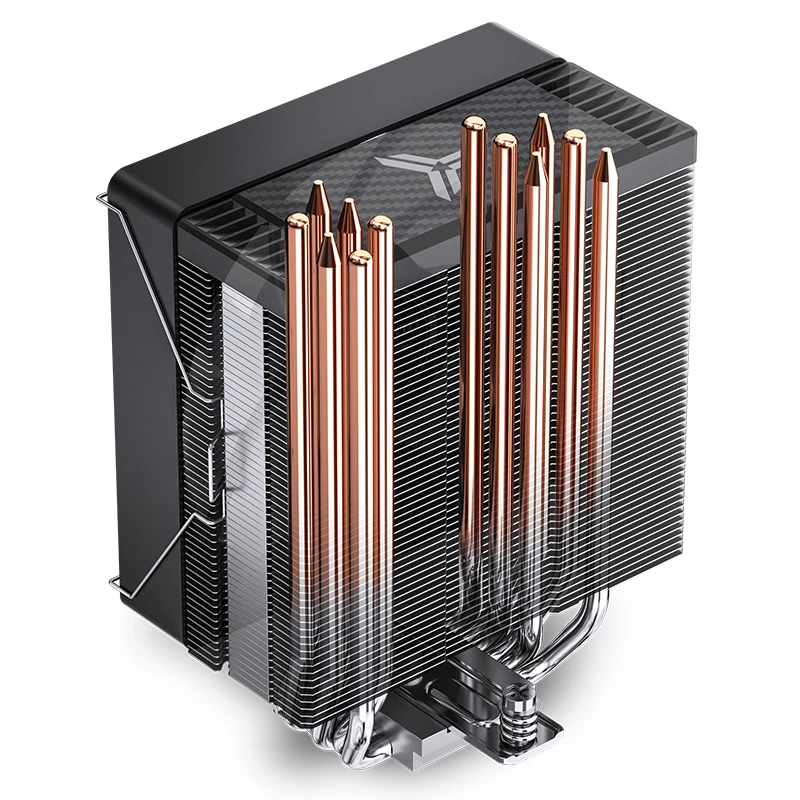

  • 2025121158273.webp

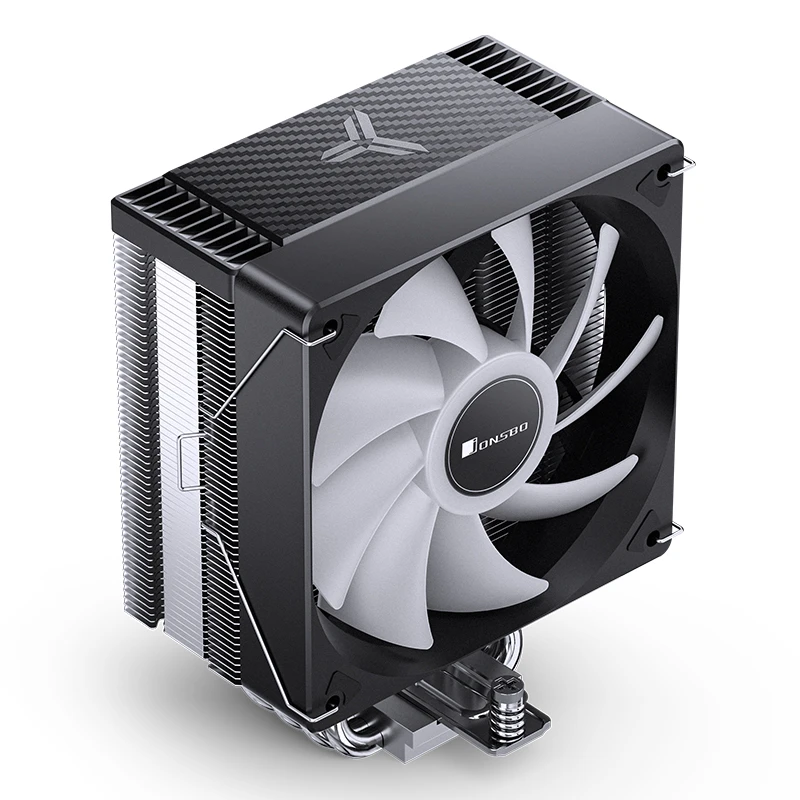

  • 2025121143032.webp

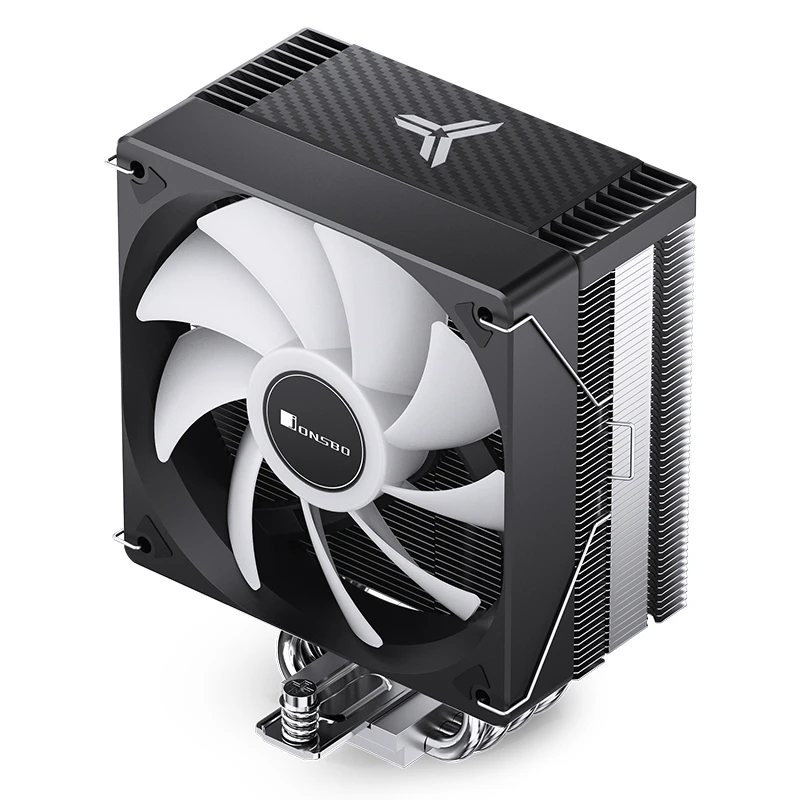

  • 2025121176885.webp

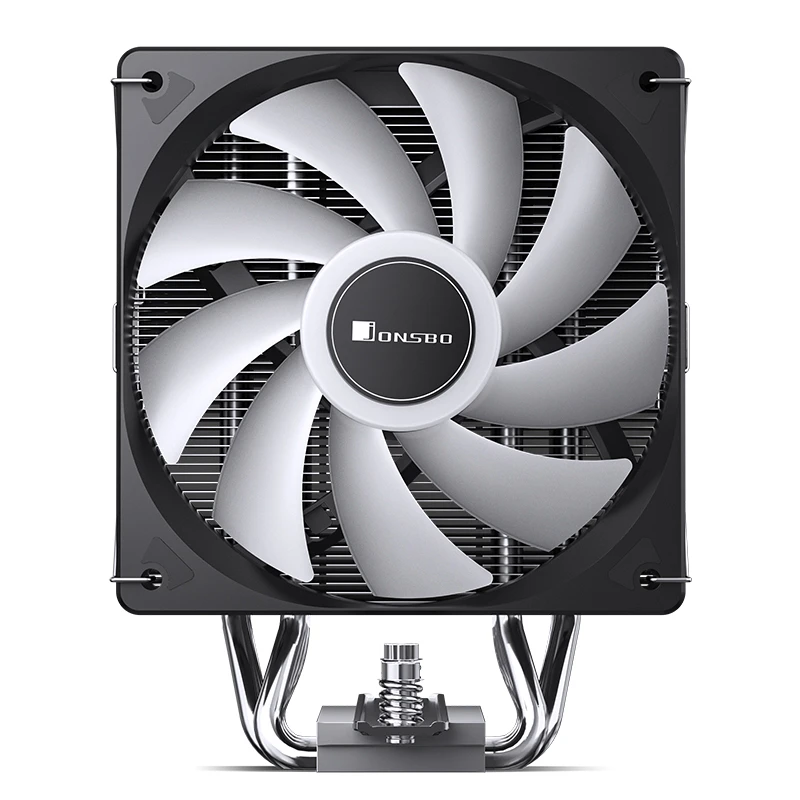

  • 2025121152864.webp

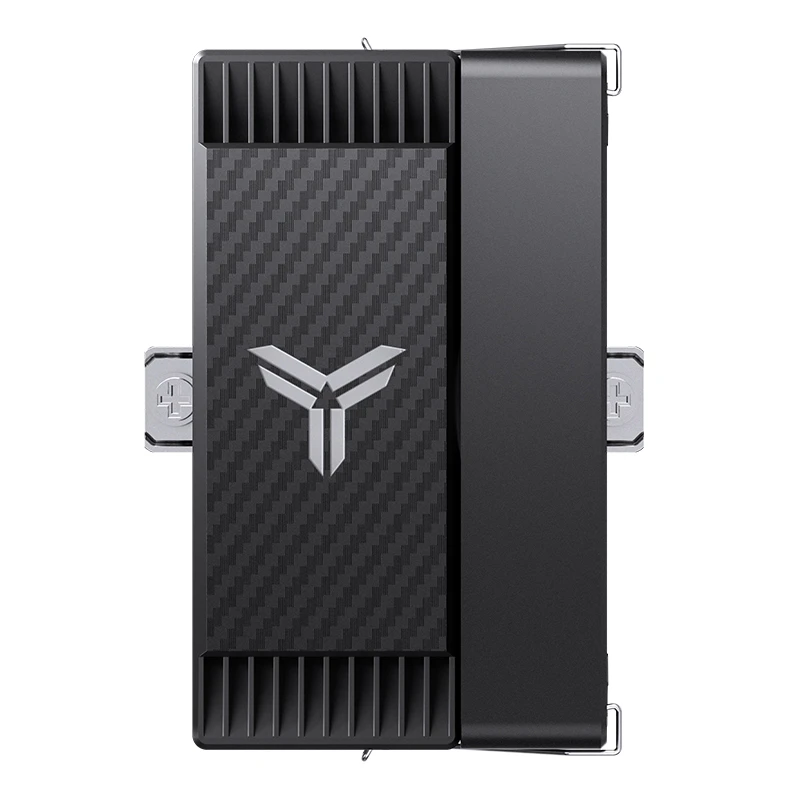

  • 2025121125312.webp

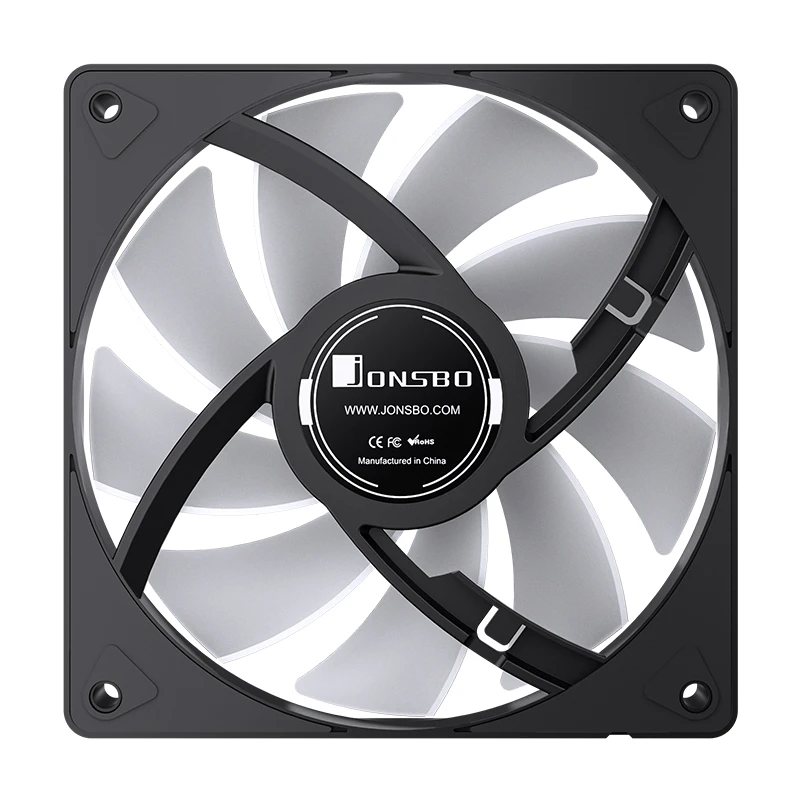

  • 2025121162160.webp
