Position：Home>Product>Air Cooling Radiator - Tower Radiator

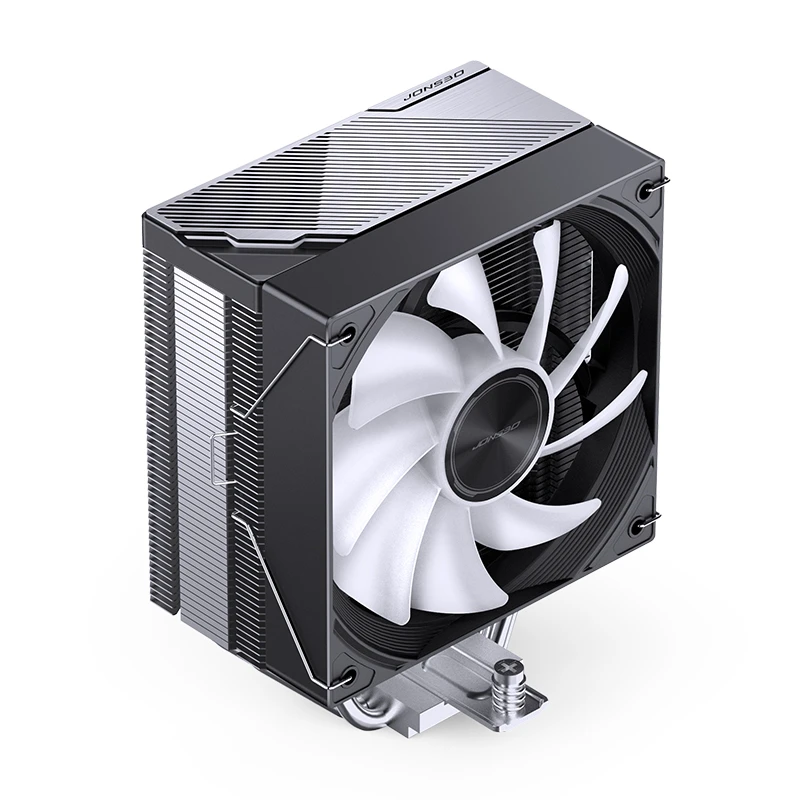

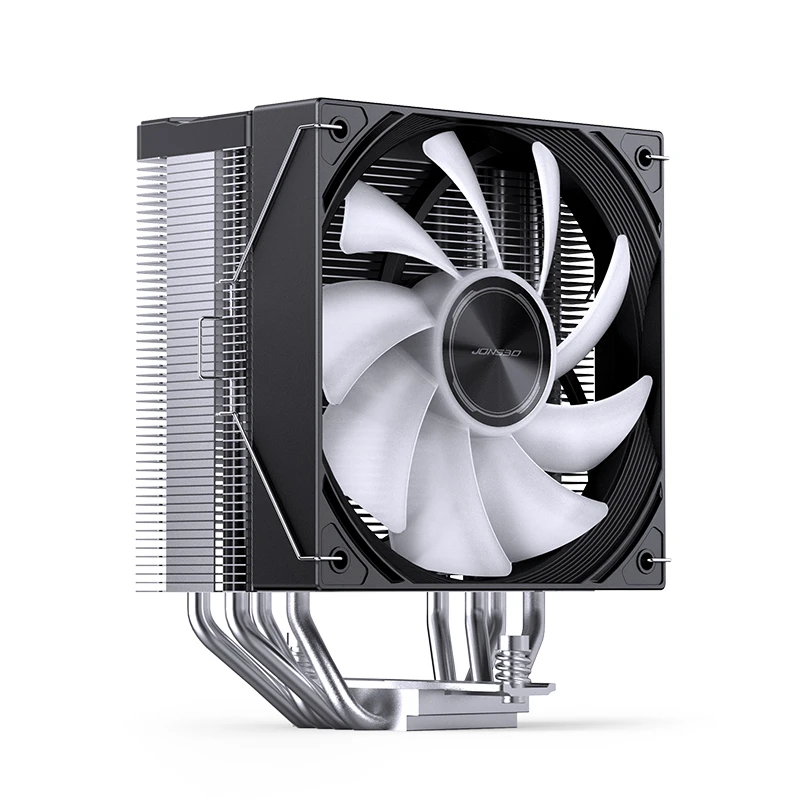

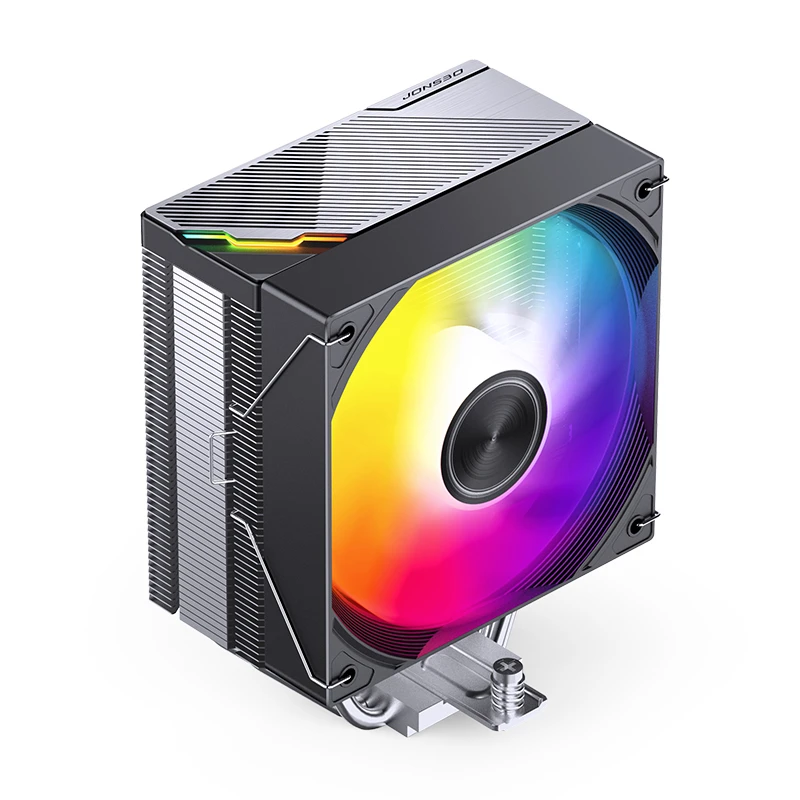

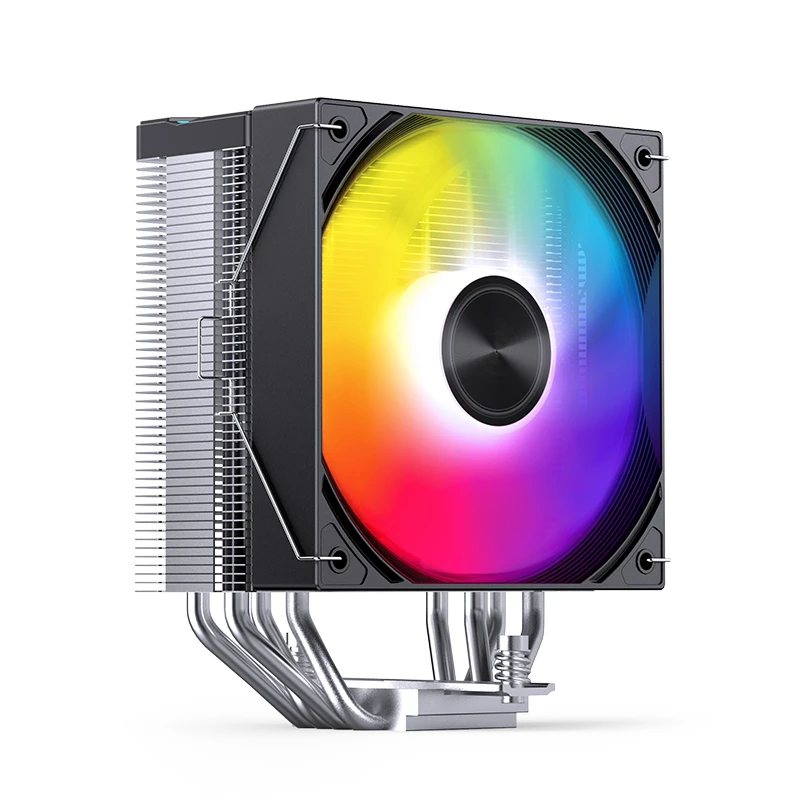

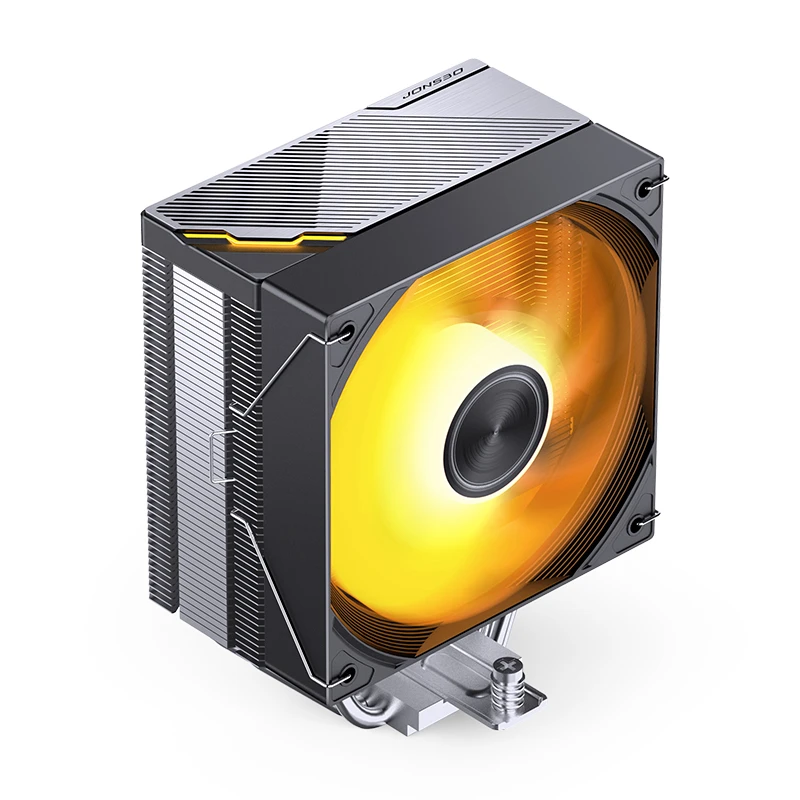

CA40 Black

Model：

CA40 Black

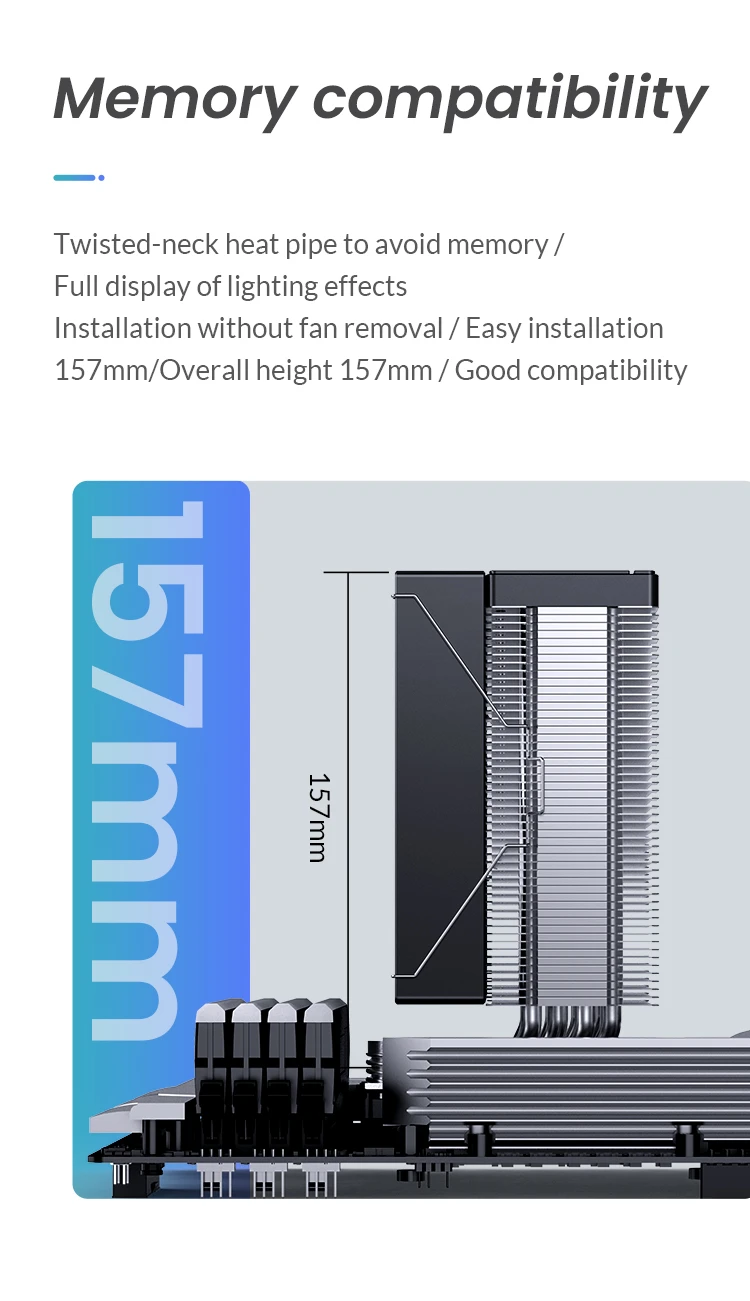

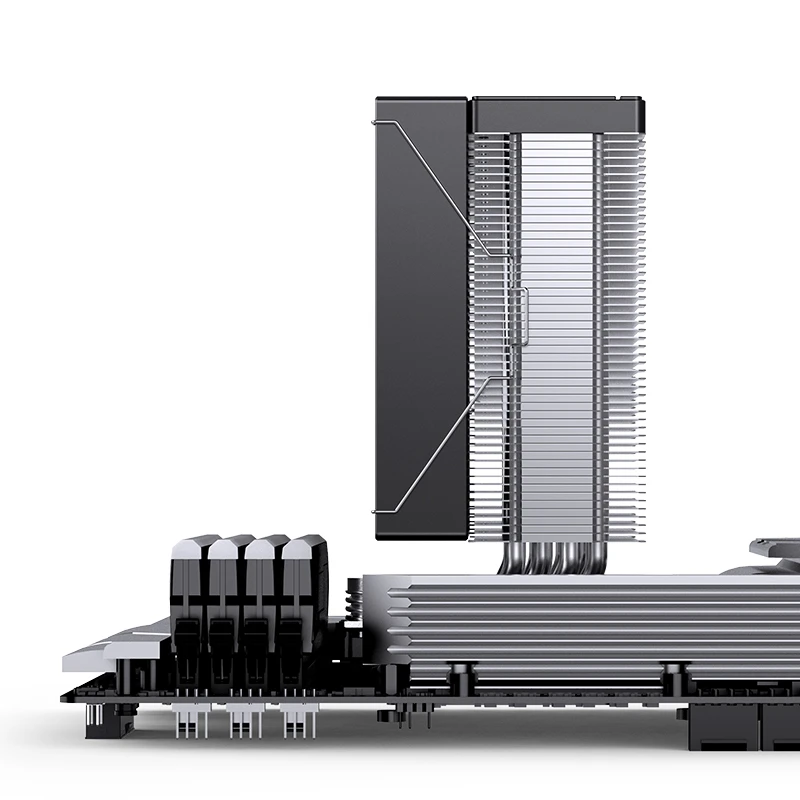

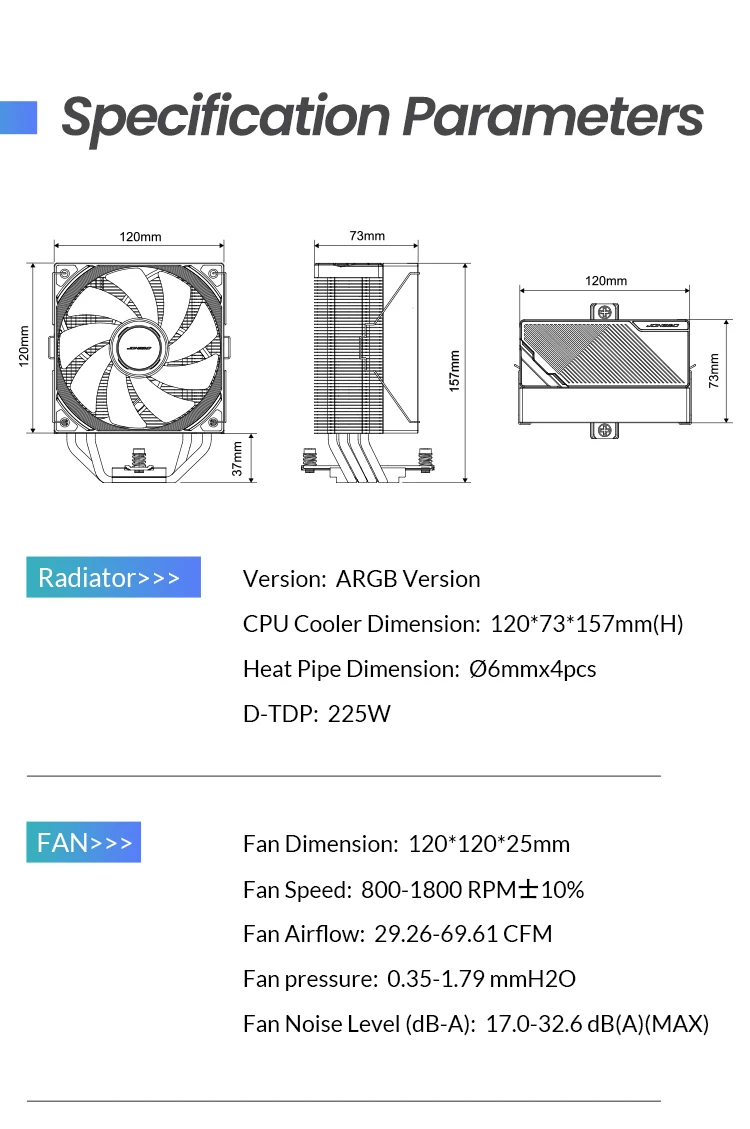

Dimensions：120

mm(L)*73mm(W)*157mm(H)

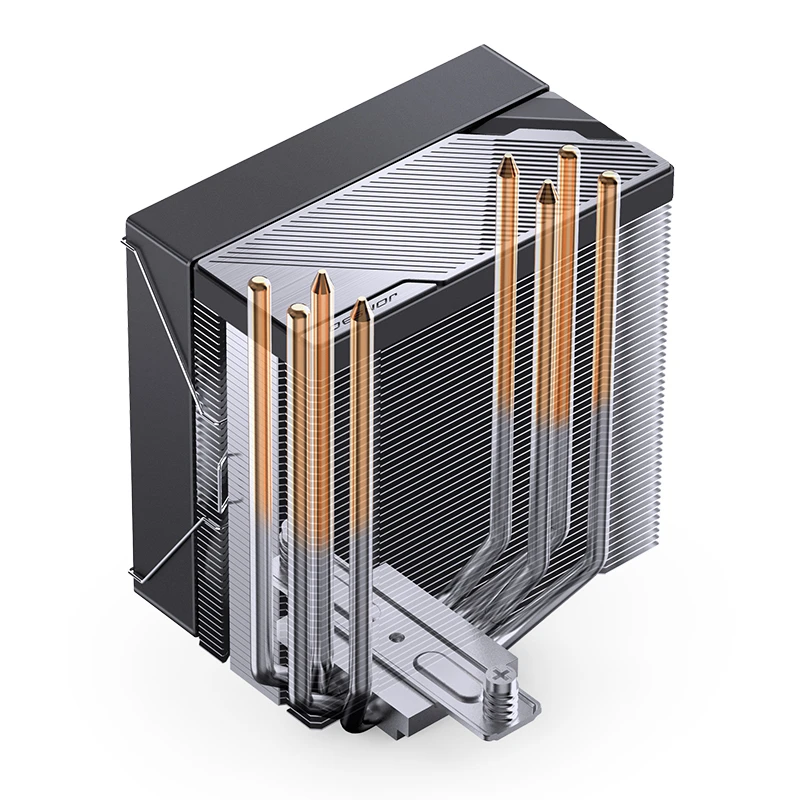

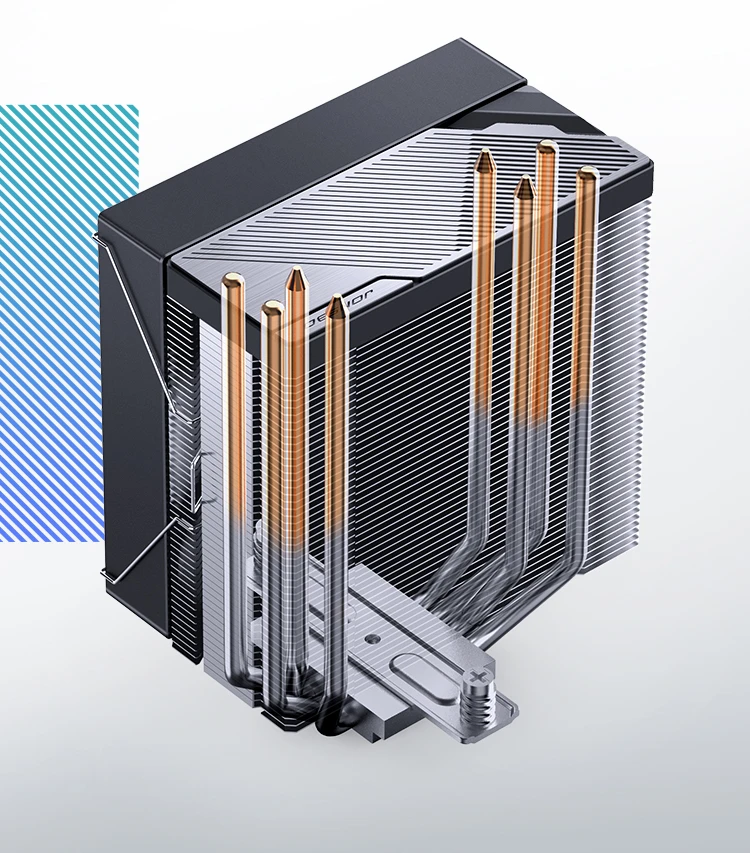

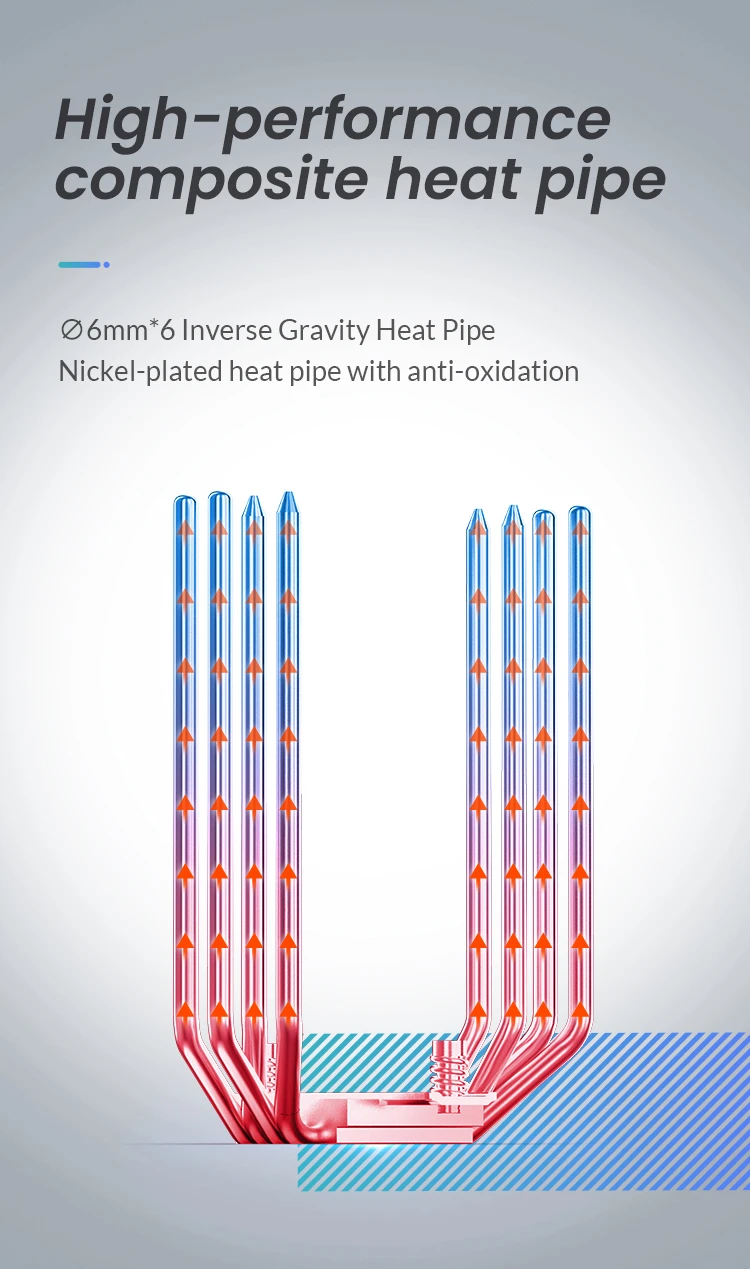

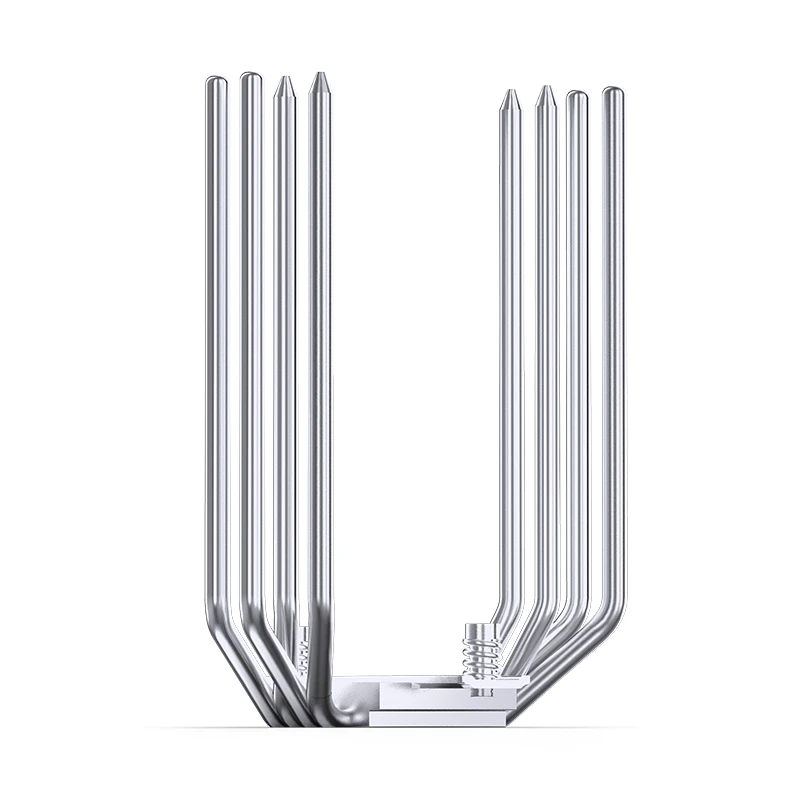

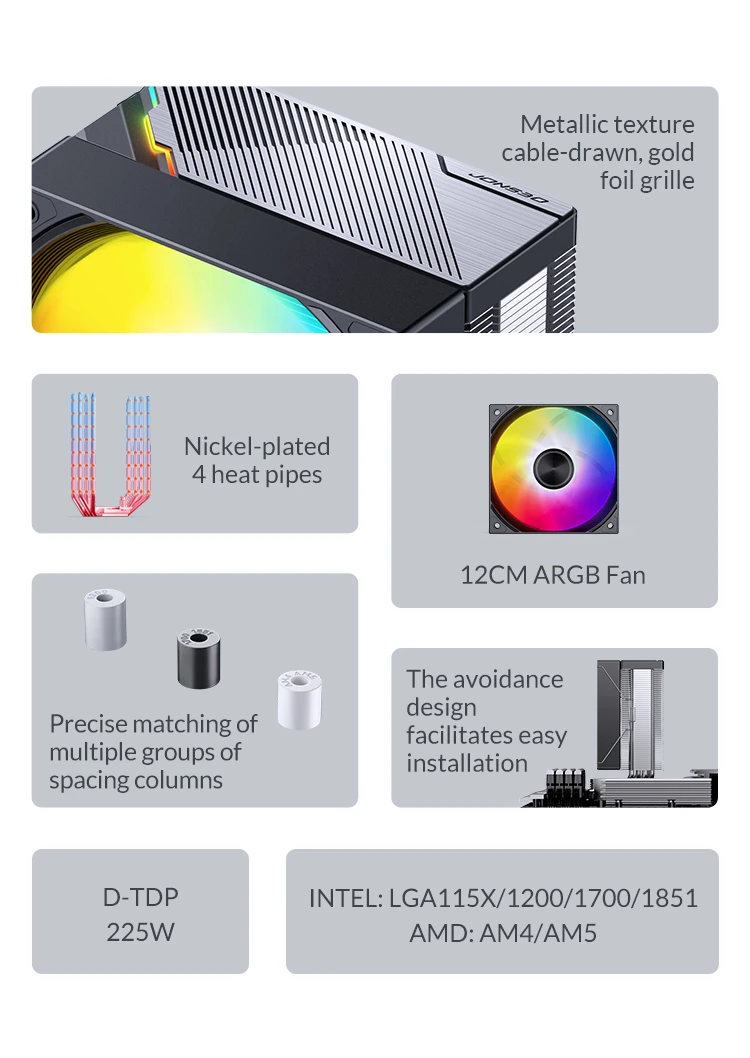

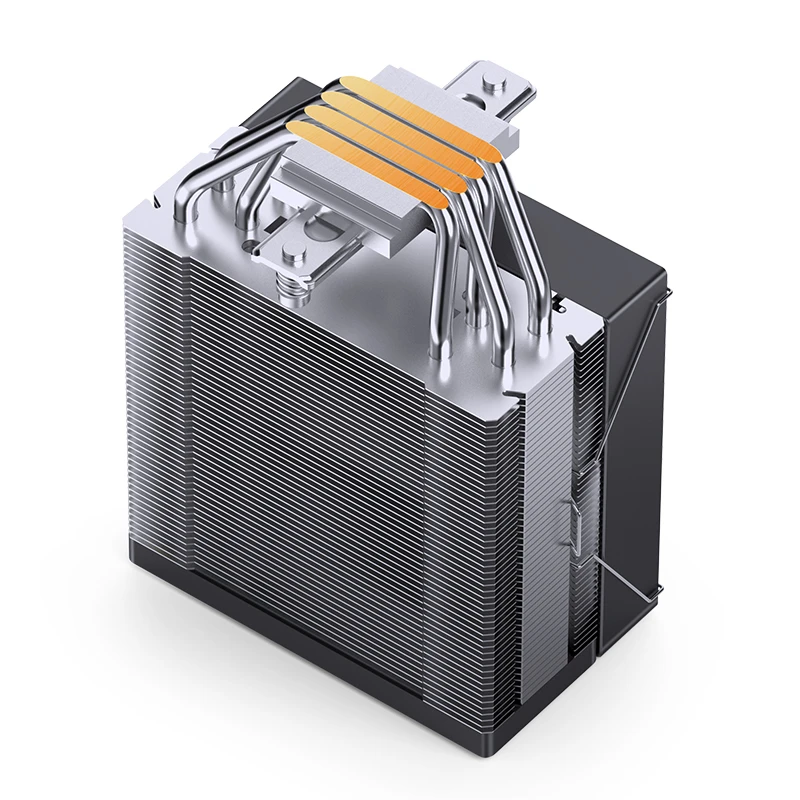

Heatpipe size：Φ6mm*4 PCS
D-TDP：225W

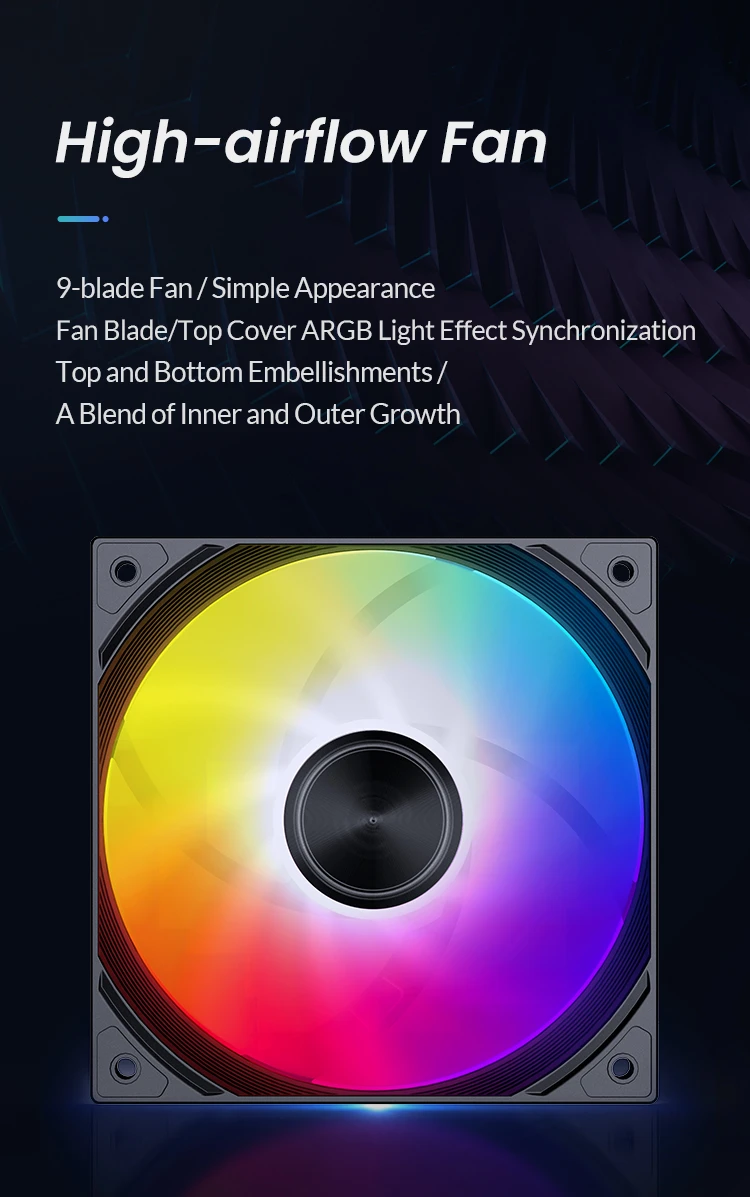

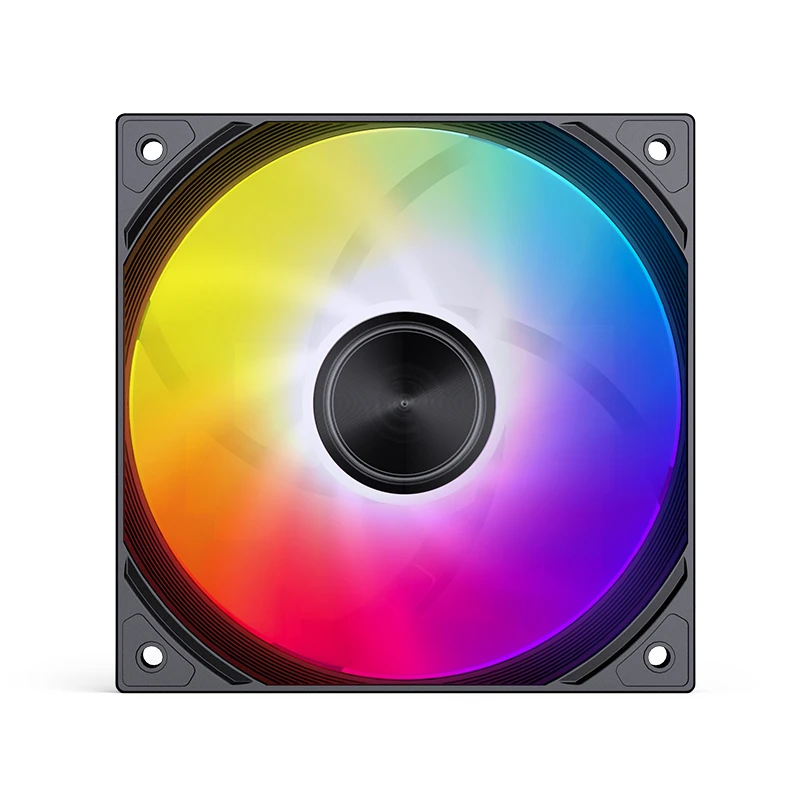

Fan Dimensions：

120mm* 120mm* 25mm

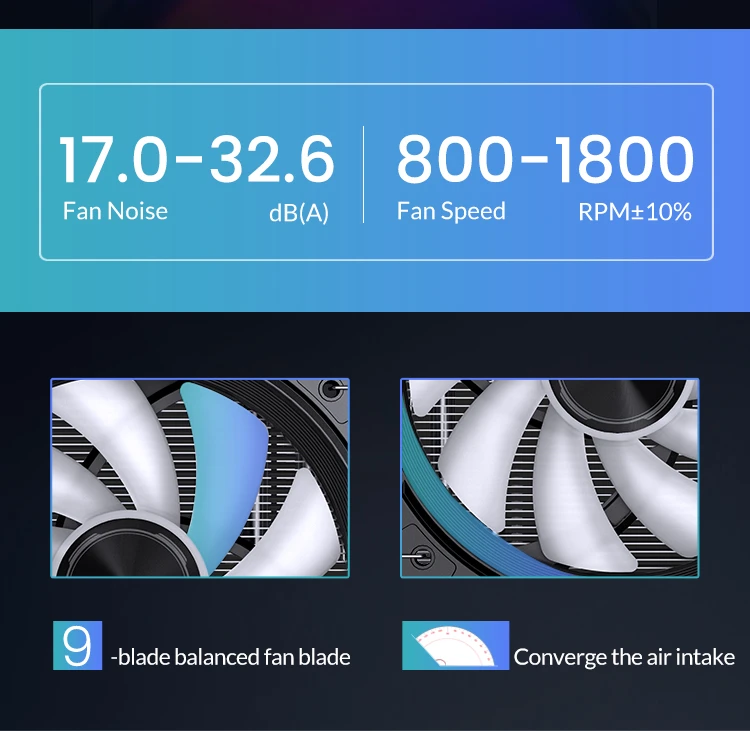

Fan Speed：800-1800

RPM(±10%)


Fan Air Flow：29.26-69.61 CFM
Fan Air Pressure：0.35-1.79 mmH2O
Fan Noise Level：17.0-32.6 dB(A)(MAX)
Fan MTTF： ≥20000h Room Temp: 25℃

Connector：FAN 4PIN   ARGB 3PIN

Rated Current： FAN  0.26A     LED  0.30A

Rated Voltage：FAN  12V         LED  5V
Power Consumption：Fan  3.12W            LED  1.5W

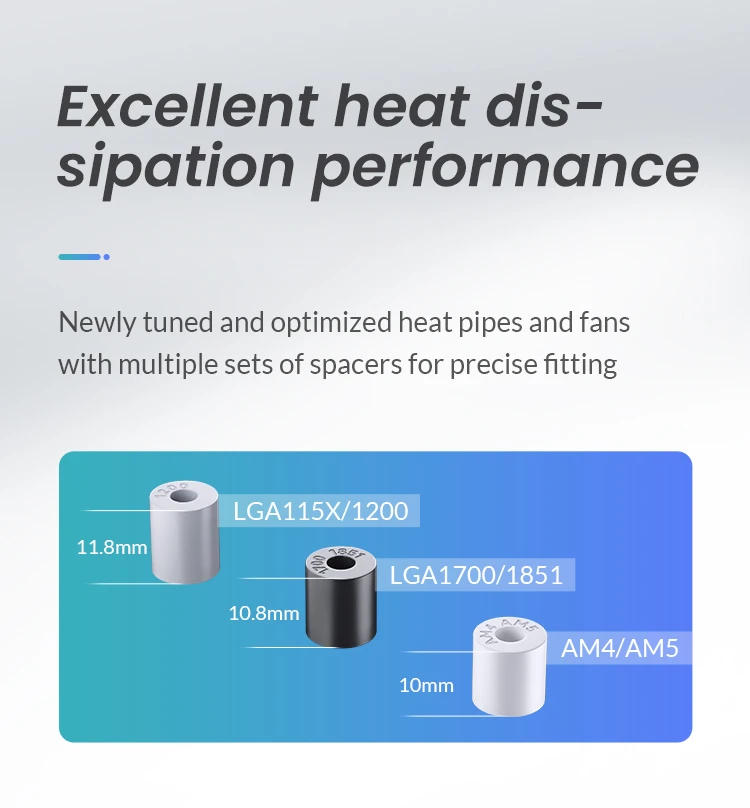

Scope of Application： INTEL: LGA 115X/1200/1700/1851        AMD: AM4/AM5
  • 2025102234040.webp

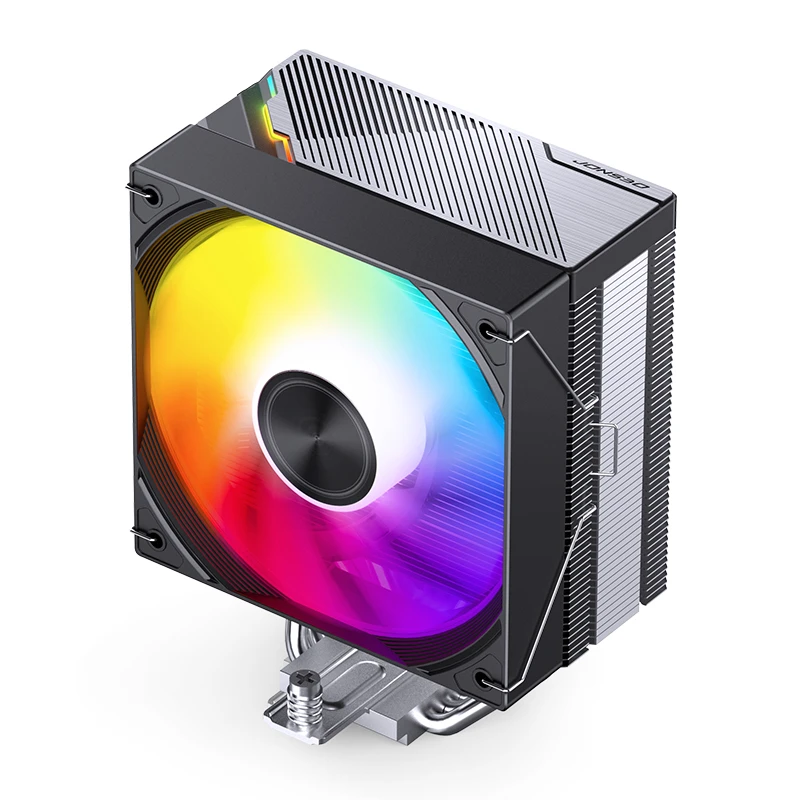

  • 2025102251510.webp
  • 2025102288379.webp
  • 2025102229239.webp
  • 2025102275389.webp

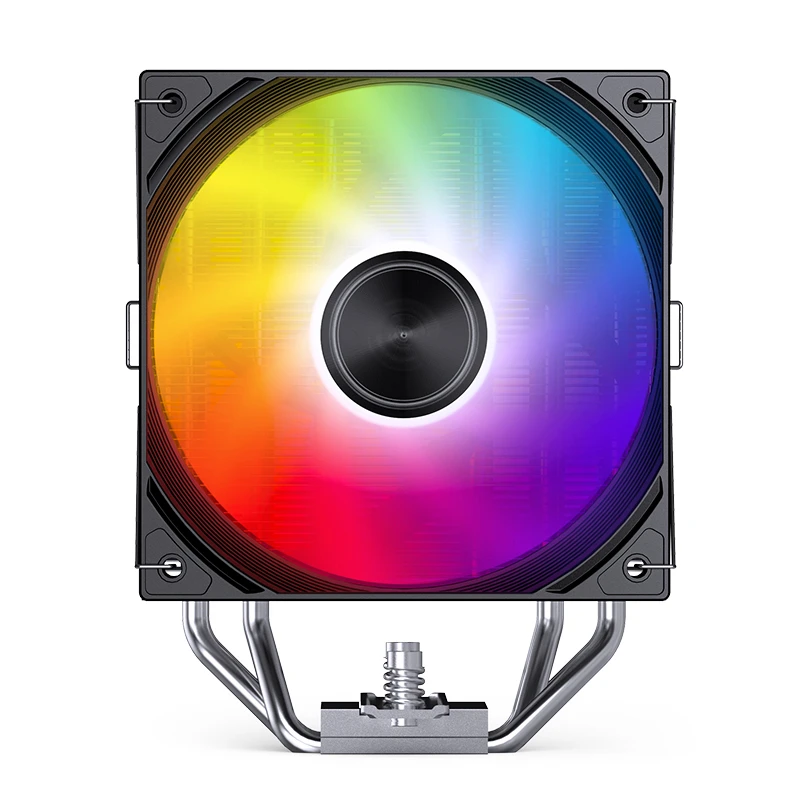

  • 2025102240745.webp
  • 2025102239922.webp
  • 2025102276684.webp
  • 2025102219012.webp
  • 2025102285074.webp
  • 2025102229050.webp
  • 2025102252129.webp
  • 2025102288101.webp
  • 2025102276764.webp
  • 2025102268034.webp
  • 2025102212011.webp
  • 2025102279957.webp

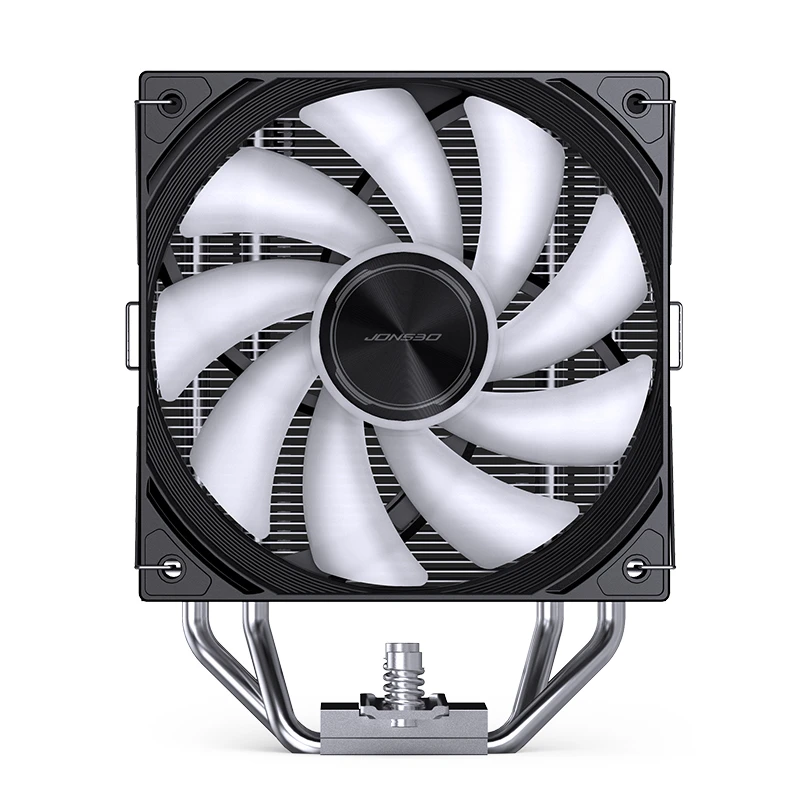

  • 2025102241709.webp
  • 2025102296471.webp
  • 2025102276524.webp
  • 2025102285130.webp
  • 2025102218209.webp
